Product Overview
The Parker D1VW010CNJW91 is a high-performance, direct-operated solenoid directional control valve from the renowned Parker D1VW series (NG06 / CETOP 3 / NFPA D03 interface). Engineered for precise control of hydraulic fluid flow direction, this 4-way, 3-position valve features a robust wet-armature solenoid design that ensures reliable shifting and long service life in demanding industrial environments. The D1VW series is globally recognized for its exceptional response times, low pressure drop, and high flow capacity relative to its compact size. This valve serves as a critical control component in hydraulic systems, directing flow to actuators, cylinders, and motors with precise electrical command signals, making it ideal for a wide range of industrial machinery and mobile equipment applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (4-Way, 3-Position) |
| Model Designation | D1VW010CNJW91 |
| Series | Parker D1VW Series (NG06 / CETOP 3 / NFPA D03) |
| Spool Configuration | 010 (Closed Center, All Ports Blocked in Neutral) |
| Actuation Type | Solenoid Actuated (Wet Armature, Spring Return) |
| Operating Pressure | Up to 350 bar (5075 psi) at P, A, B Ports; 210 bar (3045 psi) at T Port |
| Rated Flow | Up to 80 L/min (21 GPM) at 350 bar pressure drop |
| Mounting & Connection | Subplate Mounting per ISO 4401-03 / CETOP 3 / NFPA D03 Interface |
| Electrical Connection | DIN 43650 Connector (Standard Industrial Solenoid Plug) |
| Solenoid Voltage | Standard DC Voltage Options (e.g., 24V DC, 110V AC, 220V AC) |
| Seal Material | NBR (Buna-N) Standard; FKM (Viton) Optional |
Engineering Features & Advantages
- Precision Performance: The solenoid directional control valve (4-way, 3-position) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original PARKER OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 80 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
This valve serves as a critical control component in hydraulic systems, directing flow to actuators, cylinders, and motors with precise electrical command signals, making it ideal for a wide range of industrial machinery and mobile equipment applications.
PRODUCT IMAGES

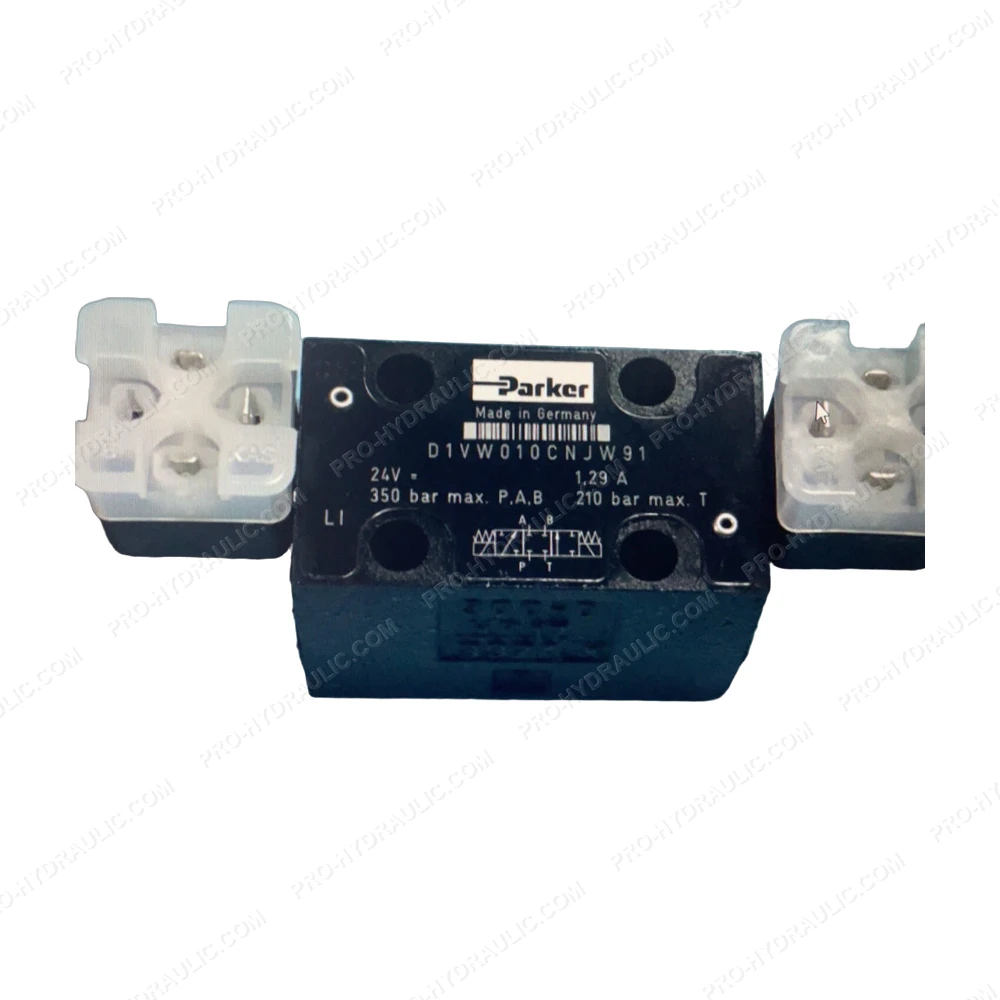

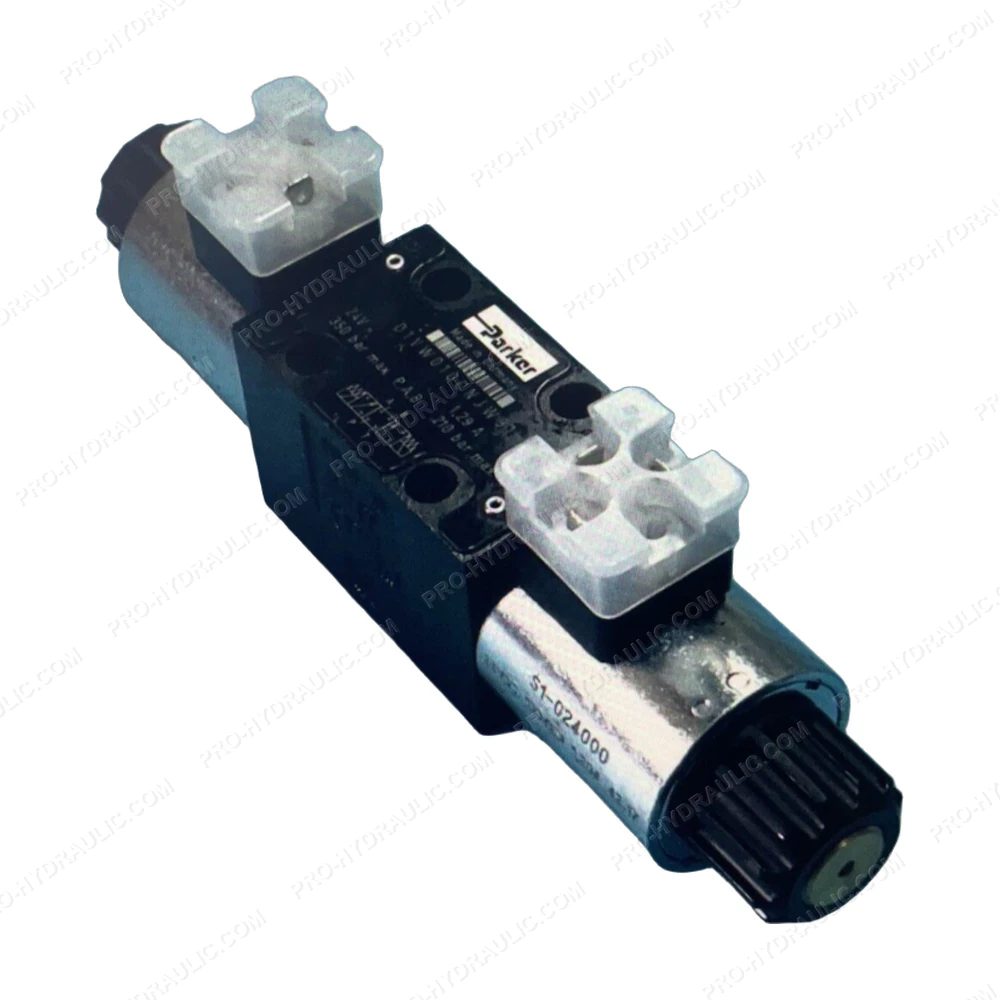

PARKER D1VW010CNJW91 Solenoid Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PARKER D1VW010CNJW91 Solenoid Directional Control Valve. This Germany-made 24V DC hydraulic component features a reliable spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
