Product Overview
The Parker D1VW020BNJDLJ591 is a high-performance, direct-operated solenoid directional control valve from the renowned Parker D1VW series. Engineered for precise control of hydraulic fluid flow direction, this 4-way, 3-position valve features a robust spool design that ensures reliable switching and leak-free operation in demanding industrial environments. The D1VW series is globally recognized for its exceptional durability, fast response times, and compatibility with a wide range of hydraulic fluids. This model is specifically configured with a 20 L/min nominal flow rating and a spring-centered, tandem spool type, making it ideal for applications requiring accurate actuator positioning and safe neutral-state conditions. As a critical component in modern hydraulic systems, the D1VW020BNJDLJ591 provides the control authority necessary for complex machinery sequencing, pressure holding, and directional motion control.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve |
| Model Designation | D1VW020BNJDLJ591 |
| Series | Parker D1VW (Direct Operated) |
| Operating Pressure | Up to 350 bar (5075 psi) at P, A, B ports; 210 bar at T port |
| Nominal Flow Rate | 20 L/min (5.3 GPM) |
| Configuration | 4-way, 3-position (4/3) |
| Spool Type | Tandem Center (Closed Center Option Available) |
| Actuation | Solenoid Actuated, Spring Centered / Spring Offset |
| Mounting & Connection | Subplate Mounting, ISO 4401-03 (CETOP 3 / NFPA D03) |
| Electrical Connection | DIN 43650 Connector (Standard) |
| Seal Material | NBR (Buna-N) / FKM (Viton) Options |
Engineering Features & Advantages
- Precision Performance: The integrated solenoid Actuated, Spring Centered / Spring Offset ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original PARKER standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
As a critical component in modern hydraulic systems, the D1VW020BNJDLJ591 provides the control authority necessary for complex machinery sequencing, pressure holding, and directional motion control.
PRODUCT IMAGES

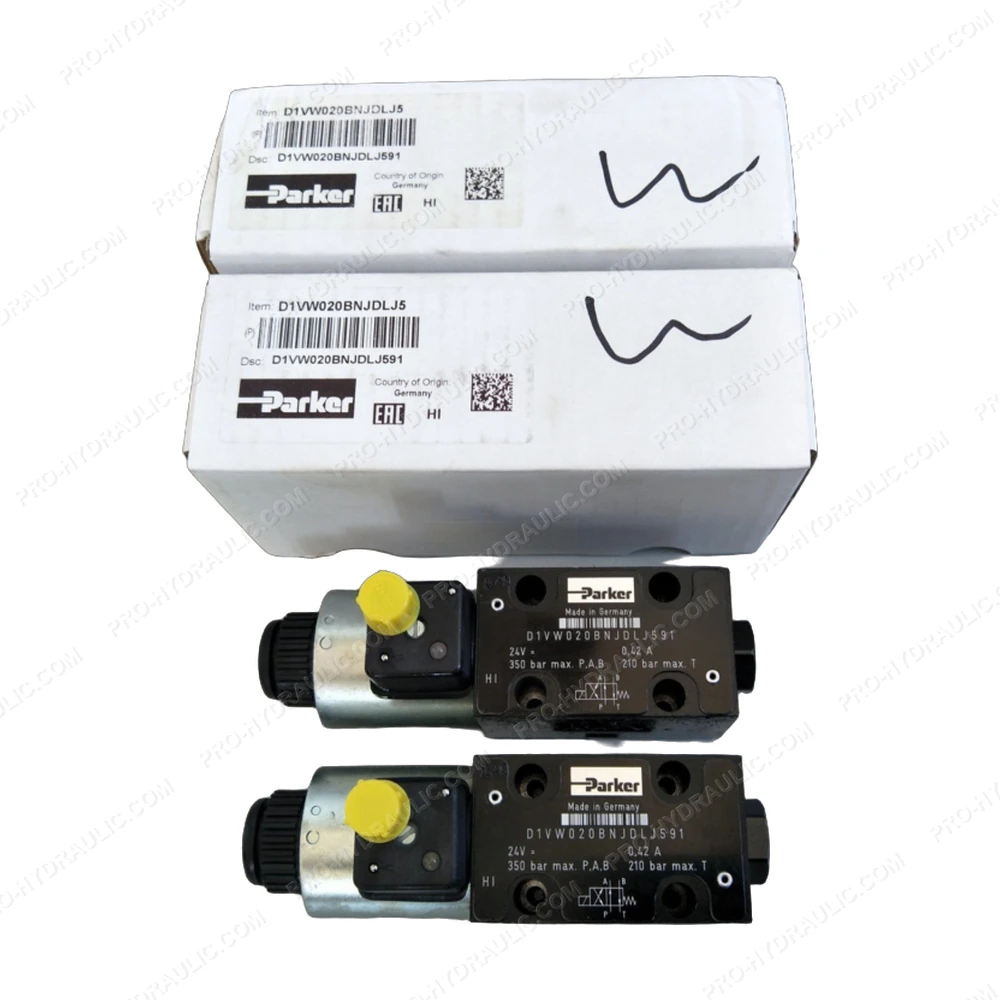

PARKER D1VW020BNJDLJ591 Solenoid Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PARKER D1VW020BNJDLJ591 Solenoid Directional Control Valve. This US-made hydraulic component features a reliable spool design, delivering leak-free, precise fluid control for heavy-duty industrial systems.
