Product Overview
The Parker D1VW020BVJW91 is a solenoid-operated, direct-acting directional control valve from the proven Parker D1VW series (NFPA D03 / CETOP 3 / NG6 interface). It is designed to control the start, stop, and direction of hydraulic fluid flow in industrial power circuits. The valve uses a hardened, precision-ground spool that shifts within a close-tolerance bore to route flow between the pressure, tank, and cylinder ports. With a nominal flow capacity of approximately 20 L/min (020 designation), this 4-way, 3-position valve is a compact, high-cycle-rate control component suitable for manifold or subplate mounting in a wide range of industrial hydraulic systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve (4-Way, 3-Position) |
| Model Designation | D1VW020BVJW91 |
| Manufacturer | Parker Hannifin |
| Mounting Interface | CETOP 3 / NFPA D03 / NG6 Subplate or Manifold Mounting |
| Nominal Flow Capacity | Approx. 20 L/min (Size 020) |
| Operating Pressure | Up to 350 bar (ports P, A, B); 210 bar max at port T |
| Actuation | Wet-pin AC/DC Solenoid, Spring Centered / Spring Offset |
| Spool Configuration | 4-Way, 3-Position, Closed Center (per D1VW spool code) |
| Seal Material | NBR (Buna-N) / FKM options per model suffix |
| Fluid Compatibility | Mineral-based hydraulic oil, phosphate esters (with compatible seals) |
| Fluid Temperature Range | -20 °C to +70 °C (standard NBR seals) |
| Filtration Requirement | ISO 4406 cleanliness class 18/16/13 or better recommended |
Engineering Features & Advantages
- Precision Performance: The integrated wet-pin AC/DC Solenoid, Spring Centered / Spring Offset ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original PARKER standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 20 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
With a nominal flow capacity of approximately 20 L/min (020 designation), this 4-way, 3-position valve is a compact, high-cycle-rate control component suitable for manifold or subplate mounting in a wide range of industrial hydraulic systems.
PRODUCT IMAGES

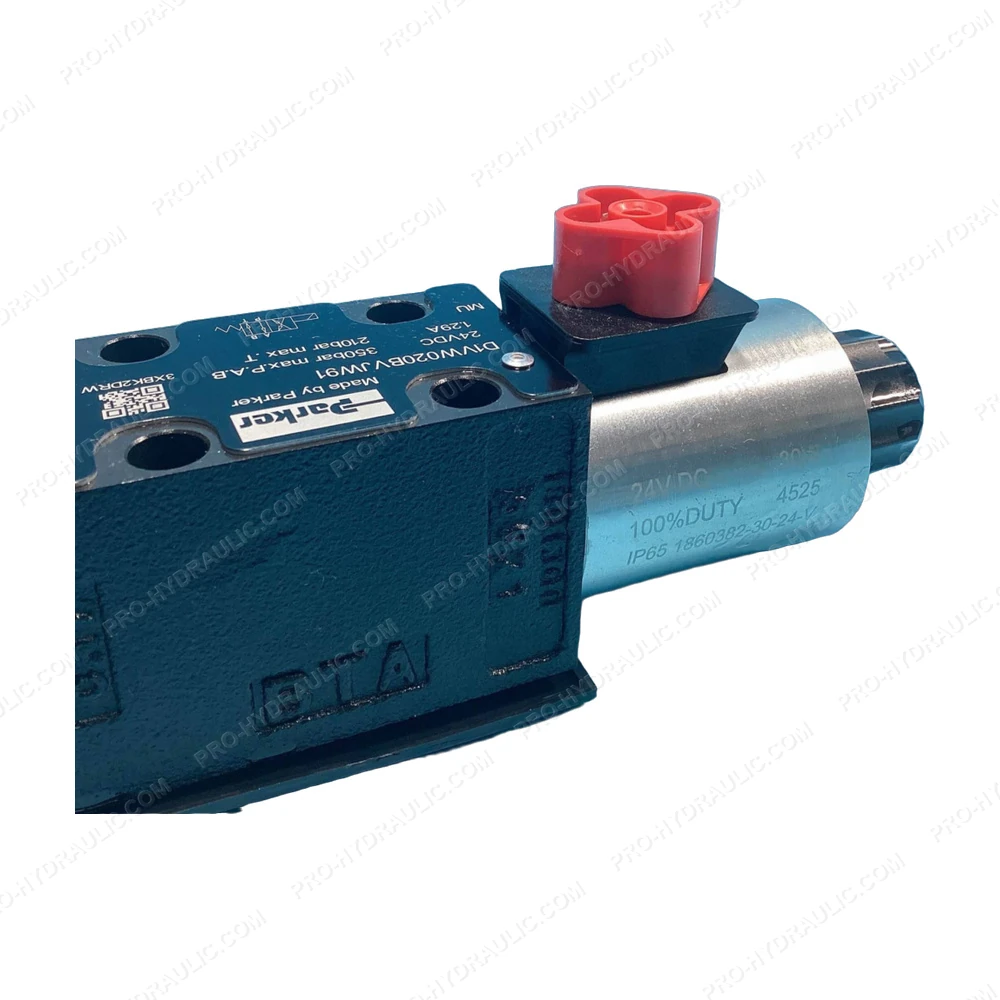

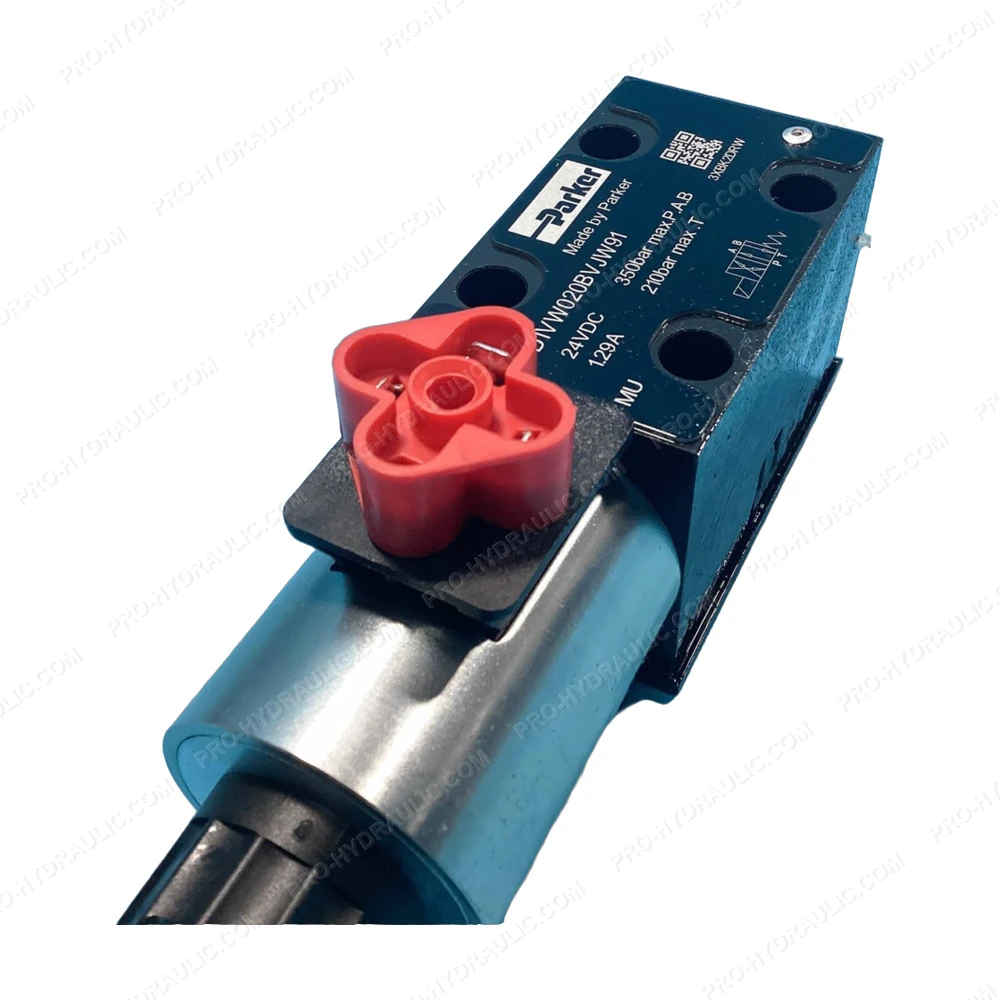

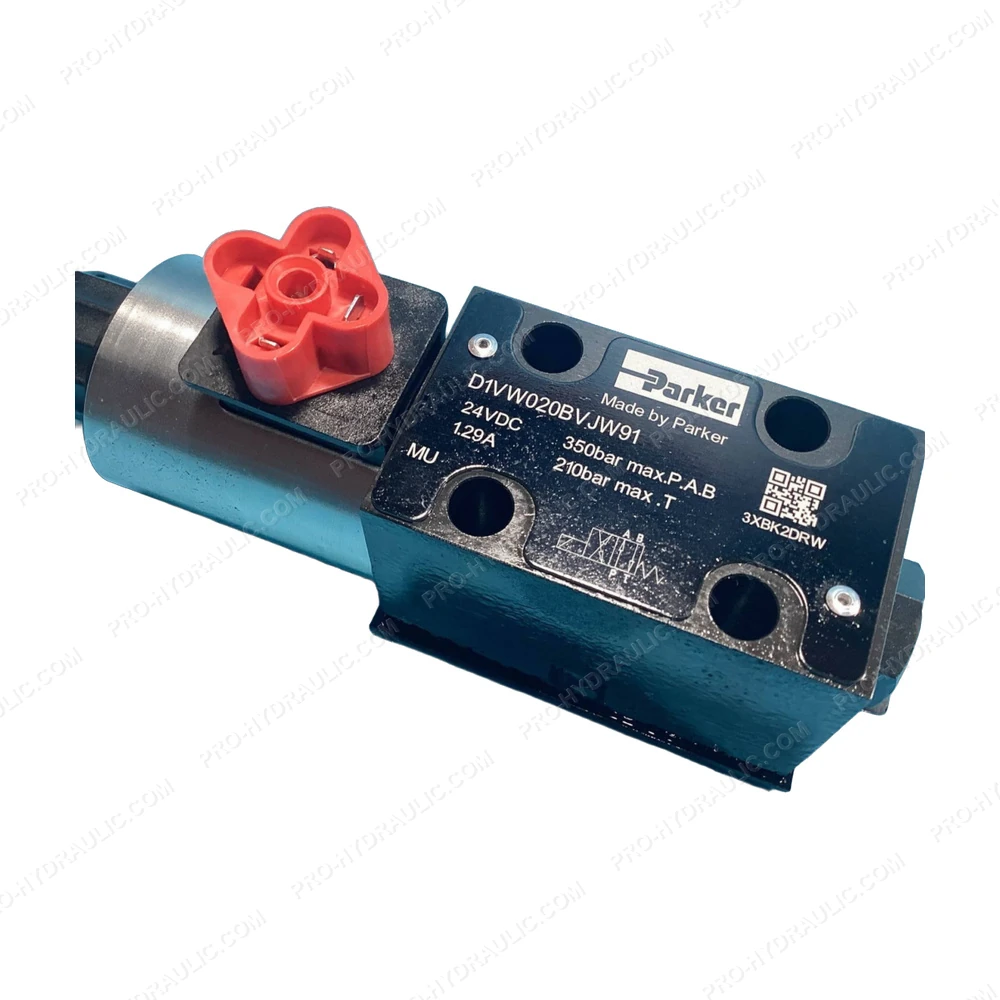

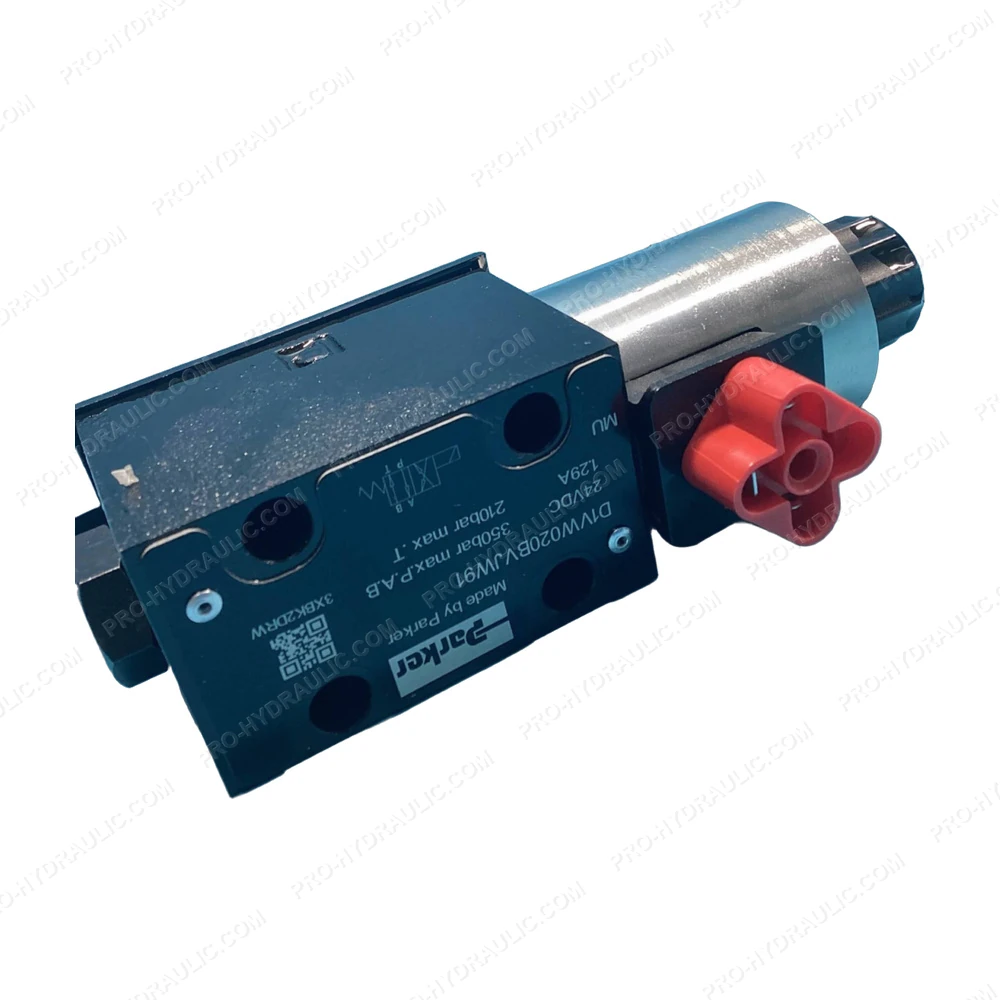

PARKER D1VW020BVJW91 Solenoid Operated Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PARKER D1VW020BVJW91 Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a reliable spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
