Product Overview
The Parker D1VW020HNJWI1N92 is a solenoid-operated, direct-actuated directional control valve from the Parker D1VW series, engineered for precise control of hydraulic fluid flow direction in industrial power units and machine circuits. Utilizing a hardened, precision-ground spool within a high-strength cast iron body, this 4-way, 3-position (4/3) valve directs pressurized flow to the selected actuator port while returning exhaust fluid to tank. The D1VW platform is recognized for fast, repeatable spool shifting, low pressure drop, and long service life, making it a standard choice for demanding industrial hydraulic systems requiring dependable directional control.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve (4-Way, 3-Position) |
| Model Designation | D1VW020HNJWI1N92 |
| Series / Platform | Parker D1VW Series (NFPA D03 / CETOP 3 / ISO 4401-03 Size) |
| Actuation | Dual Wet-Armature Solenoid, Spring-Centered |
| Spool Configuration | 4-Way, 3-Position, Tandem / Closed-Center Spool |
| Operating Pressure | Up to 350 bar (5,000 psi) rated working pressure |
| Rated Flow | Approx. 20 L/min nominal (Size 02 spool) |
| Mounting & Connection | Subplate Mounting per ISO 4401-03 / CETOP 3 / NFPA D03 |
| Electrical Connection | DIN 43650 / ISO 4400 Plug Connector |
| Seal Material | NBR (Buna-N) Standard Industrial Seals |
Engineering Features & Advantages
- Precision Spool Metering: Hardened, precision-ground spool and sleeve assembly delivers accurate flow metering, minimal internal leakage, and consistent shift response across the full pressure range.
- Fast Solenoid Response: Wet-armature solenoid design provides rapid, repeatable actuation with high force-to-size ratio and reduced wear on moving components.
- Low Pressure Drop: Optimized internal flow passages minimize pressure loss, improving system efficiency and reducing heat generation in continuous-duty circuits.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original PARKER standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The D1VW platform is recognized for fast, repeatable spool shifting, low pressure drop, and long service life, making it a standard choice for demanding industrial hydraulic systems requiring dependable directional control.
PRODUCT IMAGES

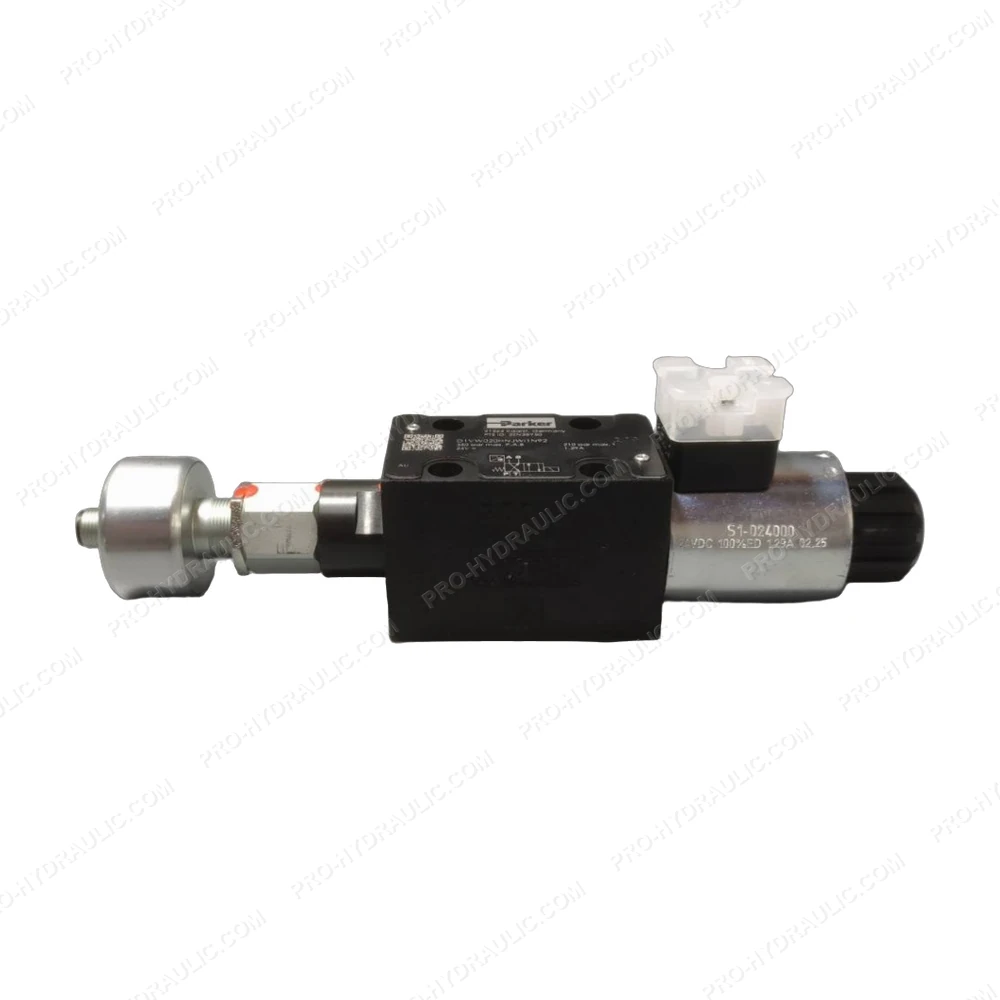

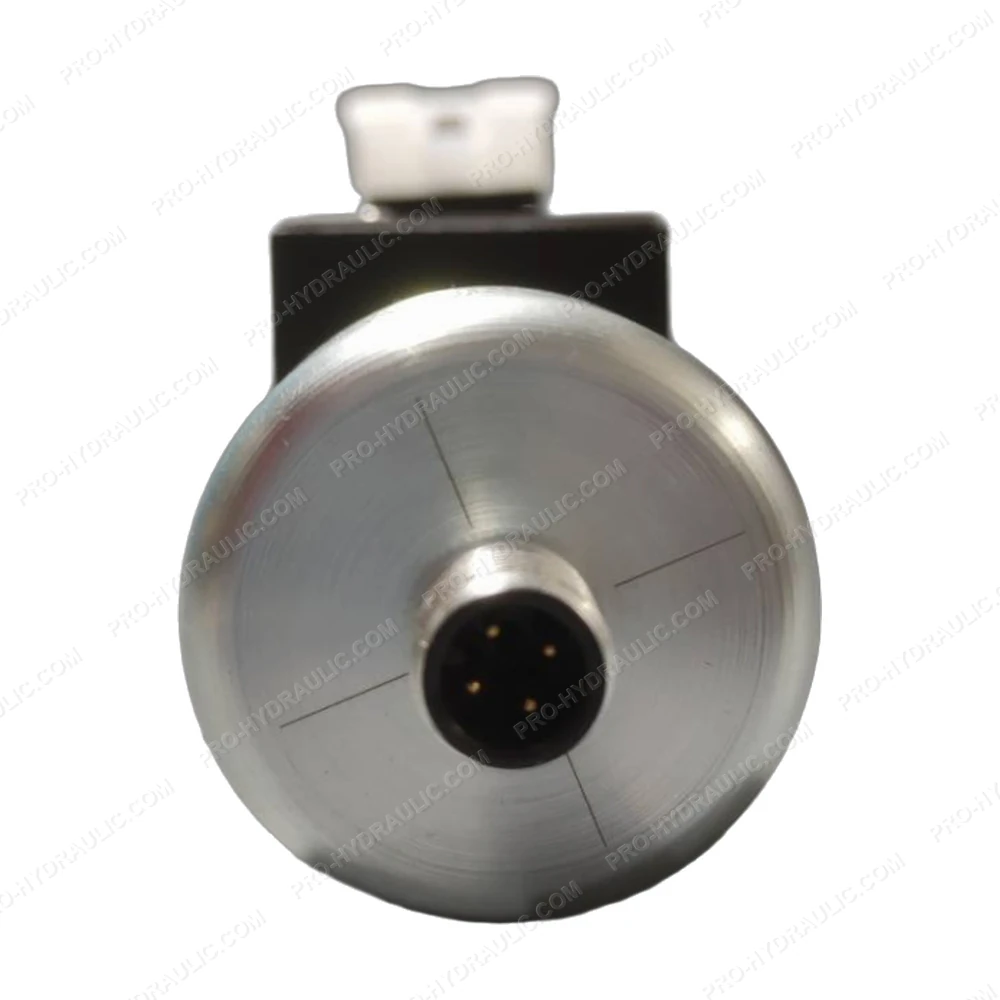

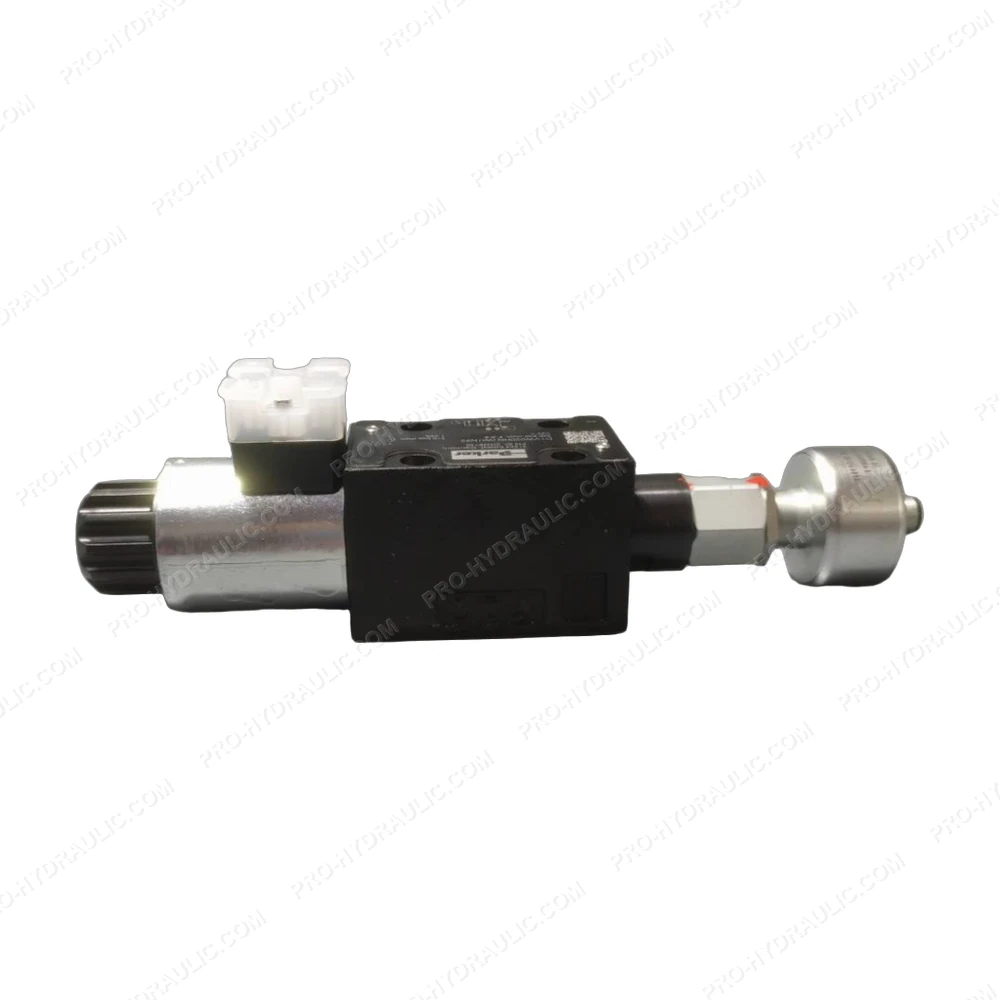

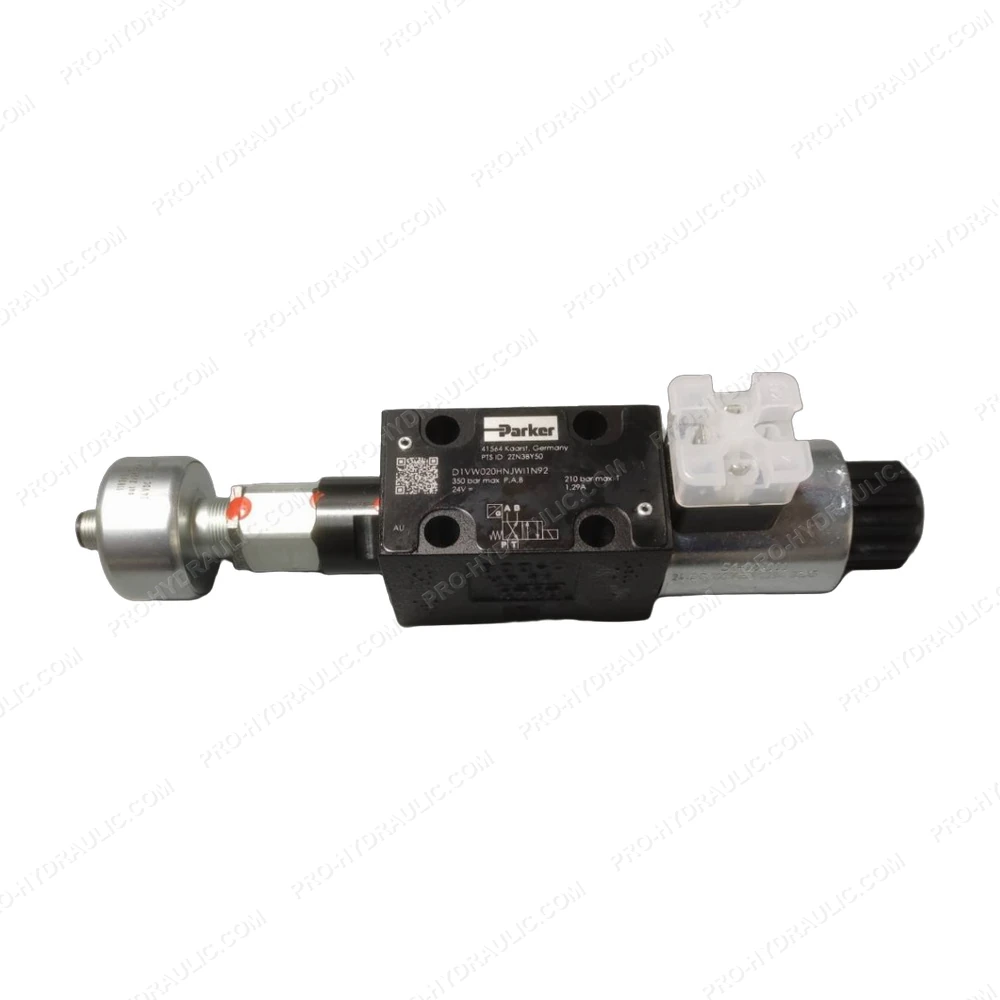

PARKER D1VW020HNJWI1N92 Solenoid Operated Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PARKER D1VW020HNJWI1N92 Solenoid Directional Control Valve. This Germany-made hydraulic component features a robust spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
