The PARKER D1VW030BNGW91 is a heavy-duty industrial directional control valve engineered for precise hydraulic flow management in demanding circuits. As part of the Parker D1VW series, this NG06 (CETOP 3 / ISO 4401-03) solenoid-operated valve features a robust wet-pin armature design and a hardened, precision-ground spool that ensures minimal leakage and long service life under continuous operation.
PARKER D1VW030BNGW91 Technical Specifications
| Manufacturer | Parker Hannifin |
| Series | D1VW |
| Model | D1VW030BNGW91 |
| Valve Type | Solenoid-operated directional control valve |
| Size | NG06 (CETOP 3 / ISO 4401-03) |
| Spool Type | Closed center (B) |
| Actuation | Wet-pin solenoid, single or dual coil |
| Mounting | Subplate, ISO 4401-03-02-0-05 |
| Max Operating Pressure | 350 bar (5075 psi) |
| Max Flow Rate | 80 L/min (21 gpm) |
| Fluid Temperature Range | -20 °C to +70 °C |
| Viscosity Range | 2.8 to 380 cSt |
| Filtration | ISO 4406 20/18/15 or better |
| Electrical Connection | DIN 43650 connector |
| Coil Voltage Options | 12 VDC, 24 VDC, 110 VAC, 230 VAC |
| Seal Material | NBR (Buna-N) |
| Body Material | Cast iron |
Key Engineering Features
- Wet-pin solenoid armature design eliminates dynamic seals, reducing wear and extending service intervals.
- Hardened, precision-ground spool and sleeve assembly ensures low internal leakage and consistent response.
- High-strength cast iron body withstands severe industrial environments and pressure spikes.
- Standard ISO 4401-03 mounting interface allows direct drop-in replacement and simplified manifold integration.
- Available with multiple spool configurations and coil voltages for application-specific flexibility.
- Manual override option provides emergency actuation without electrical power.
Industrial Applications
- Hydraulic power units and central lubrication systems
- Machine tool clamping and positioning circuits
- Presses, injection molding machines, and die-casting equipment
- Material handling and lifting equipment
- Mobile and industrial hydraulic manifolds requiring CETOP 3 directional control
- Automated production lines with high-cycle actuation demands
For technical inquiries, dimensional drawings, or replacement support for PARKER D1VW030BNGW91, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

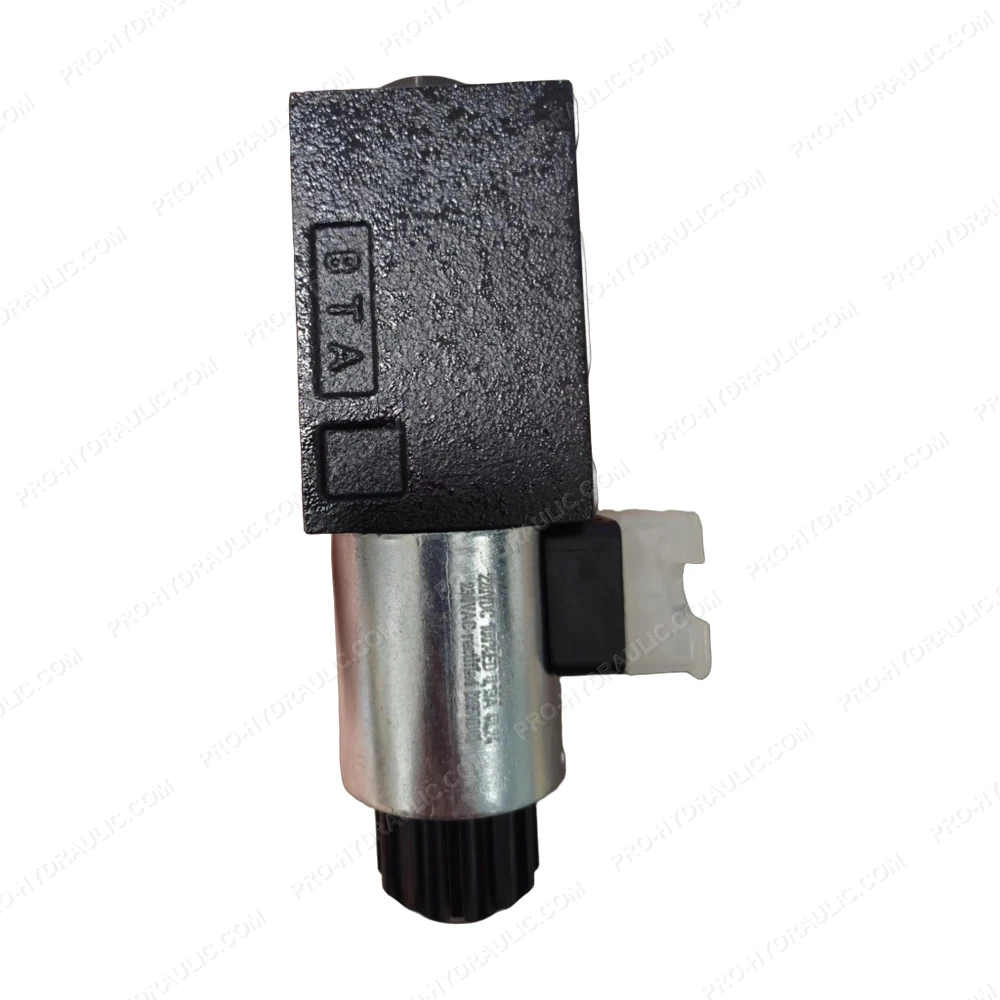

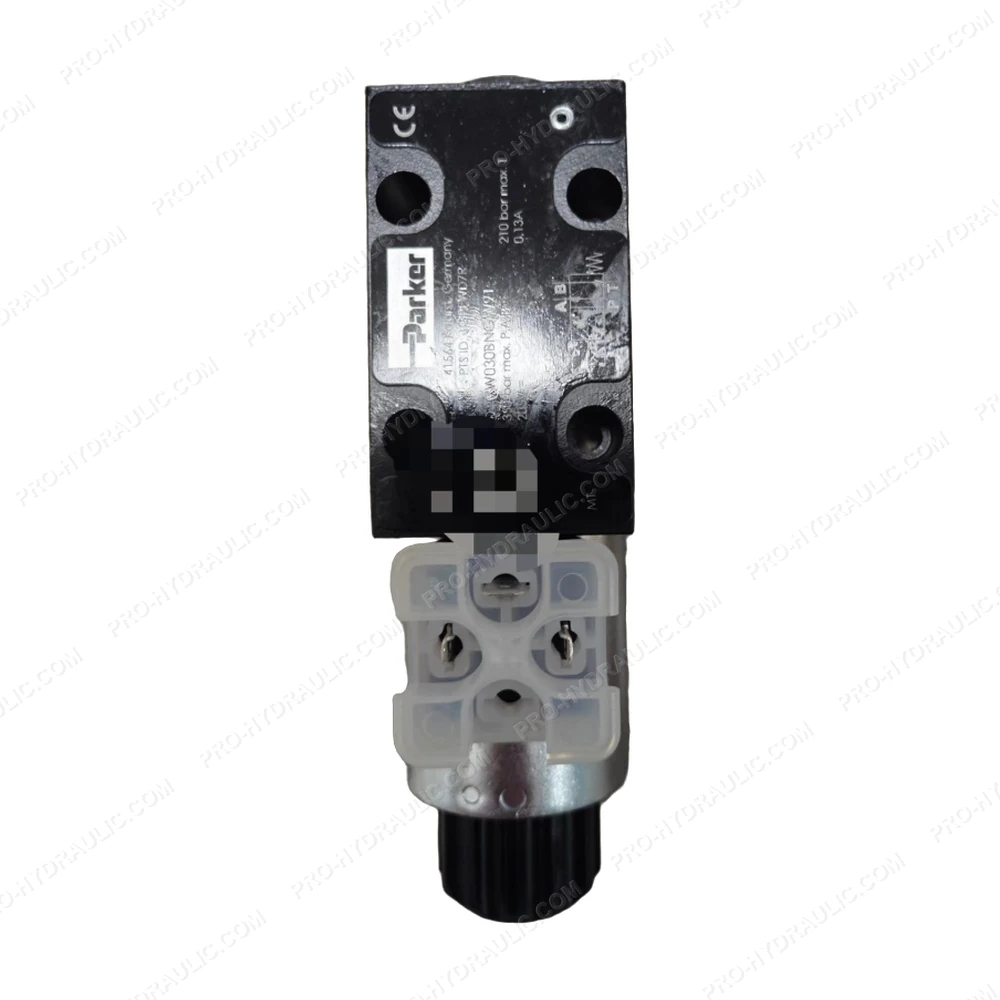

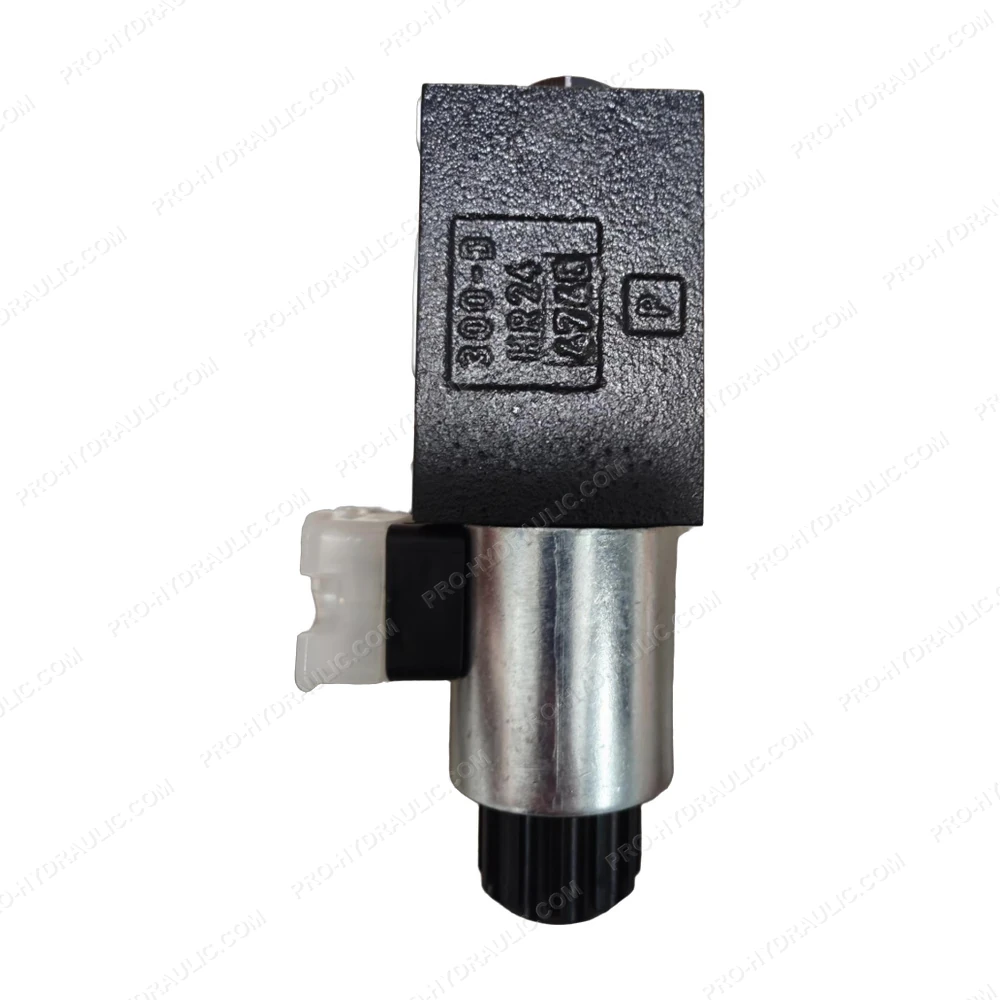

PARKER D1VW030BNGW91 Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the PARKER D1VW030BNGW91 Directional Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
