The PARKER D1VW030BNJW91 is a heavy-duty industrial directional control valve engineered for precise hydraulic circuit management in demanding applications. This solenoid-operated, 4-way, 3-position valve features a spring-centered spool with a closed-center configuration, ensuring reliable load holding and actuator positioning. Its robust construction and wet-pin solenoid design provide consistent performance and long service life in high-cycle industrial environments.
PARKER D1VW030BNJW91 Technical Specifications
| Valve Type | Directional Control Valve, Solenoid Operated |
| Configuration | 4-Way, 3-Position (4/3) |
| Spool Type | Closed Center (All Ports Blocked in Neutral) |
| Actuation | Wet-Pin Solenoid, Spring Centered |
| Mounting Interface | CETOP 3 / ISO 4401-03 / NFPA D03 |
| Max Operating Pressure | 350 bar (5075 psi) at P, A, B Ports |
| Max Flow Rate | 60 L/min (15.8 GPM) |
| Coil Voltage | Standard Industrial DC or AC Voltages Available |
| Seal Material | NBR (Buna-N) Standard, FKM Optional |
| Fluid Compatibility | Mineral Oil, Phosphate Ester, Water Glycol |
Key Engineering Features
- Wet-pin solenoid design eliminates dynamic seals for reduced wear and extended life
- Spring-centered spool ensures fail-safe neutral positioning
- High-strength cast iron body withstands severe pressure spikes
- Interchangeable coils for flexible voltage and connection options
- Precision-machined spool and bore for minimal internal leakage
- Compatible with standard CETOP 3 subplates and manifolds
Industrial Applications
- Hydraulic power units and central systems
- Presses, injection molding machines, and die-casting equipment
- Material handling and lifting equipment
- Agricultural and construction machinery
- Marine and offshore hydraulic control systems
- Industrial automation and test stands
For technical inquiries, dimensional drawings, or replacement support for PARKER D1VW030BNJW91, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

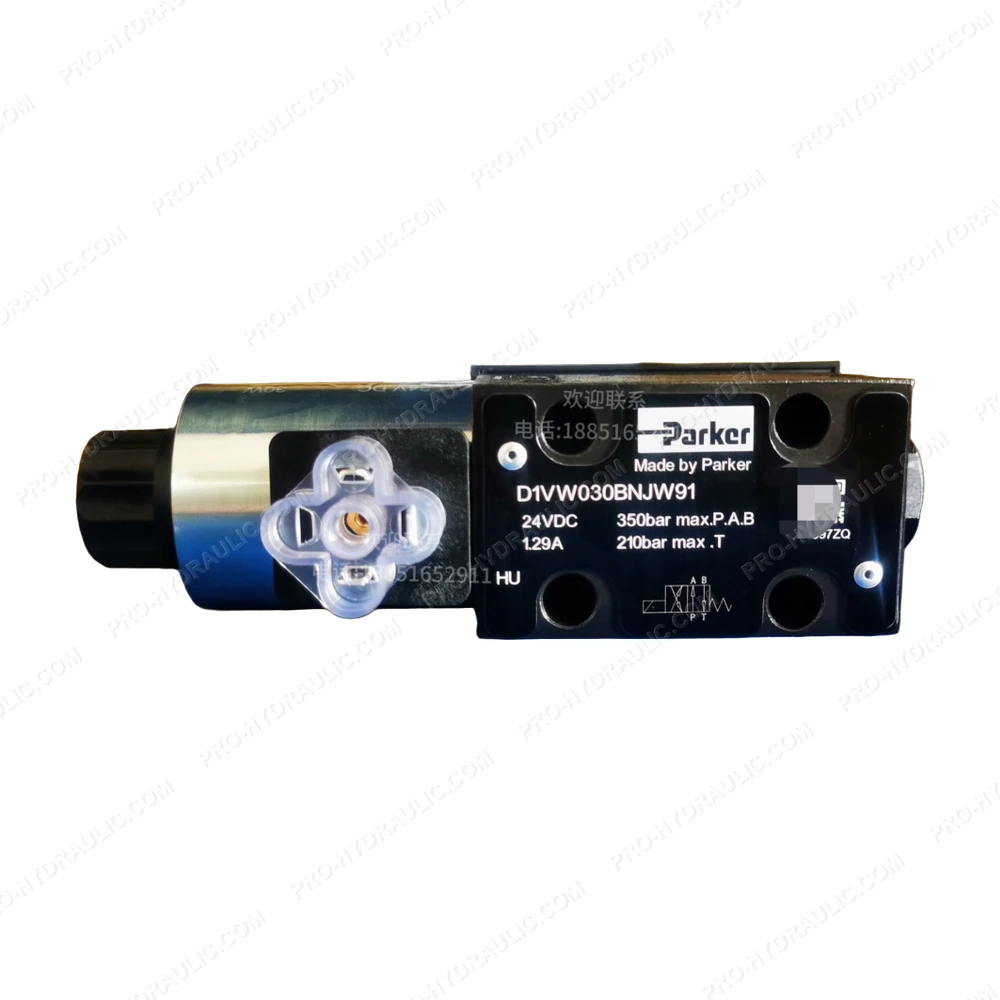

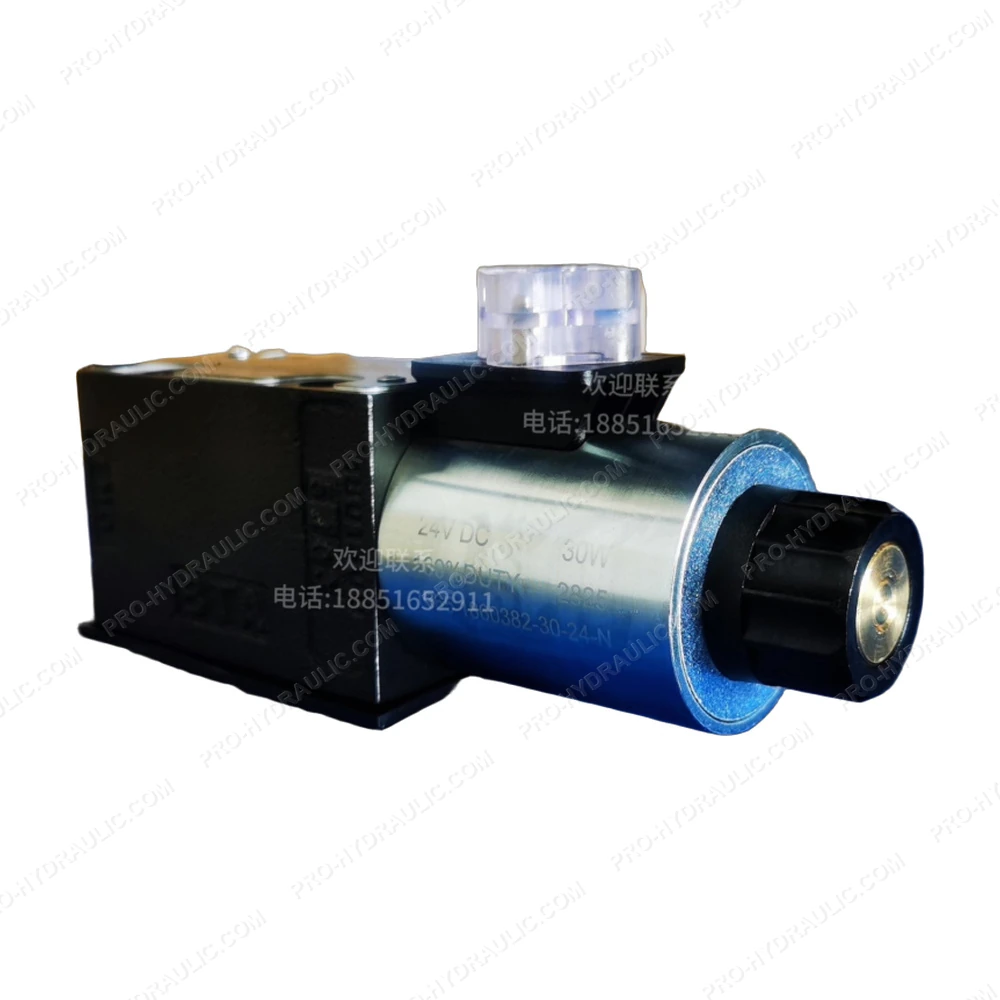

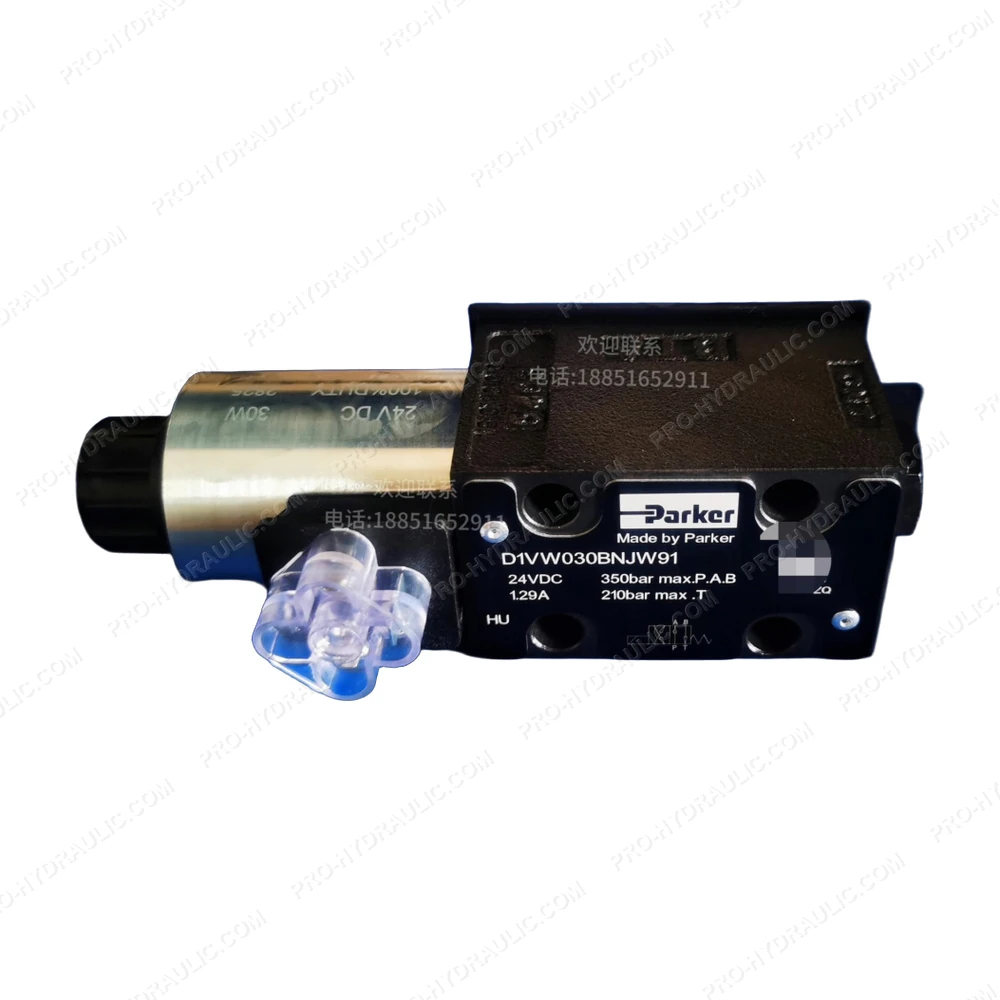

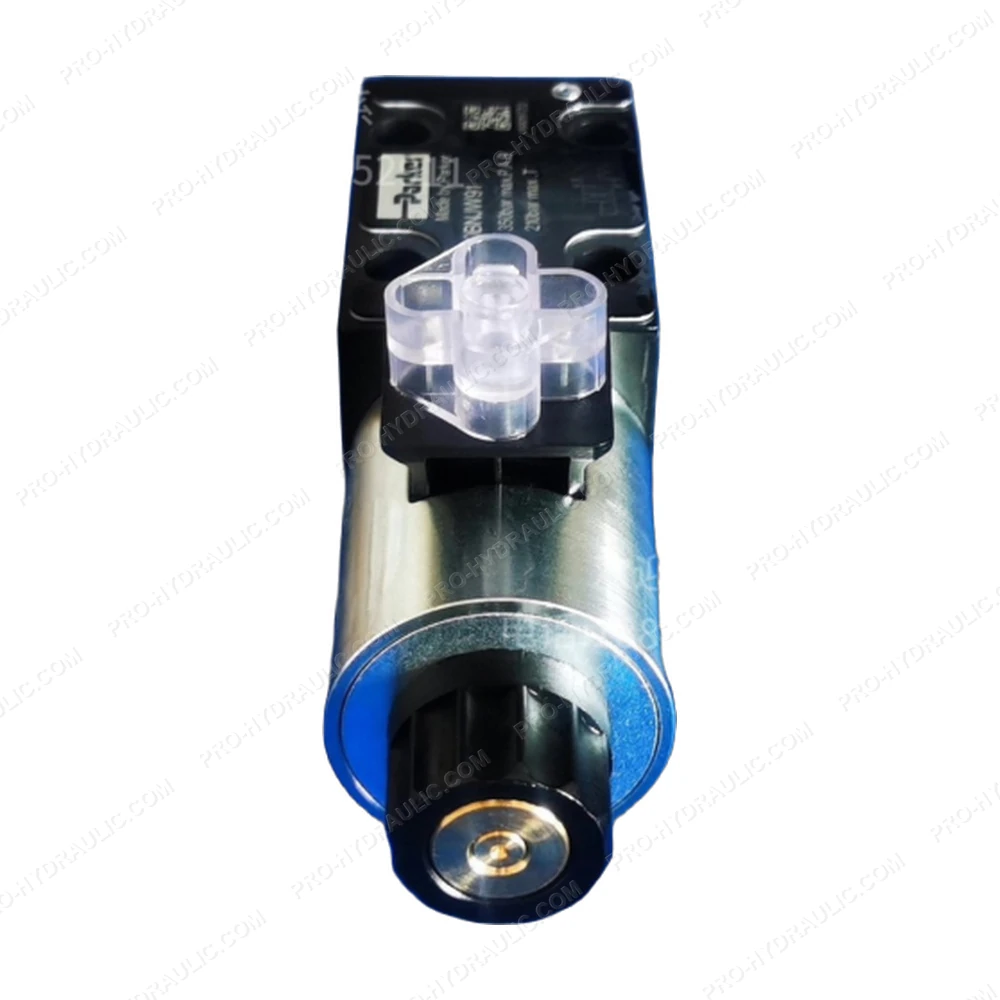

PARKER D1VW030BNJW91 Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the PARKER D1VW030BNJW91 Directional Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
