The PARKER D1VW083BNJW91 is a heavy-duty industrial directional control valve engineered for precise flow management in demanding hydraulic circuits. Featuring a robust wet-pin solenoid design and a hardened spool, it ensures reliable shifting and long service life under continuous operation.
PARKER D1VW083BNJW91 Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | Directional Control Valve, Solenoid Operated |
| Mounting Standard | CETOP 3 / ISO 4401 / DIN 24340 |
| Spool Configuration | 3-Position, 4-Way, Spring Centered |
| Flow Rate | Up to 80 L/min (21 GPM) |
| Max Operating Pressure | 350 bar (5075 psi) |
| Actuation | Wet-pin solenoid, 24 V DC |
| Electrical Connection | DIN 43650 Connector |
| Seal Material | NBR (Buna-N) |
| Fluid Temperature Range | -20°C to +80°C |
Key Engineering Features
- Wet-pin solenoid armature for efficient heat dissipation and extended coil life
- Hardened, precision-ground spool for minimal leakage and reliable shifting
- Spring-centered design ensures fail-safe return to neutral position
- High flow capacity with low pressure drop
- Compact CETOP 3 mounting interface for space-saving installation
Industrial Applications
- Mobile hydraulic systems (construction, agriculture)
- Industrial automation and manufacturing equipment
- Material handling and lifting machinery
- Presses and forming machines
- Marine and offshore hydraulic circuits
For technical inquiries, dimensional drawings, or replacement support for PARKER D1VW083BNJW91, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

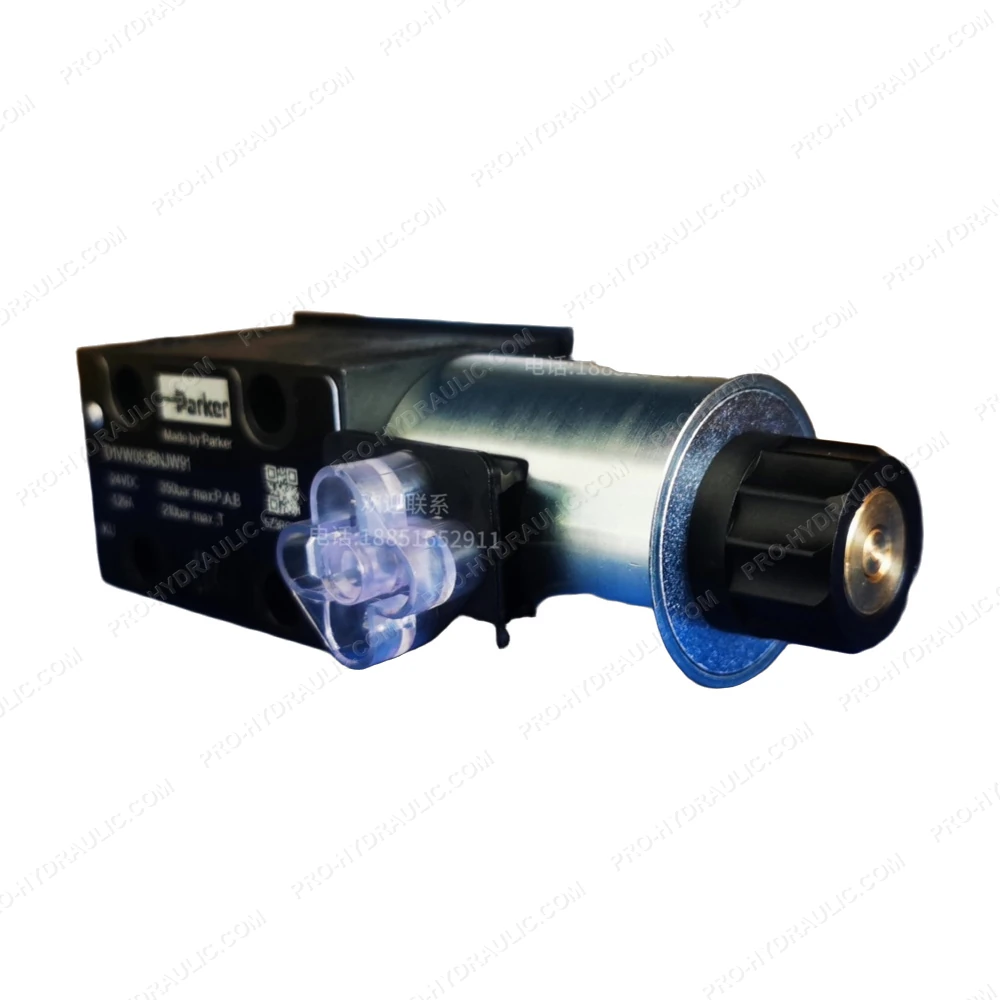

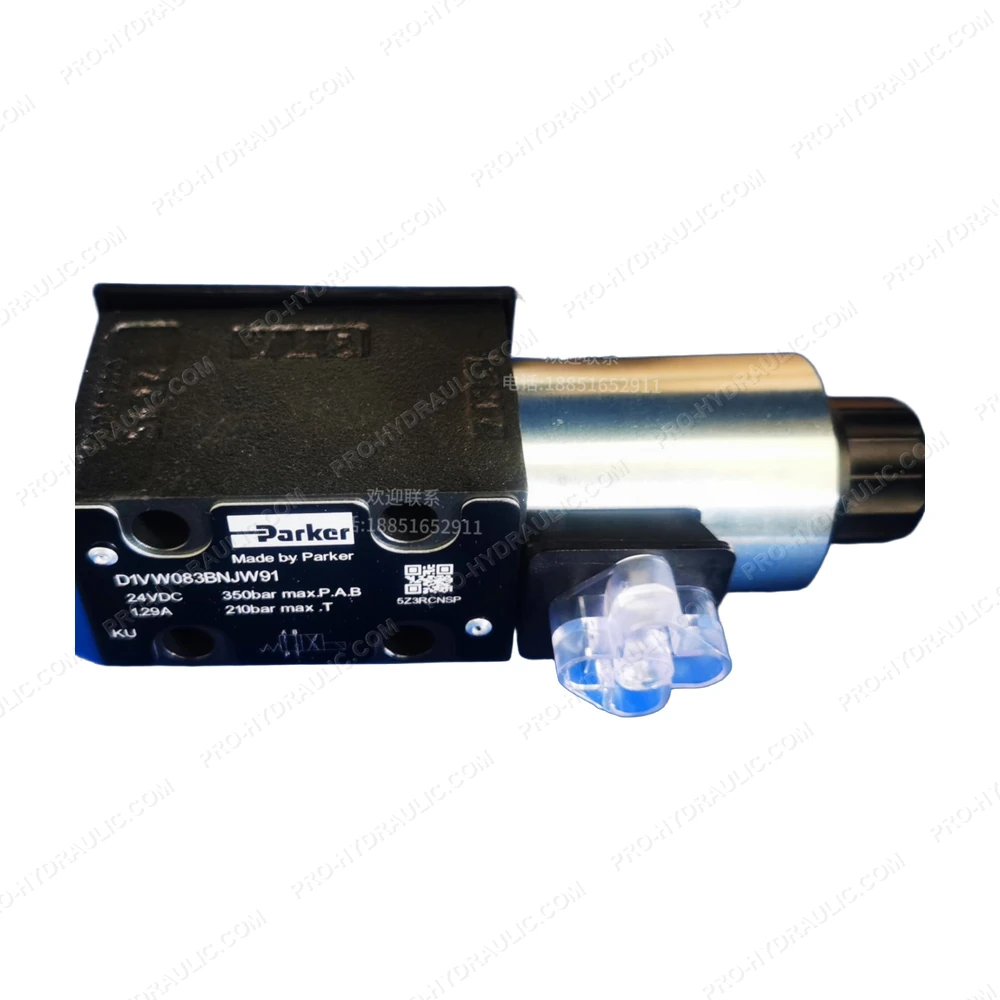

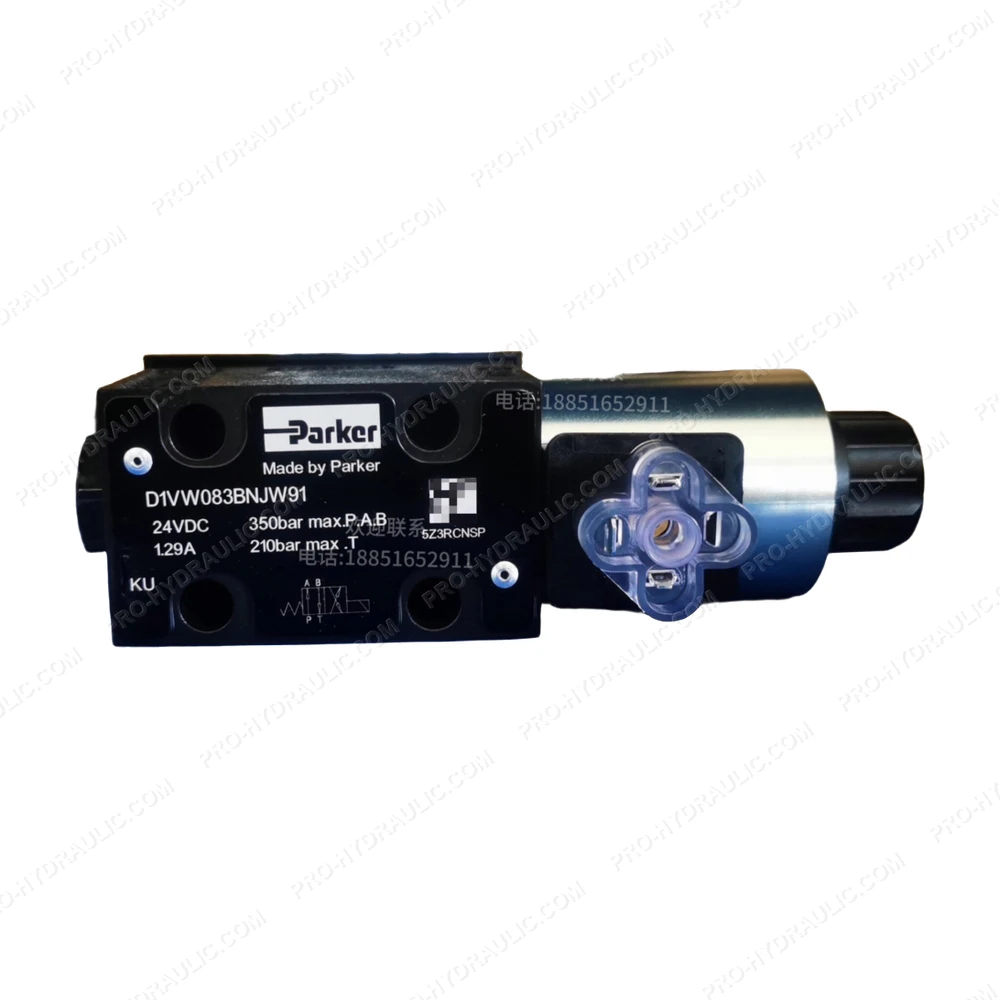

PARKER D1VW083BNJW91 Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the PARKER D1VW083BNJW91 Directional Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
