Product Overview
The Parker D31FBE01CC1NG0014 is a high-performance proportional directional control valve from Parker’s renowned D31FB series, engineered for precise electro-hydraulic control of flow direction and magnitude in industrial hydraulic systems. Utilizing a robust proportional solenoid actuation principle, this valve delivers infinitely variable spool positioning proportional to the electrical input signal, enabling smooth acceleration and deceleration of actuators without pressure spikes or shock. The D31FBE01CC1NG0014 is designed as a direct-operated, four-way directional valve with a spring-centered spool, providing reliable fail-safe positioning in the event of power loss. Its advanced design incorporates precision-machined spool and sleeve assemblies to ensure minimal internal leakage, excellent repeatability, and superior hysteresis characteristics. As a critical interface component in modern hydraulic circuits, this Parker proportional valve is ideally suited for applications requiring accurate velocity and position control of hydraulic cylinders and motors, bridging the gap between conventional on/off directional valves and high-cost servo valves.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Control Valve |
| Model Designation | D31FBE01CC1NG0014 |
| Series | Parker D31FB Series |
| Actuation Type | Proportional Solenoid, Direct-Operated |
| Spool Configuration | Four-Way, Three-Position, Spring-Centered |
| Operating Pressure | Up to 350 bar (5075 psi) nominal |
| Rated Flow | Industry-standard flow capacity per size (approx. 40–80 L/min at Δp 35 bar) |
| Electrical Input | Proportional DC current, standard 12V or 24V solenoid options |
| Hysteresis | < 5% of rated signal |
| Mounting & Connection | Standard ISO 4401 / CETOP subplate mounting interface |
| Fluid Compatibility | Mineral oil-based hydraulic fluids (HLP, HLVP per DIN 51524) |
Engineering Features & Advantages
- Precision Performance: The proportional directional control valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original PARKER standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 80 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
As a critical interface component in modern hydraulic circuits, this Parker proportional valve is ideally suited for applications requiring accurate velocity and position control of hydraulic cylinders and motors, bridging the gap between conventional on/off directional valves and high-cost servo valves.

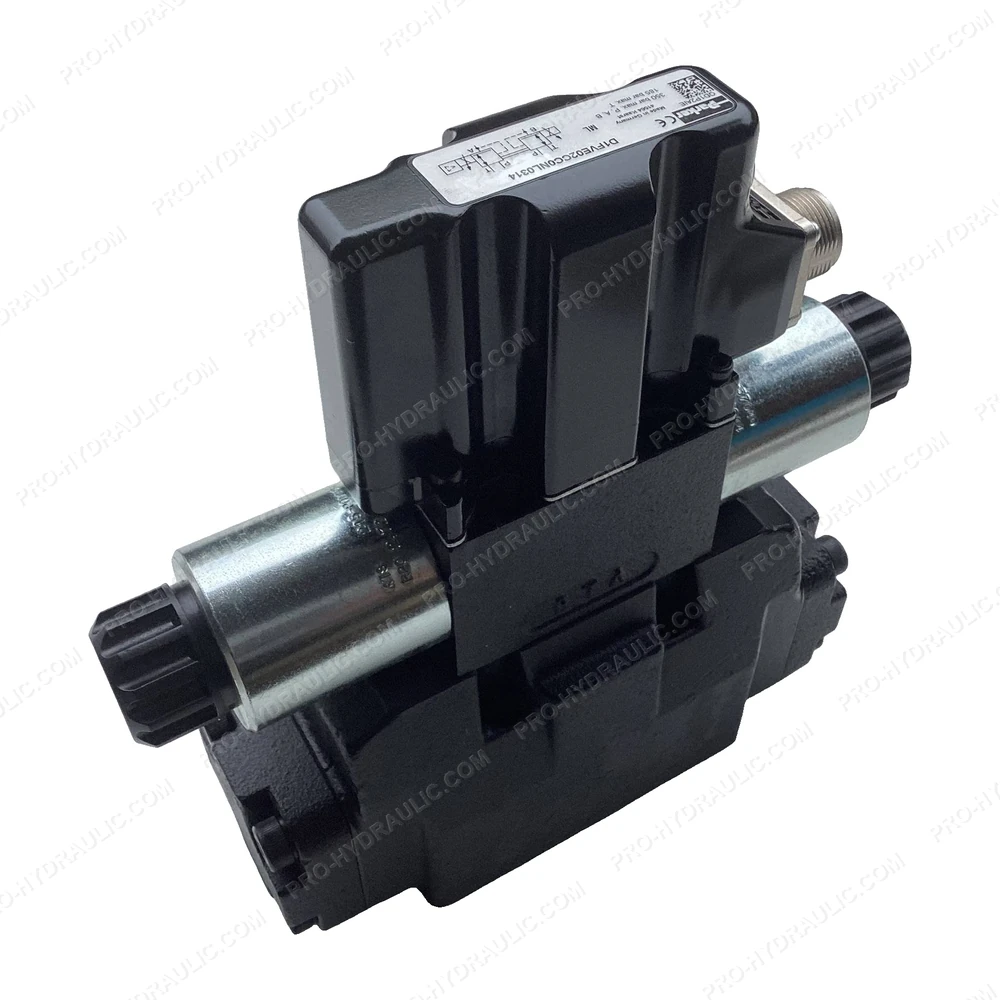

PRODUCT IMAGES





Explore related inventory
Related parts by brand and category
PARKER D31FBE01CC1NG0014 Proportional Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PARKER D31FBE01CC1NG0014 Solenoid Directional Control Valve. This US-made hydraulic component features a robust spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
