The PARKER D3FCE02SC9NS0319 is a heavy-duty industrial proportional directional valve engineered for precise, continuous control of flow direction and magnitude in hydraulic circuits. As part of Parker’s D3F series, it utilizes a high-response proportional solenoid with a position-controlled spool to deliver smooth, infinitely variable actuation for demanding motion-control applications.
PARKER D3FCE02SC9NS0319 Technical Specifications
| Series | D3F (Parker Proportional Directional Valve) |
|---|---|
| Model Code | D3FCE02SC9NS0319 |
| Valve Type | Proportional directional control valve, 4-way, 3-position |
| Actuation | Proportional solenoid, wet-pin armature, single or dual coil configuration |
| Mounting Interface | ISO 4401 / CETOP 03 (NG6) subplate mounting |
| Nominal Flow Rate | Up to 40 L/min (dependent on spool and pressure drop) |
| Maximum Operating Pressure | 350 bar (5075 psi) at ports P, A, B; 210 bar at T |
| Spool Type | Closed-center, metering characteristics per model code |
| Electrical Supply | 24 V DC nominal, proportional solenoid with integrated position feedback (LVDT) |
| Control Signal | Analog ±10 V or 4–20 mA via external amplifier card |
| Fluid Compatibility | Mineral oil, HLP, HLP-D, and synthetic hydraulic fluids |
| Seal Material | NBR (standard), FKM optional |
| Operating Temperature | -20 °C to +80 °C (fluid dependent) |
Key Engineering Features
- High-resolution proportional solenoid with wet-pin armature for precise force control and minimal hysteresis.
- Integrated LVDT position feedback ensures accurate spool positioning and repeatable flow metering.
- Robust cast iron body and hardened spool for long service life in high-cycle industrial applications.
- ISO 4401 / CETOP 03 mounting pattern for direct drop-in replacement and simplified manifold integration.
- Optional integrated electronics (OBE) available for closed-loop control without external amplifier.
- Designed for continuous duty with low pressure drop and high dynamic response.
Industrial Applications
- Injection molding machines – clamp and injection velocity control.
- Hydraulic presses – force and position regulation.
- Machine tools – feed axis and tool positioning.
- Steel and metallurgy – continuous casting and rolling mill controls.
- Test rigs and simulators – dynamic motion control.
- Material handling – smooth acceleration and deceleration of heavy loads.
For technical inquiries, dimensional drawings, or replacement support for PARKER D3FCE02SC9NS0319, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

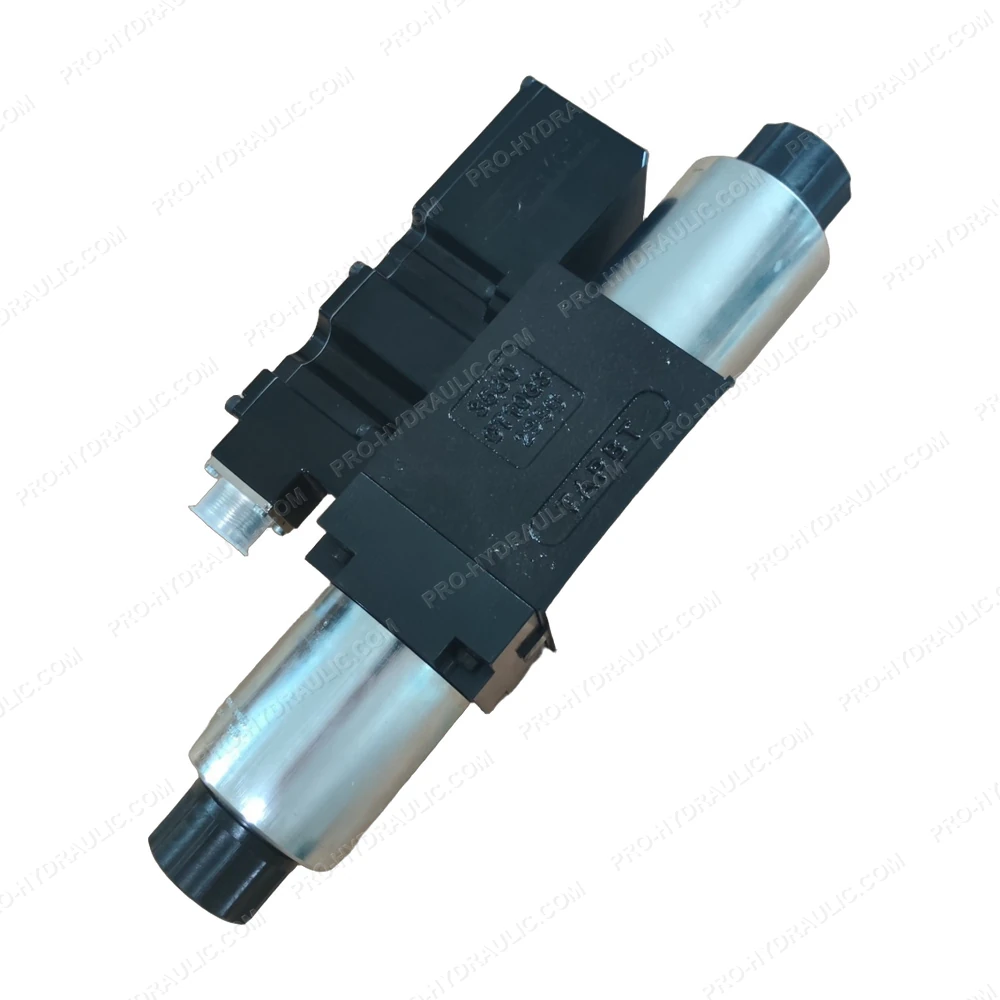

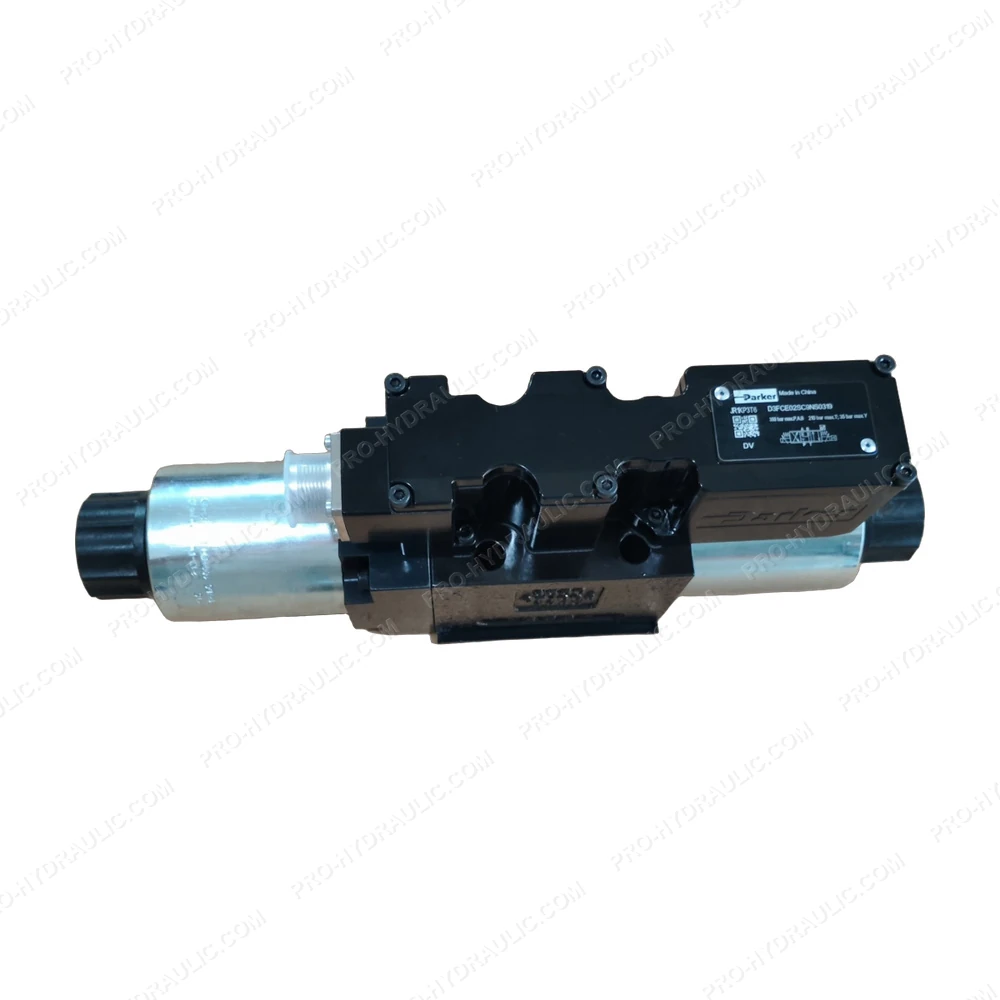

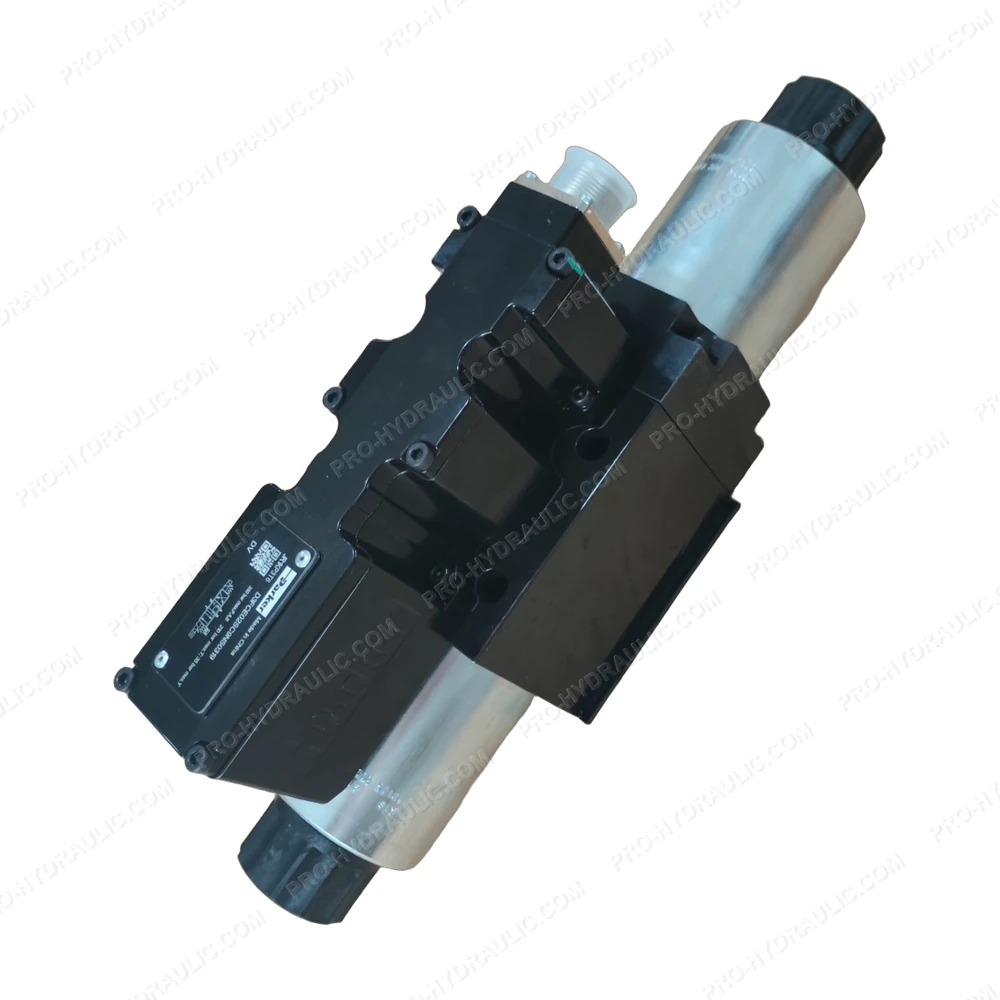

PARKER D3FCE02SC9NS0319 Proportional Directional Valve
