Product Overview

The Parker D3FPE50YB9HB7050P80 is a high-performance proportional directional control valve from Parker’s D3FP series, engineered for precise, infinitely variable control of hydraulic actuator direction and velocity. Utilizing a robust spool-and-sleeve design with a high-response proportional solenoid, this valve delivers exceptional metering accuracy and repeatability in demanding industrial motion control systems. The D3FPE50YB9HB7050P80 is configured for subplate mounting and is designed to interface seamlessly with Parker proportional amplifier cards or modern digital axis controllers, making it an ideal solution for closed-loop position, velocity, and force control applications.

Technical Specifications

ParameterSpecification / Feature
Component TypeProportional Directional Control Valve
Model DesignationD3FPE50YB9HB7050P80
SeriesParker D3FP Series Proportional Valve
Nominal Flow RateUp to 50 L/min (dependent on pressure differential)
Operating PressureUp to 350 bar (5075 psi) rated
Spool ConfigurationProportional, closed-center, 4-way, 3-position
Actuation TypeProportional solenoid with position feedback
Mounting & ConnectionSubplate mounting per ISO 4401 / CETOP 5 (NG10)
Electrical InterfaceStandard DIN 43650 connector, 24V DC solenoid
Hysteresis< 1% of rated stroke
Response TimeTypical 10–30 ms (application dependent)

Engineering Features & Advantages

  • Precision Proportional Metering: The D3FPE50YB9HB7050P80 features a precision-ground spool and sleeve assembly that delivers smooth, infinitely variable flow control proportional to the electrical input signal, enabling accurate velocity and position regulation of hydraulic actuators.
  • High-Response Solenoid Actuation: Equipped with a high-force proportional solenoid, the valve achieves fast response times and minimal hysteresis, ensuring tight tracking of command signals in closed-loop control architectures.
  • Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
  • Direct Fit Replacement: Exact dimensional and functional compatibility with original PARKER OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.

Typical Industrial Applications

The D3FPE50YB9HB7050P80 is configured for subplate mounting and is designed to interface seamlessly with Parker proportional amplifier cards or modern digital axis controllers, making it an ideal solution for closed-loop position, velocity, and force control applications.

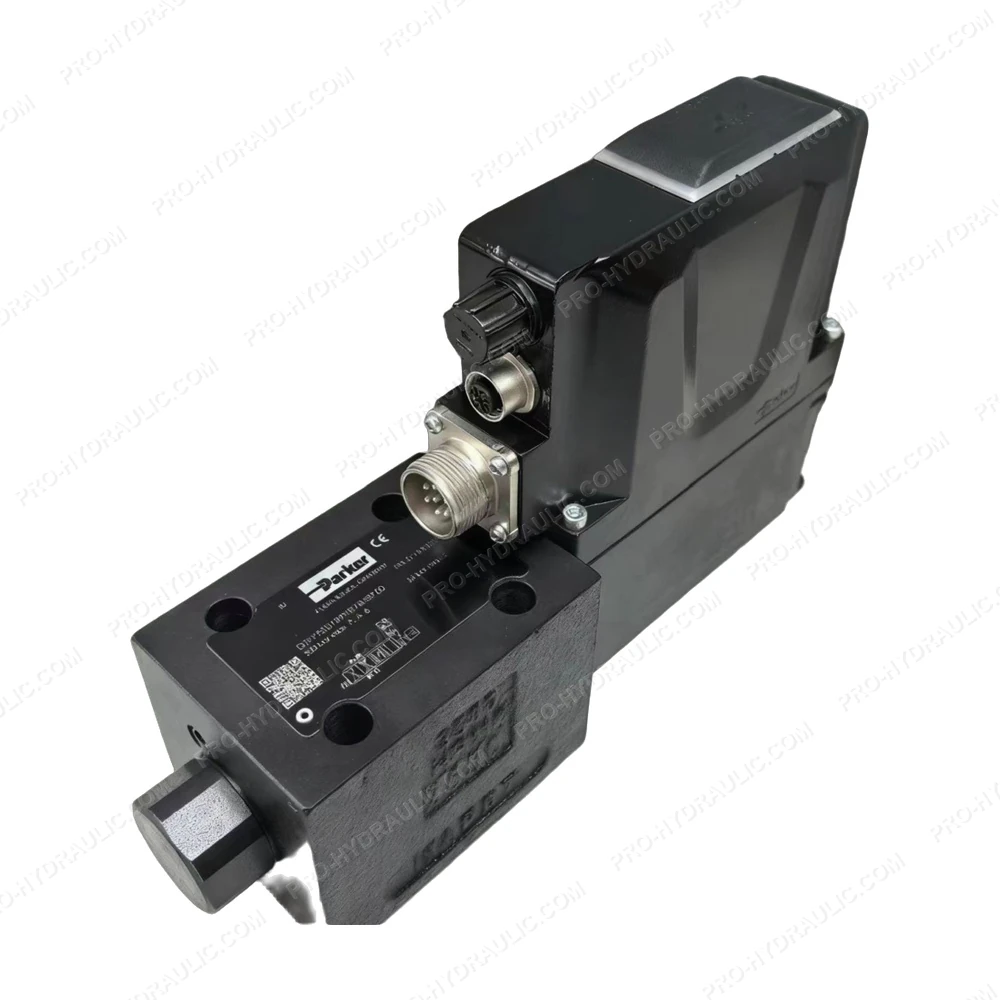

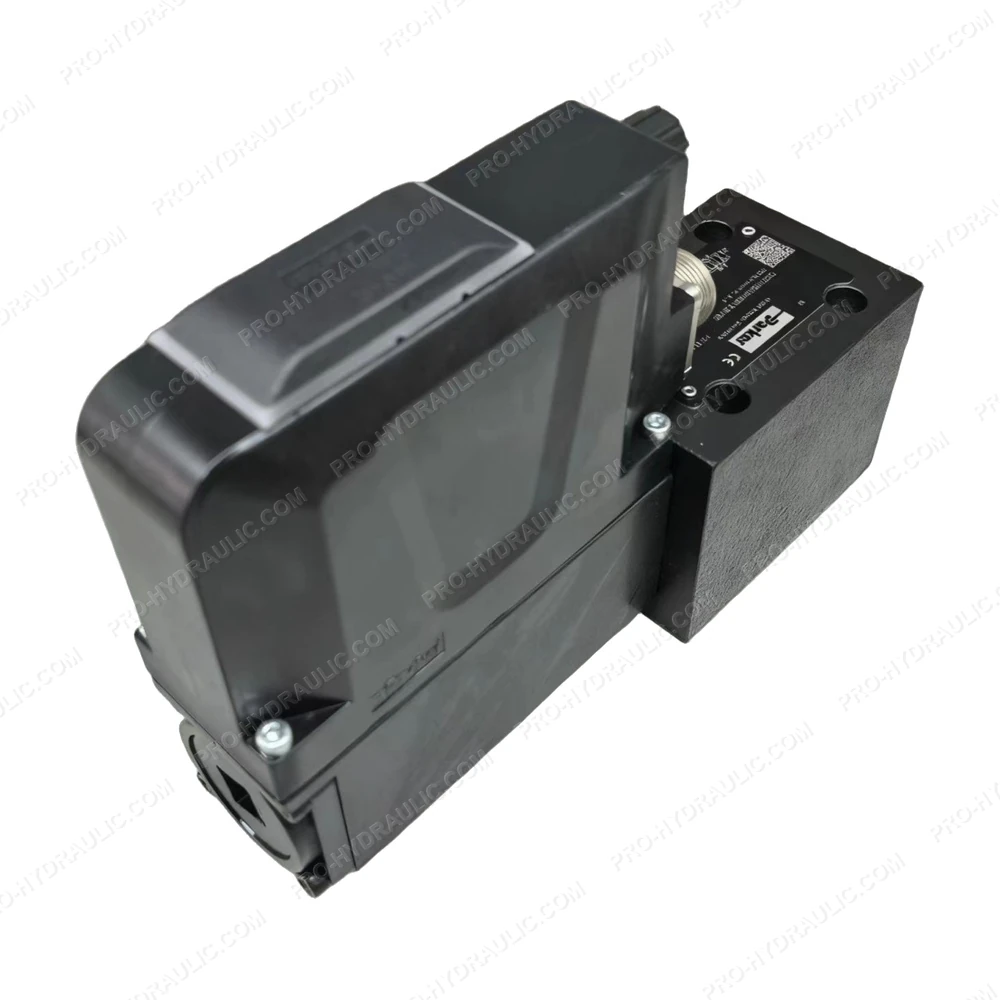

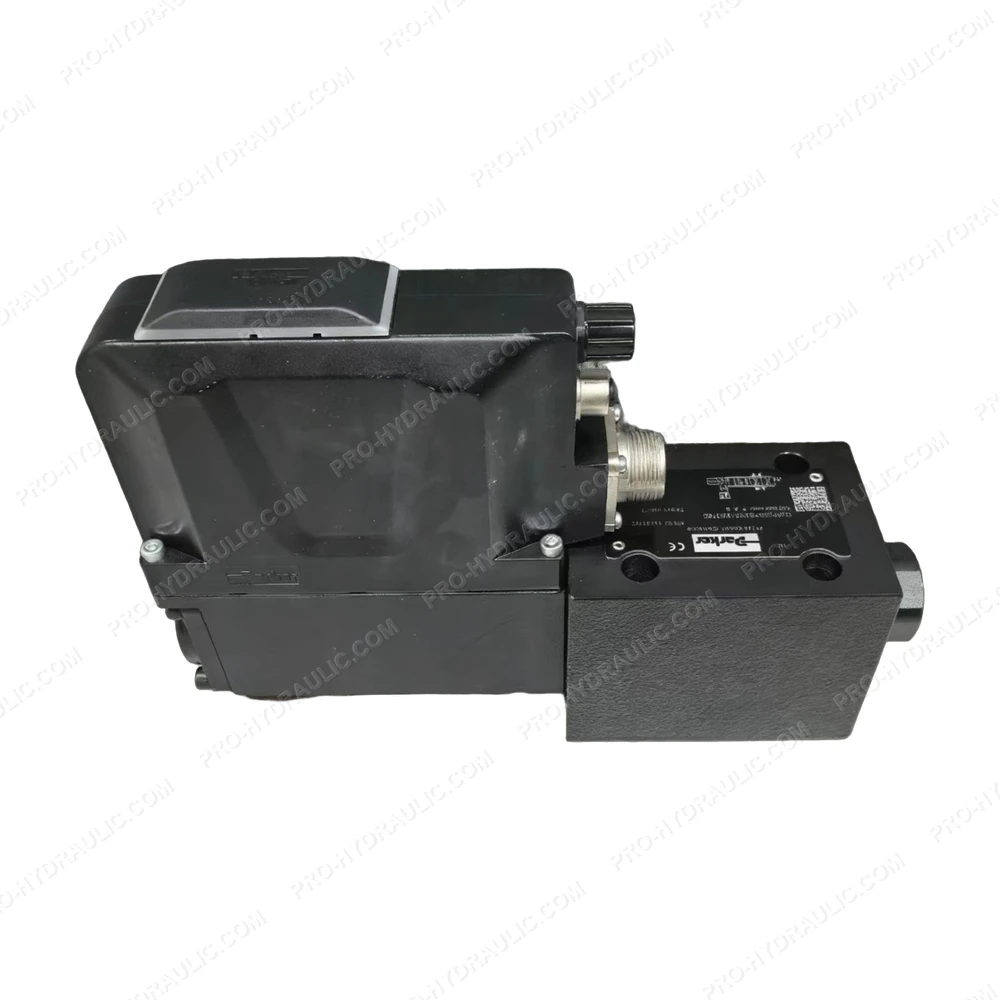

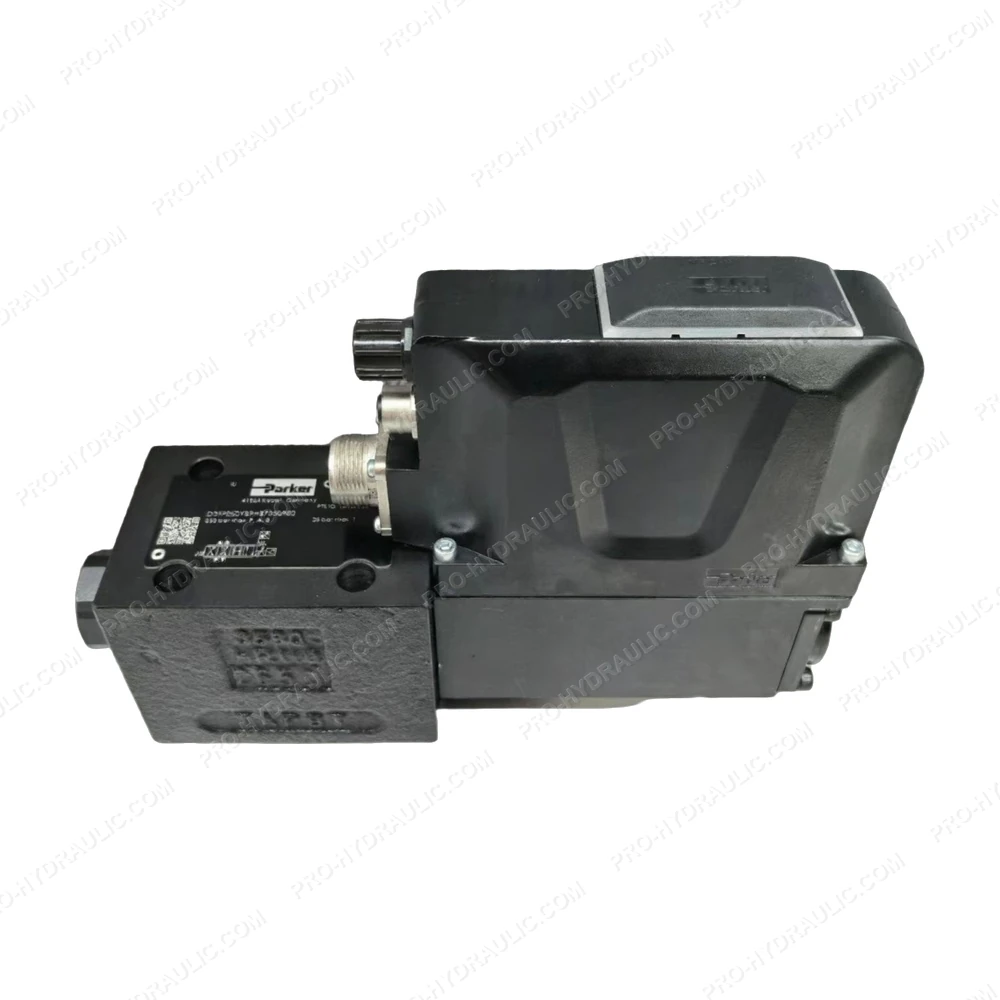

PRODUCT IMAGES

PARKER D3FPE50YB9HB7050P80
PARKER D3FPE50YB9HB7050P80
PARKER D3FPE50YB9HB7050P80
PARKER D3FPE50YB9HB7050P80

PARKER D3FPE50YB9HB7050P80 Proportional Directional Control Valve

⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:

  • Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
  • Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
  • Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
  • Peace of Mind: Covered by our 12-Month Replacement Warranty.

Shop the genuine PARKER D3FPE50YB9HB7050P80 Solenoid Directional Control Valve. This Germany-made 24V DC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
