Product Overview
The Parker D3W001CNJW42 is a direct-acting, solenoid-operated directional control valve from the Parker D3W series, engineered for precise control of hydraulic fluid flow direction in industrial power units and machine circuits. Utilizing a hardened, precision-ground spool within a high-strength cast iron body, this valve shifts position via a wet-armature AC or DC solenoid, directing flow between ports to extend, retract, or hold a hydraulic actuator. The D3W001CNJW42 is configured as a 4-way, 3-position (4/3) valve with a closed-center spool, making it a core control component in manifold-mounted and subplate-mounted hydraulic systems where reliable directional switching and load holding are critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve (4-Way, 3-Position) |
| Model Designation | D3W001CNJW42 |
| Series / Brand | Parker D3W Series |
| Spool Configuration | Closed-Center (C) Spool — All Ports Blocked in Neutral |
| Actuation Type | Single Solenoid, Spring Return / Spring Offset |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Nominal Flow Capacity | NG6 / CETOP 3 (D03) Size — Up to 60 L/min |
| Mounting & Connection | Standard ISO 4401 / CETOP 3 Subplate or Manifold Interface |
| Seal Material | NBR (Buna-N) — Compatible with Mineral-Based Hydraulic Fluids |
Engineering Features & Advantages
- Precision Spool Metering: Hardened, lapped spool and bore assembly ensures minimal internal leakage, consistent shift response, and long service life under high-cycle operation.
- Wet-Armature Solenoid Design: Oil-immersed solenoid armature delivers smooth, quiet actuation with excellent heat dissipation and high resistance to industrial contamination.
- Closed-Center Load Holding: The “C” spool blocks all ports in the neutral position, providing reliable actuator holding and preventing drift in demanding positioning circuits.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, including high pressure, rapid cycling, and elevated fluid temperatures.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Parker D3W mounting patterns, port locations, and electrical connections.
Typical Industrial Applications</h
PRODUCT IMAGES

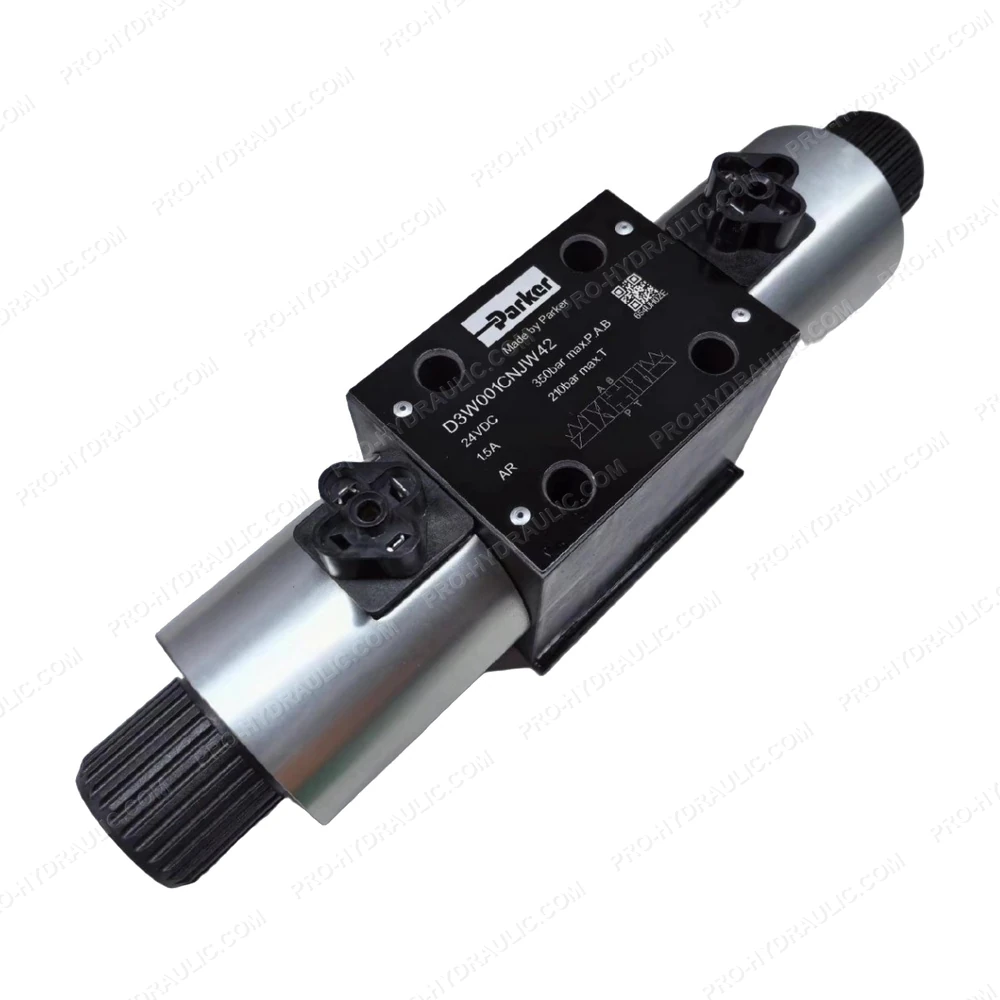

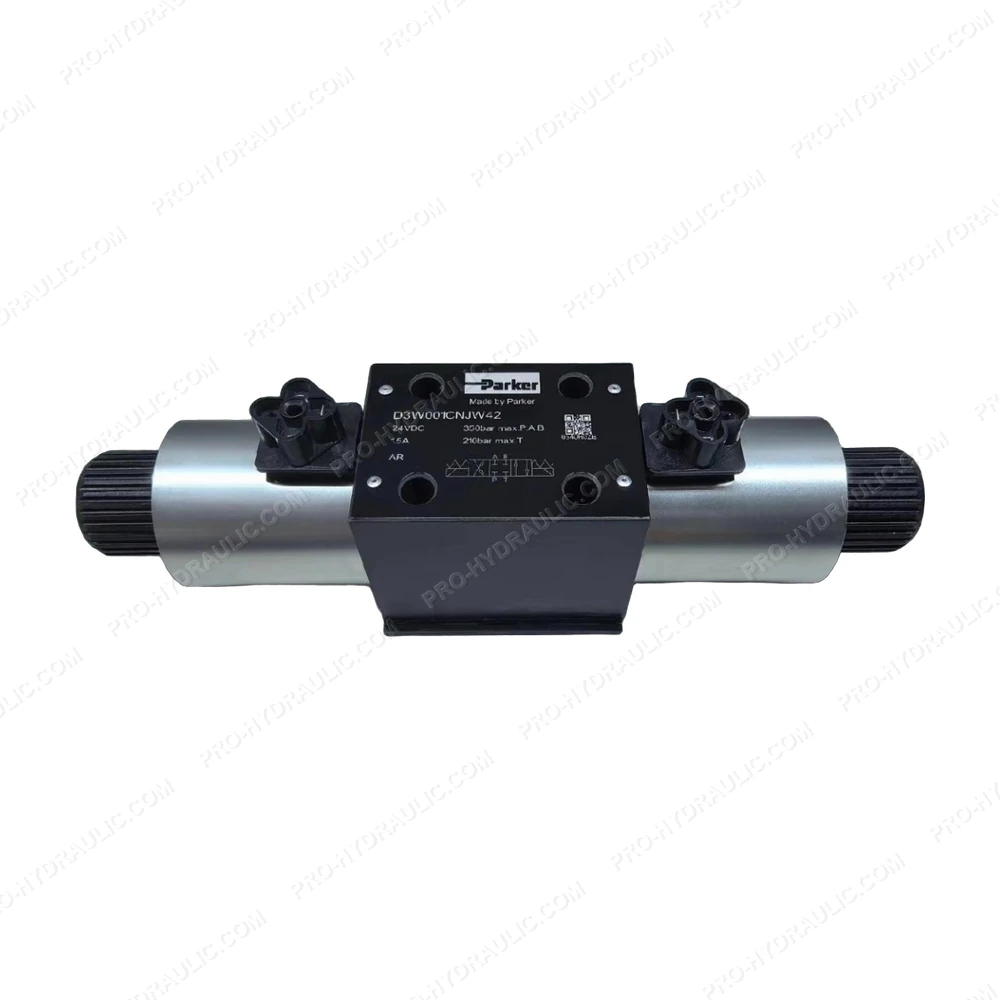

PARKER D3W001CNJW42 Solenoid Operated Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PARKER D3W001CNJW42 Solenoid Directional Control Valve. This Germany-made hydraulic component features a reliable spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
