Product Overview
The Parker D3W020BNTW42 is a high-performance, direct-acting solenoid operated directional control valve from the renowned Parker D3W series. Engineered for precise control of hydraulic fluid flow direction, this 4-way, 3-position (4/3) valve utilizes a robust wet-armature solenoid design to shift a precision-machined spool within a hardened steel body. The D3W020BNTW42 is a NG10 (CETOP 5 / ISO 4401-05) size valve, designed to deliver reliable, leak-free performance in demanding industrial hydraulic systems. It serves as a critical control component, directing pressurized flow to actuators, cylinders, or motors to manage motion, direction, and holding functions with high repeatability and fast response times.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | D3W020BNTW42 |
| Series / Size | D3W Series, NG10 (CETOP 5 / ISO 4401-05) |
| Spool Configuration | 4-Way, 3-Position (4/3) |
| Actuation Type | Solenoid Operated (Wet Armature, High Force) |
| Operating Pressure | Up to 350 bar (5075 psi) at Ports P, A, B |
| Rated Flow | Up to 80 L/min (21 GPM) nominal |
| Mounting & Connection | Subplate Mounting, ISO 4401-05 / CETOP 5 Interface |
| Electrical Connection | DIN 43650 Connector (Standard Industrial) |
Engineering Features & Advantages
- Precision Spool & Sleeve: The hardened, ground, and honed spool-to-bore fit ensures minimal internal leakage and precise metering characteristics, providing accurate flow control and reliable load holding.
- High-Force Wet Armature Solenoid: The Parker wet-armature design delivers high shifting forces, ensuring reliable operation even under high pressure and flow conditions, while offering excellent resistance to contamination and long service life.
- Fast Response & Low Hysteresis: Optimized solenoid and spool dynamics enable rapid response times for high-cycle industrial applications, with low hysteresis for consistent, repeatable switching.
- Industrial Reliability: Built for continuous operation in severe industrial environments, with a robust cast iron body and tested to withstand millions of cycles.
- Direct Fit Replacement: Precision-manufactured to original PARKER specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The D3W020BNTW42 is a NG10 (CETOP 5 / ISO 4401-05) size valve, designed to deliver reliable, leak-free performance in demanding industrial hydraulic systems.
PRODUCT IMAGES

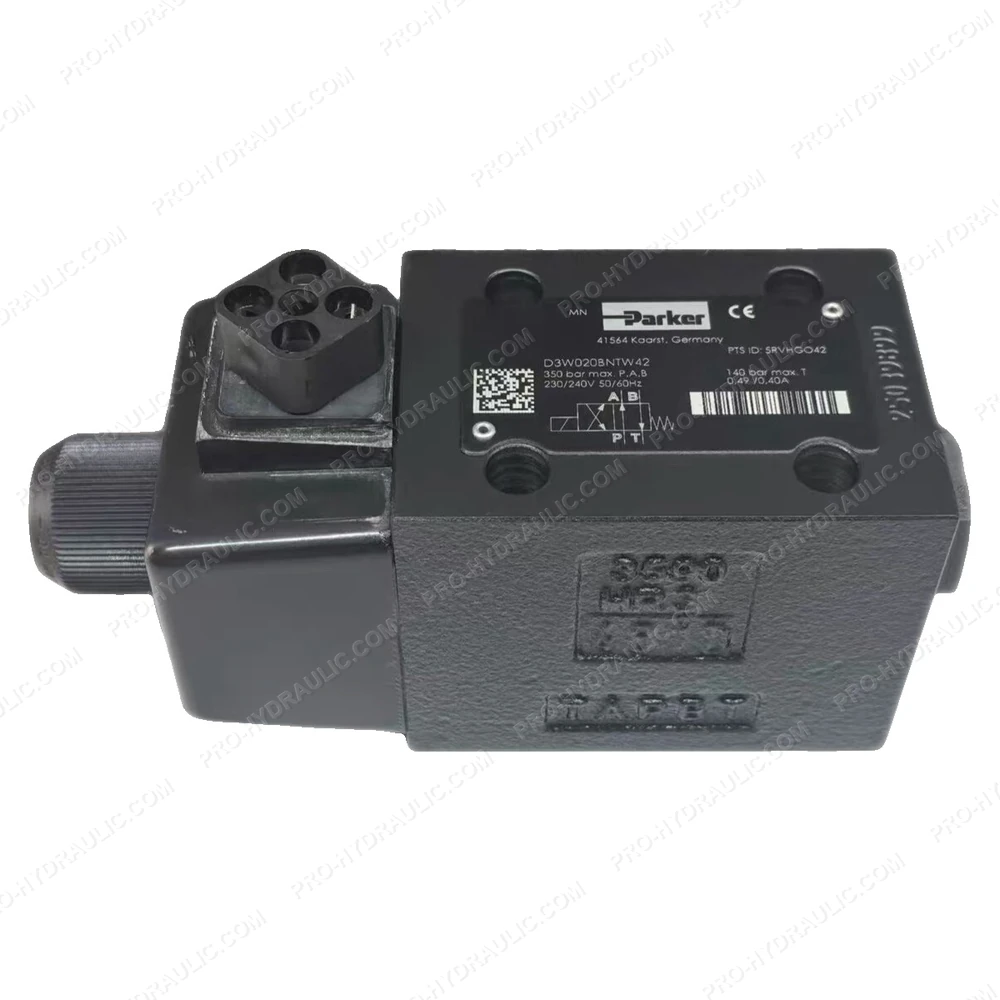

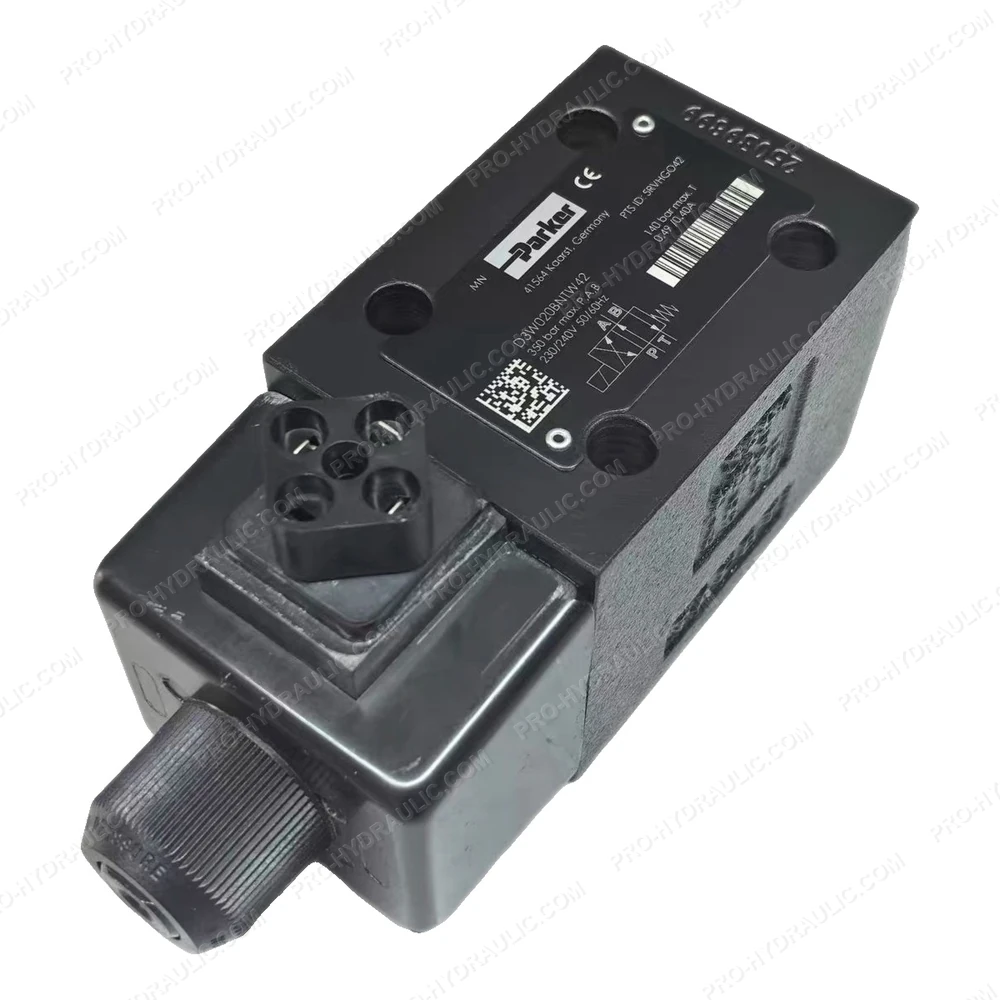

PARKER D3W020BNTW42 Solenoid Operated Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PARKER D3W020BNTW42 Solenoid Directional Control Valve. This Germany-made hydraulic component features a reliable spool-type design, delivering leak-free, precise fluid control for heavy-duty industrial systems.
