Product Overview
The Parker D3W020HNJW42 is a high-performance, direct-operated solenoid directional control valve from Parker Hannifin’s renowned D3W series. Engineered for precise control of hydraulic fluid flow direction in industrial systems, this 4-way, 3-position valve features a robust spool-type design with a nominal flow capacity of 20 L/min (NG6 / CETOP 3 / ISO 4401-03 size). The D3W020HNJW42 utilizes a wet-armature solenoid configuration, ensuring reliable, fast-response actuation with minimal pressure drop and excellent repeatability. Its spring-centered spool returns to the neutral position upon de-energization, providing fail-safe operation in critical hydraulic circuits. This valve is a direct-fit, drop-in replacement for OEM Parker D3W series installations, delivering the precision metering, low leakage, and long service life expected in demanding industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve (4-Way, 3-Position) |
| Model Designation | Parker D3W020HNJW42 |
| Nominal Flow Rate | 20 L/min (NG6 / CETOP 3 / ISO 4401-03) |
| Operating Pressure | Up to 350 bar (5075 psi) at P, A, B ports; 210 bar at T port |
| Spool Configuration | Closed Center (H-type spool) — all ports blocked in neutral |
| Actuation Type | Wet-armature solenoid, spring-centered return |
| Solenoid Voltage | Standard industrial DC voltage (e.g., 24V DC or 110V AC — consult factory for specific coil) |
| Mounting & Connection | Subplate mounting per ISO 4401-03 / CETOP 3 / NFPA D03 |
| Seal Material | NBR (Buna-N) standard; FKM (Viton) available for high-temperature or phosphate-ester fluids |
| Filtration Requirement | ISO 4406 18/16/13 or better (β10 ≥ 75) |
Engineering Features & Advantages
- Precision Spool & Sleeve Assembly: Hardened, ground, and honed spool-to-sleeve clearance ensures minimal internal leakage, precise metering, and consistent response across the full pressure range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Parker standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
This valve is a direct-fit, drop-in replacement for OEM Parker D3W series installations, delivering the precision metering, low leakage, and long service life expected in demanding industrial environments.
PRODUCT IMAGES

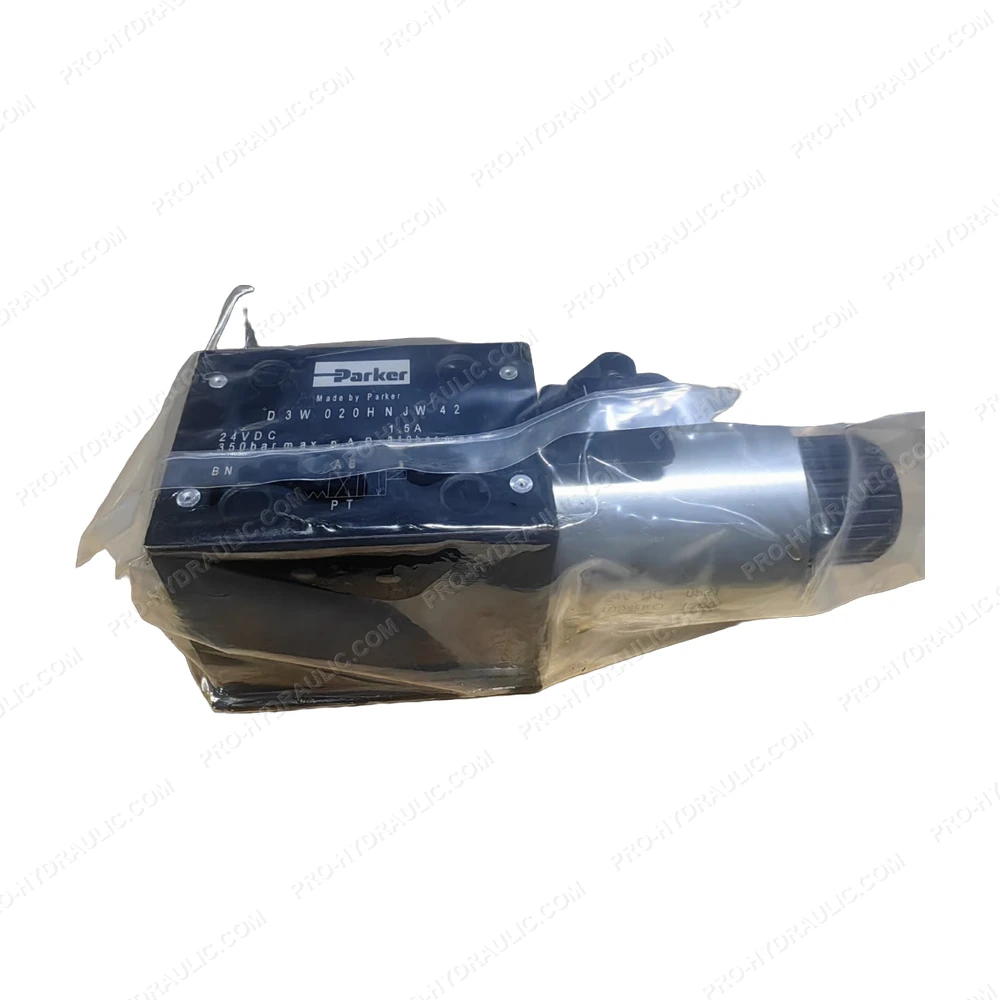

Parker D3W020HNJW42 Solenoid Operated Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Parker D3W020HNJW42 Solenoid Operated Directional Control Valve. This USA-made 120V AC hydraulic component features a 4-way, 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
