The PARKER D41FCE01FC1NE70 is a heavy-duty industrial proportional directional valve engineered for precise, high-response control of hydraulic flow and pressure in demanding machinery circuits. As part of Parker’s D41FC series, it uses a proportional solenoid with a position-controlled spool to deliver continuous, infinitely variable flow modulation rather than simple on/off switching.
PARKER D41FCE01FC1NE70 Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Proportional Directional Control Valve |
| Series | D41FC (Parker Proportional Valves) |
| Actuation | Proportional solenoid, wet-pin armature |
| Spool Type | Closed-center, position-controlled spool |
| Mounting Interface | ISO 4401 / CETOP 5 (NG10) subplate |
| Max Operating Pressure | Up to 350 bar (5075 psi) at P, A, B ports |
| Nominal Flow | Up to 80 L/min depending on spool and pressure drop |
| Hysteresis | < 3% of nominal stroke |
| Response Time | Approx. 25–40 ms (step response, typical) |
| Electrical Supply | 24 V DC proportional solenoid, current-controlled |
| Fluid Temperature Range | -20 °C to +80 °C (mineral oil, HLP/HM) |
| Filtration Requirement | ISO 4406 class 18/16/13 or better |
Key Engineering Features
- Proportional solenoid with wet-pin armature for low friction and consistent force output.
- Position-controlled spool design maintains flow accuracy against pressure and temperature variation.
- Low hysteresis and high repeatability for closed-loop velocity, force, and position control.
- ISO 4401 / CETOP 5 mounting pattern for direct drop-in replacement on standard subplates.
- Rugged cast body and hardened spool for long service life in high-cycle industrial duty.
- Compatible with Parker proportional amplifier cards for current-controlled operation.
Industrial Applications
- Injection molding machines — clamp, injection, and ejector axis control.
- Hydraulic presses — proportional pressure and ram speed regulation.
- Machine tools — feed, positioning, and tool compensation circuits.
- Steel and metal forming — roll gap and force modulation.
- Test stands and simulators — dynamic load and motion control.
- Mobile and industrial power units requiring smooth, modulated flow control.
For technical inquiries, dimensional drawings, or replacement support for PARKER D41FCE01FC1NE70, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

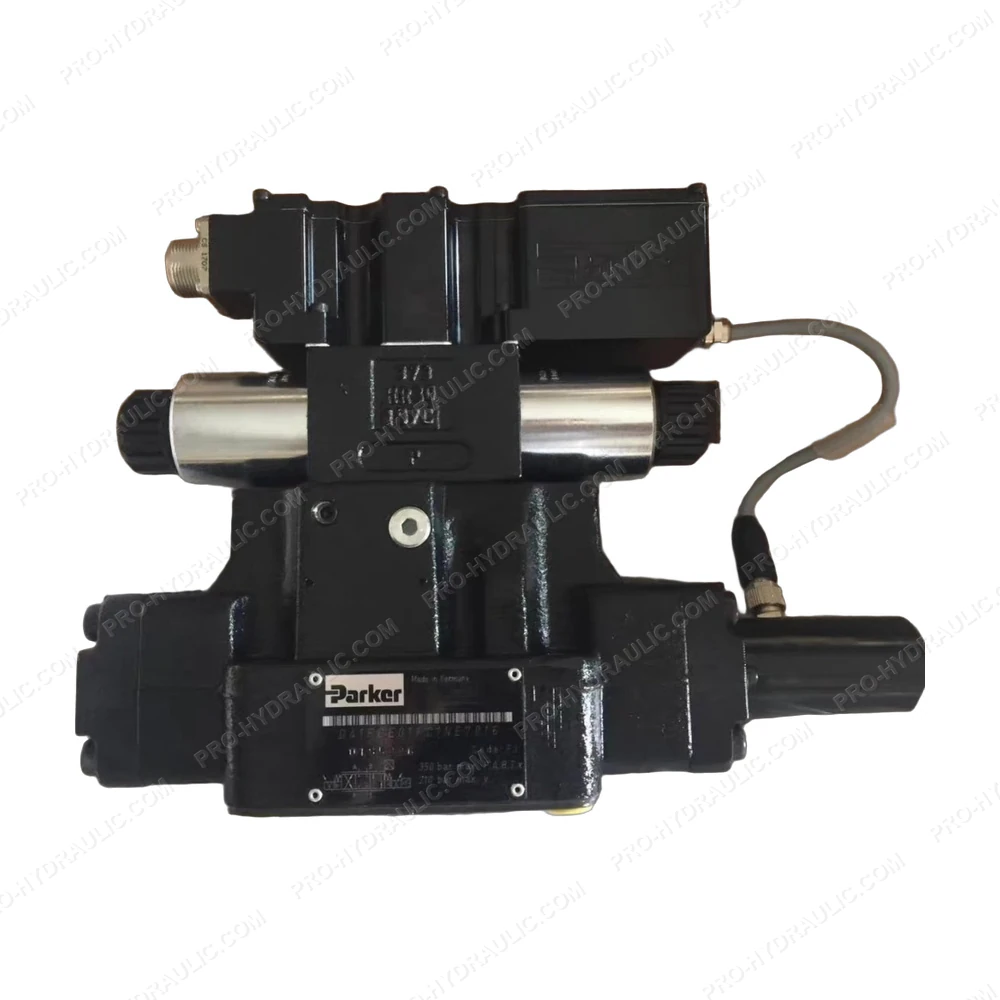

PARKER D41FCE01FC1NE70 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the PARKER D41FCE01FC1NE70 Proportional Directional Valve. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty systems.
