The PARKER D41VW004C1NJW91 is a heavy-duty industrial directional control valve engineered for precise flow management in demanding hydraulic circuits. This CETOP 3 / NG6 solenoid-operated valve features a robust wet-pin armature design and a high-performance spool configuration, ensuring rapid response and minimal pressure drop across the working ports.
PARKER D41VW004C1NJW91 Technical Specifications
| Valve Type | Directional Control Valve, Solenoid Operated |
| Mounting Standard | CETOP 3 / ISO 4401-03 / NG6 |
| Spool Configuration | 4-Way, 3-Position, Closed Center |
| Actuation | Wet-Pin Solenoid, Single or Dual Coil |
| Max Operating Pressure | 350 bar (5075 psi) at P, A, B ports |
| Max Flow Rate | 40 L/min (10.5 gpm) |
| Coil Voltage | 24 VDC (standard), other voltages available |
| Seal Material | NBR (Buna-N), optional FKM |
| Fluid Temperature Range | -20°C to +80°C (-4°F to +176°F) |
| Filtration Requirement | ISO 4406 20/18/15 or better |
Key Engineering Features
- Wet-pin armature design eliminates dynamic seals for extended service life and reduced leakage.
- High-force solenoid ensures reliable shifting under high pressure and flow conditions.
- Precision-ground spool and sleeve provide tight clearances for minimal internal leakage.
- Compact CETOP 3 mounting interface simplifies integration into existing manifolds.
- Optional manual override and position monitoring available for critical applications.
Industrial Applications
- Mobile hydraulic systems: excavators, loaders, and cranes.
- Industrial automation: press controls, injection molding, and material handling.
- Power units and test stands requiring precise directional flow control.
- Marine and offshore hydraulic circuits with demanding environmental conditions.
For technical inquiries, dimensional drawings, or replacement support for PARKER D41VW004C1NJW91, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

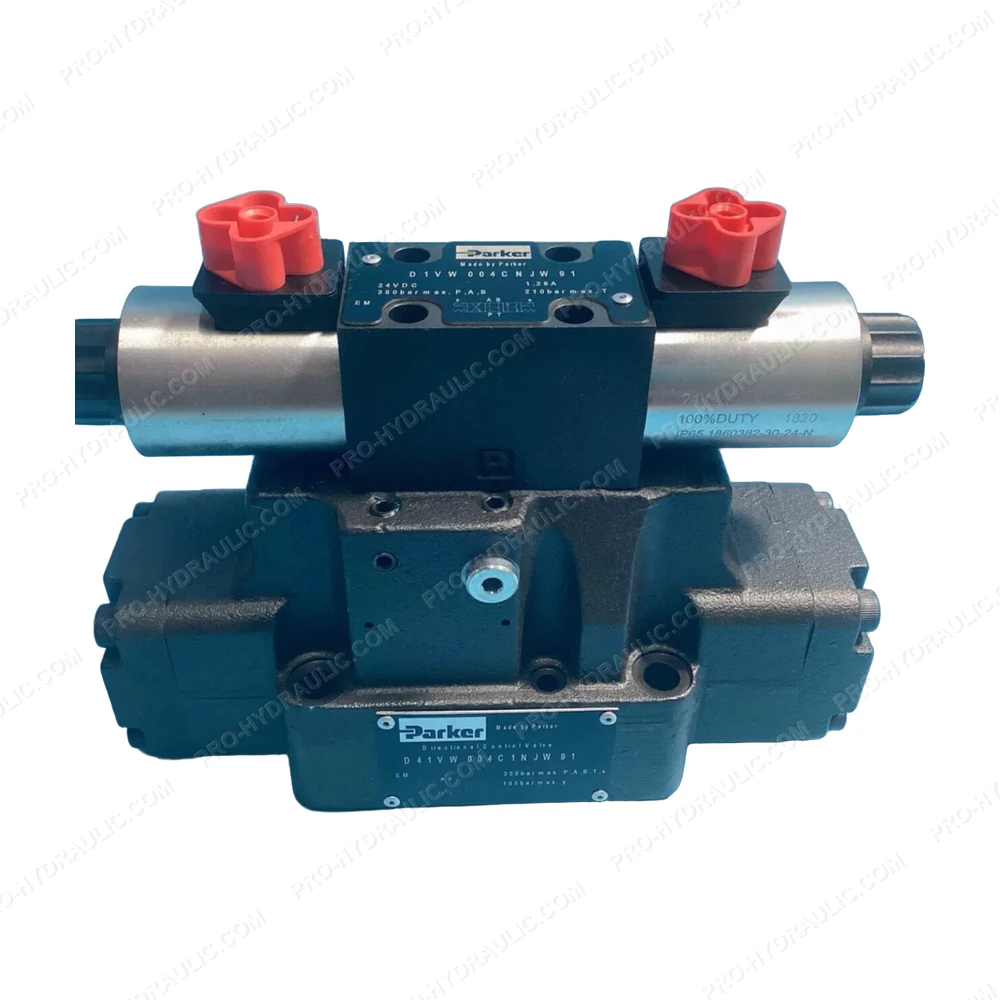

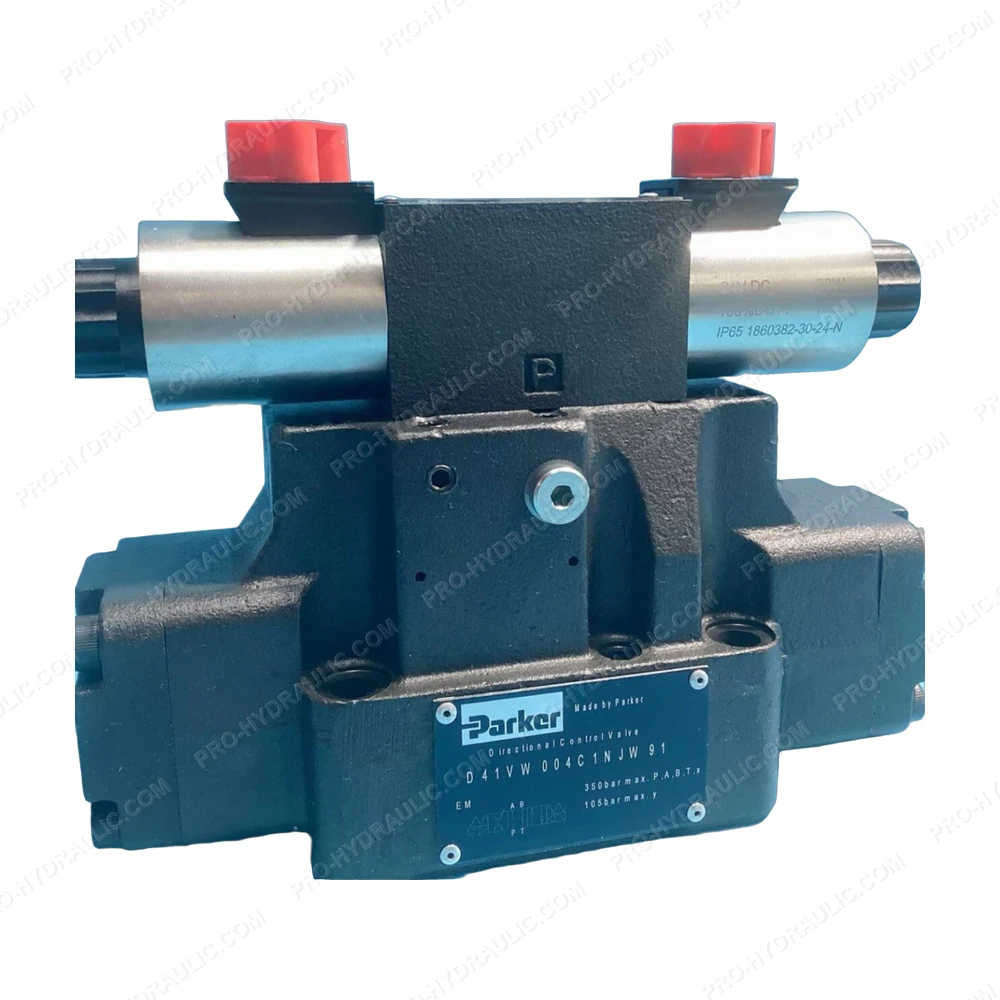

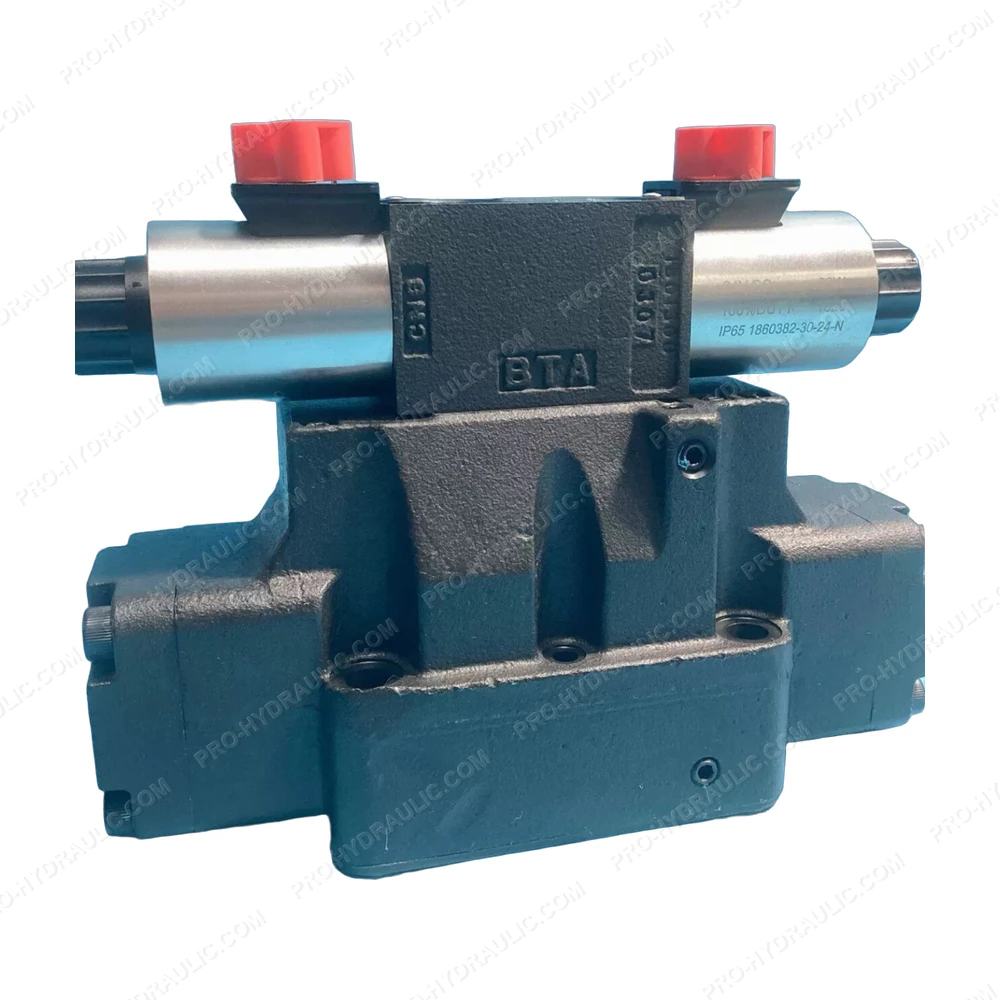

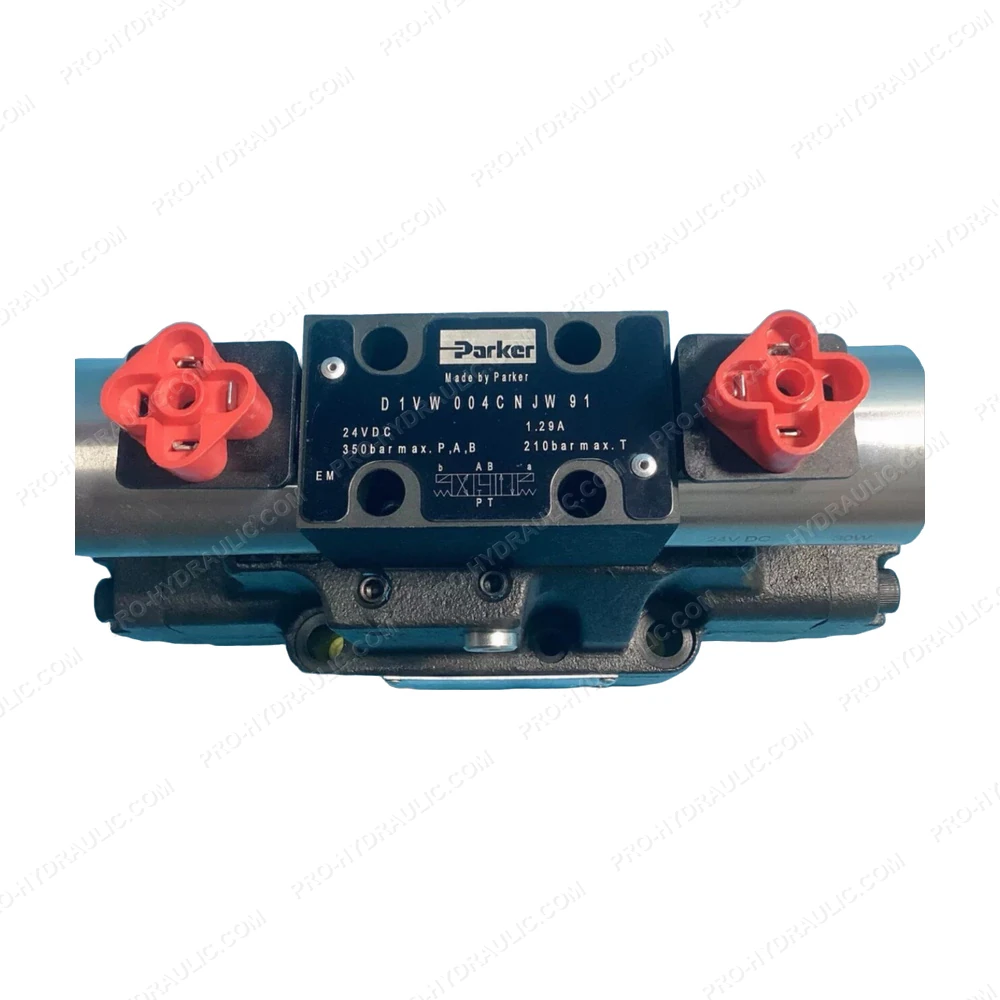

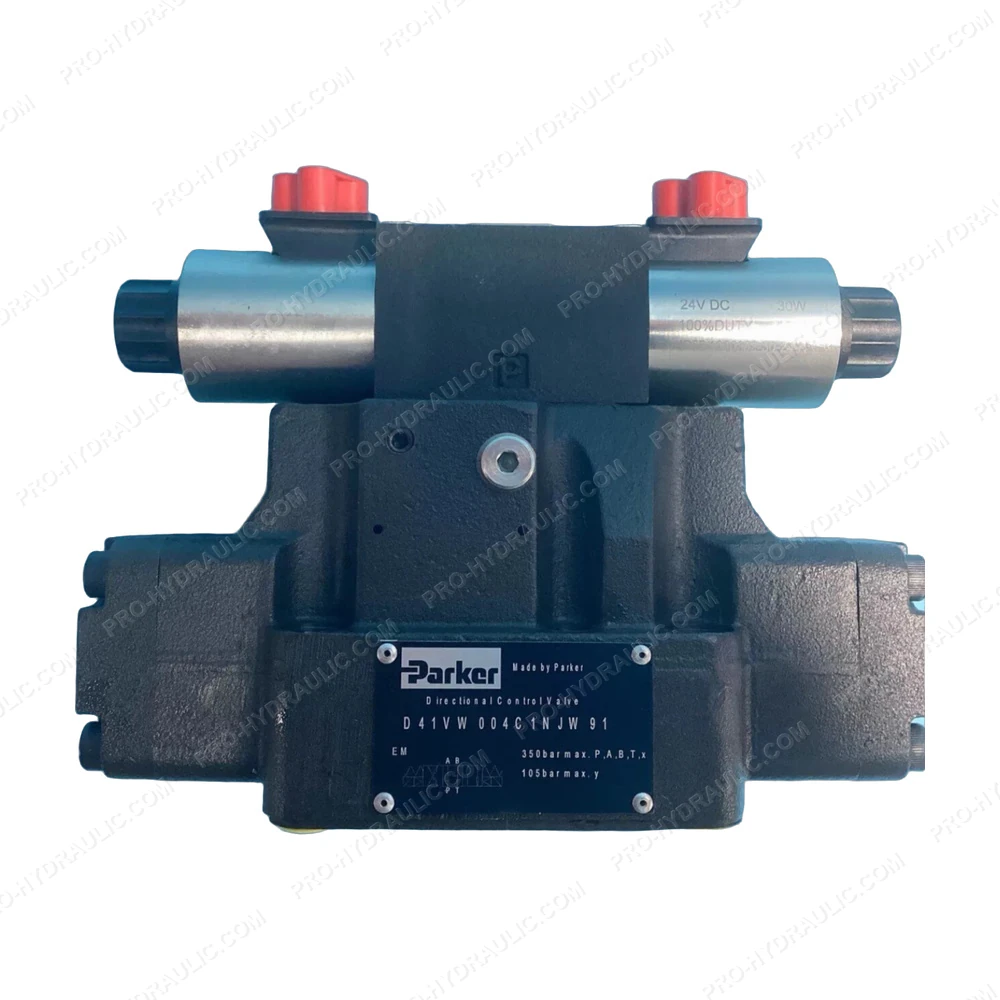

PARKER D41VW004C1NJW91 Directional Control Valve
