Product Overview

The Parker D41VW004C4NJW91 is a high-performance directional control valve from Parker Hannifin’s proven D41VW series, engineered for precise control of hydraulic fluid flow direction in demanding industrial circuits. Utilizing a robust spool-and-sleeve design, this valve directs pressurized fluid to specific actuator ports to extend, retract, or hold hydraulic cylinders and rotary actuators. The D41VW series is recognized for its reliable shifting characteristics, low internal leakage, and long service life in continuous-duty applications. With a nominal size of NG10 (CETOP 5 / ISO 4401-05), this valve serves as a critical control element in manifold-mounted and subplate-mounted hydraulic power systems.

Technical Specifications

ParameterSpecification / Feature
Component TypeDirectional Control Valve (Solenoid Operated)
Model DesignationD41VW004C4NJW91
Nominal SizeNG10 (CETOP 5 / ISO 4401-05)
Spool Configuration4-Way, 3-Position (4/3) with Spring Centering
Actuation TypeDual Solenoid, Spring Return to Center
Operating PressureUp to 350 bar (5,080 psi) at P, A, B ports
Rated FlowUp to 80 L/min (21 gpm) nominal
Solenoid Voltage24V DC (standard industrial coil)
Mounting & ConnectionSubplate / Manifold Mounting per ISO 4401-05
Seal MaterialNBR (Buna-N) — compatible with mineral-based hydraulic fluids
Fluid Temperature Range-20°C to +80°C (-4°F to +176°F)

Engineering Features & Advantages

  • Precision Spool Metering: The hardened, precision-ground spool and sleeve assembly ensures accurate flow metering, minimal internal leakage, and repeatable directional control across the full pressure range.
  • Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
  • Direct Fit Replacement: Exact dimensional and functional compatibility with original Parker OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.

Typical Industrial Applications

With a nominal size of NG10 (CETOP 5 / ISO 4401-05), this valve serves as a critical control element in manifold-mounted and subplate-mounted hydraulic power systems.

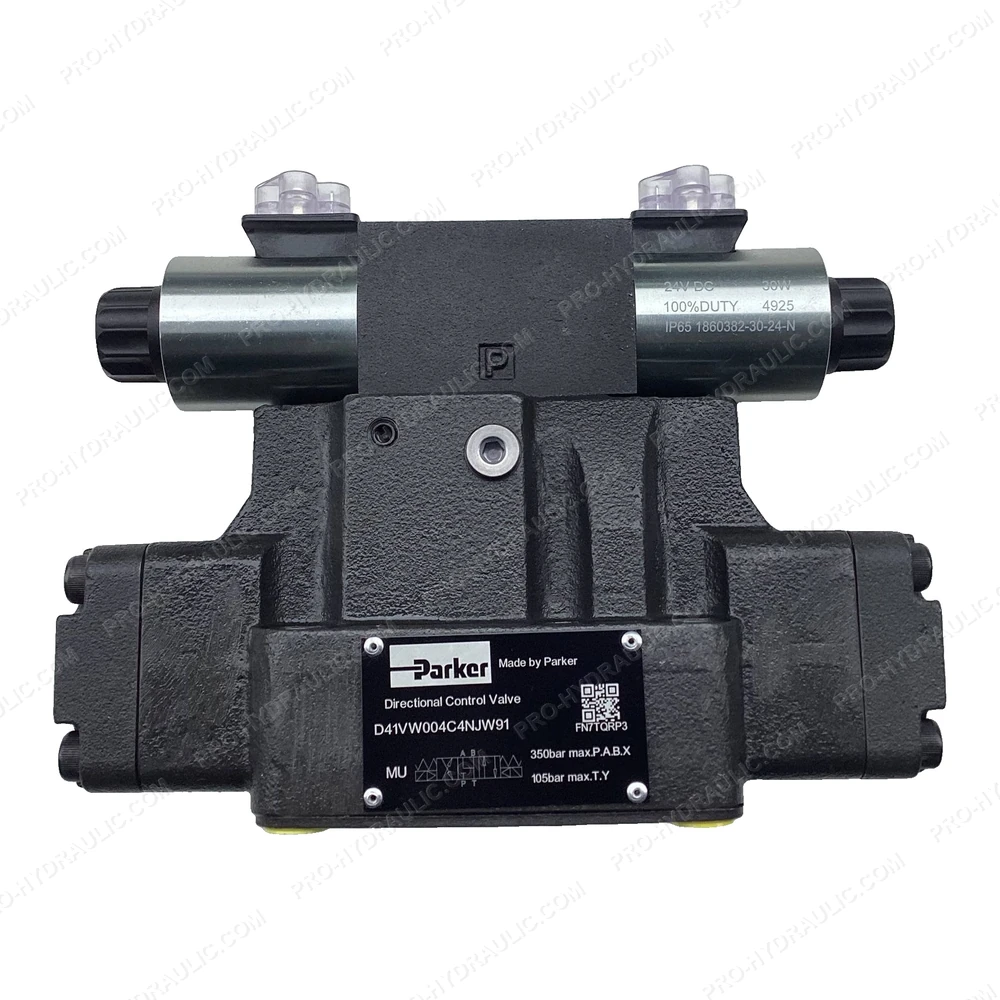

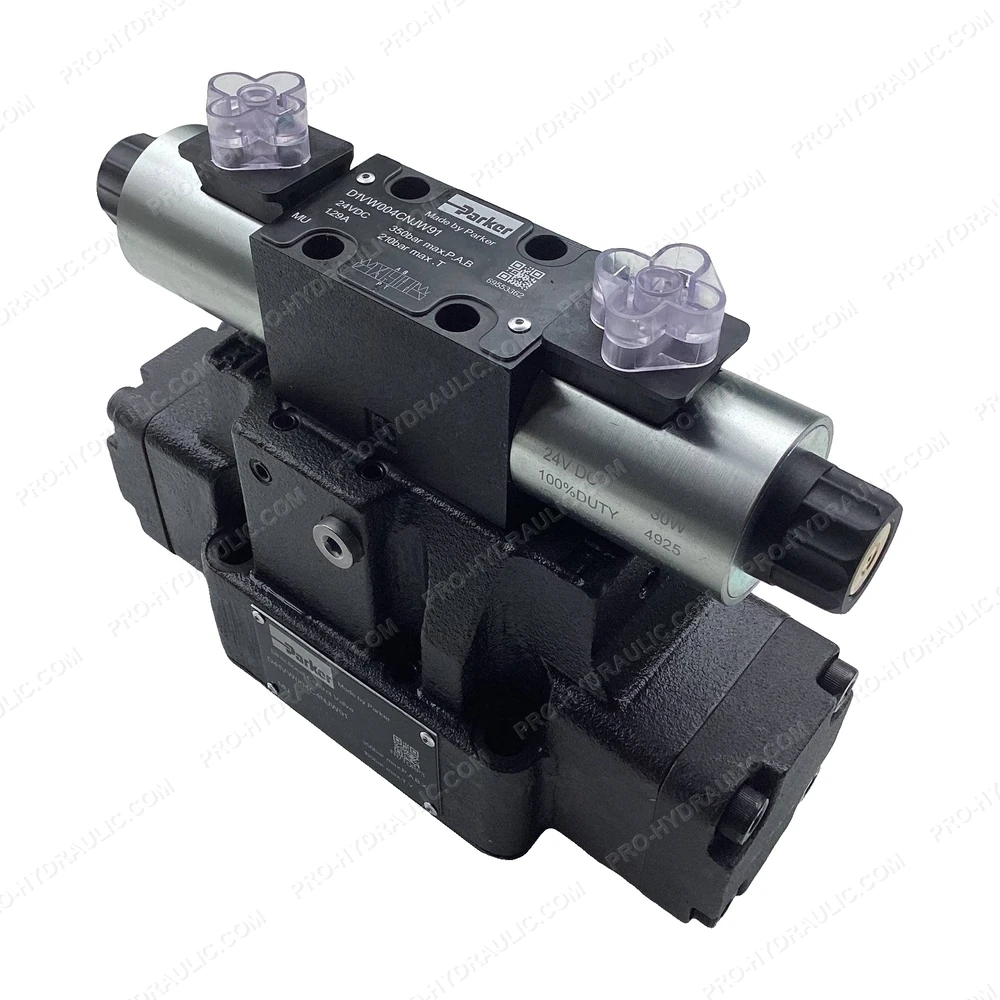

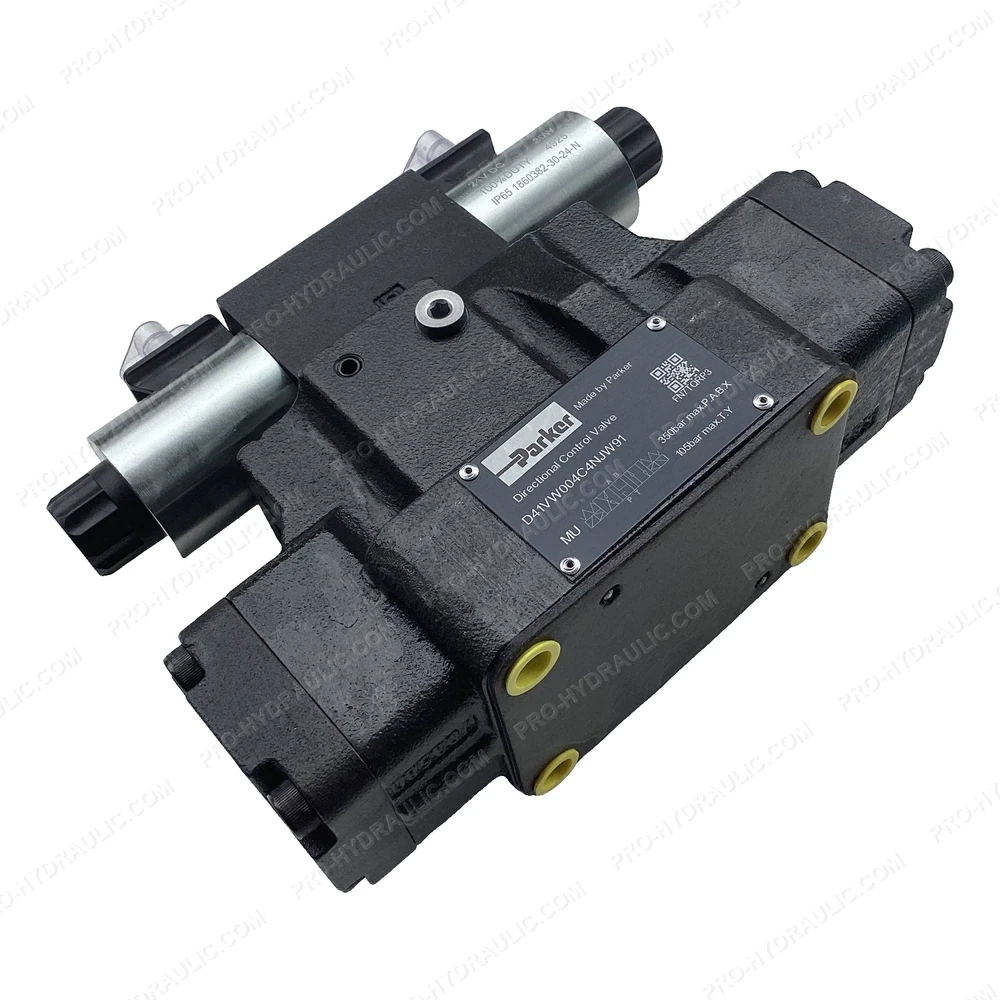

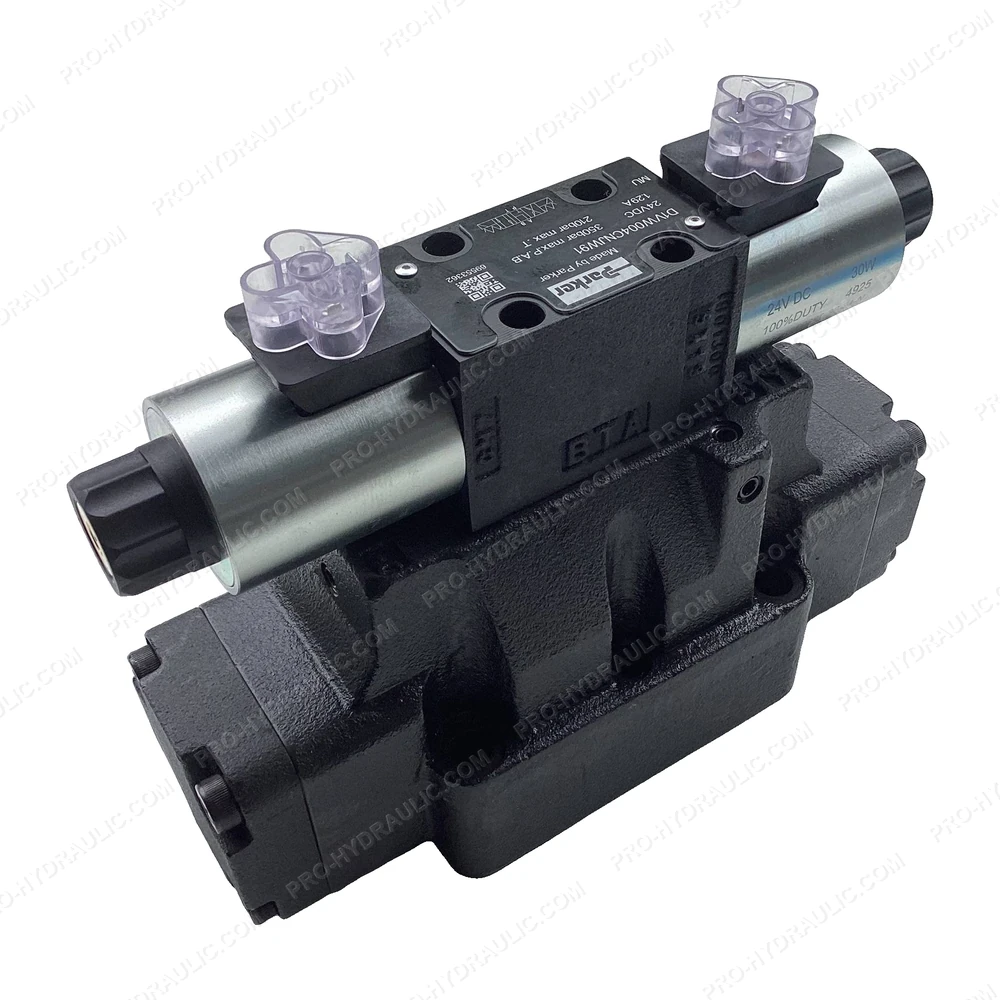

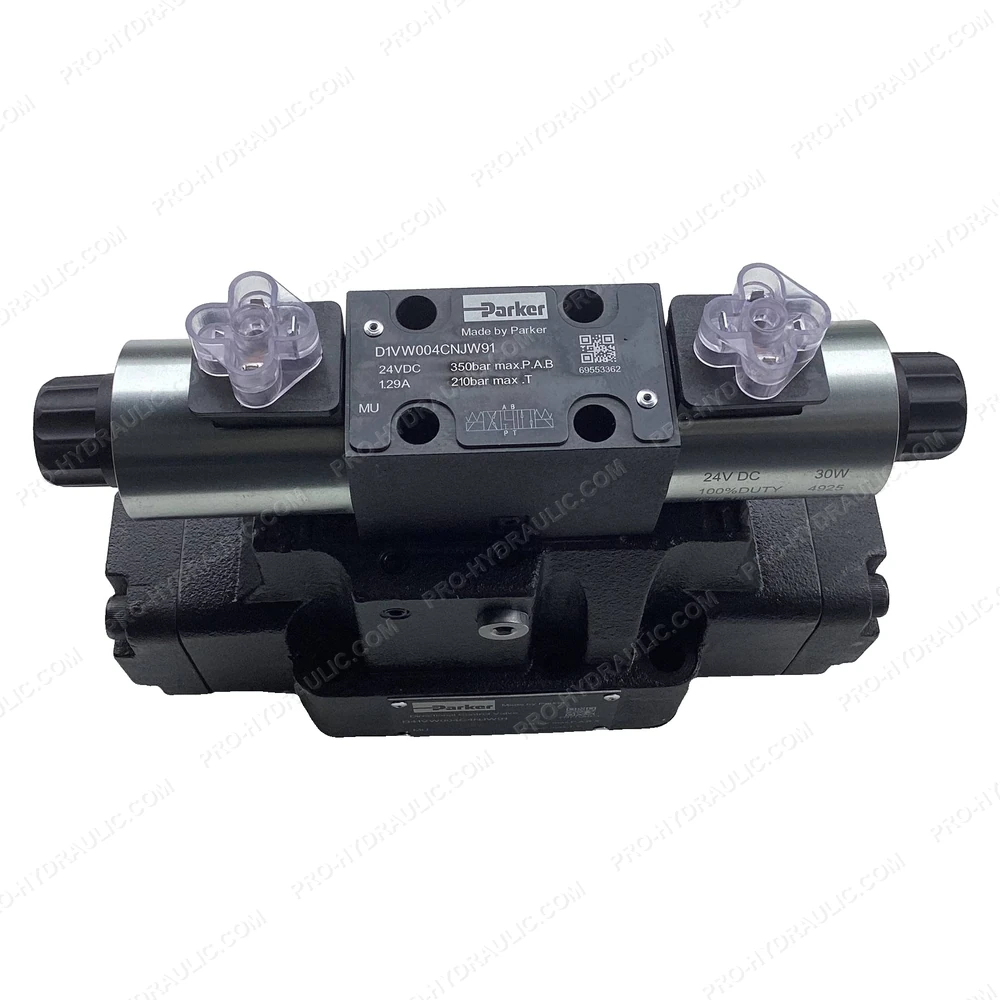

PRODUCT IMAGES

Parker D41VW004C4NJW91
Parker D41VW004C4NJW91
Parker D41VW004C4NJW91
Parker D41VW004C4NJW91
Parker D41VW004C4NJW91

Parker D41VW004C4NJW91 Directional Control Valve

⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:

  • Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
  • Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
  • Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
  • Peace of Mind: Covered by our 12-Month Replacement Warranty.

Shop the genuine Parker D41VW004C4NJW91 Solenoid Directional Control Valve. This US-made 24V DC hydraulic component features a robust spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
