Product Overview
The Parker DSH164HR is a high-performance, solenoid-operated directional cartridge valve engineered for precise control of hydraulic fluid flow direction in demanding industrial circuits. As part of Parker’s proven DSH series, this 2-position, 4-way cartridge valve utilizes a robust wet-armature solenoid design to shift an internal spool, directing flow between ports with rapid response and minimal pressure drop. The DSH164HR is designed for slip-in cartridge mounting, offering a compact, high-flow solution for manifold-based hydraulic systems where space efficiency and reliable directional control are critical. Its construction is optimized for continuous duty in high-pressure industrial environments, ensuring consistent actuation and long service life.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Cartridge Valve |
| Model Designation | DSH164HR |
| Operating Pressure | Up to 350 bar (5075 psi) rated |
| Mounting & Connection | Slip-in cartridge, ISO 4401 / CETOP manifold interface |
| Flow Capacity | Up to 160 L/min (42 gpm) nominal |
| Actuation Type | Wet-armature solenoid, push-pin design |
| Spool Configuration | 2-position, 4-way (2P4W) |
| Seal Material | Nitrile (NBR) / Fluorocarbon (FKM) options |
| Electrical Supply | 12 VDC or 24 VDC standard (other voltages available) |
Engineering Features & Advantages
- Precision Performance: The DSH164HR features a hardened, precision-ground spool and sleeve assembly that ensures minimal internal leakage and consistent flow metering, enabling accurate directional control in high-cycle applications.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, the wet-armature solenoid design provides excellent heat dissipation and contamination tolerance, extending valve life in demanding hydraulic circuits.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Parker DSH series cartridge valves, allowing drop-in replacement without manifold modification.
- Compact Cartridge Design: Slip-in cartridge format reduces manifold size and system weight, ideal for space-constrained mobile and industrial equipment.
- Fast Response: Optimized solenoid and spool dynamics deliver rapid shifting times, improving cycle rates and system responsiveness.
Typical Industrial Applications
The Parker DSH164HR solenoid-operated directional cartridge valve is widely used in plastic injection molding machines, metallurgical presses, construction and marine hydraulics, CNC machine tools, and automated assembly

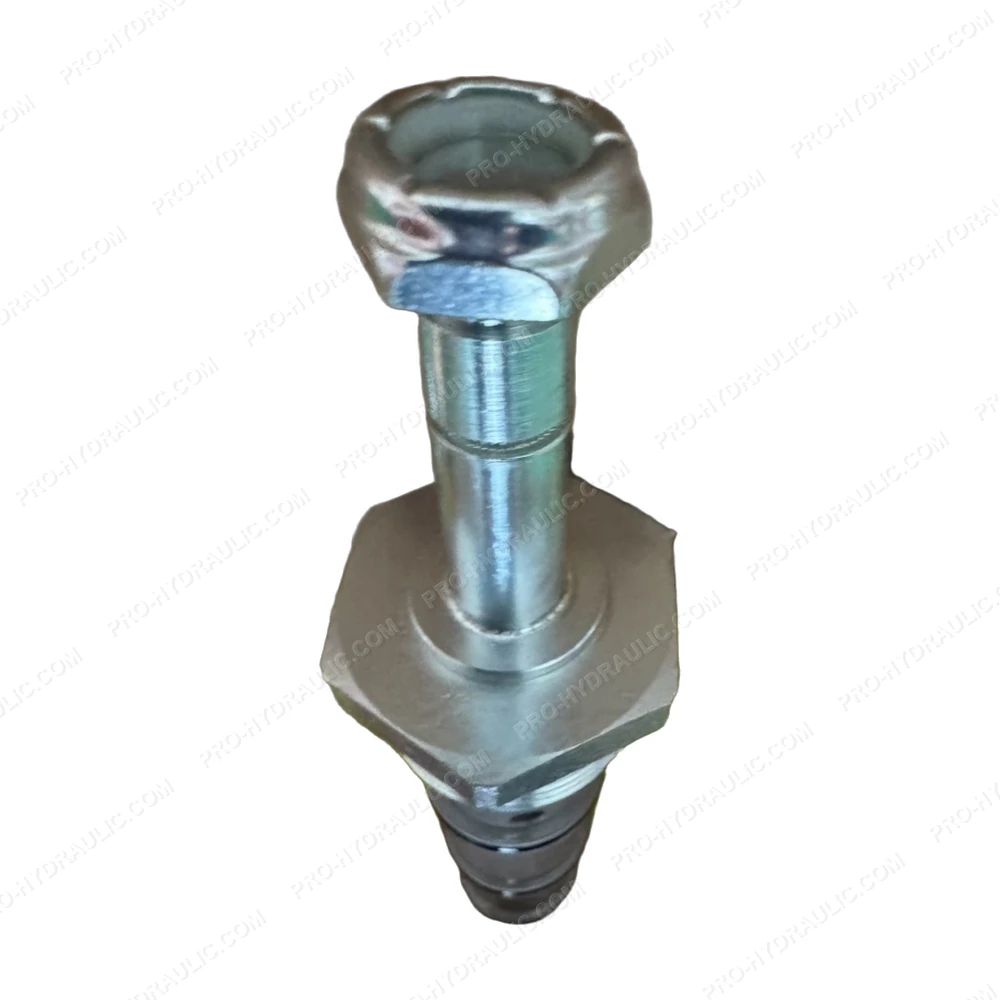

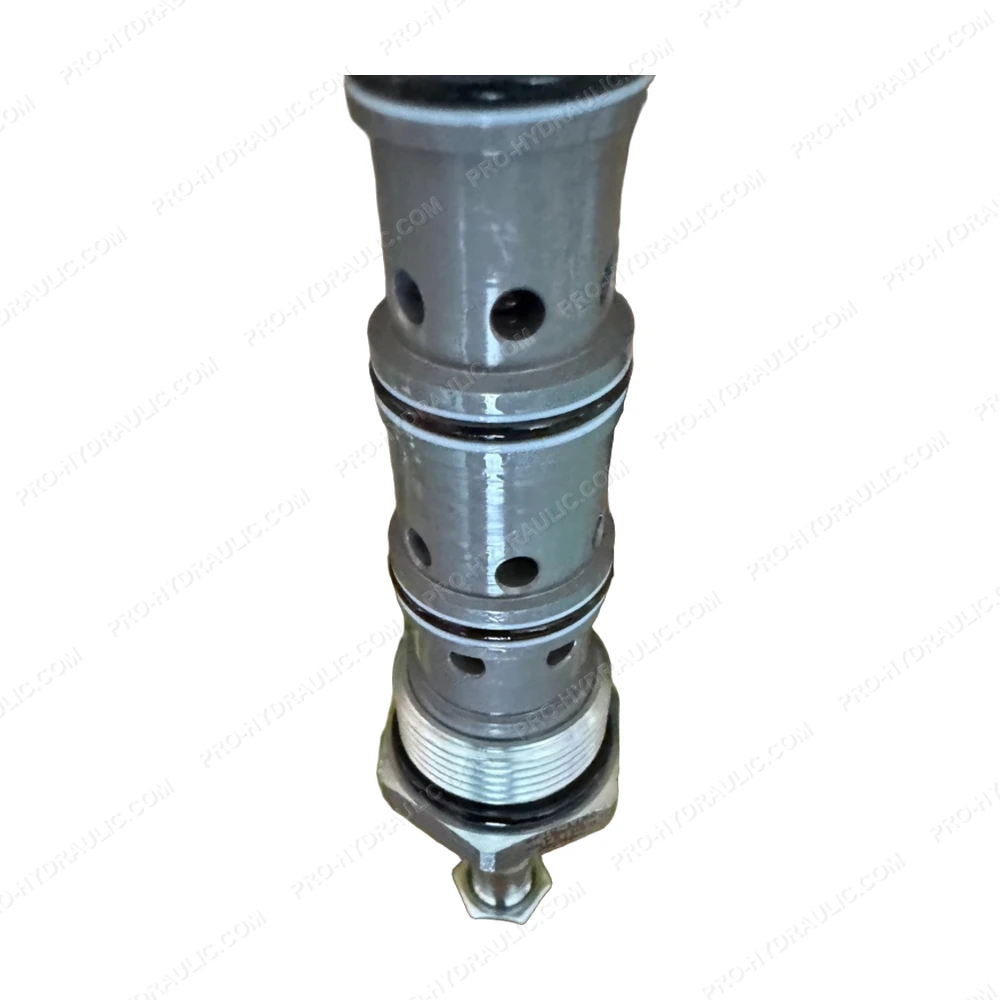

PRODUCT IMAGES
Parker DSH164HR Solenoid Operated Directional Cartridge Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Parker DSH164HR Solenoid Directional Control Valve. This Germany-made 24V DC hydraulic component features a high-response directional design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
