The PARKER DX1-621-BL49 is a heavy-duty industrial pneumatic solenoid valve engineered for precise directional control of compressed air and inert gases in automated fluid power systems. As part of Parker’s DX1 series, this 5/2-way valve features a robust spool-and-sleeve design with a wet-pin armature and encapsulated solenoid coil, ensuring rapid response and long service life under continuous duty cycles. The valve is configured for CETOP/ISO 5599-1 mounting, allowing direct integration into standard manifold and subplate assemblies without modification.
PARKER DX1-621-BL49 Technical Specifications
| Function | 5/2-way, single solenoid, spring return |
|---|---|
| Actuation | Electrical solenoid with wet-pin armature |
| Port Size | 1/4″ NPT (ISO 228/1 G1/4 optional) |
| Operating Pressure | 1 to 10 bar (14.5 to 145 psi) |
| Flow Rate | 1200 l/min at 6 bar |
| Voltage | 24 VDC (other voltages available) |
| Power Consumption | 2.5 W (DC), 4.5 VA (AC) |
| Body Material | Anodized aluminum |
| Seal Material | NBR (Buna-N) |
| Mounting Standard | CETOP/ISO 5599-1, size 1 |
| Temperature Range | -10°C to +60°C (14°F to 140°F) |
| Protection Class | IP65 with DIN connector |
Key Engineering Features
- Wet-pin armature design eliminates dynamic seals, reducing wear and extending cycle life.
- High-flow spool and sleeve construction minimizes pressure drop and ensures consistent actuation.
- Manual override as standard for commissioning and emergency operation.
- Encapsulated coil resistant to moisture, dust, and industrial contaminants.
- Compatible with Parker DX series manifolds and ISO 5599-1 subplates.
- Fast response time: 15 ms energization, 20 ms de-energization.
Industrial Applications
- Automated assembly and packaging machinery
- Pneumatic actuation in food and beverage processing lines
- Material handling and sorting systems
- Textile and printing equipment
- Robotic end-effectors and gripper control
- General factory automation and machine tool control
For technical inquiries, dimensional drawings, or replacement support for PARKER DX1-621-BL49, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

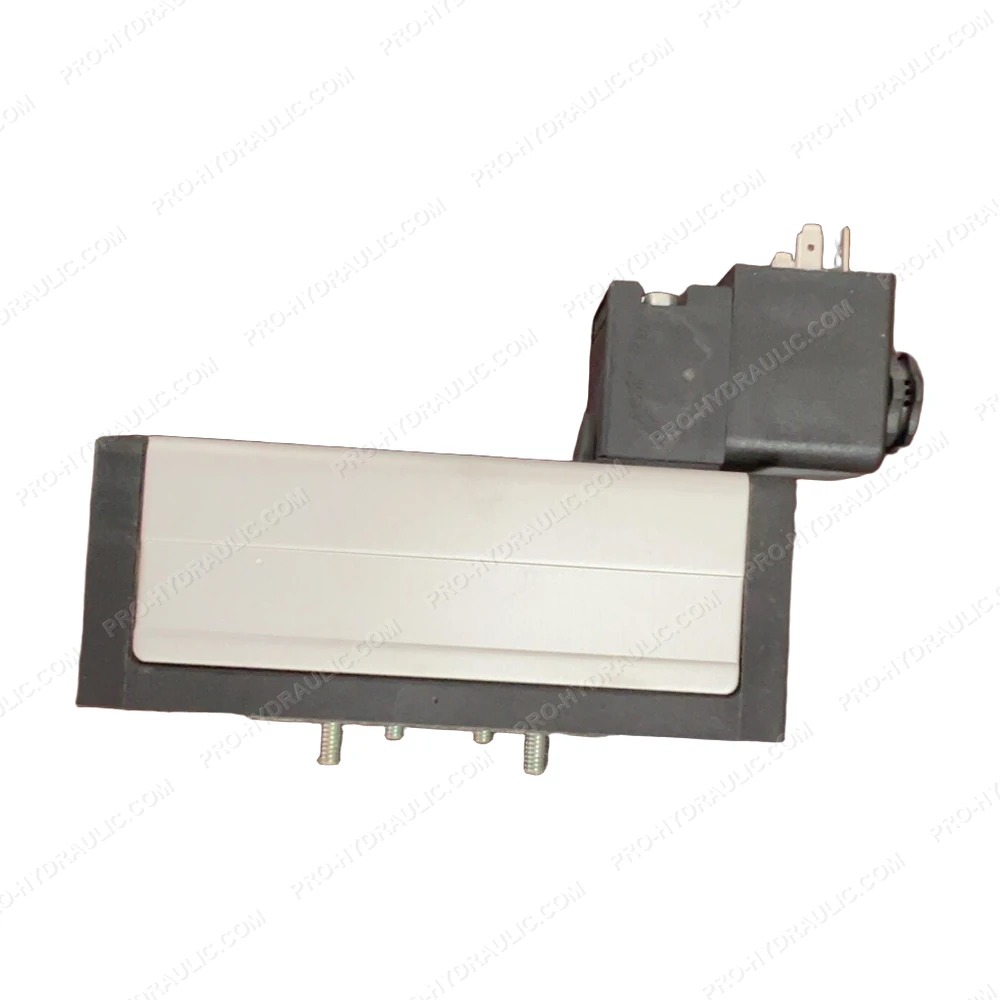

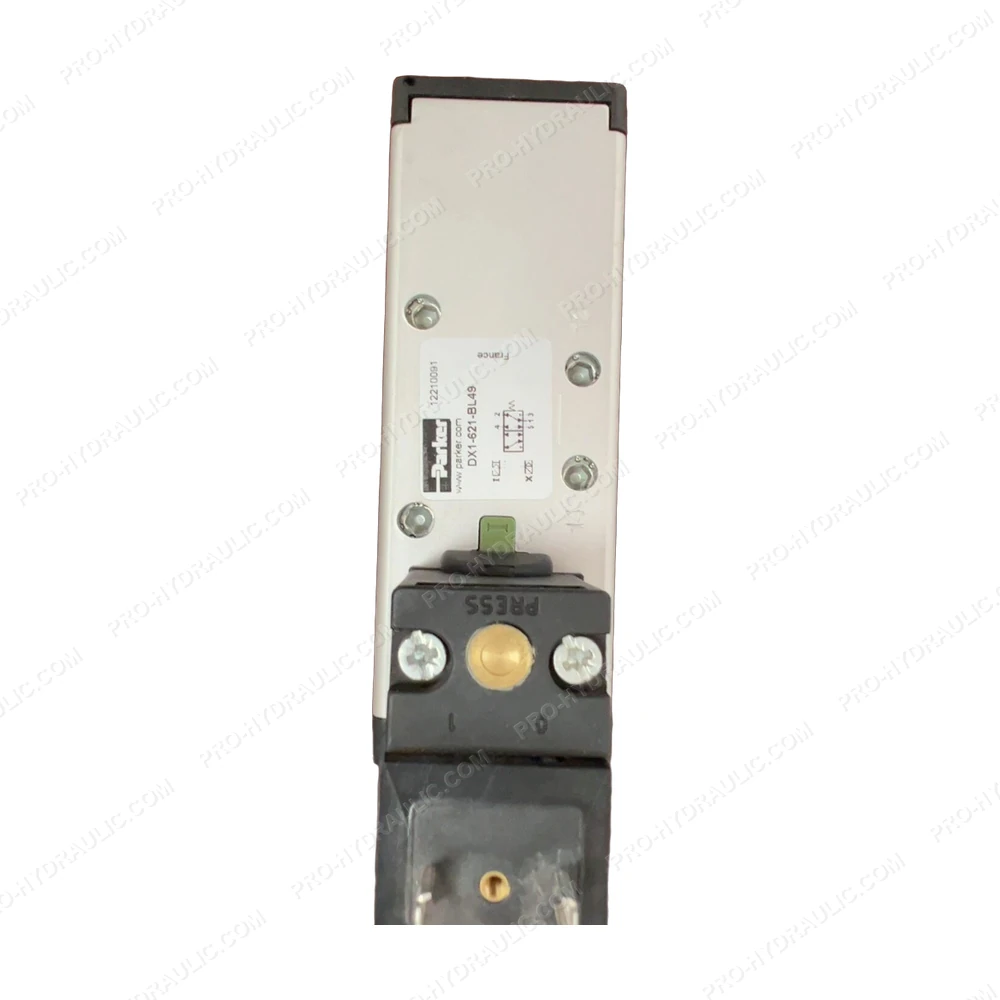

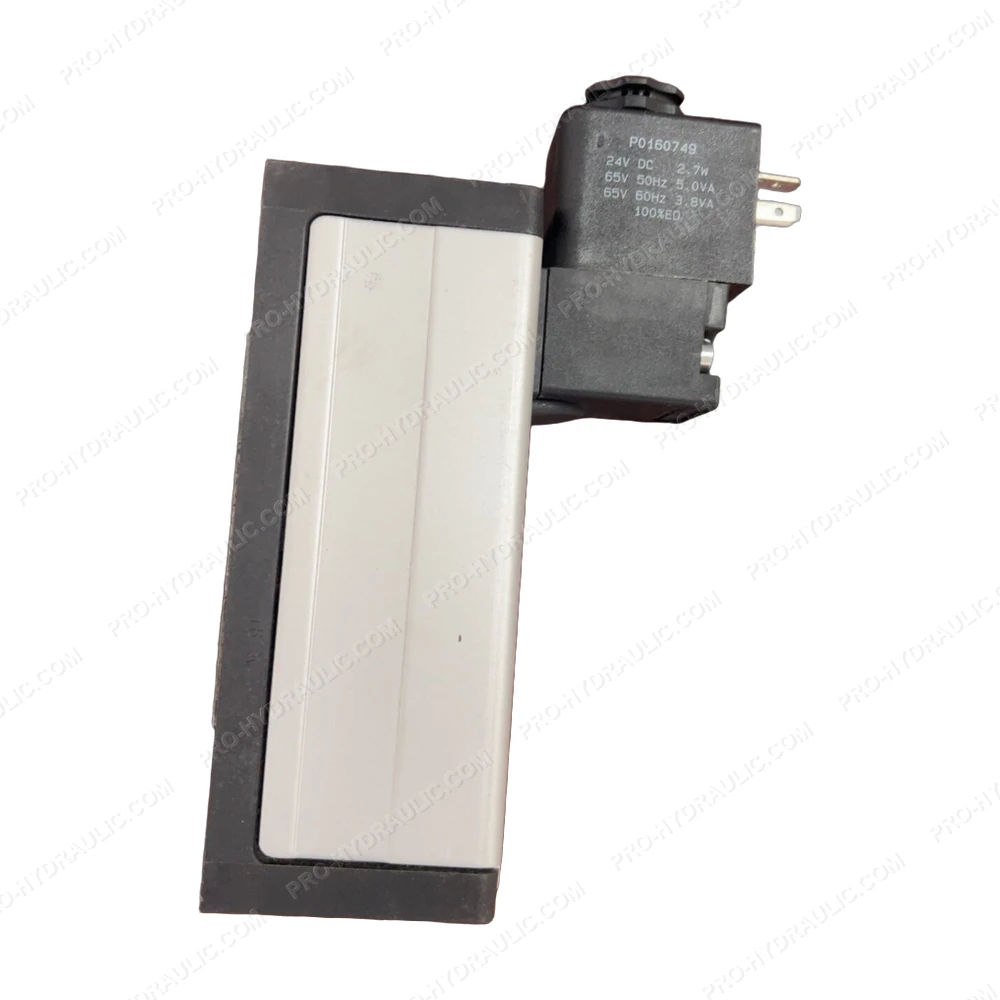

PARKER DX1-621-BL49 Pneumatic Solenoid Valve
