Product Overview
The PARKER F12-080-MF-IV-K-000-0000-00 (Material Number: 3780772) is a high-performance axial piston motor from Parker Hannifin’s renowned F12 series, engineered for demanding medium- and high-pressure hydraulic drive systems. Utilizing a bent-axis axial piston working principle, this fixed-displacement motor converts hydraulic fluid power into reliable rotary mechanical output with exceptional efficiency across a wide speed range. The F12-080 designation indicates a nominal displacement of 80 cm³/rev, making it ideally suited for applications requiring high torque density, smooth low-speed operation, and robust resistance to shock loads. With its compact, high power-to-weight ratio construction, the F12-080 is a preferred solution in mobile and industrial hydraulic circuits where precise motion control and long service life are critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Axial Piston Motor (Bent-Axis, Fixed Displacement) |
| Model Designation | F12-080-MF-IV-K-000-0000-00 / 3780772 |
| Nominal Displacement | 80 cm³/rev |
| Operating Pressure | Up to 480 bar (peak); 420 bar continuous (standard industrial grade) |
| Mounting & Connection | Standard ISO / SAE flange with splined or keyed shaft interface |
| Control Type | Fixed displacement, no integral control (MF configuration) |
| Direction of Rotation | Bi-directional (reversible) |
Engineering Features & Advantages
- Precision Performance: The bent-axis axial piston design delivers high volumetric and mechanical efficiency, ensuring smooth torque output even at low speeds and providing excellent starting characteristics under load.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust bearings and hardened piston/cylinder interfaces that withstand high pressure spikes and shock loads.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, including the F12 series mounting flange, shaft, and port configuration for drop-in replacement.
- Compact Power Density: High torque-to-weight ratio allows downsizing of system components without sacrificing performance, ideal for space-constrained mobile and industrial machinery.
- Wide Speed Range: Capable of operating efficiently from very low creep speeds up to high rotational speeds, offering flexibility in variable-duty drive systems.
Typical Industrial Applications
The PARKER F12-080 axial piston motor is widely deployed in heavy-duty industrial and mobile hydraulic systems, including plastic injection molding machines, metallurgical presses and rolling mills, construction and marine winch drives, and CNC machine tool rotary indexing tables. Its robust bent-axis design also makes it suitable for agricultural machinery, mining equipment, and offshore drilling systems where reliable high-torque output and resistance to harsh environments are essential.
PRODUCT IMAGES

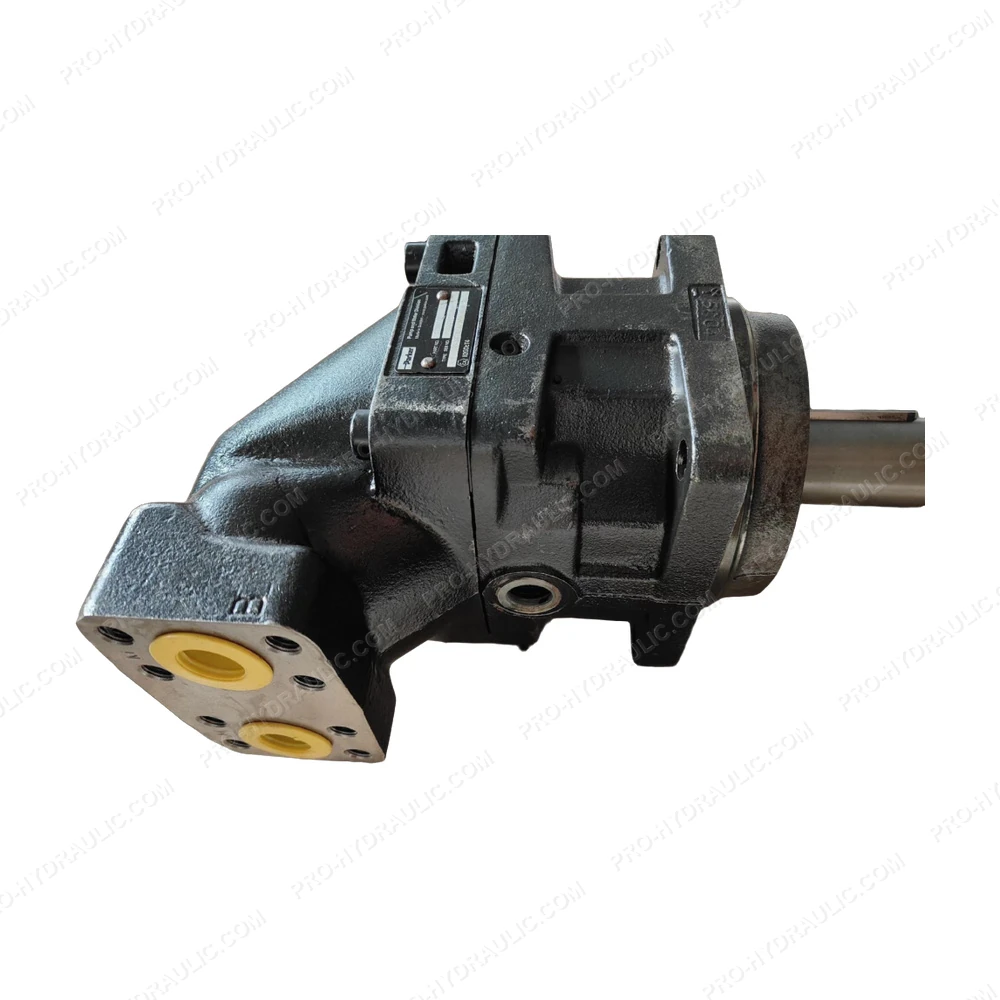

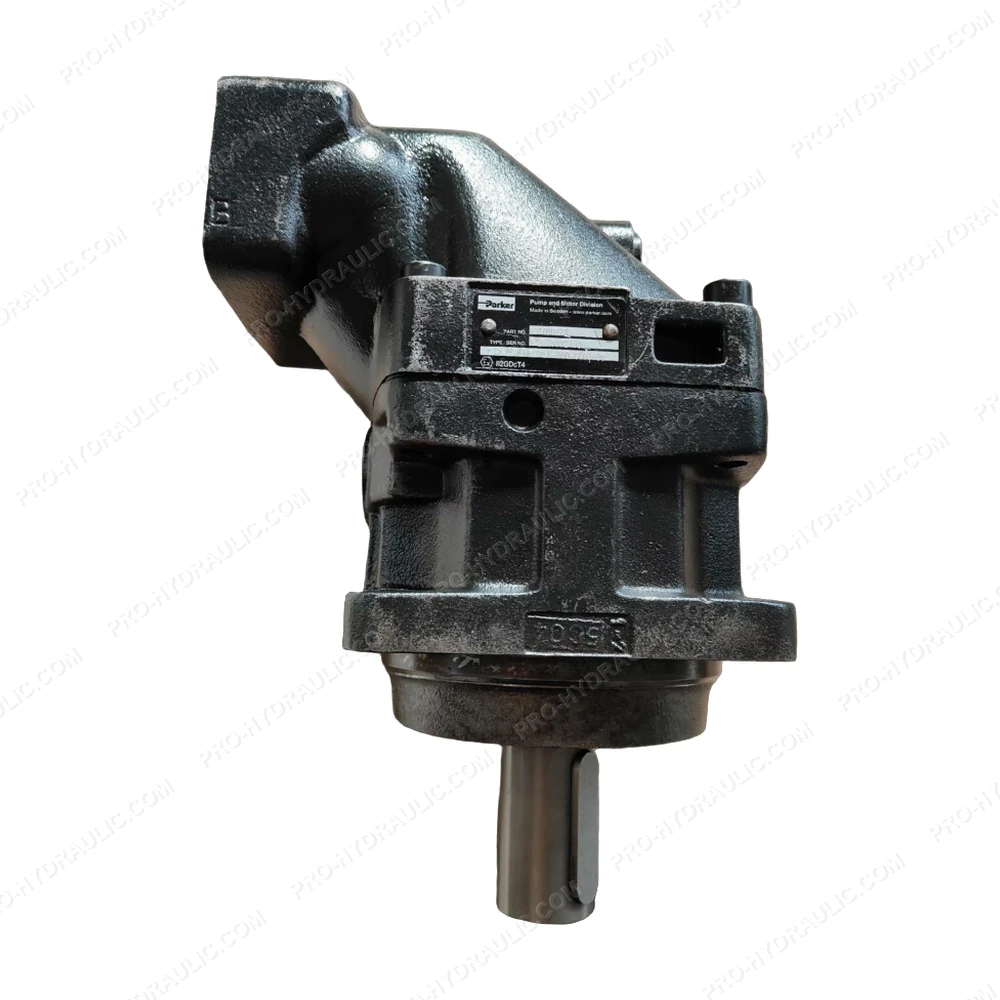

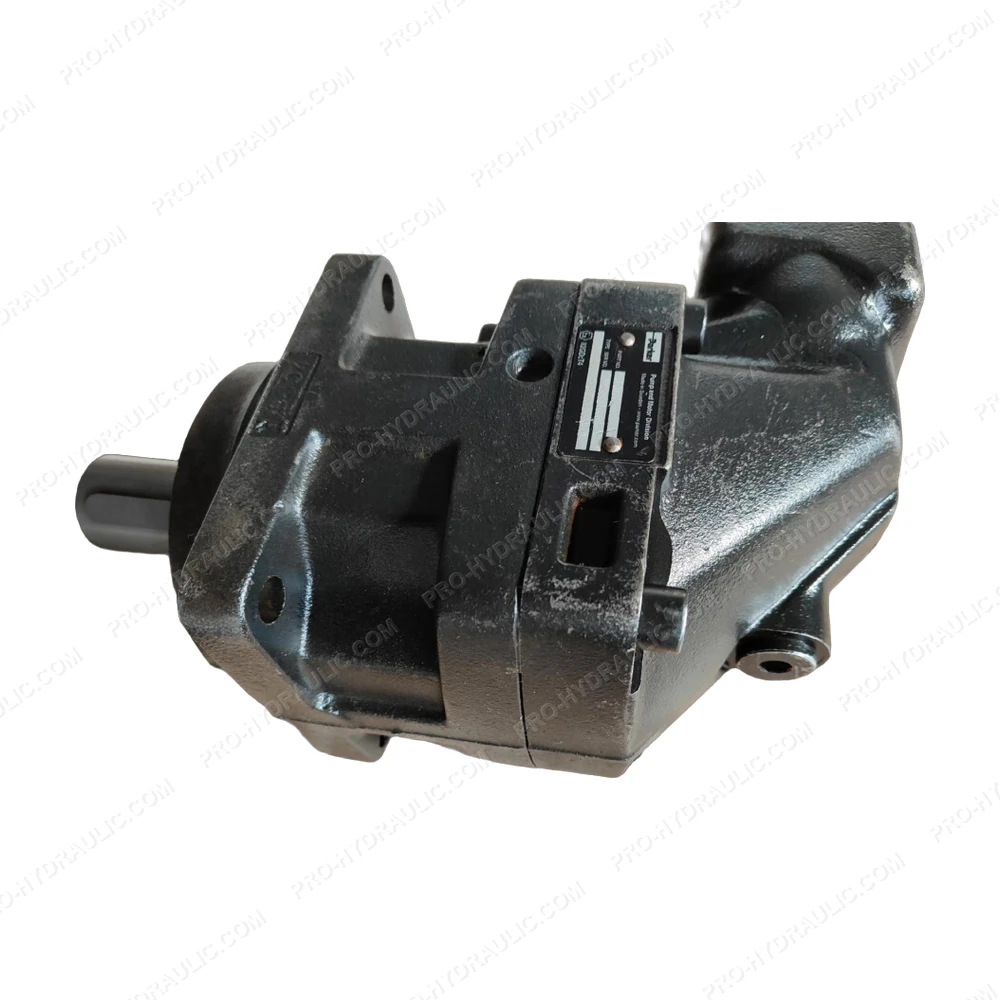

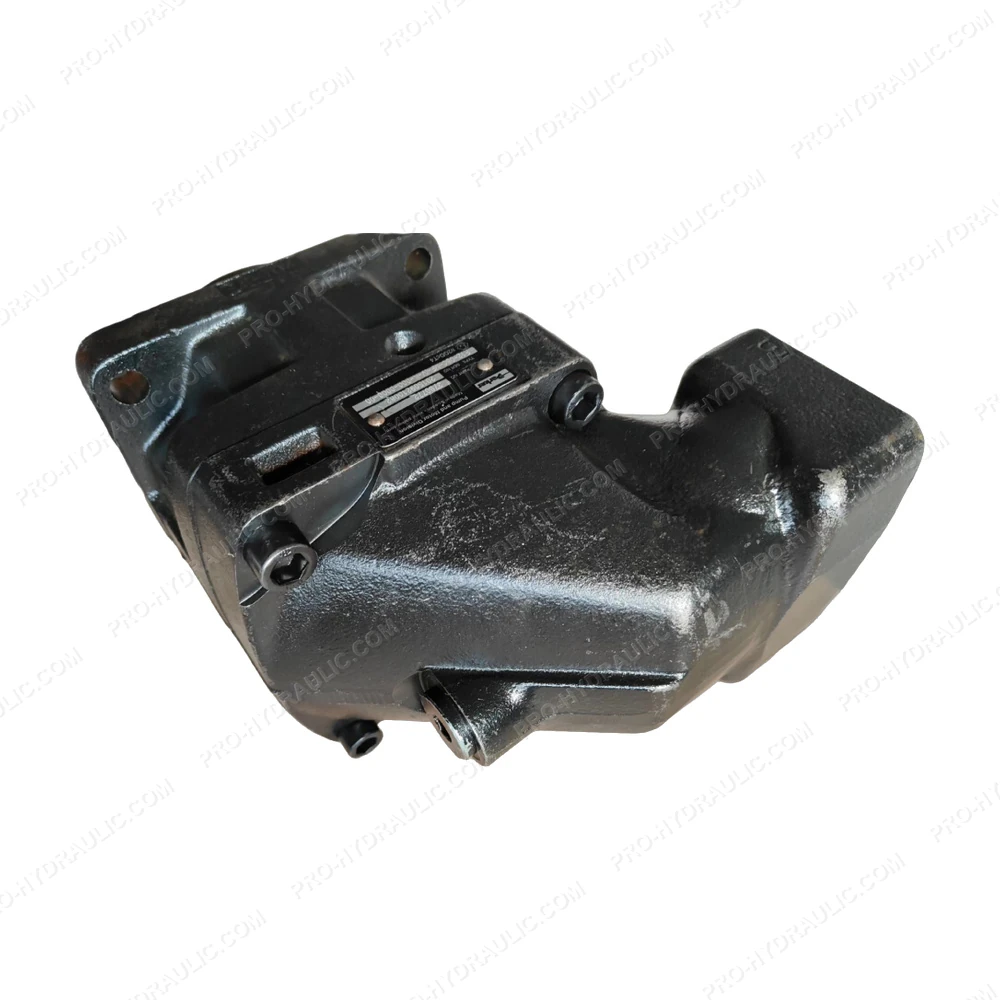

PARKER F12-080-MF-IV-K-000-0000-00 / 3780772 Axial Piston Motor
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PARKER F12-080-MF-IV-K-000-0000-00 / 3780772 Hydraulic Motor. This Italy-made hydraulic component features a robust axial piston design, delivering reliable, high-torque fluid power for heavy-duty industrial systems.
