Product Overview
The Parker GPC450-B5F3-G510SR is a heavy-duty external gear pump from Parker Hannifin’s GPC series, engineered for reliable hydraulic power generation in demanding industrial circuits. It operates on the positive-displacement external gear principle: two precision-ground, hardened spur gears rotate in mesh within a high-tolerance aluminum alloy housing, trapping and displacing fluid between the gear teeth and the casing walls to deliver a continuous, pulsation-damped flow. With a nominal displacement of approximately 45 cm³/rev, this pump is designed to serve as a primary or auxiliary pressure source in open-loop hydraulic systems, offering robust performance, compact envelope dimensions, and excellent tolerance to contamination compared to more sensitive pump architectures.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Gear Pump (External Gear, Positive Displacement) |
| Model Designation | GPC450-B5F3-G510SR |
| Nominal Displacement | Approx. 45 cm³/rev (GPC450 frame size) |
| Operating Pressure | Standard Industrial Grade (up to 250 bar continuous, 280 bar peak) |
| Speed Range | Up to 3,000 rpm (dependent on fluid viscosity and pressure) |
| Mounting & Connection | Standard ISO 4-bolt flange / Manufacturer Interface |
| Rotation | Clockwise (viewed from shaft end) — verify configuration code |
| Body Material | High-strength aluminum alloy casing with hardened steel gears |
Engineering Features & Advantages
- Precision Gear Performance: Hardened, precision-ground spur gears and high-tolerance bearing journals minimize internal leakage and deliver consistent volumetric efficiency across the operating pressure range.
- Robust Casing Construction: The aluminum alloy housing with integrated bearing carriers provides structural rigidity and effective heat dissipation during continuous duty cycles.
- Contamination Tolerance: The simple gear-on-gear working principle offers superior resilience to particulate contamination compared to piston or vane designs, reducing downtime in harsh environments.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a proven Parker GPC platform trusted in global hydraulic systems.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in interchangeability for the GPC450-B5F3-G510SR configuration.
Typical Industrial Applications
The Parker GPC450-B5F3-G510SR gear pump is widely deployed across heavy industrial sectors, including plastic injection molding machines, metallurgical presses and rolling mills, construction and marine hydraulic systems, CNC machine tool power packs, and general industrial hydraulic power units requiring dependable medium-pressure flow. Its robust gear design makes it particularly suited to mobile equipment and factory-floor installations where reliability and serviceability are paramount.
PRODUCT IMAGES

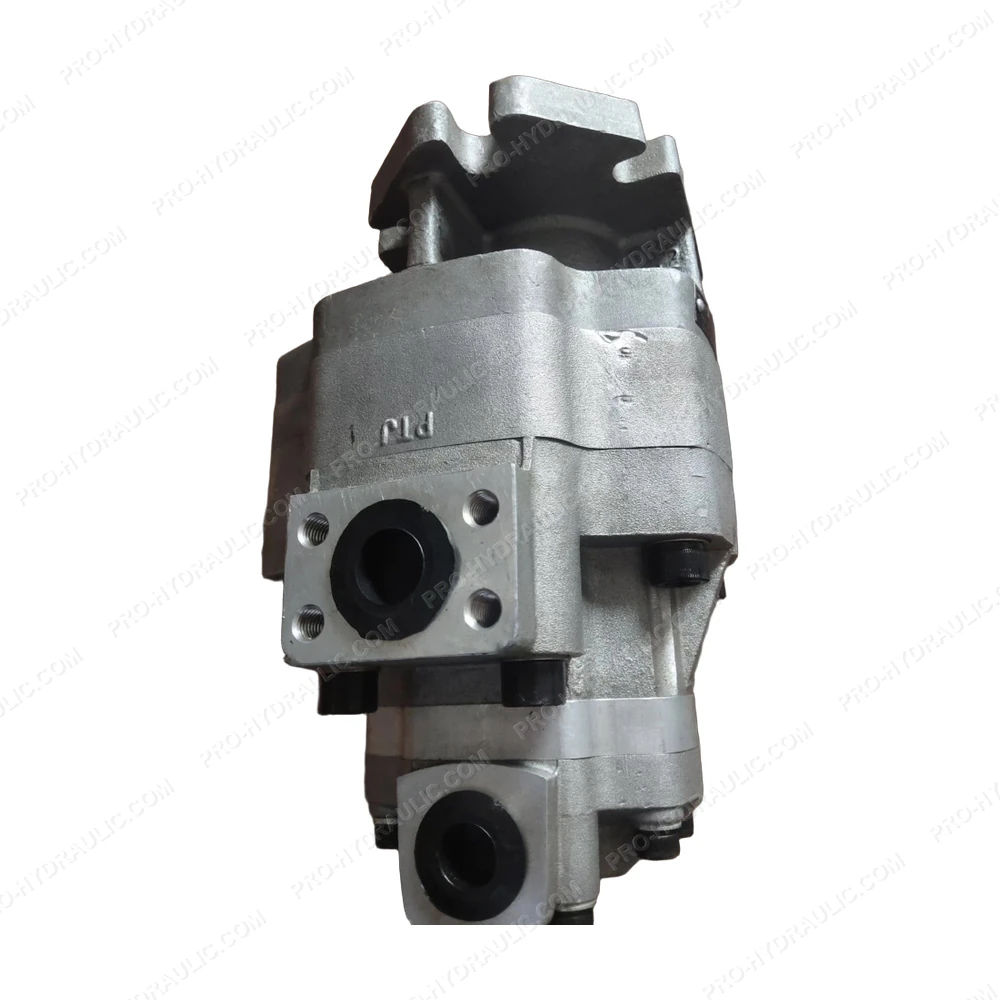

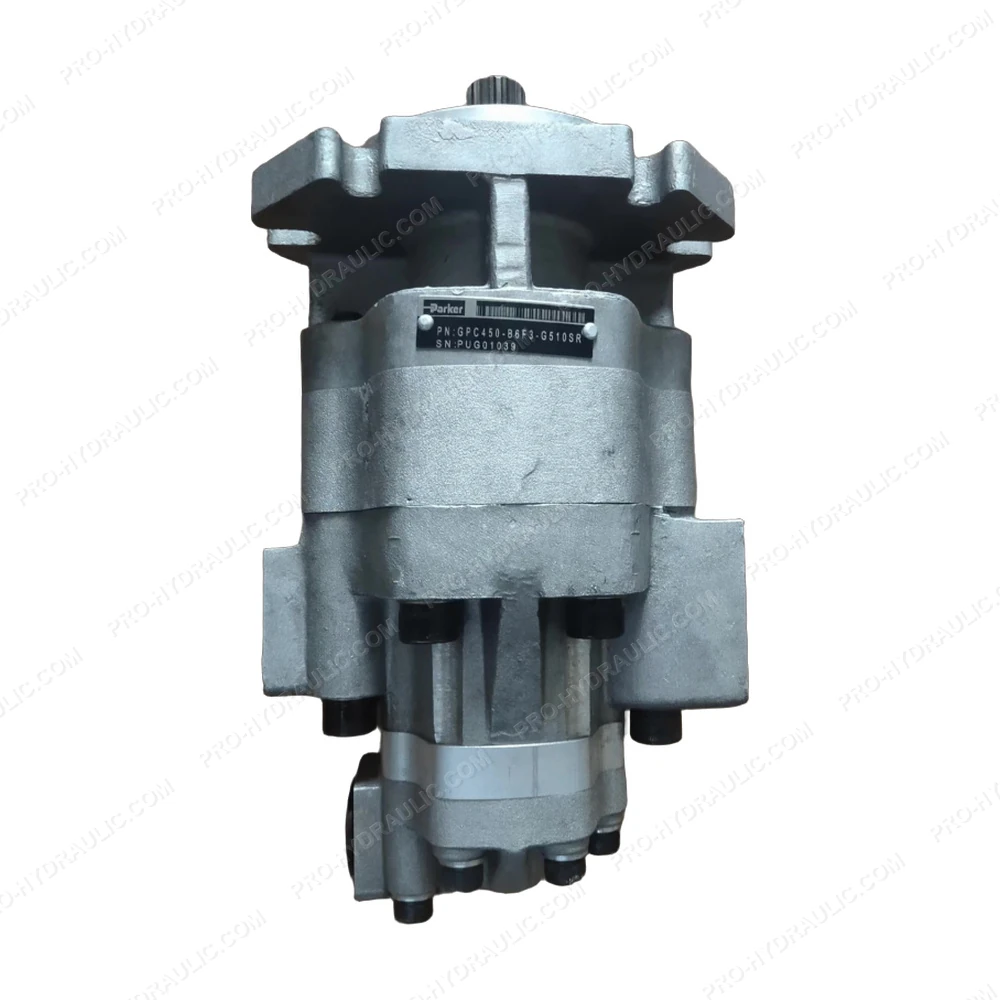

Parker GPC450-B5F3-G510SR Hydraulic Gear Pump
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Parker GPC450-B5F3-G510SR Hydraulic Gear Pump. This USA-made high-pressure hydraulic component features a robust external gear design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
