Product Overview
The Parker GS045200V is a high-performance solenoid-operated directional cartridge valve engineered for precise control of hydraulic fluid flow direction within compact manifold-based circuits. As part of Parker’s GS series of 2-way and 3-way cartridge valves, this model utilizes a robust solenoid actuator acting on a hardened spool to shift between flow paths, enabling reliable start, stop, and directional control of hydraulic actuators. Its slip-in cartridge design allows direct installation into a machined cavity, eliminating the need for separate subplates and reducing leakage paths. The GS045200V is ideally suited for integration into custom hydraulic manifolds where space efficiency, fast response, and leak-free operation are critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Cartridge Valve |
| Model Designation | GS045200V |
| Operating Pressure | Up to 350 bar (5075 psi) rated |
| Flow Capacity | Up to 45 L/min (nominal) |
| Actuation Type | Solenoid (wet armature, push-type) |
| Mounting & Connection | Slip-in cartridge, ISO 4401 cavity (Parker GS series standard) |
| Seal Material | Nitrile (NBR) / Fluorocarbon (FKM) options |
| Electrical Connection | DIN 43650 connector / flying leads |
Engineering Features & Advantages
- Precision Performance: Hardened, precision-ground spool and sleeve assembly ensures minimal internal leakage and consistent directional shifting, even under high cyclic duty.
- Compact Cartridge Design: Slip-in cartridge construction reduces manifold size and eliminates external piping, lowering installation cost and potential leak points.
- Fast Solenoid Response: Optimized solenoid force and low-inertia spool design deliver rapid actuation for demanding sequencing and safety circuits.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust coil insulation and corrosion-resistant housing.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Parker GS series cavities and OEM manifold standards.
Typical Industrial Applications
The Parker GS045200V solenoid directional cartridge valve is widely used in plastic injection molding machines for mold clamping and ejection control, metallurgical presses for directional sequencing of ram and return strokes, construction and marine hydraulic systems for steering and implement circuits, and CNC machine tools for tool changer and clamping functions. Its compact cartridge format makes it ideal for high-density manifold assemblies in mobile and industrial hydraulic power units.
PRODUCT IMAGES

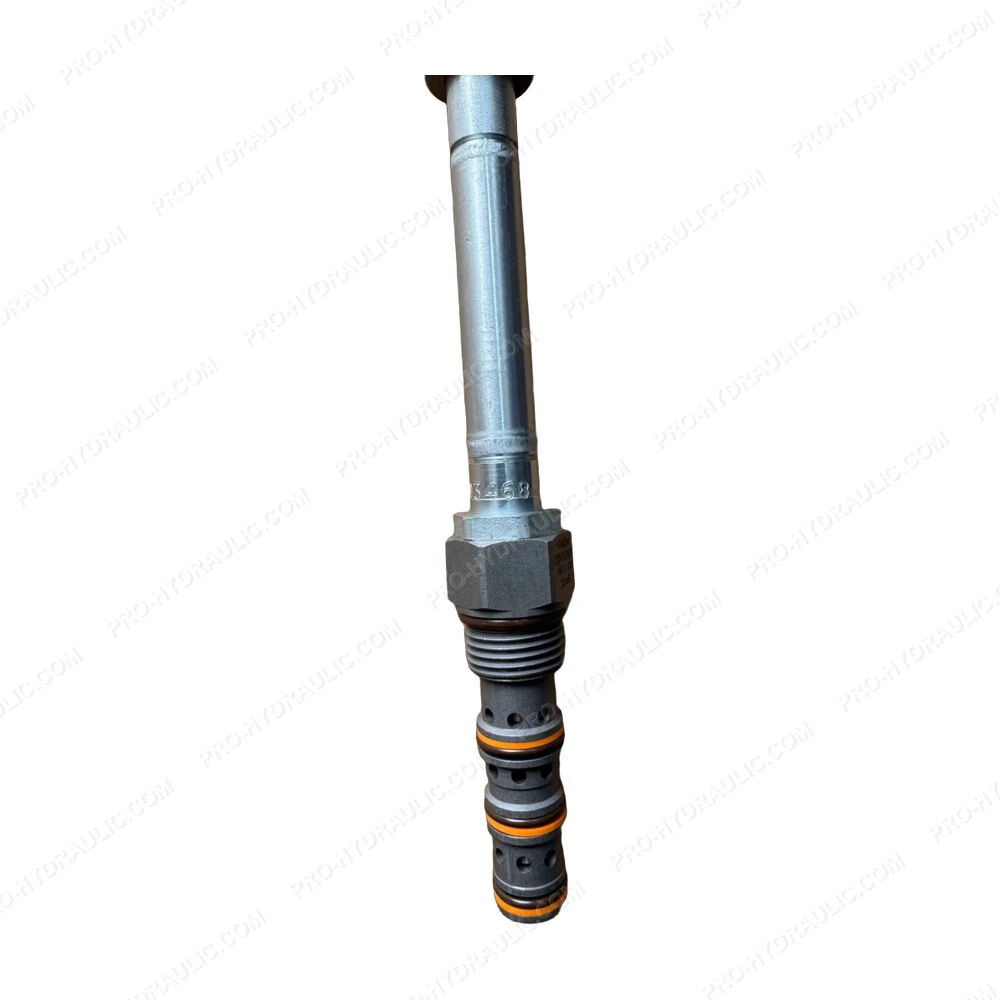

Parker GS045200V Solenoid Directional Cartridge Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Parker GS045200V Solenoid Directional Control Valve. This USA-made 120V AC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
