Product Overview
The PARKER P2LBX512EEHDDN is a high-performance pneumatic directional control valve engineered for precise actuation and reliable switching of compressed air circuits in demanding industrial environments. As part of Parker’s renowned P2L series, this valve utilizes a robust spool-and-sleeve design that ensures fast response times, minimal pressure drop, and long service life. The P2LBX512EEHDDN is configured for 5/2 operation, making it ideal for controlling double-acting pneumatic cylinders and other bidirectional actuators. Its solenoid-pilot actuation with manual override provides flexible electrical control while maintaining the ability to operate the valve during setup or emergency conditions. This valve is a direct-fit replacement for OEM systems and is widely used in automation, packaging, and process control applications where dependable directional air control is critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Directional Control Valve (5/2 Solenoid-Pilot Actuated) |
| Model Designation | P2LBX512EEHDDN |
| Operating Pressure | Standard Industrial Grade (Up to 10 bar / 145 psi) |
| Mounting & Connection | Standard ISO 5599-1 / Parker Interface, Sub-base Mounted |
| Valve Function | 5/2 Way, 2-Position, Spring Return |
| Actuation Type | Solenoid Pilot with Manual Override |
| Port Size | 1/4″ (ISO 1) – Standard Industrial Interface |
| Seal Material | Nitrile (NBR) / Polyurethane – Compatible with Filtered Air |
| Voltage Options | Standard Industrial Solenoid (e.g., 24 VDC, 110 VAC, 220 VAC) |
Engineering Features & Advantages
- Precision Performance: The balanced spool design ensures consistent shifting forces and minimal pressure drop, delivering precise directional control for double-acting actuators and high-cycle pneumatic systems.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction that resists contamination and extends service intervals in demanding environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, including ISO 5599-1 sub-base mounting and standard solenoid voltage options, ensuring drop-in installation without modification.
- Fast Response & Low Noise: Optimized pilot and spool geometry provide rapid actuation and quiet operation, reducing cycle times and improving workplace safety.
- Direct Fit Replacement: Precision-manufactured to original PARKER specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
This valve is a direct-fit replacement for OEM systems and is widely used in automation, packaging, and process control applications where dependable directional air control is critical.
PRODUCT IMAGES

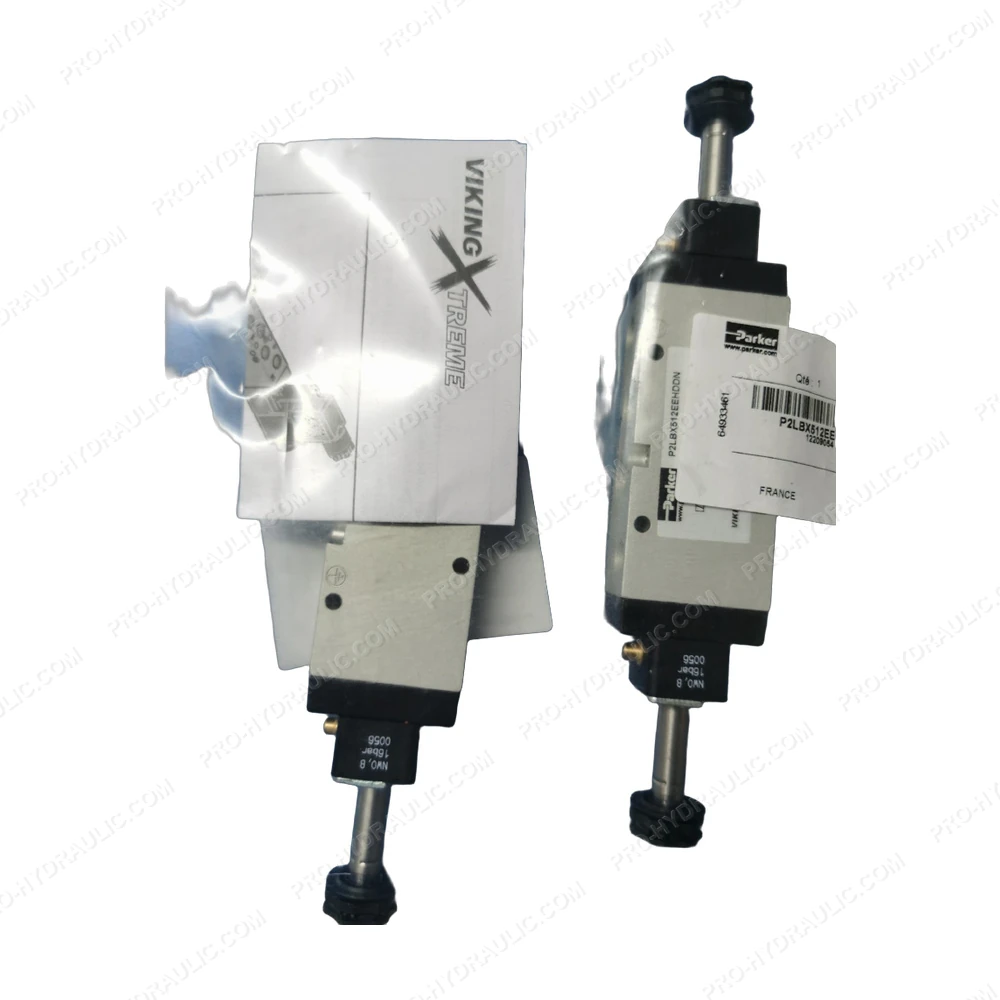

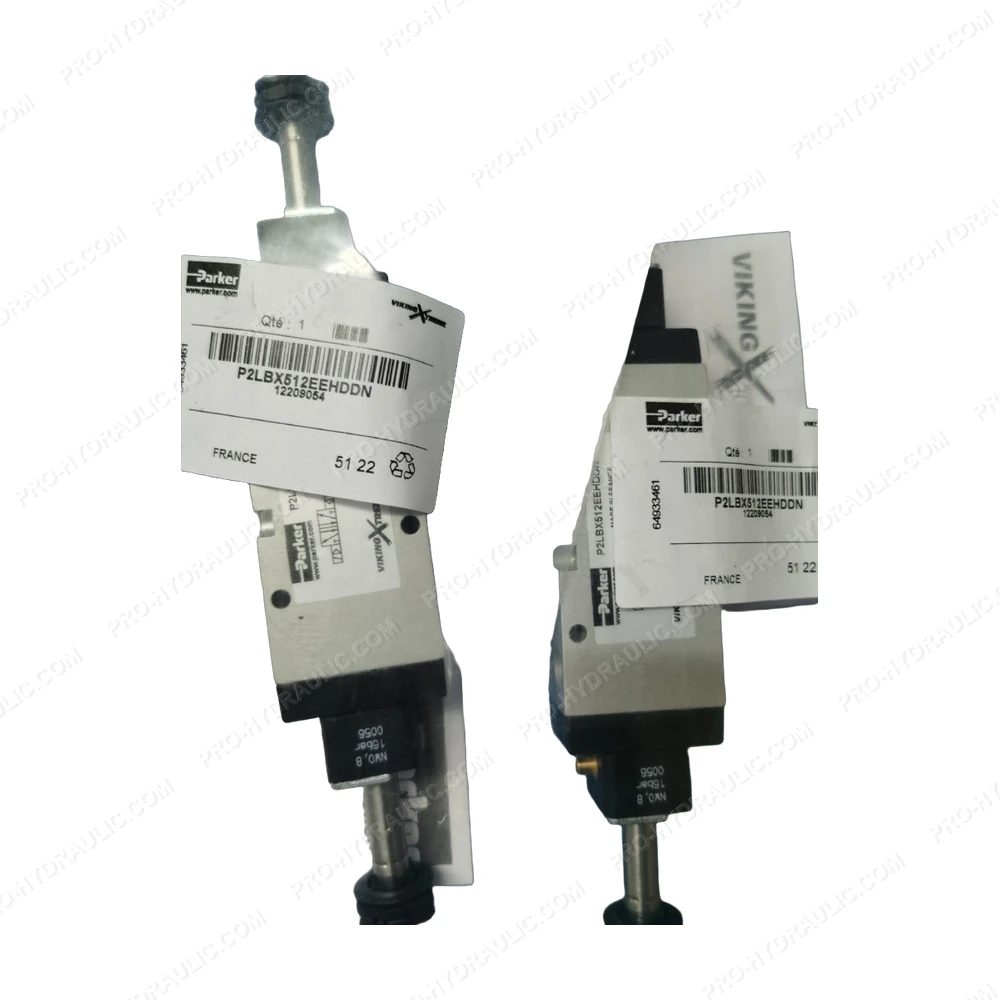

PARKER P2LBX512EEHDDN Pneumatic Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Parker P2LBX512EEHDDN Solenoid Directional Control Valve. This USA-made 120VAC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
