Product Overview
The PARKER PHS540D-10 is a high-performance pneumatic solenoid valve engineered for precise directional control of compressed air and inert gas circuits in demanding industrial environments. As part of Parker’s PHS series, this valve utilizes a robust solenoid-actuated spool mechanism to deliver fast, repeatable switching of pneumatic flow paths. Its compact, modular design allows seamless integration into manifold assemblies or standalone installations, making it a critical control component in automated process lines, packaging machinery, and general industrial pneumatic systems. The PHS540D-10 is specifically configured for reliable operation with filtered, lubricated or non-lubricated air, ensuring long service life and minimal maintenance downtime.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (Directional Control) |
| Model Designation | PHS540D-10 |
| Operating Pressure | Standard Industrial Grade (Up to 10 bar / 145 psi) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Sub-base or Manifold Mount) |
| Valve Function | 5/2-Way Directional Control (Solenoid Actuated) |
| Port Size | 1/4″ (Standard Industrial Pneumatic Port) |
| Solenoid Voltage | Standard Industrial Coil (e.g., 24V DC / 110V AC / 220V AC options) |
| Seal Material | NBR / Nitrile (Standard for compressed air service) |
Engineering Features & Advantages
- Precision Performance: The solenoid-actuated spool design ensures rapid response times and precise flow metering, enabling accurate control of pneumatic actuators and cylinders in high-cycle automation processes.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, the PHS540D-10 features a durable coil insulation system and wear-resistant spool bore, minimizing downtime and extending maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, including standard ISO sub-base mounting patterns, ensuring drop-in replacement without modification to existing pneumatic circuits.
- Versatile Media Compatibility: Suitable for use with filtered compressed air and inert gases, with optional lubrication to suit specific system requirements.
- Compact Modular Design: Space-saving footprint allows high-density manifold mounting, reducing installation complexity and overall system size.
Typical Industrial Applications
The PARKER PHS540D-10 pneumatic solenoid valve is widely deployed across heavy industrial sectors, including: plastic injection molding machines for precise mold opening/closing and ejection control; metallurgical presses for clamping and material handling sequences; construction and marine hydraulics where reliable pneumatic actuation is required for braking, shifting, or valve piloting; and
PRODUCT IMAGES

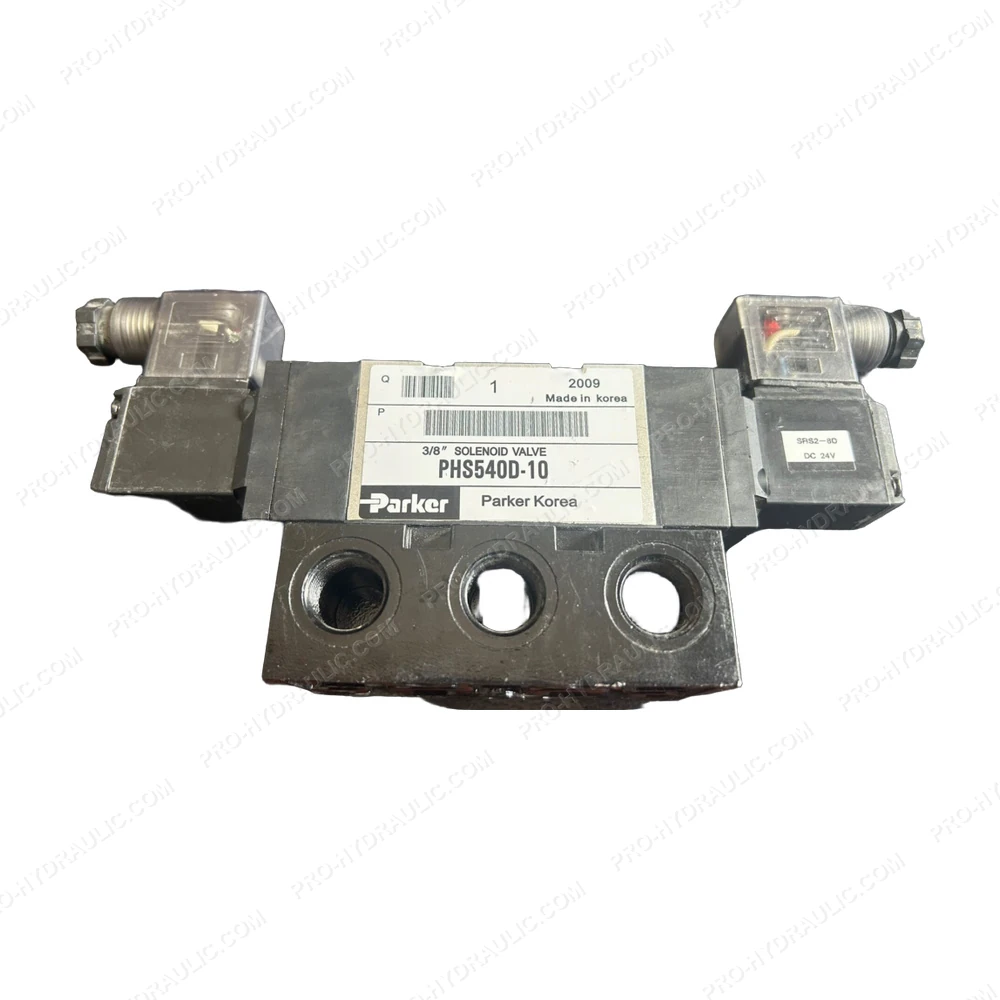

PARKER PHS540D-10 Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Parker PHS540D-10 Solenoid Directional Control Valve. This USA-made 10 GPM hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
