Product Overview
The Parker PRH101S10 is a precision-engineered pressure reducing cartridge valve designed for demanding industrial hydraulic systems. Manufactured by Parker Hannifin, a global leader in motion and control technologies, this valve functions as a normally open, direct-acting pressure reducing element. Its primary role is to maintain a constant, reduced outlet pressure regardless of fluctuations in the inlet pressure or changes in flow demand. The cartridge-style construction allows for compact integration into custom manifold blocks, offering superior space efficiency and reduced potential for external leakage compared to traditional line-mounted valves. This component is critical in circuits requiring a stable secondary pressure lower than the main system pressure, ensuring precise control and protection for downstream components.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pressure Reducing Cartridge Valve |
| Model Designation | PRH101S10 |
| Operating Pressure | Up to 350 bar (5075 psi) inlet; Reduced outlet pressure dependent on spring range |
| Mounting & Connection | Standard Cartridge Cavity (Parker PRH series interface) |
| Flow Capacity | Up to 40 L/min (10.5 GPM) nominal |
| Control Mechanism | Direct-acting poppet/spool with adjustable spring |
Engineering Features & Advantages
- Precision Pressure Regulation: The direct-acting design provides accurate and repeatable pressure reduction, minimizing hysteresis and ensuring stable operation even under varying flow conditions.
- Compact Cartridge Design: The slip-in cartridge configuration reduces manifold size, simplifies plumbing, and eliminates external leakage paths associated with conventional subplate-mounted valves.
- Industrial Reliability: Constructed with hardened, precision-ground internal components, the PRH101S10 is built for continuous duty in severe industrial environments, offering long service life and resistance to contamination.
- Direct Fit Replacement: Manufactured to exact Parker OEM standards, ensuring dimensional and functional interchangeability with existing PRH series cartridges without modification.
Typical Industrial Applications
This pressure reducing cartridge valve is commonly utilized in hydraulic systems requiring a stable, reduced pressure branch. Typical applications include plastic injection molding machines (for clamping or ejector circuits), metallurgical presses (for pilot pressure control), CNC machine tools (for tool clamping or balancing), and general industrial power units where actuator force must be limited to prevent damage to workpieces or downstream components.
PRODUCT IMAGES

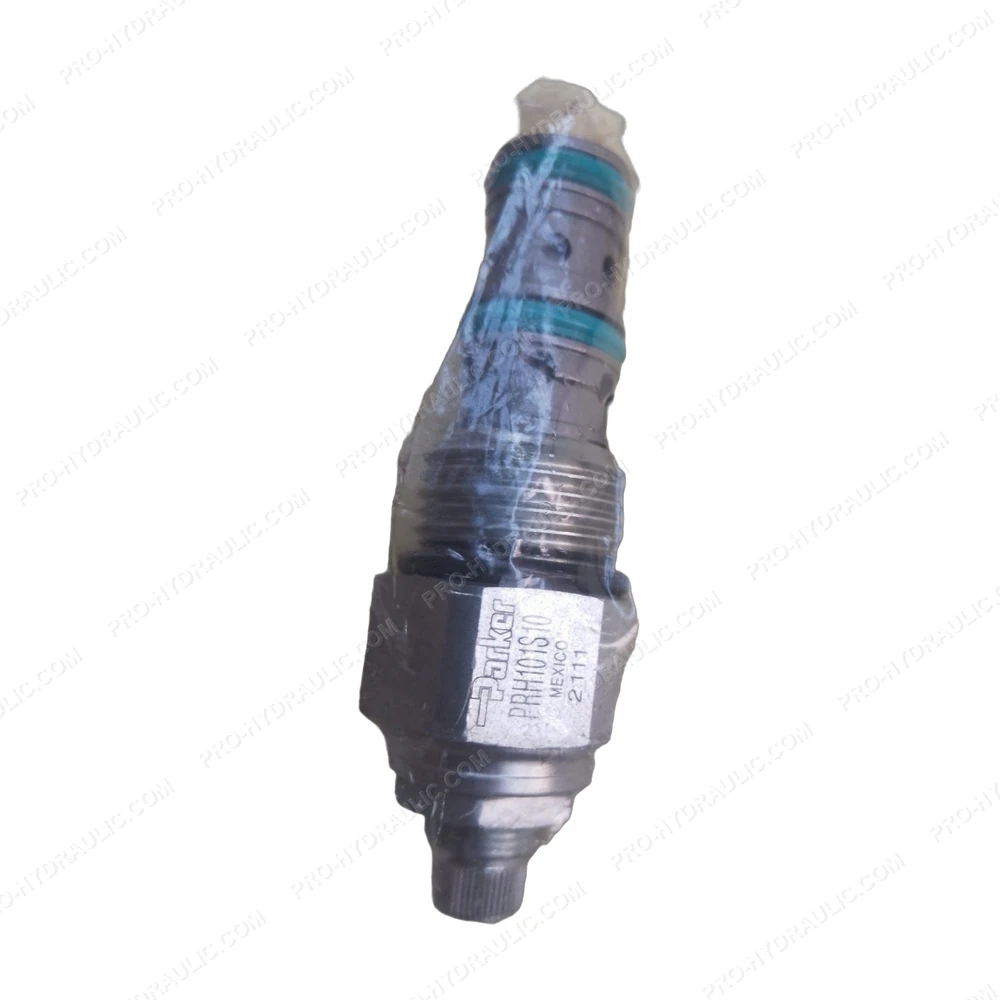

Parker PRH101S10 Pressure Reducing Cartridge Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Parker PRH101S10 Hydraulic Directional Control Valve. This USA-made 10 GPM hydraulic component features a solenoid-operated spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
