Product Overview
The Parker PRT-F10 is a precision-engineered pneumatic rotary actuator designed for controlled rotary motion in automated industrial systems. As part of Parker’s PRT series, this rack-and-pinion rotary actuator converts compressed air energy into precise bidirectional torque output, delivering reliable angular positioning for valves, dampers, and indexing mechanisms. The PRT-F10 is a compact, lightweight unit that provides smooth, adjustable rotation with integrated cushioning for reduced end-of-stroke impact. Its robust aluminum housing and hard-anodized internal components ensure long service life in demanding factory automation environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Rotary Actuator (Rack & Pinion) |
| Model Designation | PRT-F10 |
| Operating Pressure | Up to 10 bar (145 psi) standard industrial grade |
| Rotation Angle | Adjustable 0° to 180° (standard) |
| Torque Output | Model-specific, up to 10 Nm at rated pressure |
| Mounting & Connection | Standard ISO 5211 / Manufacturer Interface |
| Air Connection | G1/8 or equivalent threaded ports |
| Body Material | Anodized aluminum alloy |
Engineering Features & Advantages
- Precision Rotary Control: Rack-and-pinion mechanism delivers accurate angular positioning with minimal backlash, ideal for valve actuation and automated indexing.
- Adjustable End-Position Cushioning: Integrated air cushioning reduces impact at stroke ends, extending service life and minimizing vibration in high-cycle applications.
- Compact & Lightweight Design: Space-saving aluminum housing enables easy integration into tight machine layouts without sacrificing torque output.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with hard-anodized internal surfaces for wear and corrosion resistance.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Parker OEM standards, ensuring drop-in replacement without modification.
Typical Industrial Applications
The Parker PRT-F10 pneumatic rotary actuator is widely used in automated valve and damper control for HVAC and process industries, packaging and material handling machinery, robotic end-effectors and pick-and-place systems, and general factory automation requiring precise rotary motion. Its robust construction and reliable performance make it suitable for both indoor and protected outdoor industrial environments.
PRODUCT IMAGES

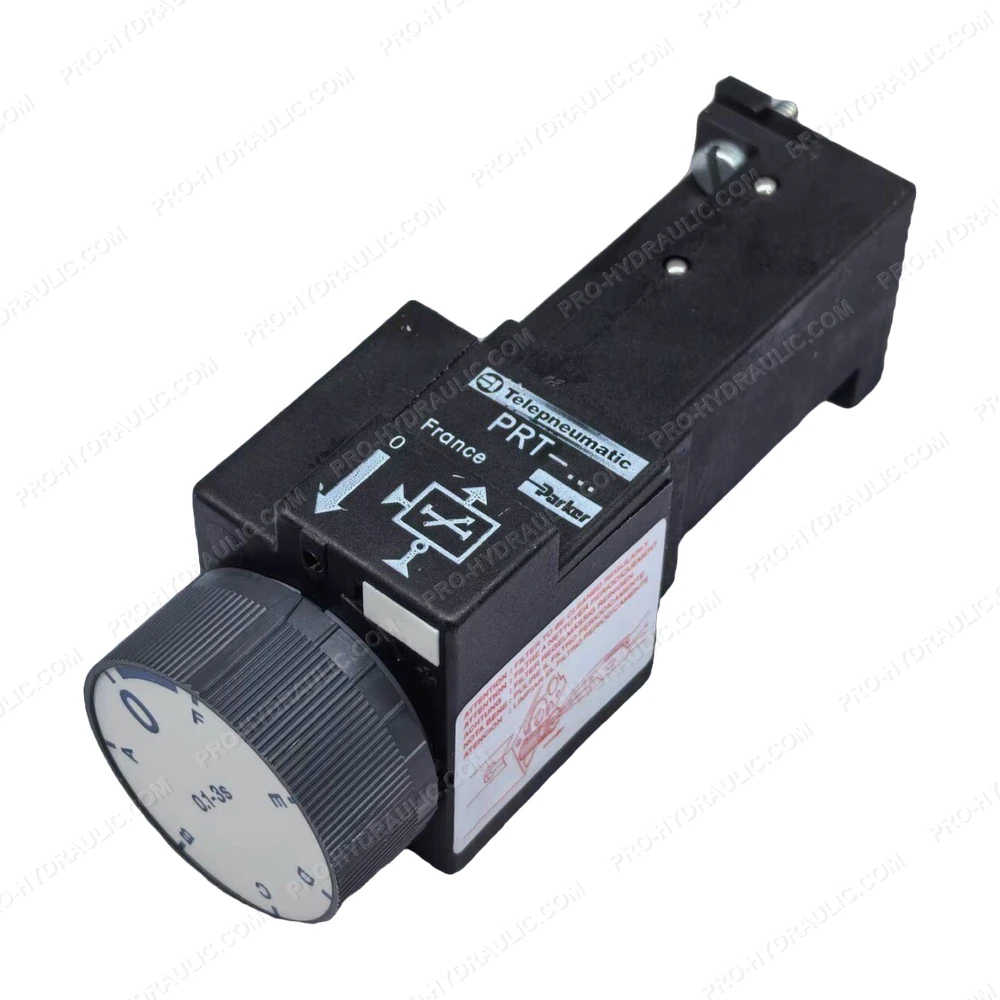

Parker PRT-F10 Pneumatic Rotary Actuator
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Parker PRT-F10 Solenoid Directional Control Valve. This USA-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
