Product Overview
The PARKER PVD-C3422 is a pneumatic directional control valve engineered for precise actuation and reliable switching of compressed air circuits in industrial automation and process systems. As part of Parker’s PVD series, this valve utilizes a spool-type directional control mechanism to manage airflow between supply, exhaust, and actuator ports, enabling controlled extension, retraction, and holding of pneumatic cylinders and rotary actuators. The PVD-C3422 is designed for panel or manifold mounting within centralized pneumatic control cabinets, offering fast response times, low leakage, and consistent shifting performance across demanding duty cycles. Its robust construction and standardized porting make it a direct-fit solution for OEM and MRO replacement in general process and pneumatic valve applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Directional Control Valve (Process & Pneumatic Valve) |
| Model Designation | PVD-C3422 |
| Manufacturer | PARKER |
| Valve Function | Directional spool control (multi-position, spring/actuator return configuration) |
| Operating Pressure | Standard Industrial Grade (up to rated pneumatic working pressure) |
| Actuation Type | Pneumatic pilot / solenoid-compatible directional actuation |
| Mounting & Connection | Standard ISO / Manufacturer Interface (subplate or manifold mount) |
| Seal & Body Material | Industrial-grade elastomer seals with corrosion-resistant valve body |
Engineering Features & Advantages
- Precision Spool Performance: Tightly toleranced spool-to-bore fit ensures accurate flow metering, minimal internal leakage, and repeatable directional shifting for critical pneumatic sequencing.
- Fast Response Actuation: Optimized pilot and return spring design delivers rapid valve transition, improving cycle times in automated pneumatic control loops.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, including high cycle rates, vibration, and contaminated compressed air environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, allowing drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The PARKER PVD-C3422 pneumatic directional control valve is widely deployed in general process and pneumatic control systems, including plastic injection molding machines, packaging and assembly automation lines, CNC machine tool pneumatic clamping circuits, and metallurgical or material handling equipment requiring reliable directional air control. It is also suitable for centralized pneumatic panels in food processing, textile machinery, and marine auxiliary systems where consistent valve response and long service life are essential.
PRODUCT IMAGES

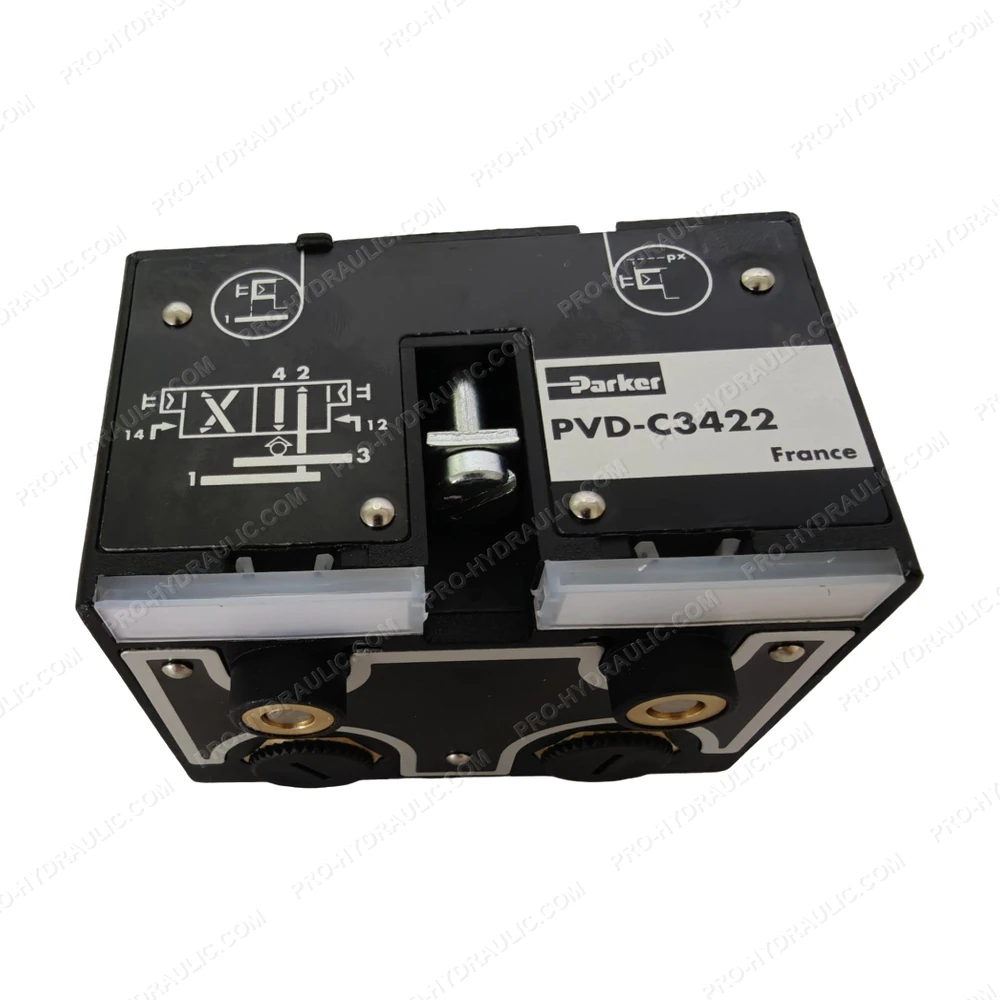

PARKER PVD-C3422 Pneumatic Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PARKER PVD-C3422 Solenoid Directional Seat Valve. This Germany-made 24V DC hydraulic component features a poppet-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
