Product Overview
The Parker PXC-K22102 is a precision-engineered pneumatic limit switch valve designed for reliable position sensing and signal actuation in automated industrial processes. As part of Parker’s PXC series, this valve operates on a mechanical lever or roller actuation principle, converting physical displacement into a pneumatic signal output. It serves as a critical interface component in pneumatic control circuits, providing positive confirmation of actuator position, end-of-stroke detection, and sequence control in complex automation systems. The PXC-K22102 is engineered for robust performance in demanding environments, offering consistent actuation force, rapid response, and long service life in continuous-duty industrial applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Limit Switch Valve |
| Model Designation | PXC-K22102 |
| Manufacturer | Parker Hannifin |
| Operating Pressure | Standard Industrial Grade (Up to 10 bar / 145 psi) |
| Actuation Type | Mechanical Lever / Roller Actuated |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
| Body Material | Anodized Aluminum / Industrial Composite |
| Seal Material | NBR / Nitrile (Standard Pneumatic Media) |
| Port Size | G1/8″ or G1/4″ (Standard Pneumatic Port) |
| Operating Temperature | -10°C to +60°C (14°F to 140°F) |
Engineering Features & Advantages
- Precision Position Sensing: Mechanical lever and roller actuation provides accurate, repeatable detection of actuator position with minimal hysteresis, ensuring reliable signal transmission in sequence-critical pneumatic circuits.
- Robust Pneumatic Sealing: High-quality NBR seals and precision-machined spool/poppet mechanisms deliver leak-free operation and consistent response across the full rated pressure range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a durable body construction resistant to vibration, shock, and common pneumatic contaminants.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Parker PXC series mounting and port configurations, enabling drop-in replacement without system modification.
- Fast Response Time: Optimized internal flow paths ensure rapid signal output upon actuation, supporting high-speed automation and safety interlock applications.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Parker OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The PXC-K22102 is engineered for robust performance in demanding environments, offering consistent actuation force, rapid response, and long service life in continuous-duty industrial applications.
PRODUCT IMAGES

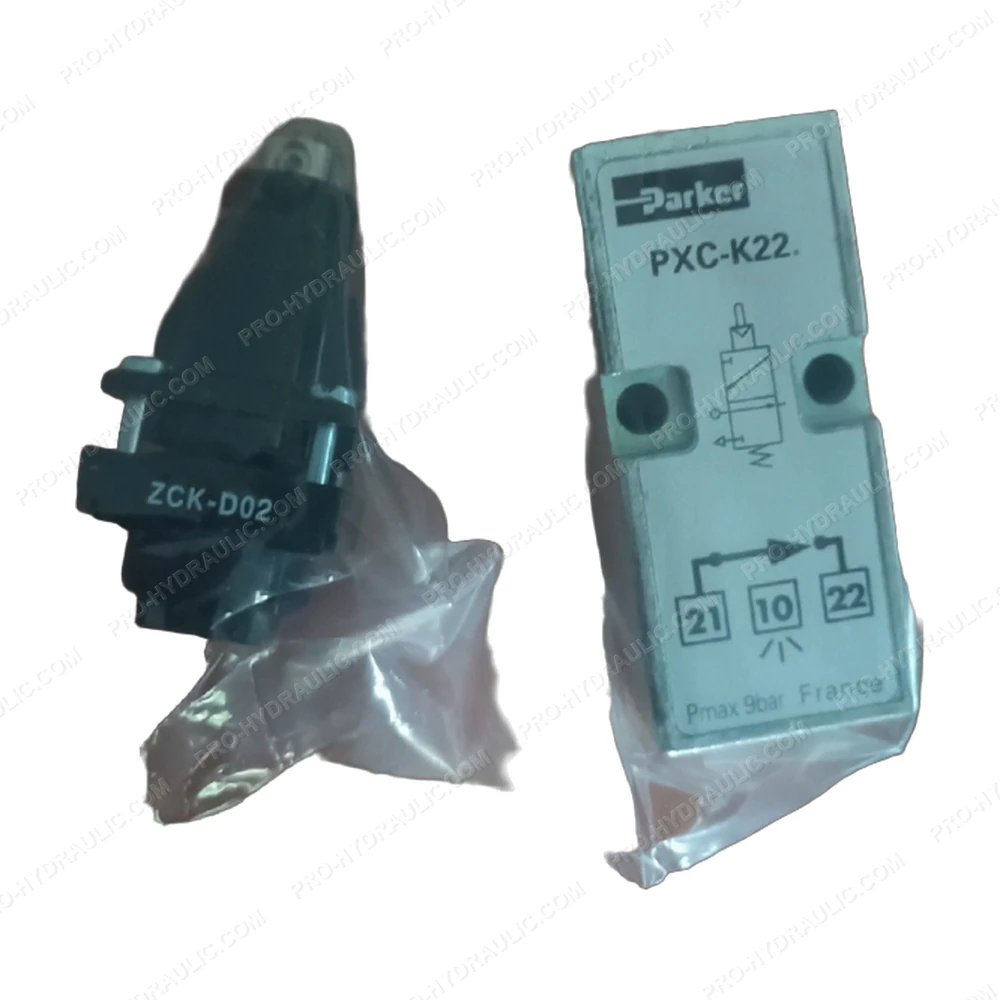

Parker PXC-K22102 Pneumatic Limit Switch Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Parker PXC-K22102 Solenoid Directional Control Valve. This USA-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
