Product Overview
The Parker RHV15LREDOMDCF is a high-performance non-return valve (check valve) from Parker Hannifin’s RHV series, engineered for precise flow control and leak-free operation in demanding industrial hydraulic systems. This modular valve operates on a spring-loaded poppet or ball-seat principle, permitting free flow in one direction while providing zero-leakage blocking in the reverse direction. Designed for inline or modular manifold mounting, the RHV15LREDOMDCF serves as a critical safety and circuit-isolation component, preventing backflow, protecting pumps and actuators from pressure surges, and maintaining load-holding integrity in complex hydraulic circuits. Its robust construction and precision-machined sealing surfaces ensure reliable, repeatable performance across a wide range of operating pressures and flow rates.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Non-Return Valve (Check Valve) — Flow Control & Modular Valve |
| Model Designation | RHV15LREDOMDCF |
| Manufacturer | Parker Hannifin |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Nominal Flow Rate | Up to 60 L/min (dependent on circuit configuration) |
| Cracking Pressure | Standard spring-loaded configuration (typically 0.5–3 bar) |
| Mounting & Connection | Modular / Sandwich mounting per ISO 4401 / CETOP interface |
| Sealing Material | NBR / FKM (standard industrial hydraulic fluid compatibility) |
| Fluid Compatibility | Mineral oil-based hydraulic fluids (HLP, HLP-D, HM, HV) |
| Operating Temperature Range | -20°C to +80°C (standard seal configuration) |
Engineering Features & Advantages
- Zero-Leakage Sealing: Precision-lapped poppet and seat geometry delivers bubble-tight shut-off in the blocked direction, ensuring reliable load holding and circuit isolation without internal leakage.
- Low Cracking Pressure: Optimized spring design enables rapid opening at minimal pressure differential, minimizing pressure drop and energy loss during forward flow operation.
- Modular Sandwich Design: Compact ISO/CETOP interface allows direct stacking between directional control valves and manifold blocks, reducing piping complexity and installation footprint.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Parker standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The Parker RHV15LREDOMDCF is a high-performance non-return valve (check valve) from Parker Hannifin’s RHV series, engineered for precise flow control and leak-free operation in demanding industrial hydraulic systems.
PRODUCT IMAGES

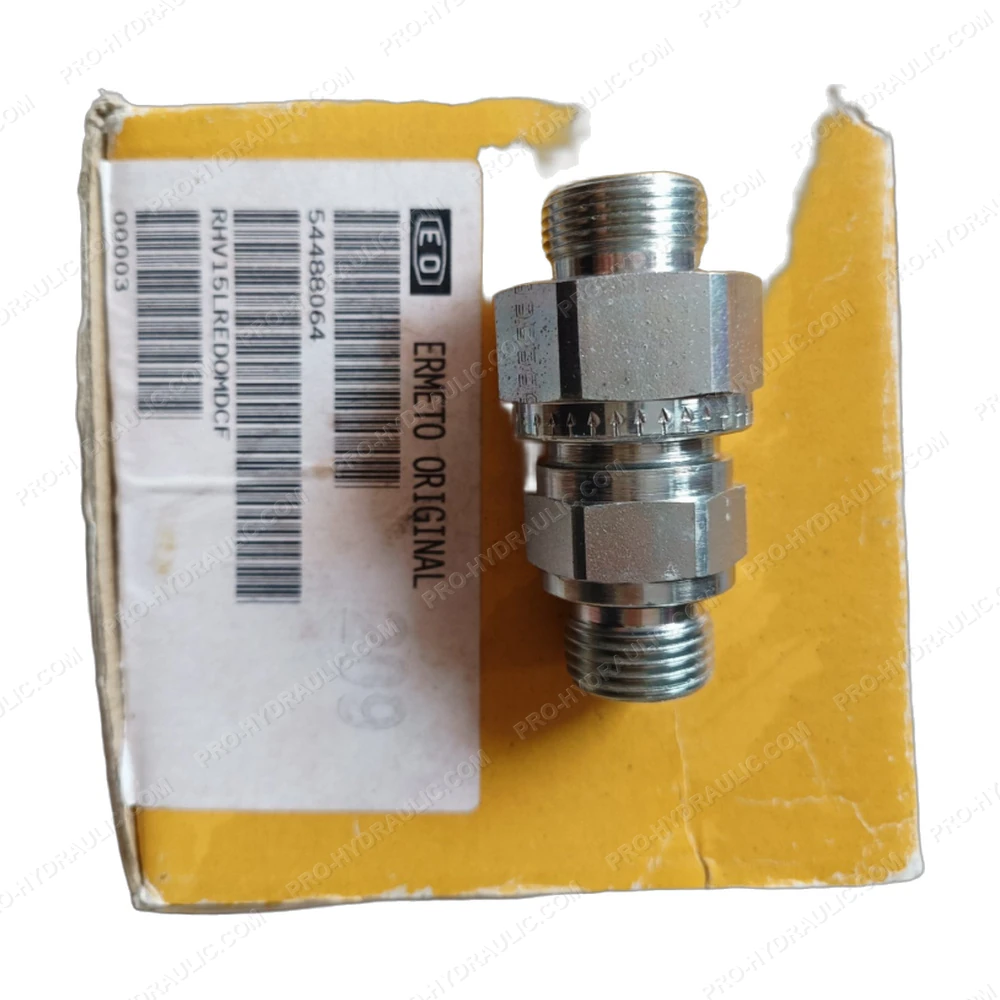

Parker RHV15LREDOMDCF Non-Return Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Parker RHV15LREDOMDCF Solenoid Directional Control Valve. This USA-made 12 VDC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
