Product Overview
The Parker T6C 025 1R00 B1 is a single vane pump from Parker Hannifin’s renowned T6 series, engineered for dependable medium-pressure hydraulic power generation in industrial machinery. Utilizing a balanced vane rotor design within a precision-ground cam ring, this pump delivers smooth, low-pulsation flow with exceptional volumetric efficiency. The T6C series is a global industry standard for applications requiring quiet operation, long service life, and consistent performance under continuous duty cycles. With a nominal displacement of 25 cm³/rev, this model serves as a direct-fit power source for a wide range of hydraulic circuits, including those originally equipped with Parker T6C pumps.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Vane Pump (Single) |
| Model Designation | T6C 025 1R00 B1 |
| Nominal Displacement | 25 cm³/rev (approx. 1.53 in³/rev) |
| Operating Pressure | Up to 210 bar (3,045 psi) continuous — T6C series rated |
| Speed Range | 600 – 2,800 RPM (application dependent) |
| Mounting & Connection | SAE 2-bolt flange, splined or keyed shaft; SAE ports |
| Rotation | Clockwise (viewed from shaft end) — verify at installation |
| Seal Material | Buna-N (NBR) standard; Viton available |
Engineering Features & Advantages
- Precision Performance: Balanced vane rotor and cam ring design minimizes radial loads on the shaft, resulting in smooth, low-pulsation flow and reduced noise levels — ideal for sensitive industrial environments.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened internal components and a robust cast-iron housing that resists wear and contamination.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Parker T6C series pumps, ensuring drop-in replacement without modification to mounting, shaft, or port connections.
- High Volumetric Efficiency: Precision-machined clearances and high-quality vane materials maintain consistent flow across the operating pressure range, reducing energy loss and heat generation.
- Serviceability: Cartridge-style rotating group allows for straightforward field repair or replacement, minimizing downtime and extending overall pump life.
Typical Industrial Applications
This Parker T6C 025 1R00 B1 vane pump is widely deployed in heavy industrial scenarios including plastic injection molding machines, metallurgical presses, CNC machine tools, and construction & marine hydraulic systems. Its stable flow characteristics and quiet operation make it particularly suited for precision manufacturing environments and continuous-duty hydraulic power units where reliability and low maintenance are critical.
PRODUCT IMAGES

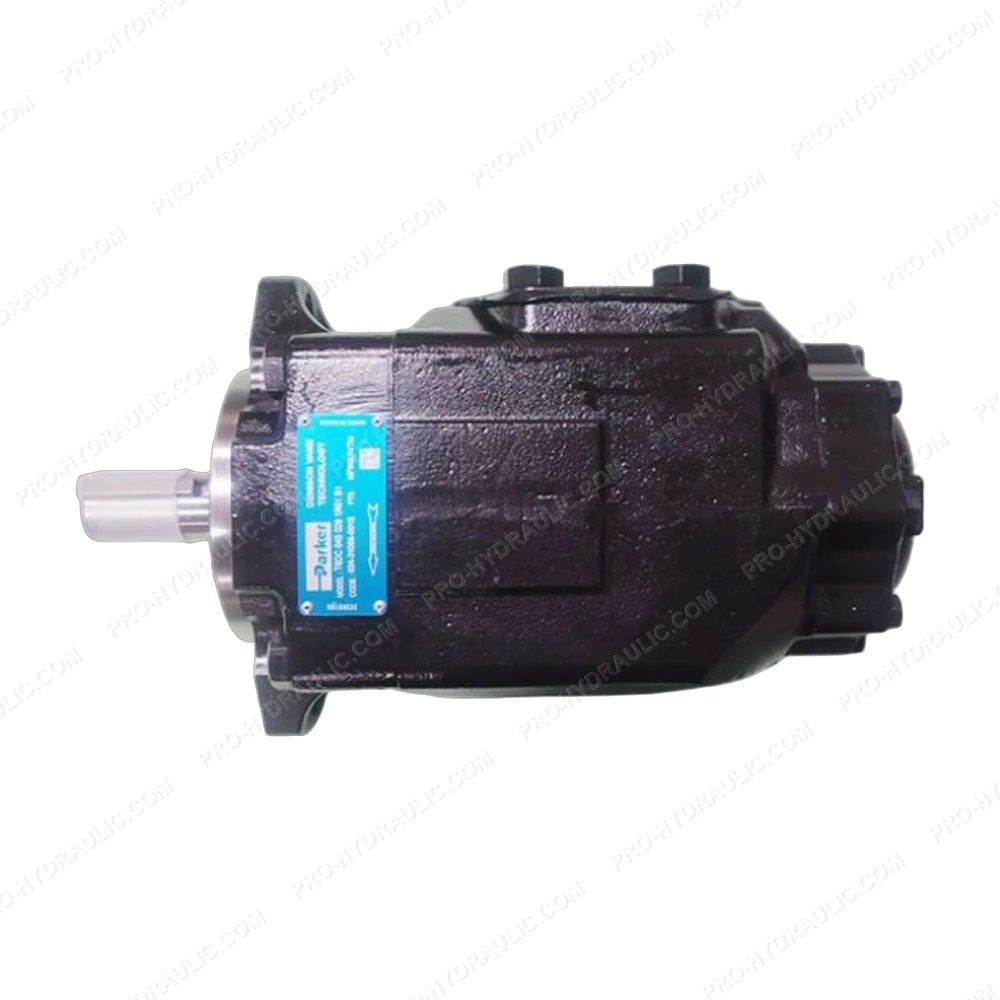

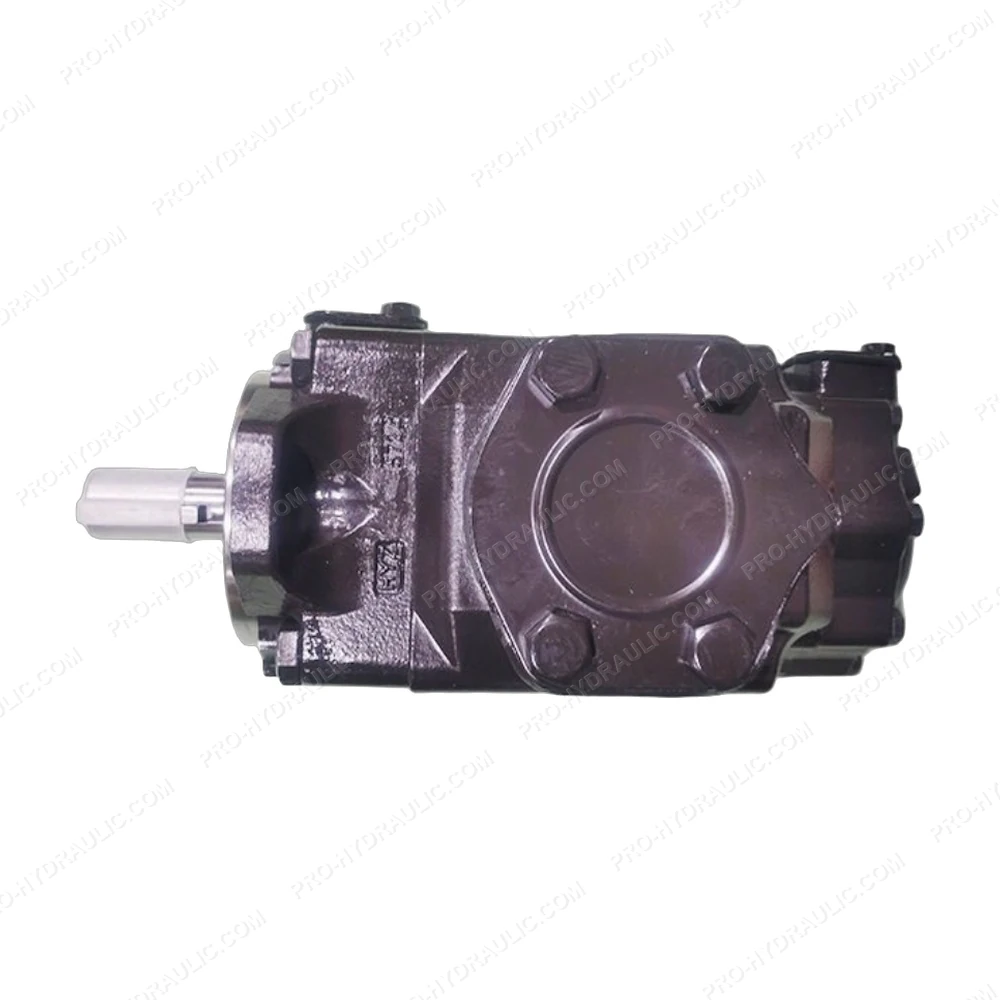

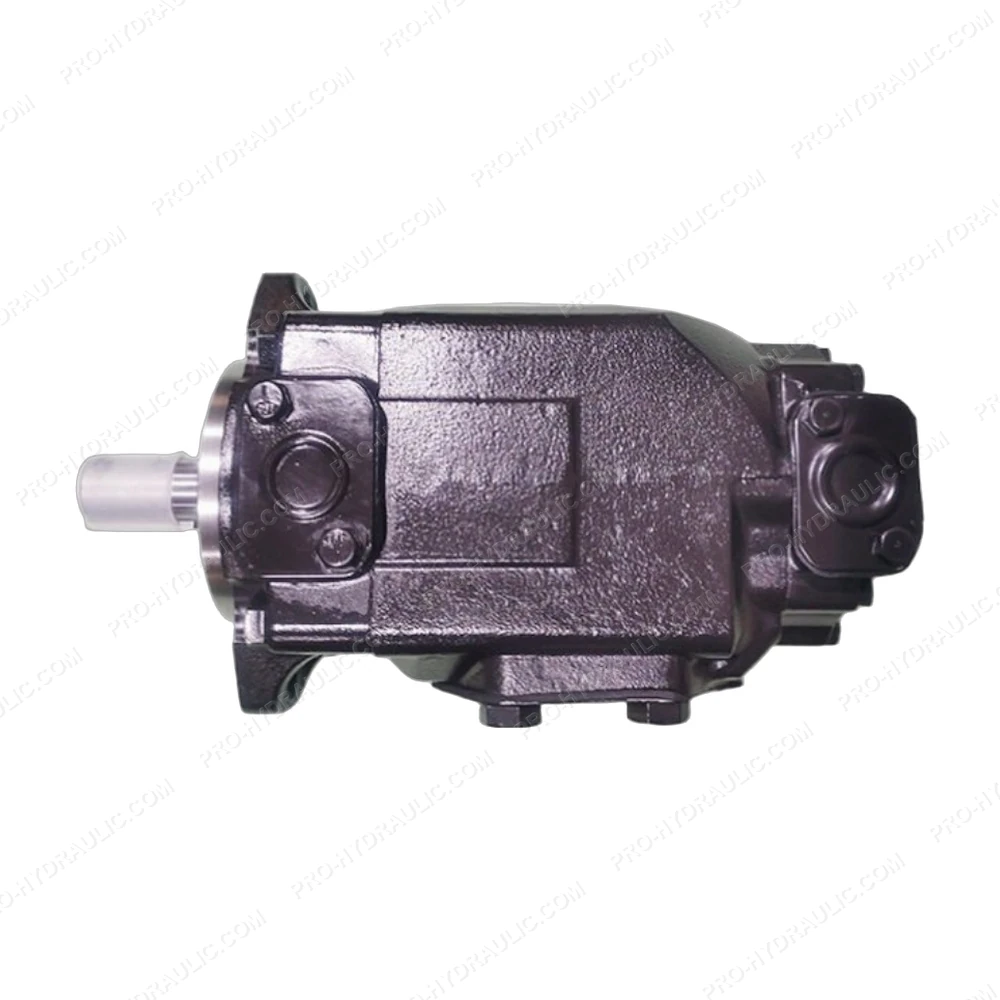

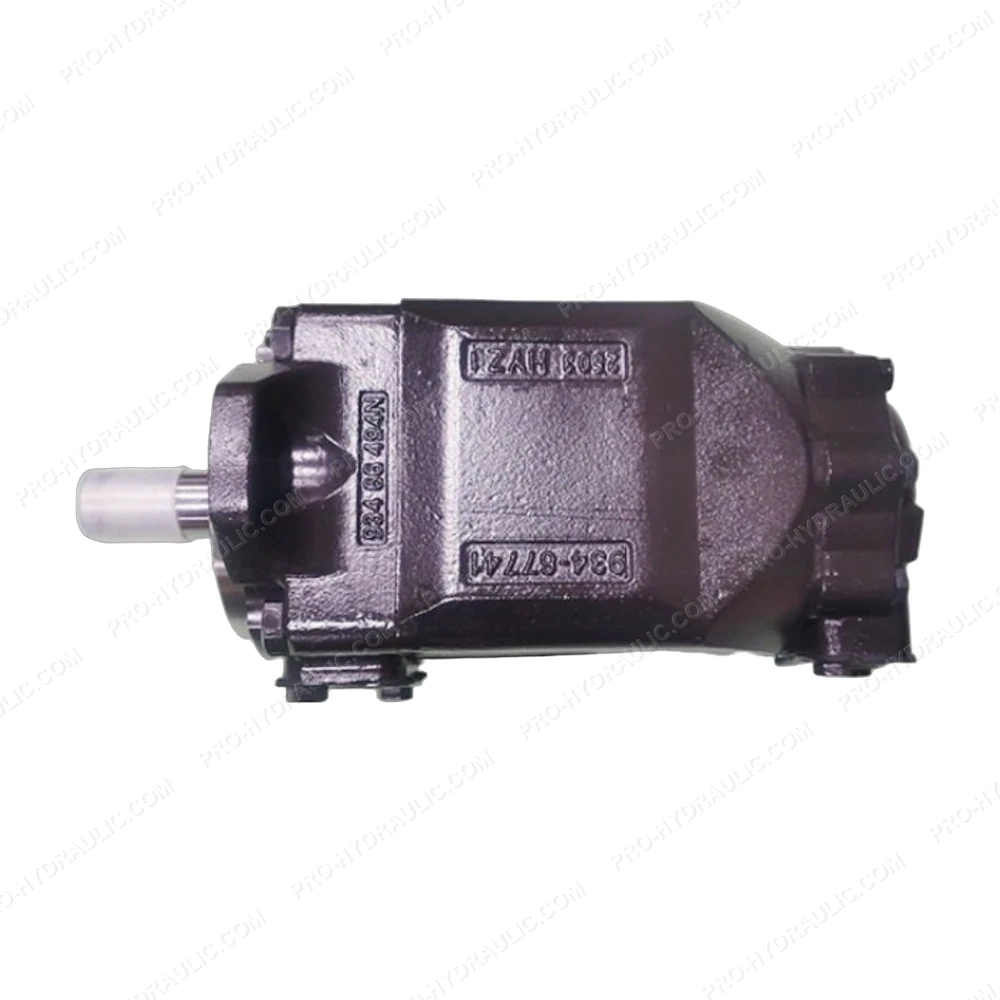

Parker T6C 025 1R00 B1 Single Vane Pump
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Parker T6C 025 1R00 B1 Single Vane Pump. This USA-made hydraulic component features a high-pressure vane design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
