Product Overview
The Parker T6ED 066 028 1R00 B1 is a high-performance double vane pump from the renowned Parker T6 series, engineered for demanding industrial hydraulic systems requiring two independent flow outputs from a single drive shaft. This tandem-style vane pump integrates two cartridge-type pumping sections within a common housing, delivering reliable, low-pulsation flow for dual-circuit applications. Utilizing Parker’s proven intra-vane design, the T6ED series achieves exceptional volumetric efficiency, quiet operation, and long service life under continuous duty. The 066 and 028 displacements indicate the nominal flow capacities of the primary and secondary pumping cartridges respectively, making this unit ideal for systems where a high-flow primary circuit and a lower-flow secondary circuit must operate simultaneously from one prime mover.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Vane Pump (Double / Tandem Configuration) |
| Model Designation | T6ED 066 028 1R00 B1 |
| Series | Parker T6 Series Industrial Vane Pump |
| Primary Cartridge Displacement | 066 (nominal displacement code) |
| Secondary Cartridge Displacement | 028 (nominal displacement code) |
| Operating Pressure | Standard Industrial Grade (up to rated bar per cartridge) |
| Mounting & Connection | Standard SAE / ISO Flange Interface |
| Shaft Type | Straight Keyed Shaft (per model suffix B1) |
| Rotation | Clockwise (standard configuration) |
| Porting Configuration | Dual independent inlet/outlet ports (1R00 designation) |
Engineering Features & Advantages
- Precision Performance: Parker’s intra-vane cartridge design maintains hydraulic balance across the cam ring, ensuring stable flow output with minimal pressure ripple and low noise across the full operating range.
- Dual-Circuit Capability: Two independent pumping cartridges driven by a common shaft allow simultaneous supply to separate hydraulic circuits, eliminating the need for multiple pumps and reducing installation footprint.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened cam rings and precision-ground vanes that resist wear and extend service intervals.
- Serviceable Cartridge Design: Individual cartridge kits can be replaced without discarding the entire pump body, significantly reducing maintenance costs and downtime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Parker standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The 066 and 028 displacements indicate the nominal flow capacities of the primary and secondary pumping cartridges respectively, making this unit ideal for systems where a high-flow primary circuit and a lower-flow secondary circuit must operate simultaneously from one prime mover.
PRODUCT IMAGES

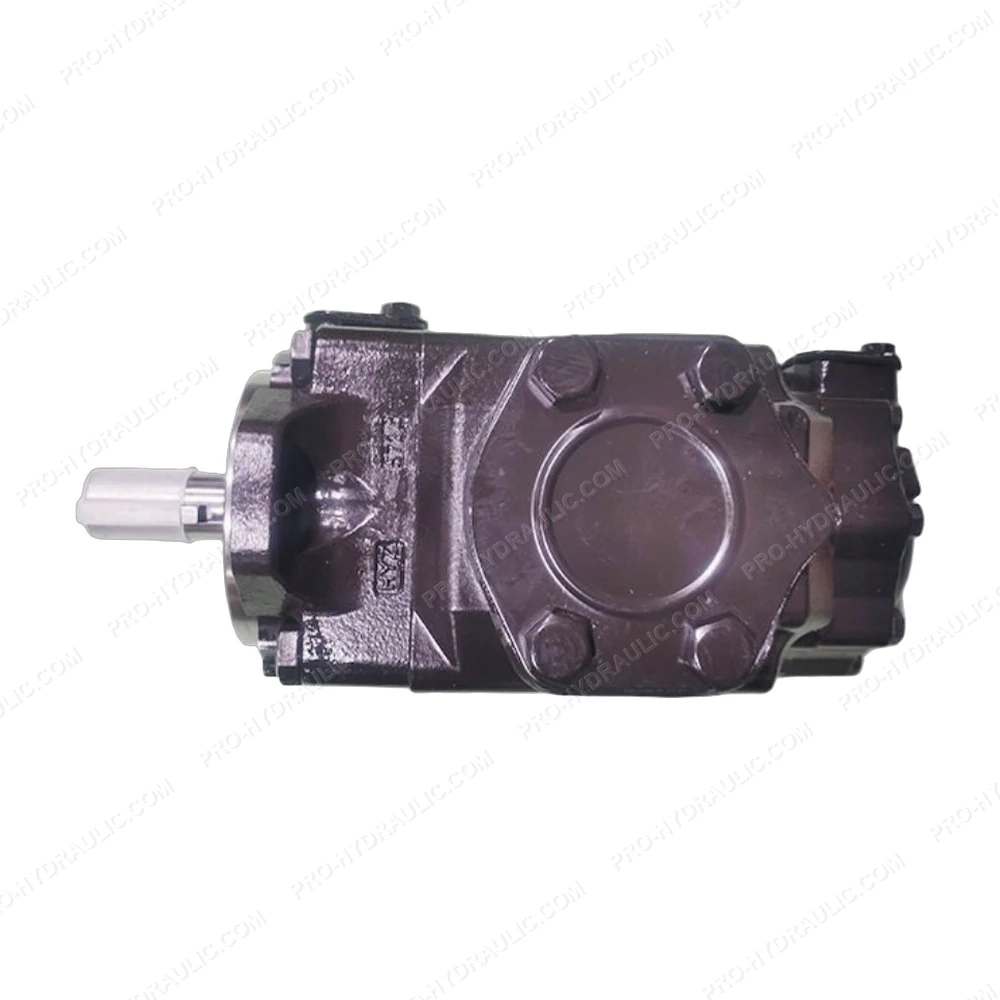

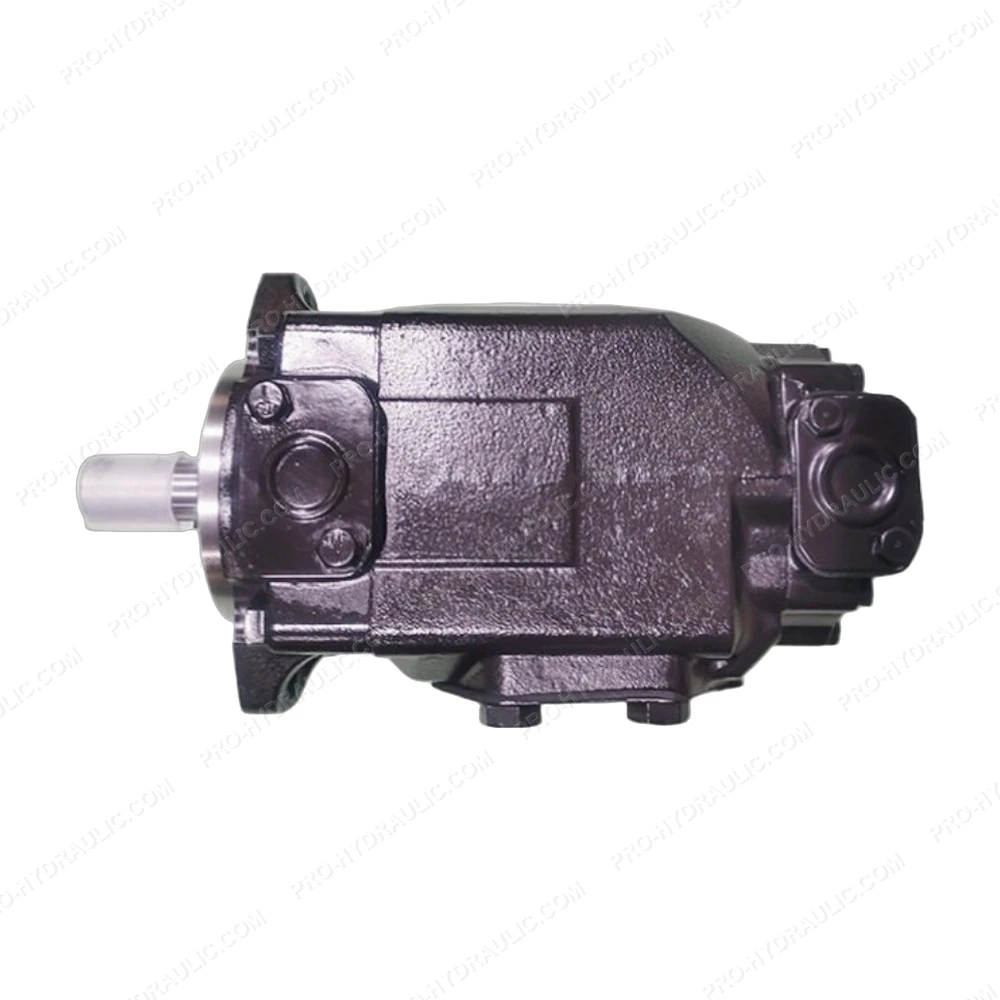

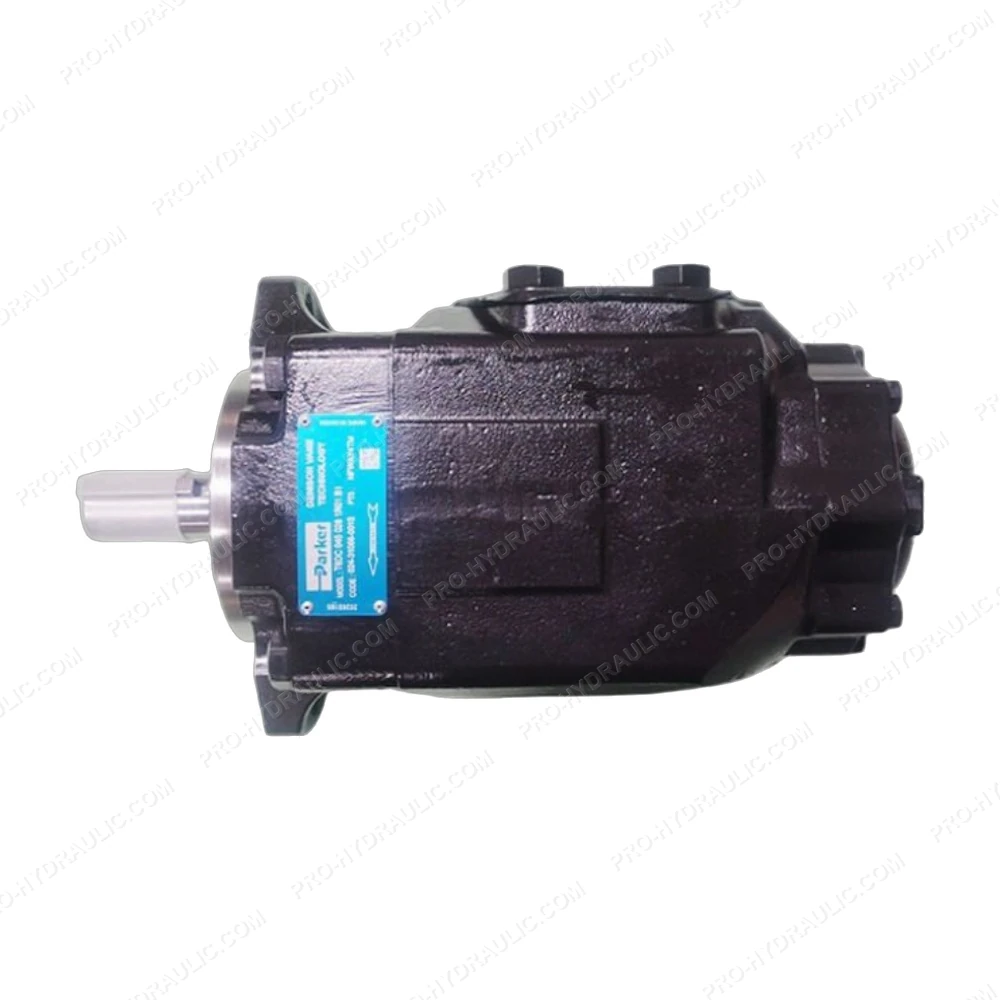

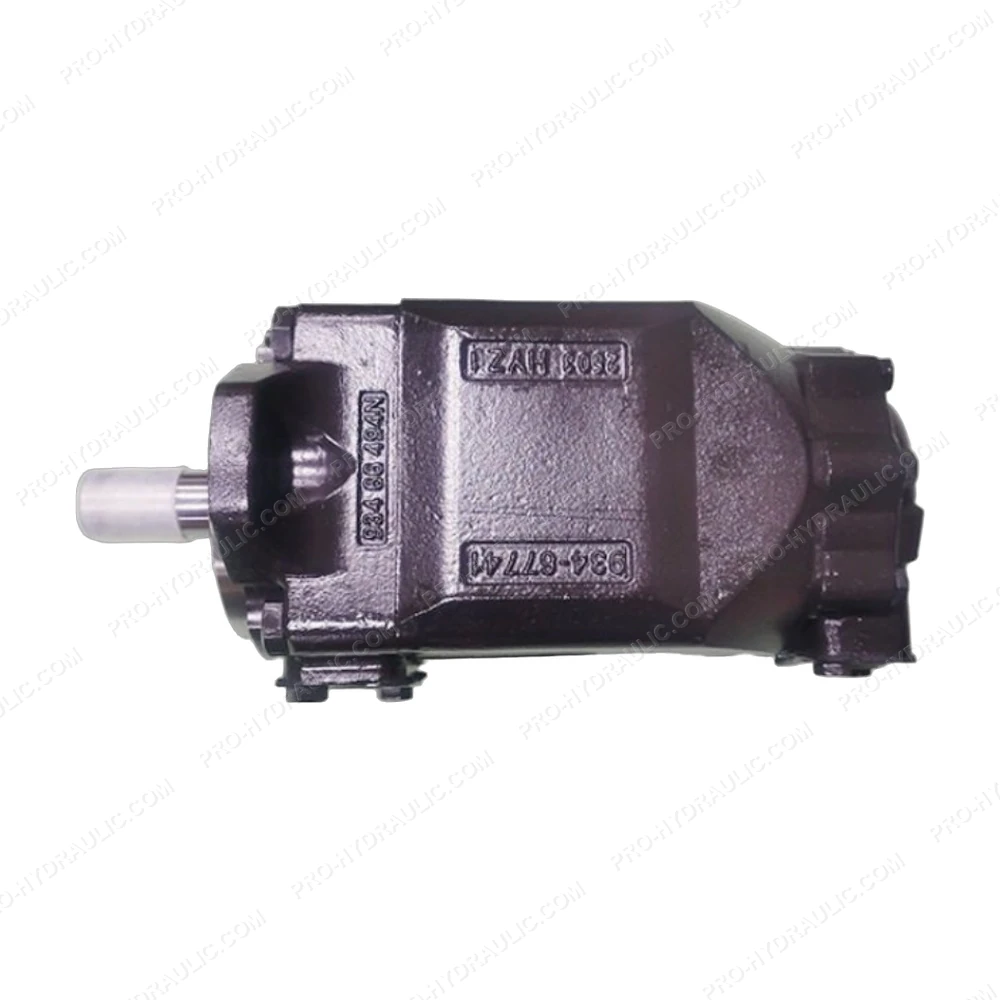

Parker T6ED 066 028 1R00 B1 Double Vane Pump
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Parker T6ED 066 028 1R00 B1 Double Vane Pump. This USA-made hydraulic pump features a dual-stage vane design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
