Product Overview
The Parker T6EDC 066 050 014 1R00 B1 is a high-performance triple vane pump from Parker Hannifin’s renowned T6 series, engineered to deliver three independent hydraulic flows from a single compact drive shaft configuration. This triple-circuit vane pump utilizes a precision-balanced rotor-and-vane design within a hardened cam ring to provide smooth, low-pulsation fluid delivery across all three pumping sections. The T6EDC configuration features displacements of 66 cm³/rev, 50 cm³/rev, and 14 cm³/rev respectively, allowing system designers to power multiple hydraulic circuits — such as main actuator, pilot, and auxiliary functions — from one prime mover. With its robust cast-iron body and cartridge-style construction, this pump is a direct-fit replacement for OEM installations and is widely deployed in demanding industrial and mobile hydraulic systems where reliability, quiet operation, and energy-efficient flow control are paramount.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Vane Pump (Triple Configuration) |
| Model Designation | T6EDC 066 050 014 1R00 B1 |
| Displacement (Section 1 / 2 / 3) | 66 cm³/rev / 50 cm³/rev / 14 cm³/rev |
| Operating Pressure | Standard Industrial Grade (Up to 280 bar continuous, 320 bar intermittent) |
| Mounting & Connection | Standard SAE 4-Bolt Flange / ISO 3019-2 Interface |
| Shaft Type | Straight Keyed Shaft (SAE B Spline / Keyed per Model Code) |
| Rotation | Clockwise (1R00 designation) |
| Body Material | High-Strength Cast Iron |
| Seal Material | Buna-N (NBR) Standard / Viton Optional |
| Fluid Compatibility | Mineral-Based Hydraulic Oil (ISO VG 32–68) |
| Operating Temperature | -20°C to +80°C (Standard NBR Seals) |
Engineering Features & Advantages
- Precision Performance: The hydraulic vane pump (triple configuration) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Parker standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
With its robust cast-iron body and cartridge-style construction, this pump is a direct-fit replacement for OEM installations and is widely deployed in demanding industrial and mobile hydraulic systems where reliability, quiet operation, and energy-efficient flow control are paramount.
PRODUCT IMAGES

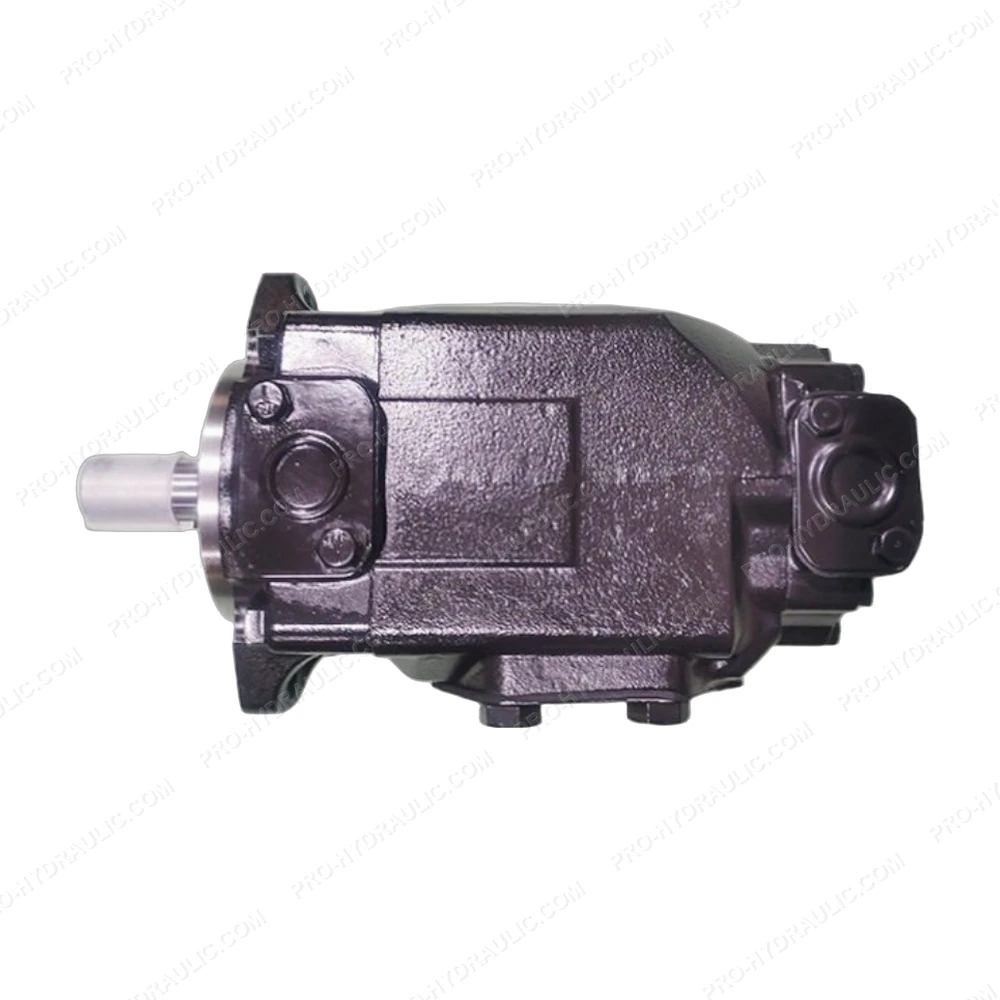

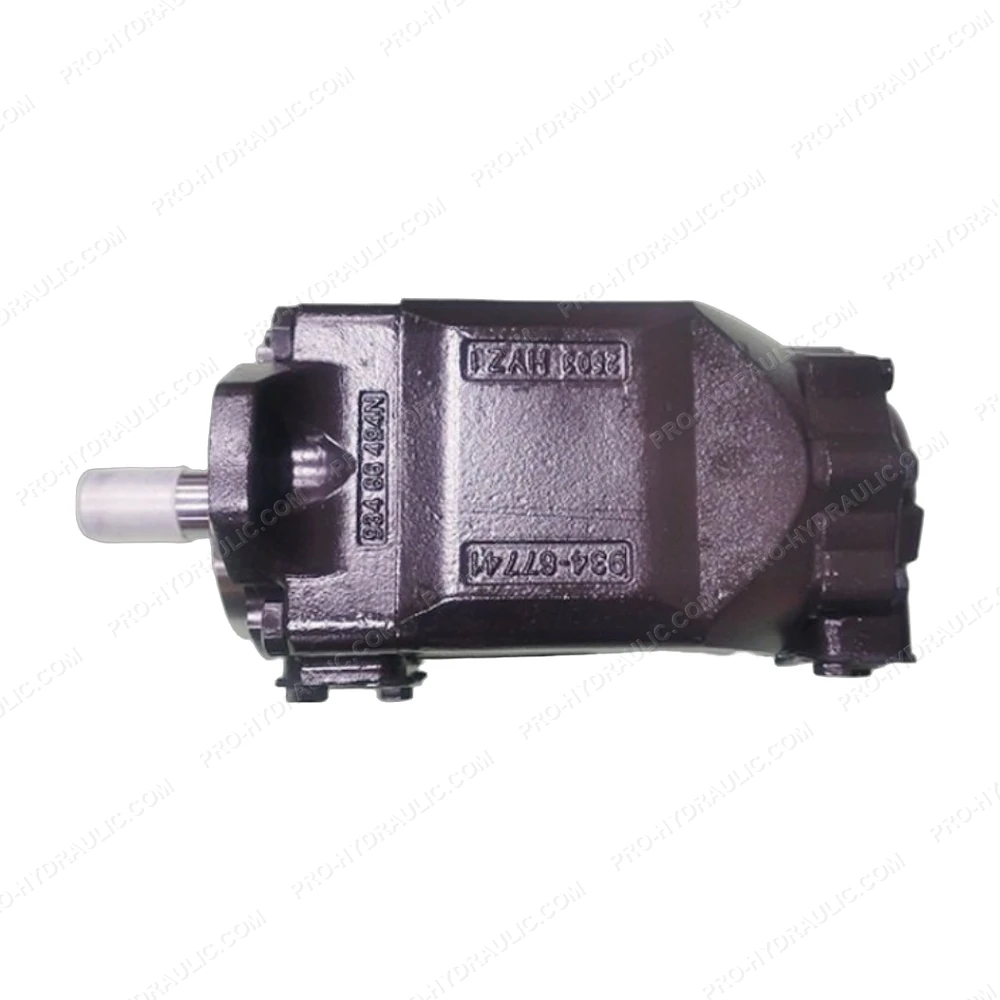

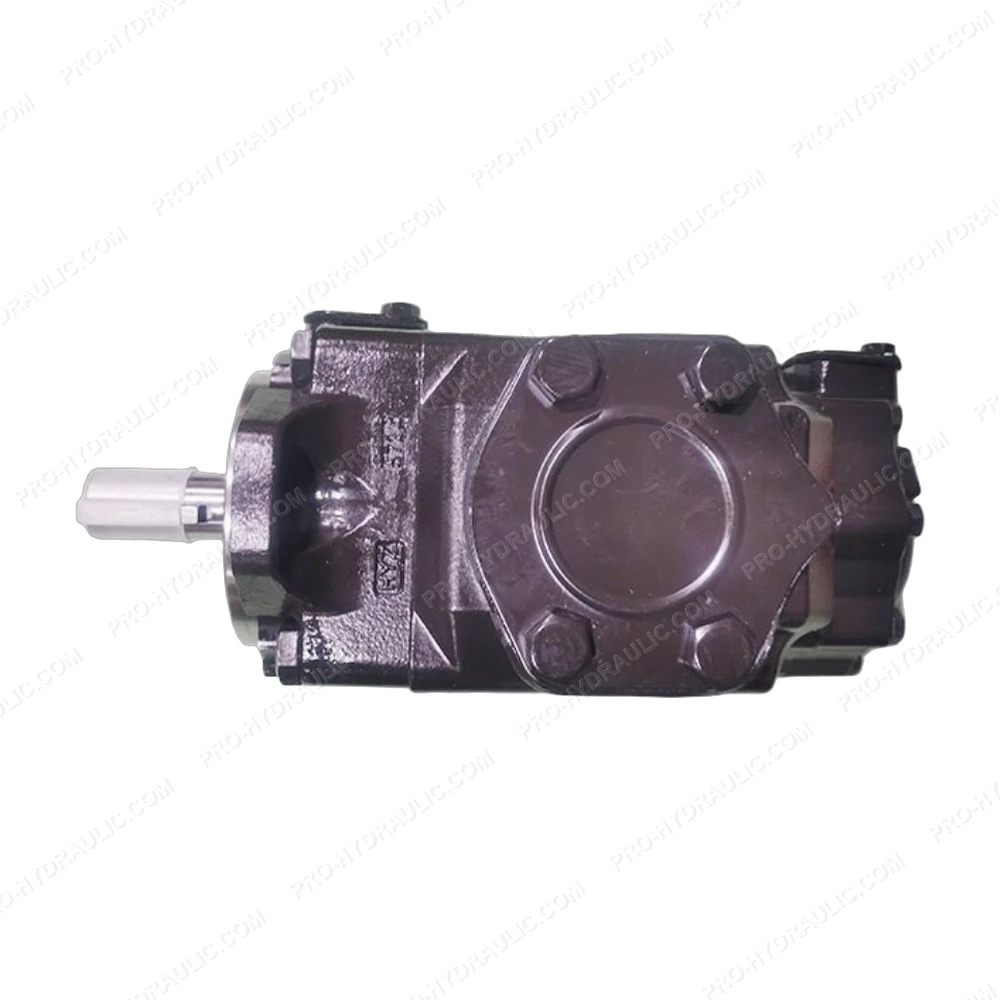

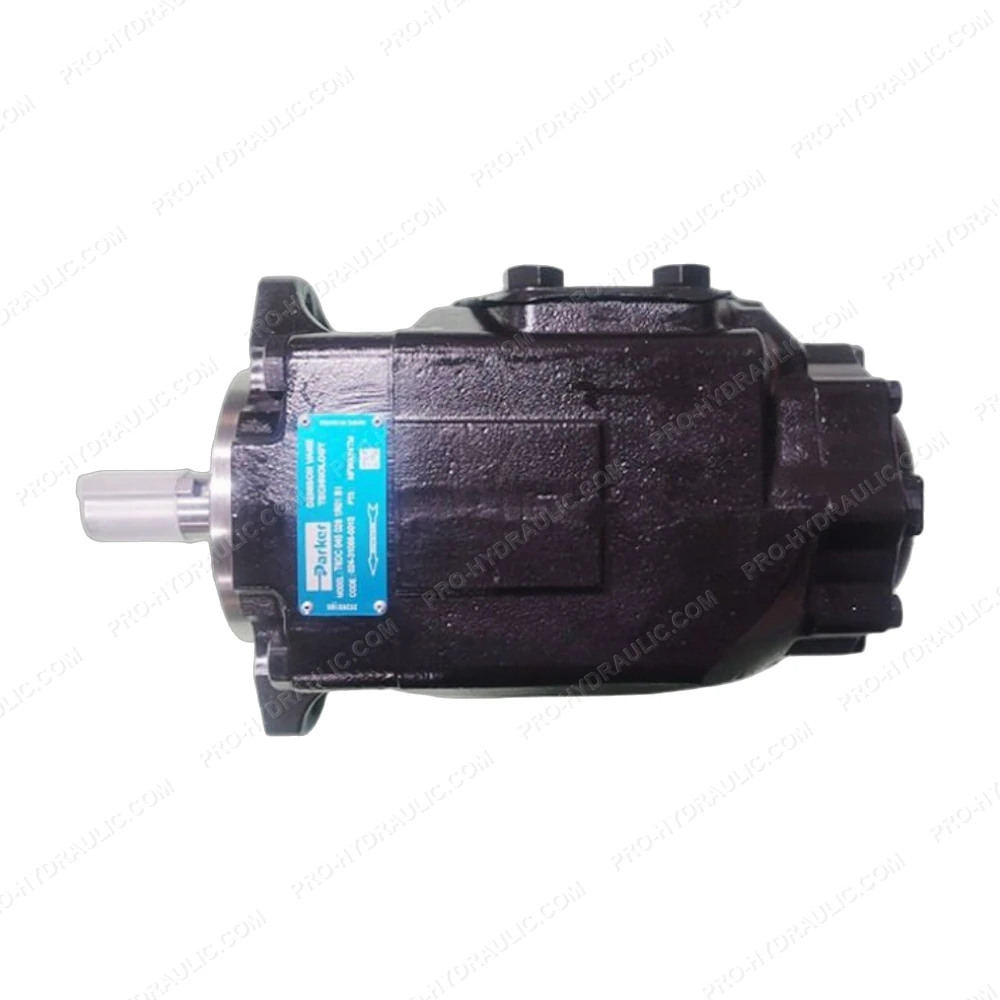

Parker T6EDC 066 050 014 1R00 B1 Triple Vane Pump
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Parker T6EDC 066 050 014 1R00 B1 Double Vane Pump. This USA-made hydraulic pump features a high-pressure double vane design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
