The PARKER TDA050EW09A2NLW21 is a heavy-duty industrial proportional valve engineered for precise electro-hydraulic flow and pressure control in demanding hydraulic circuits. This direct-operated, two-stage proportional directional control valve features a robust spool design and integrated position feedback, ensuring accurate, repeatable response under varying load conditions.
PARKER TDA050EW09A2NLW21 Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | Proportional Directional Control Valve |
| Actuation | Proportional Solenoid with Position Feedback |
| Mounting Interface | ISO 4401 / CETOP 5 (NG10) |
| Max Operating Pressure | 350 bar (5075 psi) |
| Rated Flow | 50 L/min at 35 bar delta P |
| Supply Voltage | 24 VDC |
| Electrical Connector | DIN 43650 / ISO 4400 |
| Fluid Compatibility | Mineral oil, HLP, HLVP per DIN 51524 |
| Operating Temperature | -20°C to +80°C |
| Seal Material | NBR (Buna-N) |
Key Engineering Features
- Two-stage proportional design with integrated spool position transducer for closed-loop control
- High-resolution flow and pressure regulation with minimal hysteresis
- Robust wet-pin solenoid armature for reliable, long-cycle operation
- Standard ISO 4401 / CETOP 5 mounting pattern for drop-in compatibility
- Hardened, precision-ground spool and sleeve for extended service life
- Optional manual override for emergency operation
Industrial Applications
- Injection molding machines – clamp and injection velocity control
- Hydraulic presses – force and position regulation
- Steel and metal forming equipment – roll gap and tension control
- Material handling systems – smooth acceleration and deceleration
- Test stands and simulation rigs – dynamic pressure and flow profiling
For technical inquiries, dimensional drawings, or replacement support for PARKER TDA050EW09A2NLW21, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

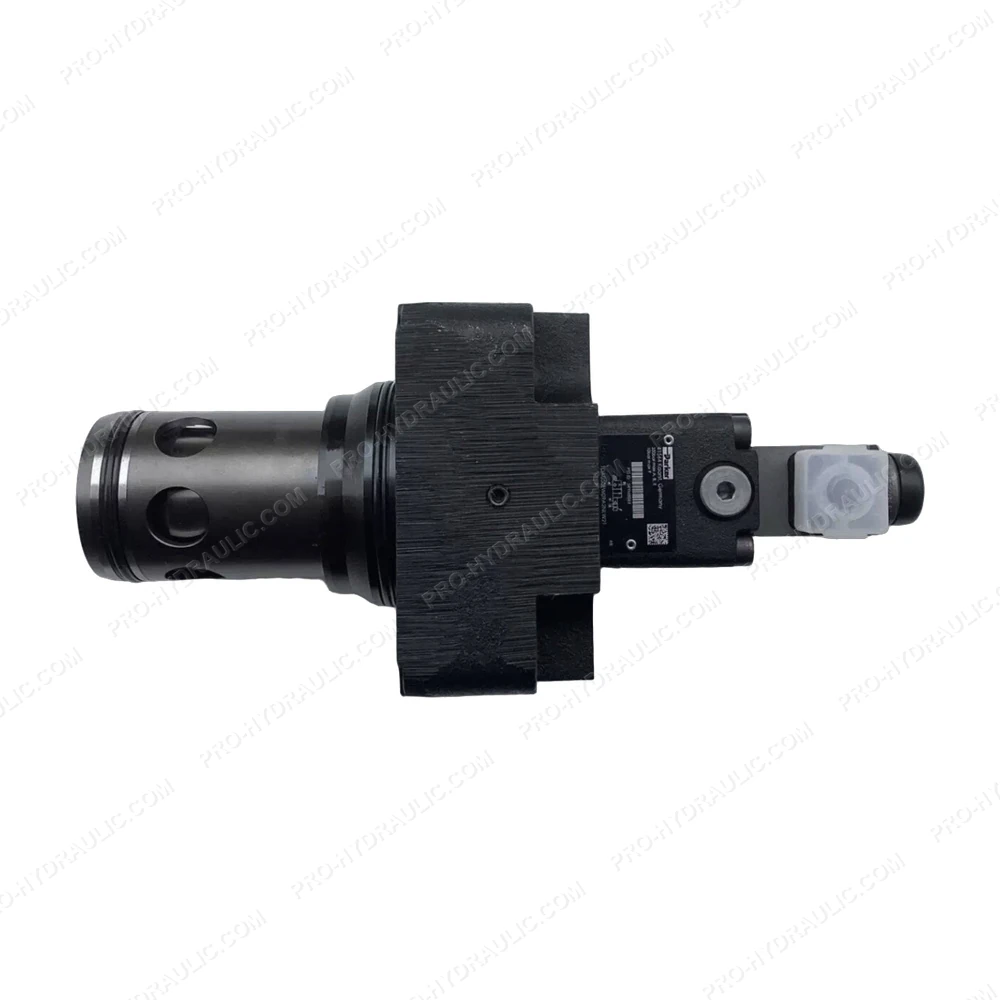

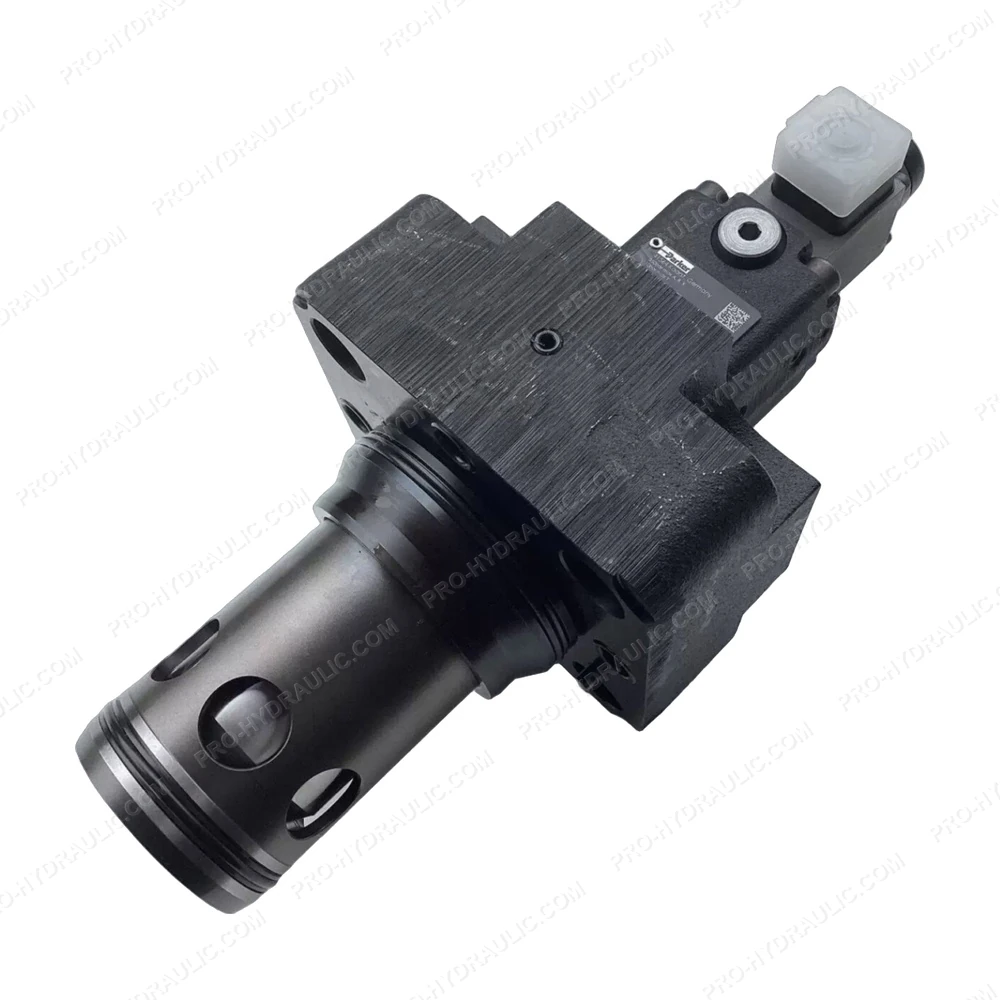

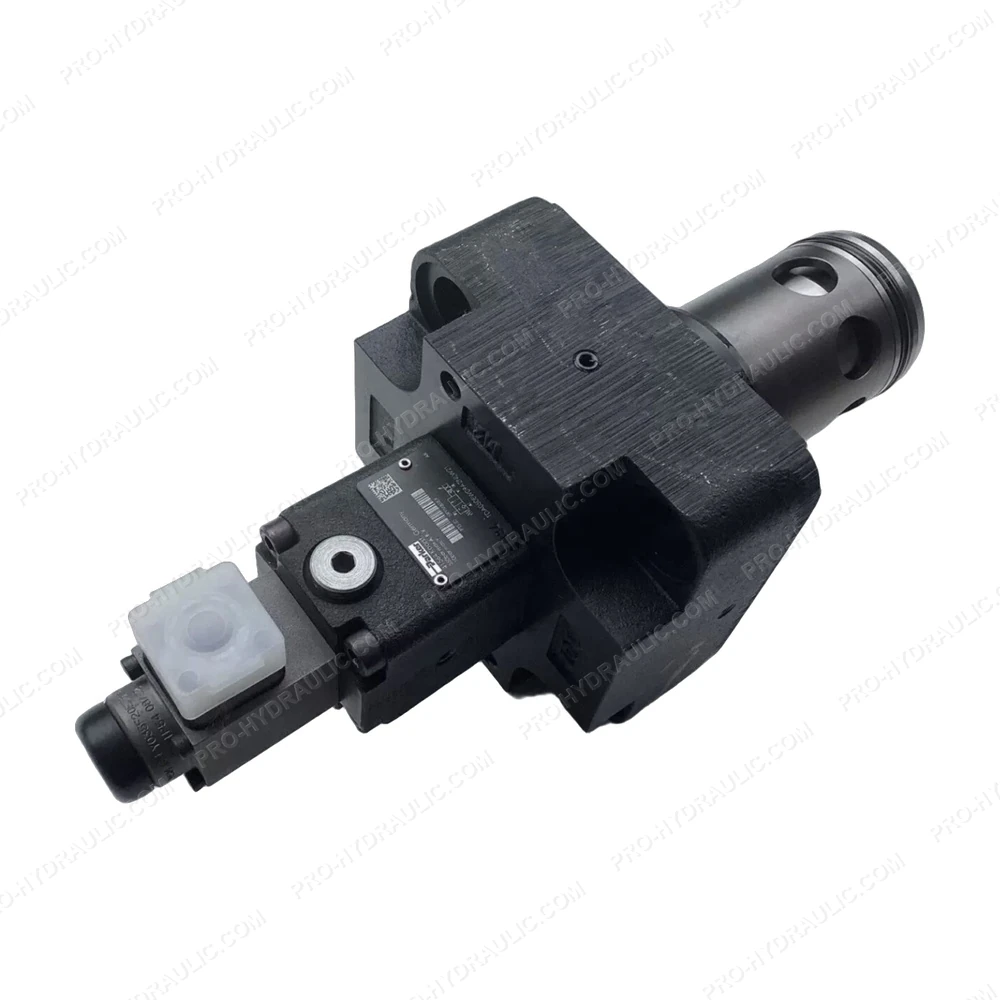

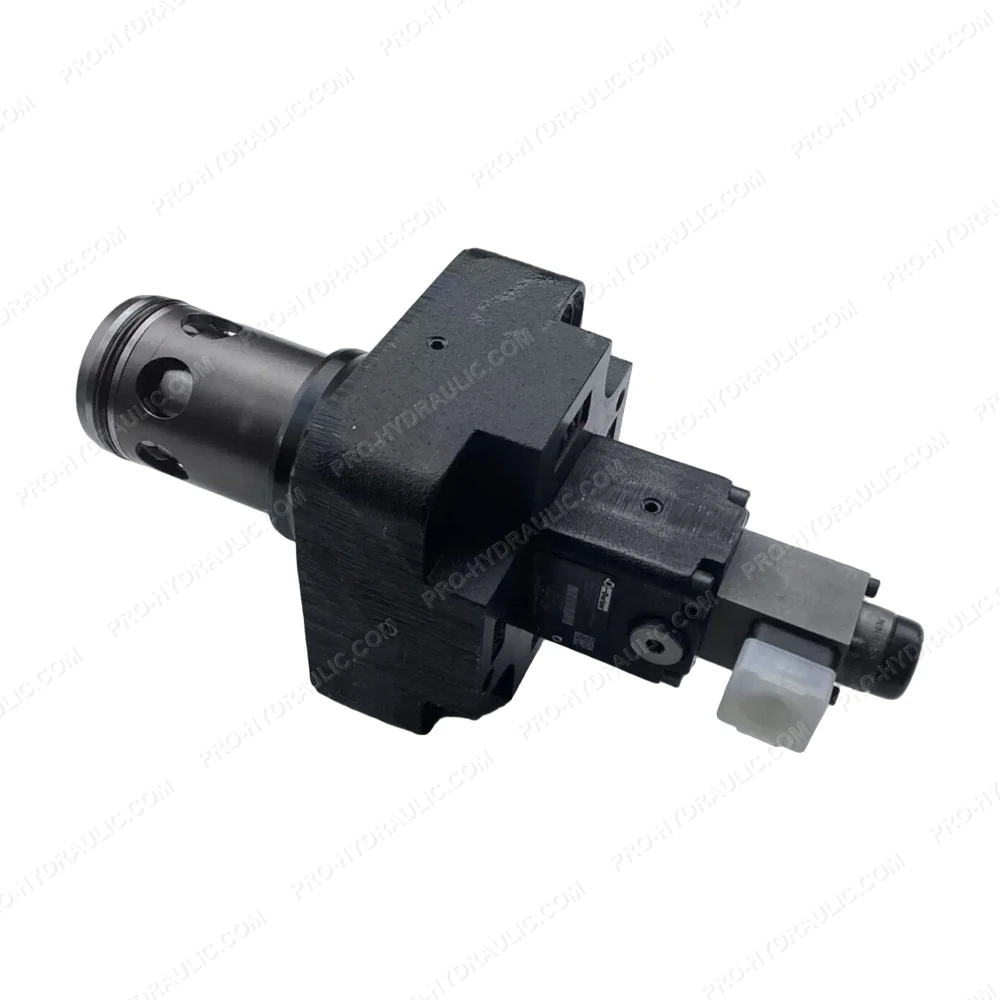

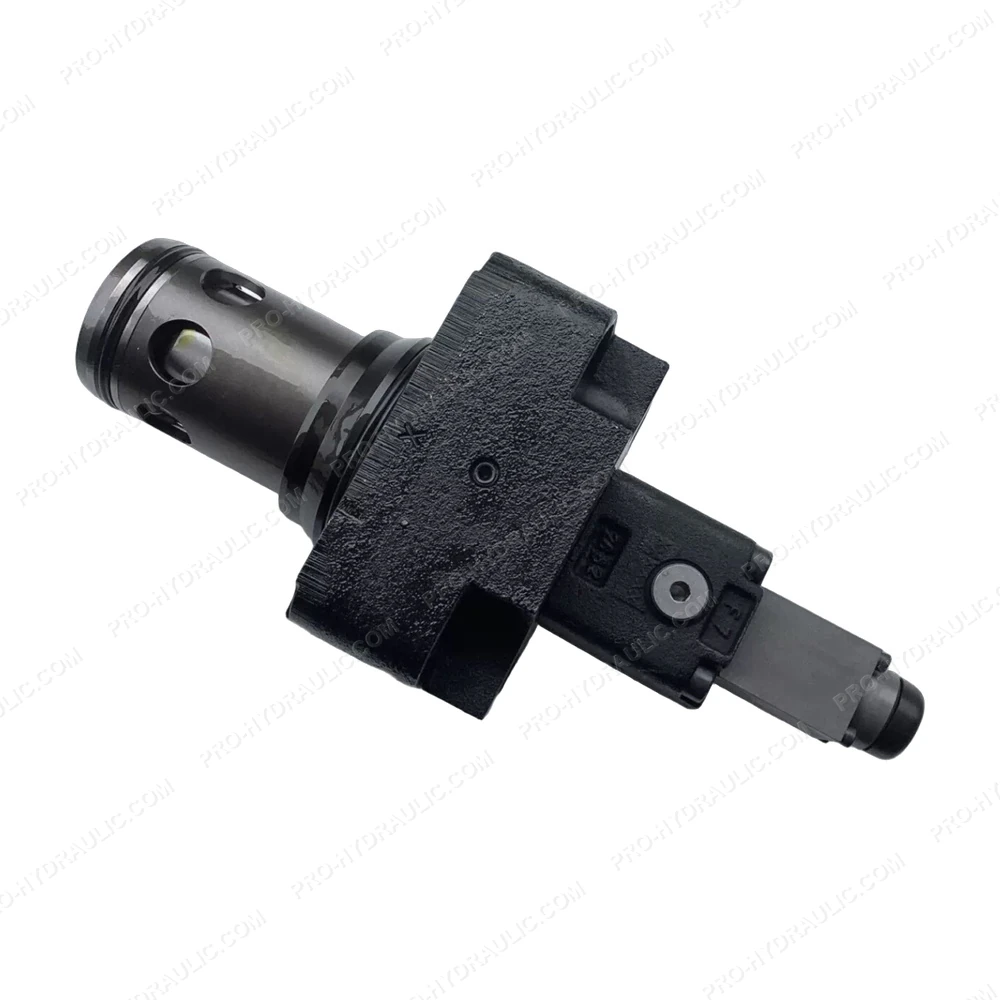

PARKER TDA050EW09A2NLW21 Proportional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the PARKER TDA050EW09A2NLW21 Proportional Valve. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty systems.
