Product Overview
The Parker TDP063EH99C2NB062 is a high-performance proportional directional control valve from Parker Hannifin’s TDP series, engineered for precise, infinitely variable control of hydraulic actuator direction and velocity. Utilizing a robust spool-and-sleeve design actuated by a high-force proportional solenoid, this valve delivers smooth, stepless flow metering proportional to the electrical input signal. The TDP series is renowned for its excellent repeatability, low hysteresis, and fast dynamic response, making it an ideal choice for demanding industrial motion control systems where accurate position, velocity, and force regulation are critical. This valve serves as a central control element in sophisticated hydraulic circuits, interfacing seamlessly with modern electronic amplifiers and closed-loop controllers.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Control Valve |
| Model Designation | TDP063EH99C2NB062 |
| Nominal Flow Rate | 63 L/min (at 70 bar pressure drop per land) |
| Operating Pressure | Up to 350 bar (5075 psi) nominal working pressure |
| Spool Configuration | Closed-center, overlapping spool for precise position control |
| Actuation Type | Proportional solenoid, single or dual (dependent on configuration) |
| Mounting & Connection | ISO 4401 / CETOP 5 (NG10) subplate mounting interface |
| Electrical Interface | Standard DIN 43650 connector, 24V DC or 12V DC coil options |
| Hysteresis | ≤ 5% (typical, without dither) |
| Response Time | ≤ 30 ms (typical, for full stroke step input) |
Engineering Features & Advantages
- Precision Performance: The TDP series spool is precisely machined and matched to the sleeve to ensure minimal internal leakage and highly accurate flow metering proportional to the command signal, enabling fine velocity control and smooth acceleration/deceleration profiles.
- Industrial Reliability: Constructed with a rugged, fatigue-resistant cast iron body and a hardened, ground spool, this valve is designed for continuous operation in harsh industrial environments, offering long service life and consistent performance.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Parker OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The TDP series is renowned for its excellent repeatability, low hysteresis, and fast dynamic response, making it an ideal choice for demanding industrial motion control systems where accurate position, velocity, and force regulation are critical.
PRODUCT IMAGES

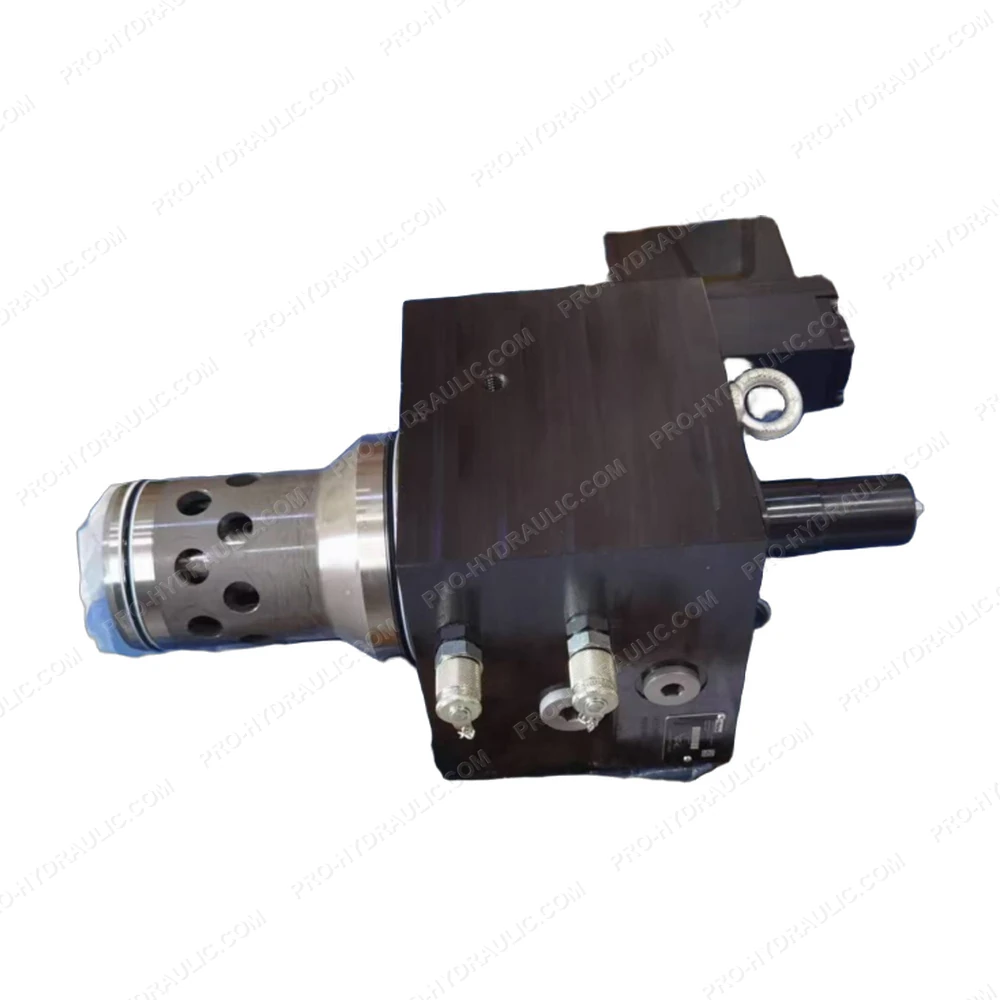

Parker TDP063EH99C2NB062 Proportional Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Parker TDP063EH99C2NB062 Proportional Directional Control Valve. This Germany-made 24V DC hydraulic component features a spool-type design with integrated electronics, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
