Product Overview
The Parker VG25-ERS-DB49 is a high-performance directional control valve from Parker’s VG series, engineered to manage the start, stop, and direction of hydraulic fluid flow within demanding industrial circuits. As a solenoid-actuated, spring-centered directional valve, it utilizes a precision-machined spool and bore assembly to route pressurized oil to the selected actuator port while simultaneously returning the opposite port to tank. The VG25-ERS-DB49 is configured for reliable, repeatable shifting in continuous-duty applications, making it a critical control component in manifold-mounted and subplate-mounted hydraulic power units. Its robust cast body and hardened spool deliver consistent metering, low internal leakage, and long service life under high cycle rates.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Directional Control Valve (Solenoid Actuated, Spring Centered) |
| Model Designation | VG25-ERS-DB49 |
| Series | Parker VG Series (NG25 / CETOP 8 / ISO 4401 Size 08) |
| Actuation Type | Electrical Solenoid with Spring Return to Center Position |
| Spool Configuration | Four-Way, Three-Position (4/3) Closed-Center Spool |
| Operating Pressure | Up to 350 bar (5,080 psi) at P, A, B Ports; 210 bar at T Port |
| Rated Flow | Up to 250 L/min (66 GPM) nominal |
| Mounting & Connection | Subplate / Manifold Mounting per ISO 4401-08 / CETOP 8 Interface |
| Solenoid Voltage | Standard Industrial Coil (Common 24V DC / 110V AC / 220V AC Options) |
| Seal Material | NBR (Buna-N) Standard; FKM Optional for High-Temperature Service |
| Fluid Compatibility | Mineral-Based Hydraulic Oil, HL/HLP per DIN 51524 |
Engineering Features & Advantages
- Precision Performance: The hydraulic directional control valve (solenoid actuated, spring centered) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original PARKER specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 250 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
The VG25-ERS-DB49 is configured for reliable, repeatable shifting in continuous-duty applications, making it a critical control component in manifold-mounted and subplate-mounted hydraulic power units.
PRODUCT IMAGES

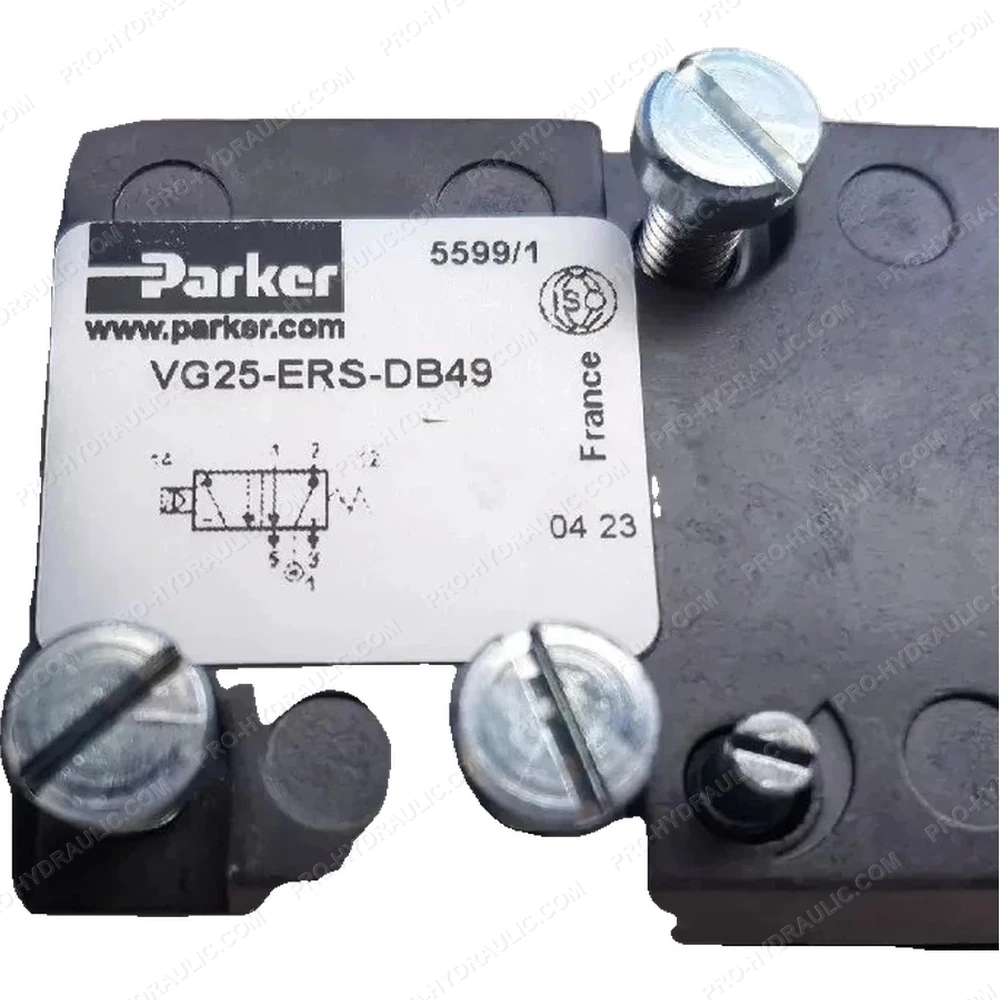

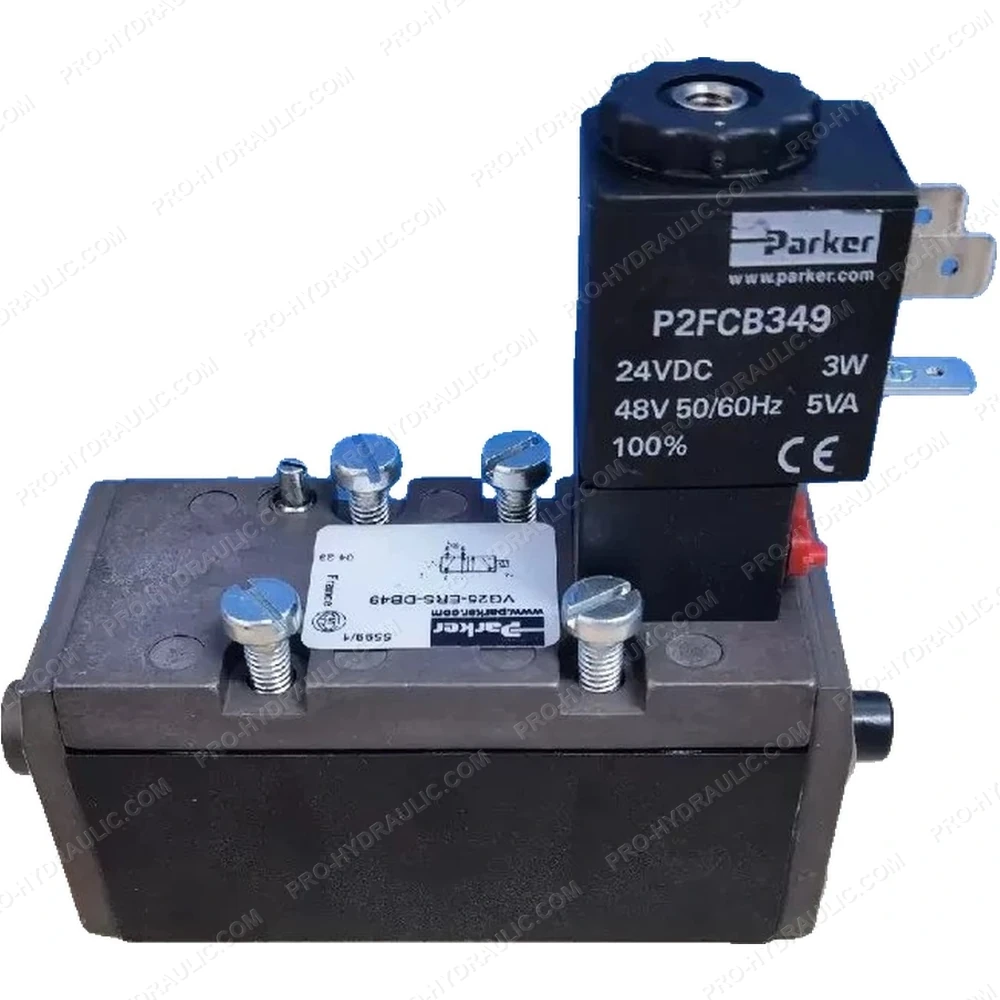

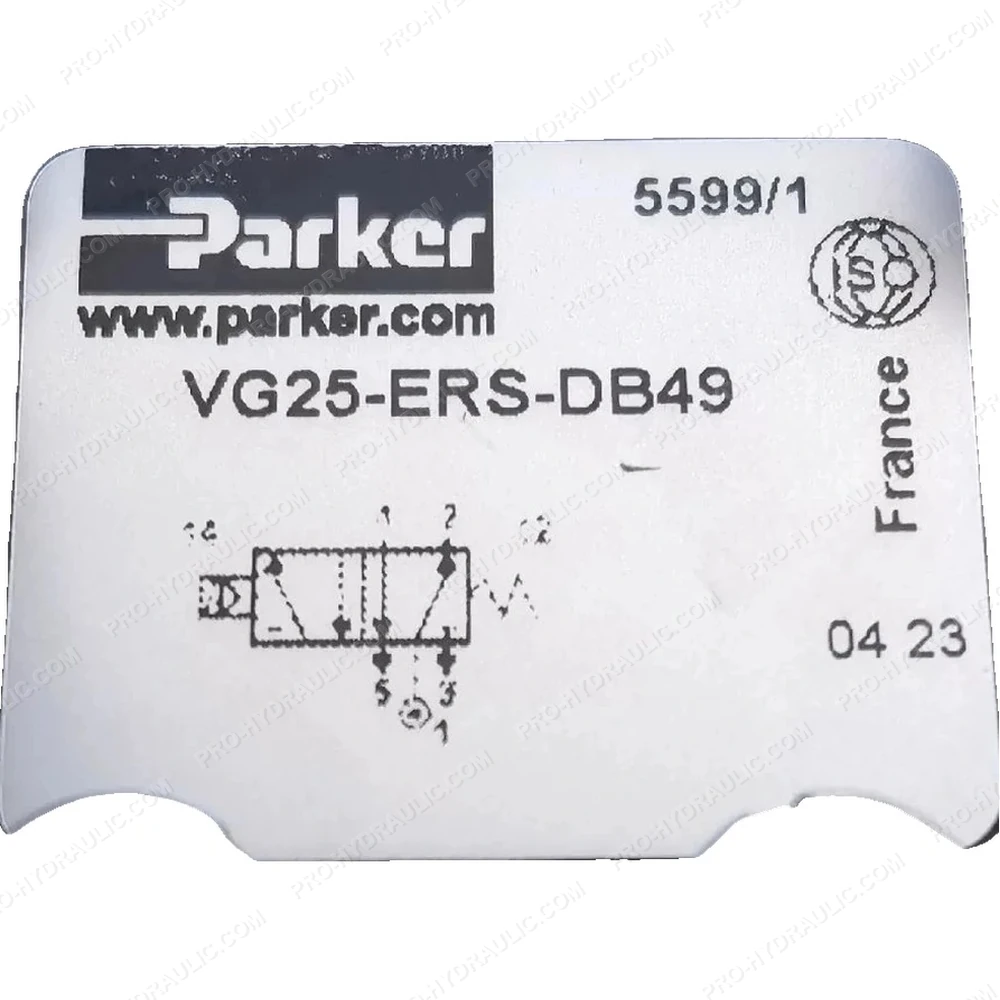

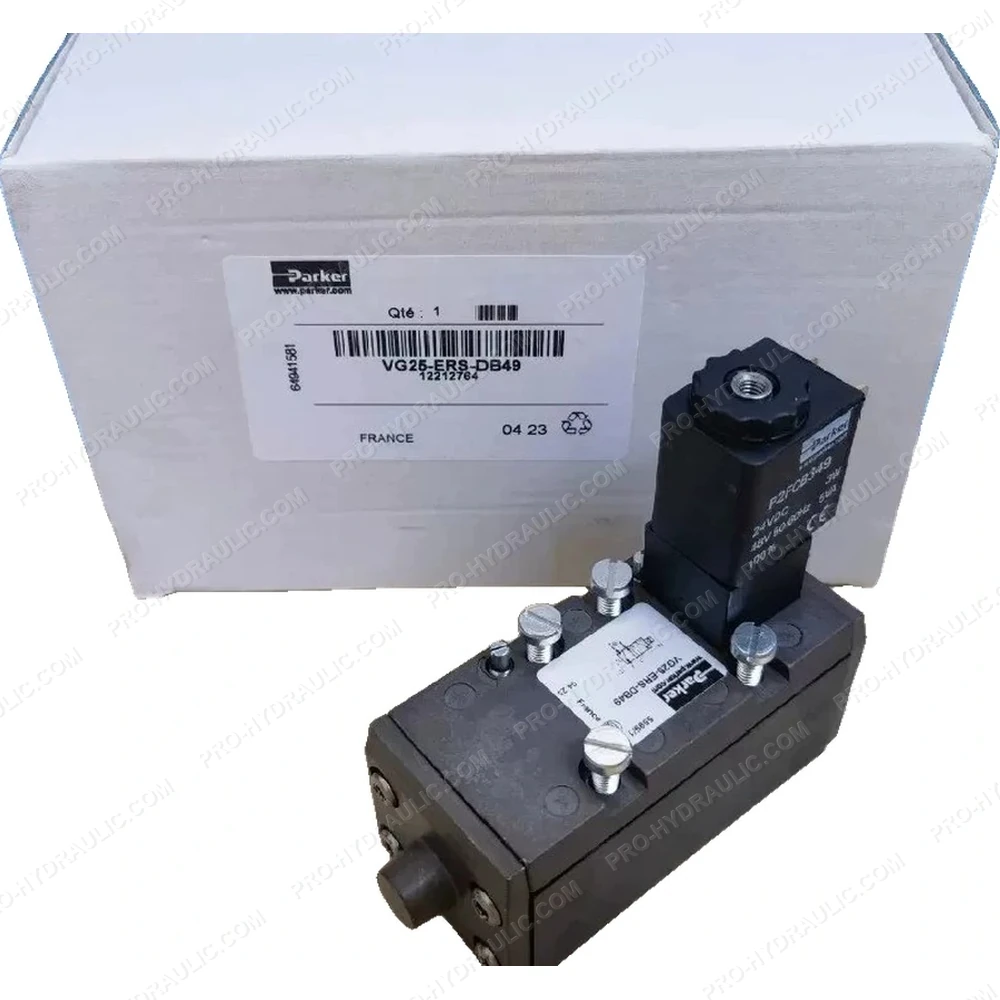

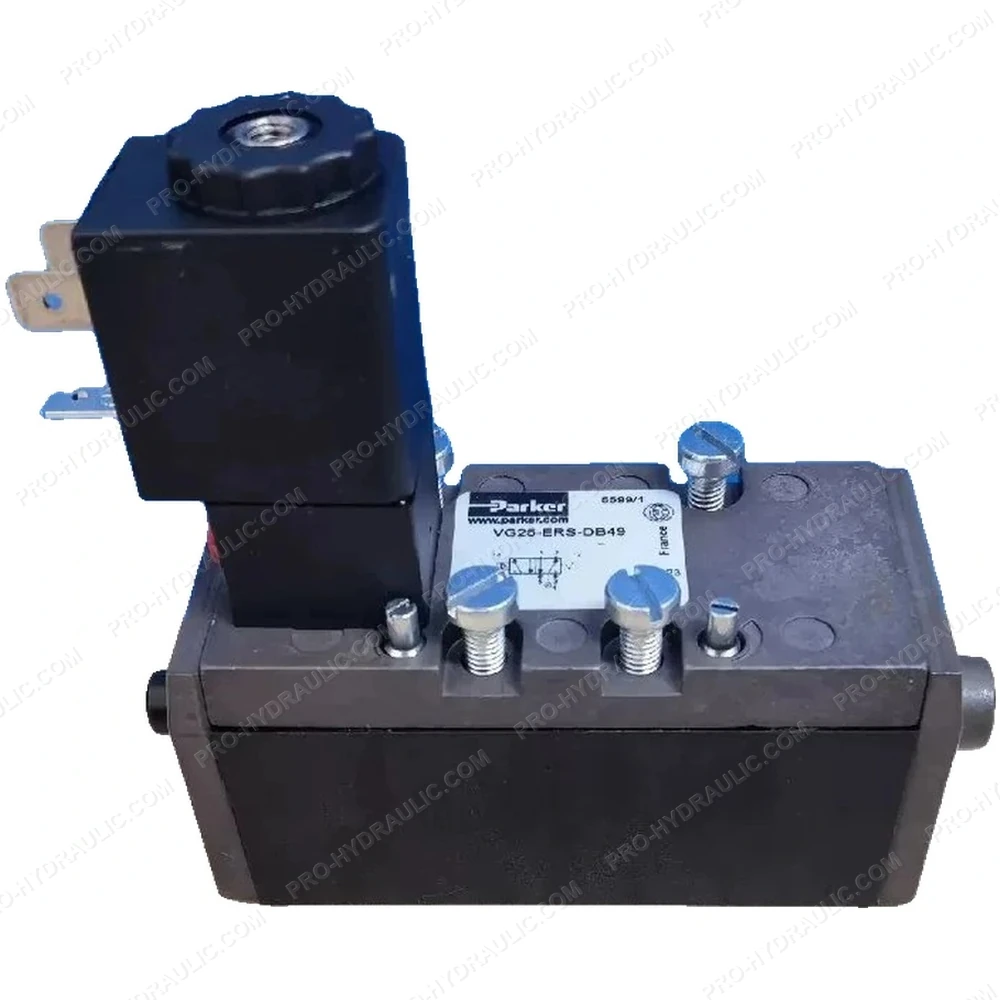

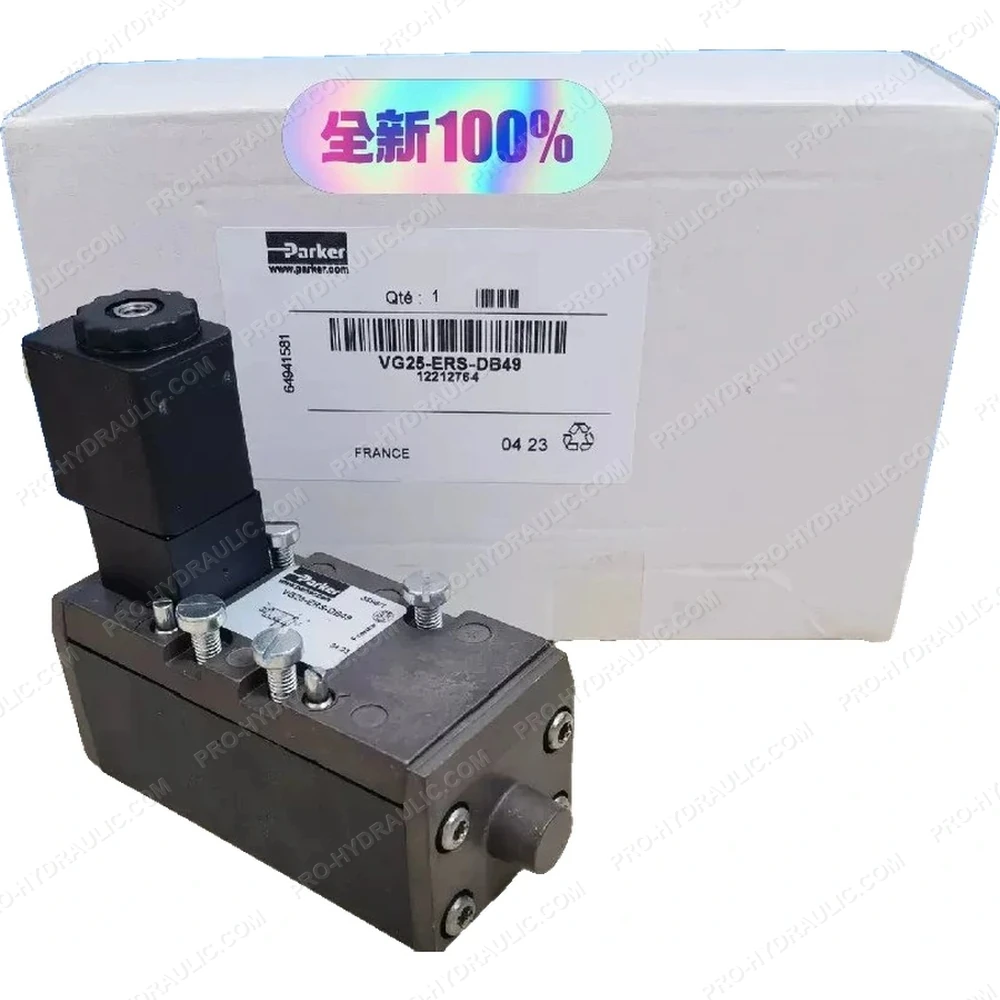

PARKER VG25-ERS-DB49 Hydraulic Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PARKER VG25-ERS-DB49 Solenoid Operated Directional Control Valve. This Germany-made hydraulic component features a reliable spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
