The PARKER VM02SA06V615 is a heavy-duty industrial pressure control valve engineered for precise regulation of hydraulic system pressure in demanding applications. As part of Parker’s VM series, this modular valve provides reliable pressure limiting and sequence control functions, ensuring stable operation and protection against overpressure conditions.
PARKER VM02SA06V615 Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Pressure Control Valve |
| Series | VM02 |
| Mounting Interface | CETOP/ISO 4401-02 (NG6) |
| Maximum Operating Pressure | 350 bar (5075 psi) |
| Maximum Flow Rate | 40 L/min (10.5 gpm) |
| Adjustment Type | Hex socket screw with locknut |
| Pressure Range | Up to 315 bar (4569 psi) |
| Fluid Compatibility | Mineral oil, phosphate ester, and other hydraulic fluids |
| Seal Material | NBR (Buna-N) |
| Operating Temperature | -20°C to +80°C (-4°F to +176°F) |
| Body Material | Steel |
| Weight | Approx. 1.2 kg (2.65 lbs) |
Key Engineering Features
- Modular design for direct mounting on CETOP/ISO 4401-02 (NG6) subplates or sandwich bodies
- Precise pressure adjustment via hex socket screw with locknut for secure setting retention
- Robust construction with hardened steel internal components for long service life
- Low pressure drop and minimal hysteresis for accurate control
- Optional pressure ranges available to suit specific system requirements
- Compatible with a wide range of hydraulic fluids and seals
Industrial Applications
- Hydraulic power units and central systems
- Machine tools and metal forming equipment
- Presses and injection molding machines
- Material handling and lifting equipment
- Marine and offshore hydraulic systems
- Test stands and simulation rigs
For technical inquiries, dimensional drawings, or replacement support for PARKER VM02SA06V615, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

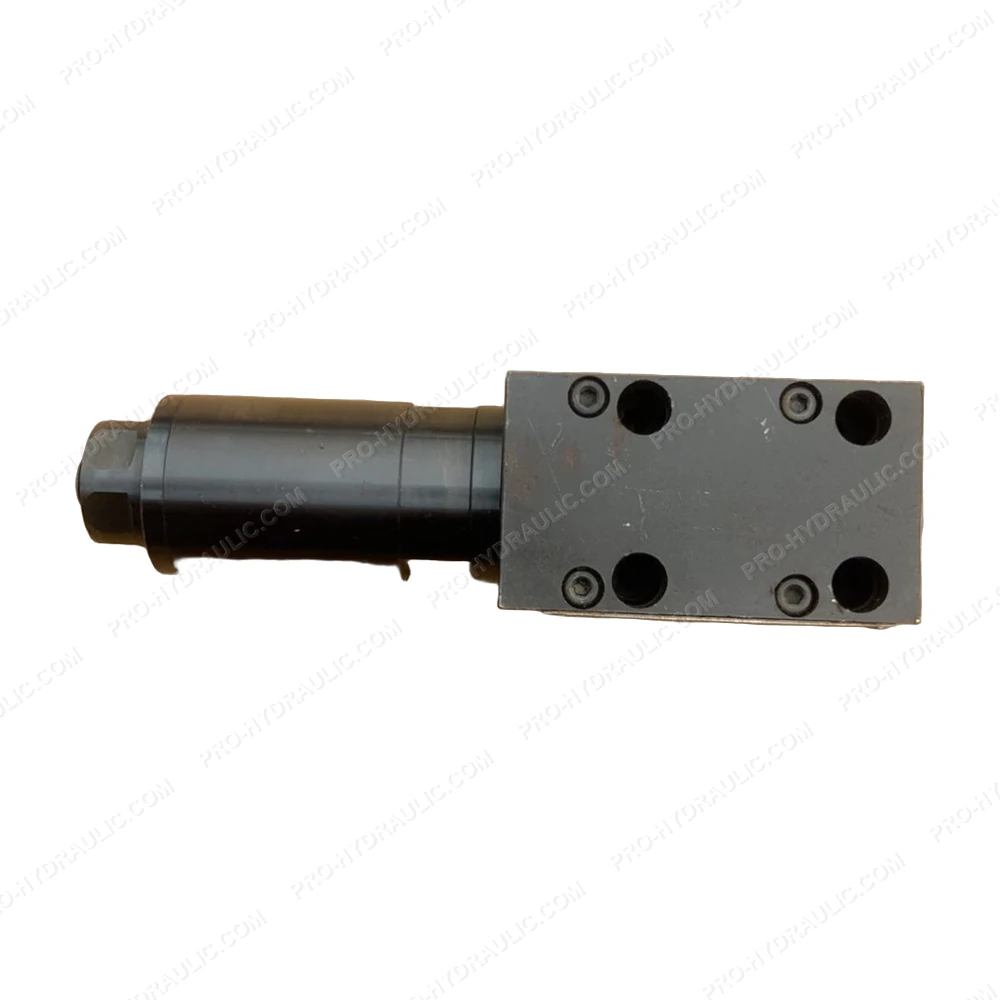

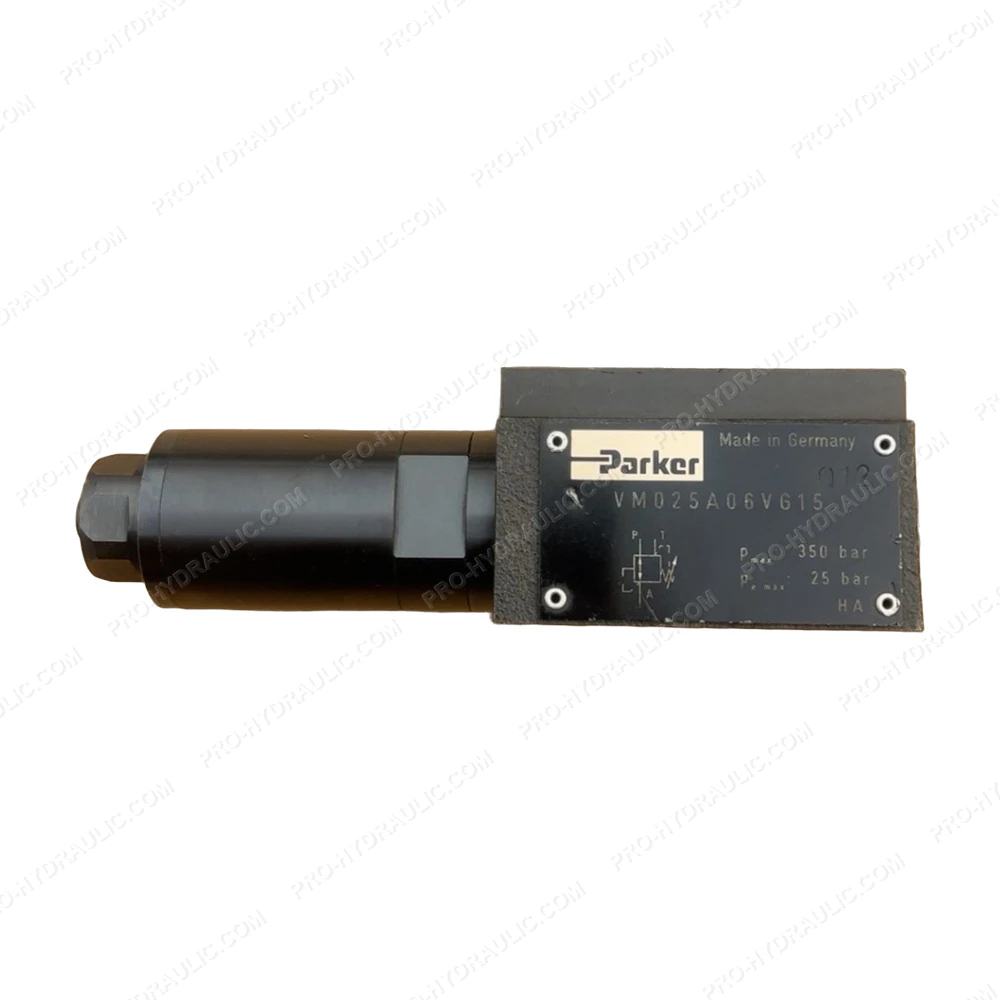

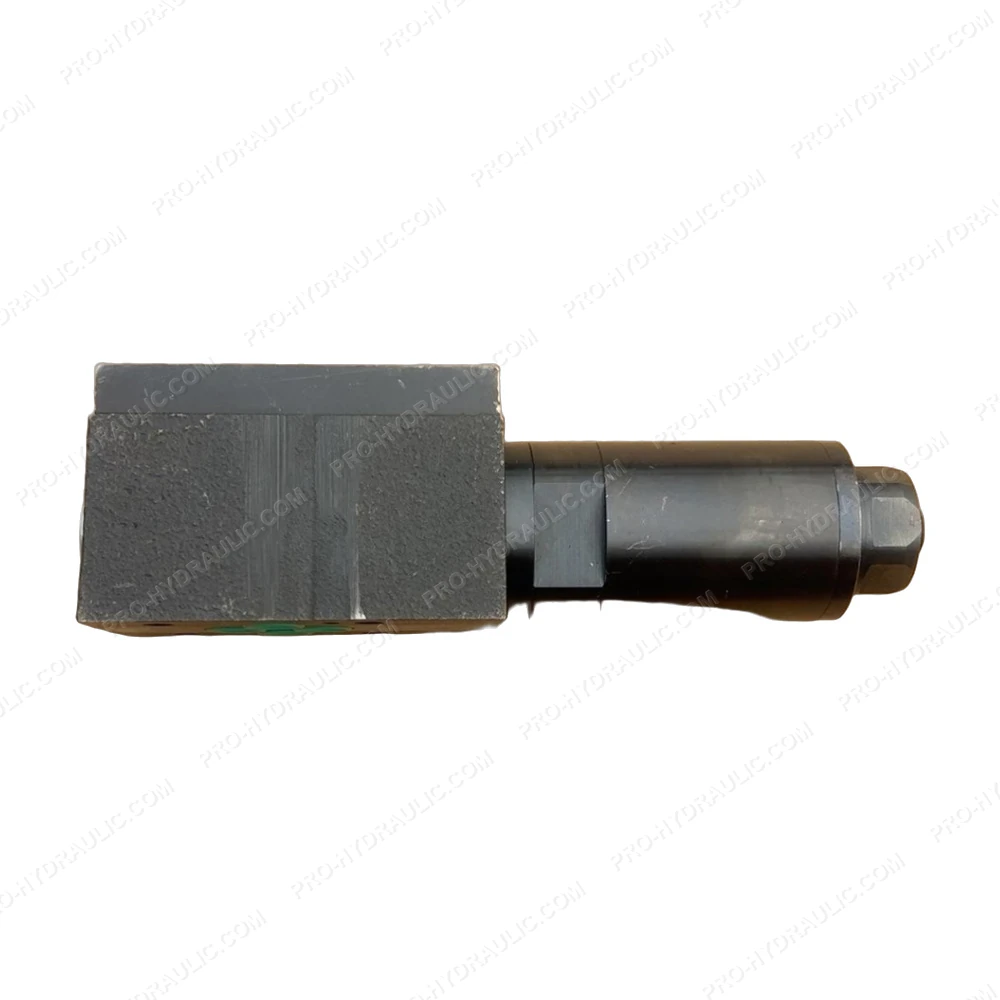

PARKER VM02SA06V615 Pressure Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the PARKER VM02SA06V615 Pressure Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
