Product Overview
The Pfeiffer Vacuum PM Z01 317 is a precision-engineered vacuum solenoid venting valve designed for controlled admission of atmospheric air into vacuum systems during shutdown, venting, or pressure equalization sequences. Manufactured by Pfeiffer Vacuum, a global leader in vacuum technology, this valve operates as an electrically actuated two-port solenoid valve that opens to allow filtered air ingress when de-energized or energized depending on configuration. Its compact, corrosion-resistant construction and elastomer sealing technology make it ideally suited for integration into rotary vane pump systems, roots blower packages, and turbo molecular pump stations where reliable venting is critical to prevent oil backstreaming and protect vacuum integrity. The PM Z01 317 serves as a direct-fit replacement component within Pfeiffer Vacuum pump and system assemblies, ensuring seamless compatibility with existing vacuum control architectures.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Vacuum Solenoid Venting Valve (Process & Pneumatic Valve) |
| Model Designation | PM Z01 317 |
| Operating Pressure | Vacuum to atmospheric (up to 1 bar differential) |
| Mounting & Connection | Standard Pfeiffer Vacuum interface / threaded port connection |
| Actuation Type | Direct-acting solenoid, electrically controlled |
| Valve Configuration | 2/2-way, normally closed (opens on energization) |
| Sealing Material | Vacuum-compatible elastomer (FKM / NBR) |
| Electrical Supply | Standard industrial solenoid voltage (24 V DC / 230 V AC options) |
| Response Time | Fast actuation, typically < 50 ms |
| Body Material | Corrosion-resistant metal alloy / brass |
Engineering Features & Advantages
- Precision Vacuum Control: The solenoid-actuated venting mechanism ensures rapid, repeatable opening and closing for precise vacuum system pressure equalization, preventing oil backstreaming and contamination during pump shutdown.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust solenoid coils and vacuum-rated seals that withstand millions of actuation cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Pfeiffer Vacuum OEM standards, ensuring drop-in replacement without modification to existing piping or control wiring.
- Direct Fit Replacement: Precision-manufactured to original Pfeiffer specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
Its compact, corrosion-resistant construction and elastomer sealing technology make it ideally suited for integration into rotary vane pump systems, roots blower packages, and turbo molecular pump stations where reliable venting is critical to prevent oil backstreaming and protect vacuum integrity.
PRODUCT IMAGES

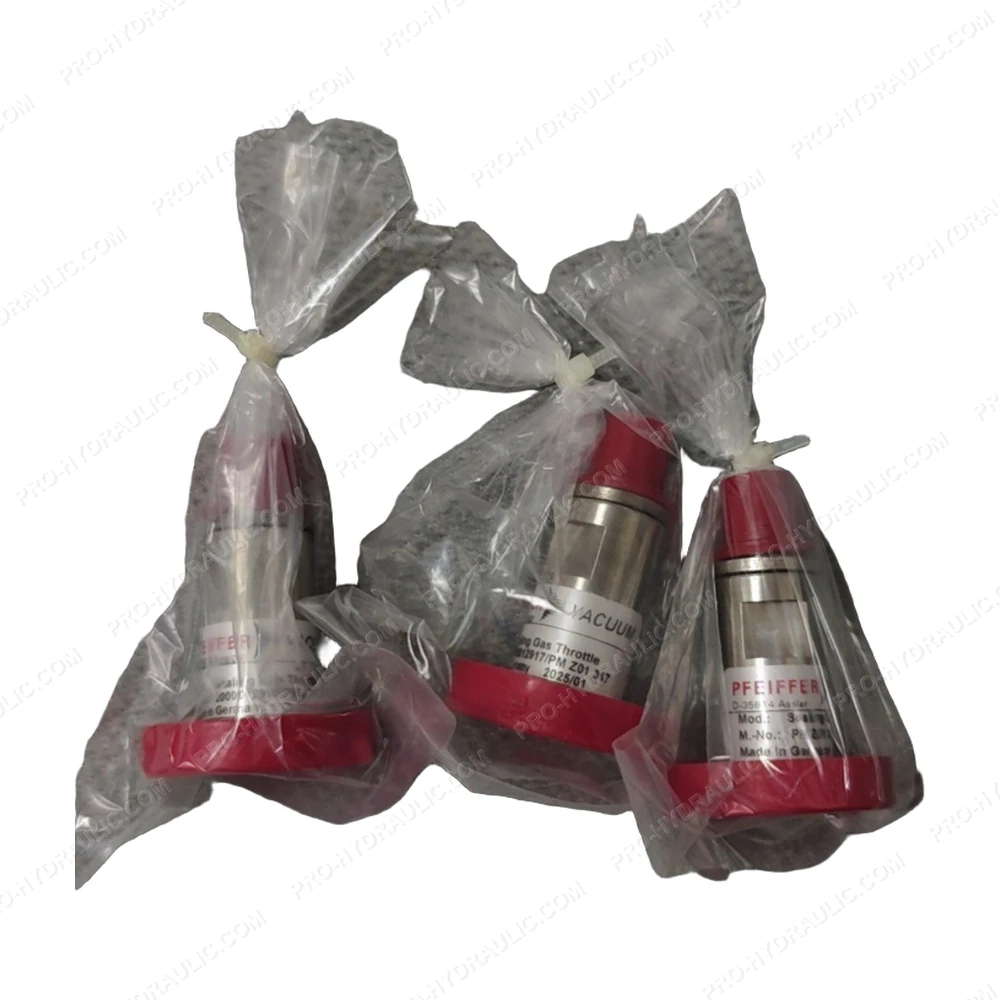

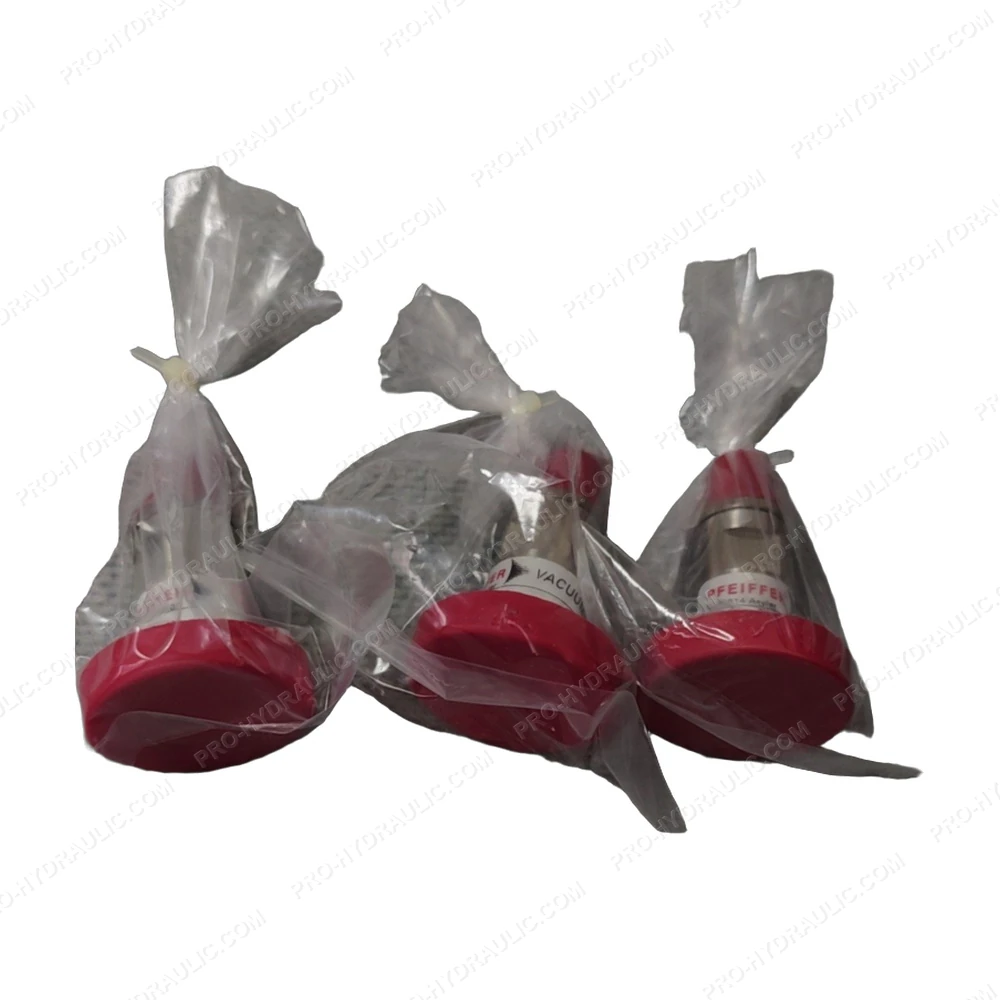

Pfeiffer Vacuum PM Z01 317 Vacuum Solenoid Venting Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PFEIFFER PM Z01 317 Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a 4/3-way design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
