The PIAB P6010.AM.01.LA.52.P148-3X4SG is a heavy-duty industrial vacuum ejector engineered for high-flow pneumatic vacuum generation in automated material handling and process systems. Utilizing multi-stage COAX® cartridge technology, it produces high vacuum flow with minimal compressed air consumption, ensuring rapid evacuation and stable gripping performance.
PIAB P6010.AM.01.LA.52.P148-3X4SG Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Multi-stage Vacuum Ejector |
| Series | piCLASSIC / P6010 |
| Configuration | AM (Air Muffler), LA (Low Air Consumption), 52 (Nozzle Size) |
| Connection | P148 (G1/4″ Ports), 3X4SG (3/4″ Silencer/Port) |
| Material | Anodized Aluminum / NBR / PA |
| Operating Temperature | -20°C to +80°C |
| Air Supply Pressure | 2–6 bar (optimal 4–5 bar) |
| Mounting | Direct or bracket mount |
Key Engineering Features
- Multi-stage COAX® ejector cartridge for high vacuum flow and low air consumption
- Integrated air muffler (AM) reduces noise emission during operation
- Low air consumption (LA) configuration optimizes energy efficiency
- Compact, modular design with G1/4″ and 3/4″ port connections
- Rugged anodized aluminum body for industrial environments
- No moving parts, maintenance-free operation
Industrial Applications
- Pick-and-place systems for packaging and assembly
- Sheet metal and glass handling
- Robotic end-of-arm tooling (EOAT)
- Food and pharmaceutical packaging lines
- Printing and paper converting equipment
- Plastic injection molding part removal
For technical inquiries, dimensional drawings, or replacement support for PIAB P6010.AM.01.LA.52.P148-3X4SG, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

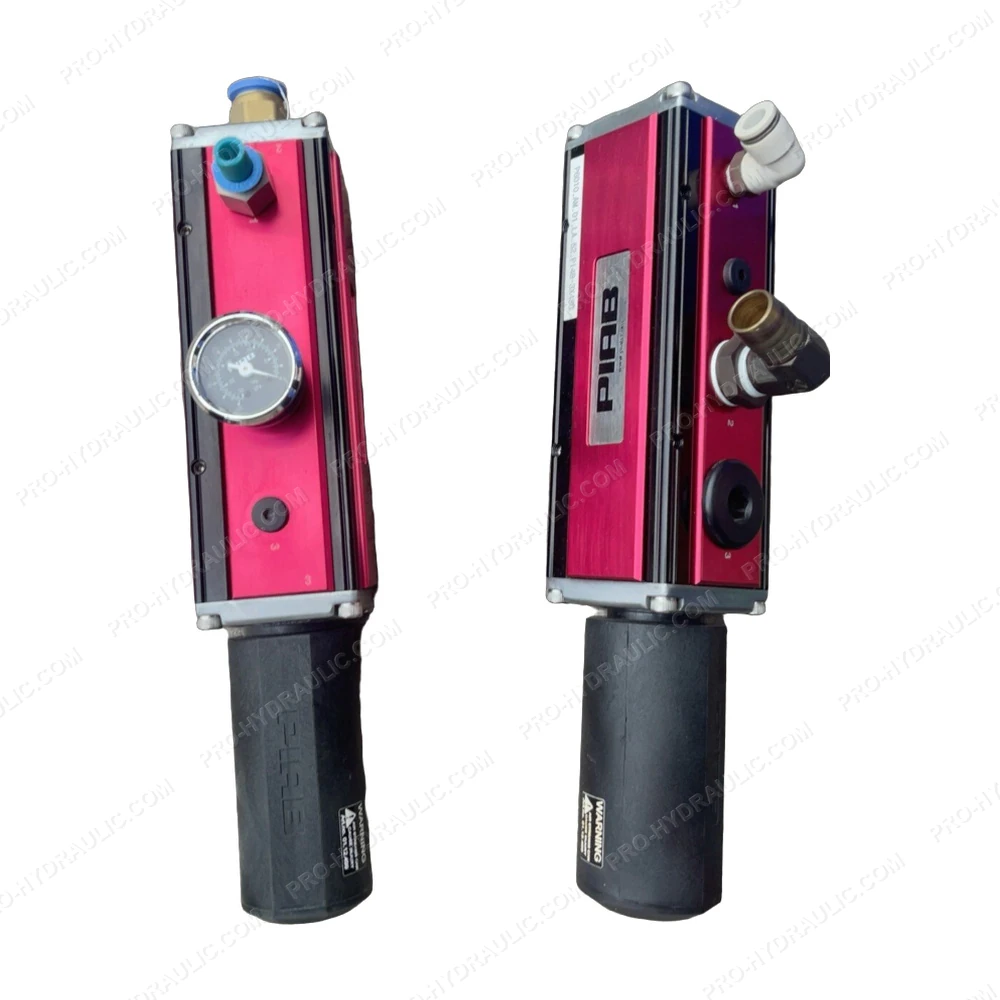

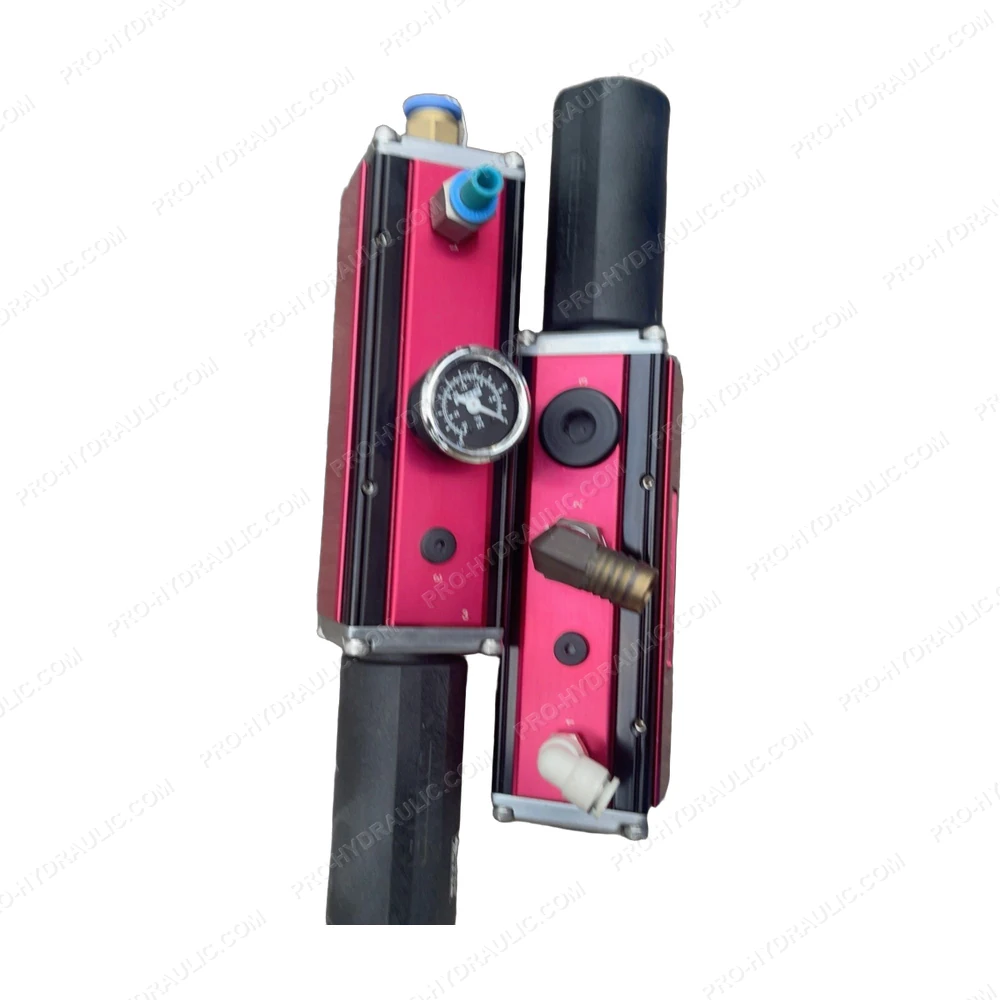

PIAB P6010.AM.01.LA.52.P148-3X4SG Vacuum Ejector
