Product Overview
The Piab PMAT-ME200H-B-S1 is a pneumatic vacuum ejector engineered for high-performance vacuum generation in automated material handling and industrial gripping systems. Operating on the venturi principle, this multi-stage ejector utilizes compressed air to create a vacuum flow without the need for moving mechanical parts, ensuring exceptional reliability and minimal maintenance. As a critical component in pneumatic vacuum circuits, it serves as the vacuum source for suction cups and end-of-arm tooling, delivering rapid evacuation and stable holding force in demanding pick-and-place, packaging, and robotic assembly applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Vacuum Ejector (Venturi Vacuum Generator) |
| Model Designation | PMAT-ME200H-B-S1 |
| Operating Pressure | Standard Industrial Grade (2–6 bar / 29–87 psi) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (G-thread ports) |
Engineering Features & Advantages
- Precision Performance: Multi-stage venturi design delivers high vacuum flow and deep vacuum levels for rapid evacuation and secure gripping of porous and non-porous materials.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with no moving parts, ensuring long service life and minimal maintenance.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, including integrated air-saving and monitoring functions for energy-efficient operation.
Typical Industrial Applications
This pneumatic vacuum ejector is widely deployed in automated packaging lines, robotic pick-and-place systems, plastic injection molding machine part removal, and sheet metal handling. It is also suitable for CNC machine tool loading/unloading, glass and wood panel handling, and general industrial vacuum gripping where fast response and reliable holding force are essential.
PRODUCT IMAGES

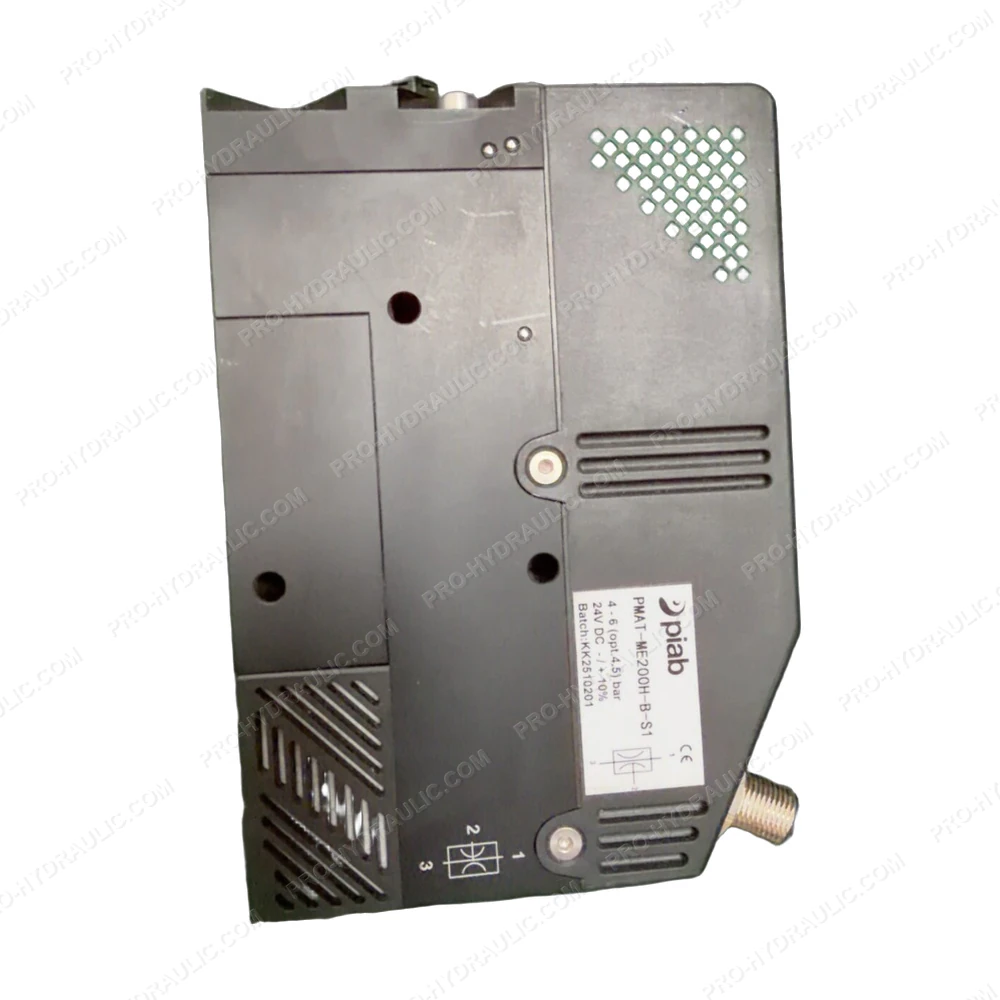

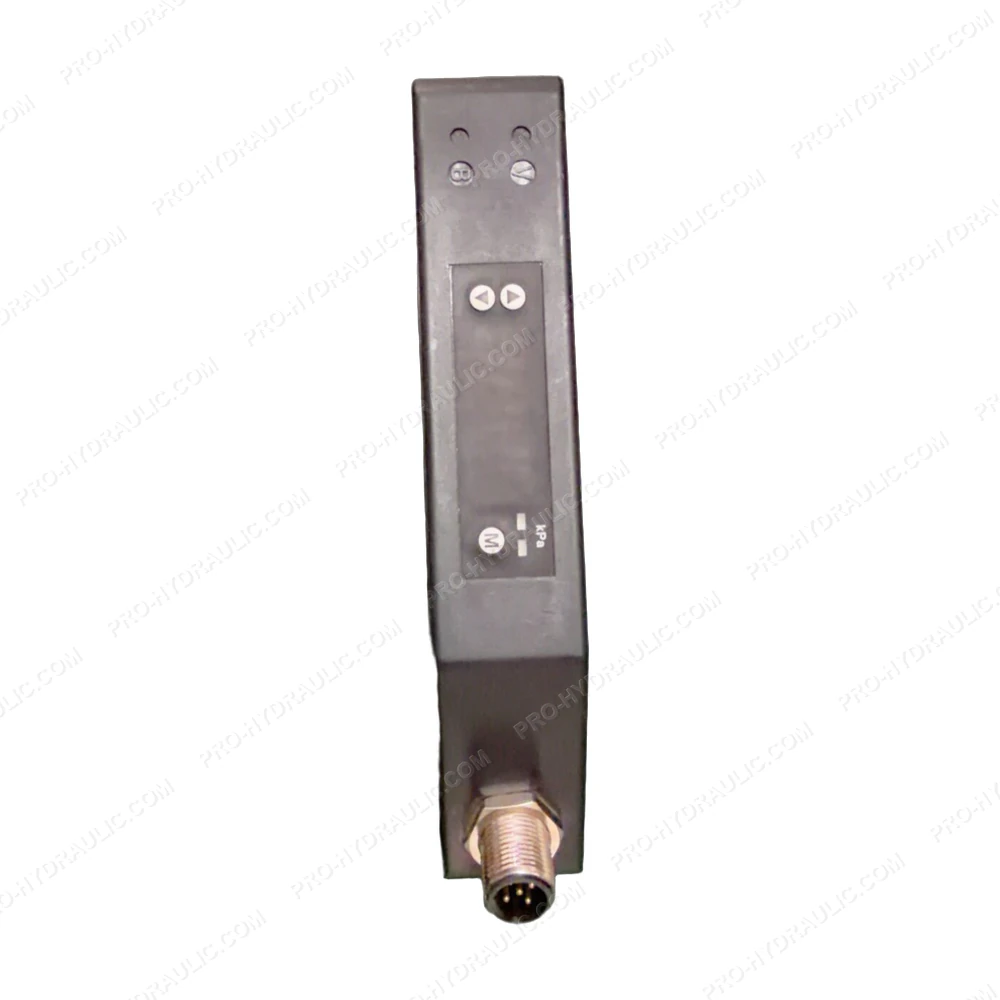

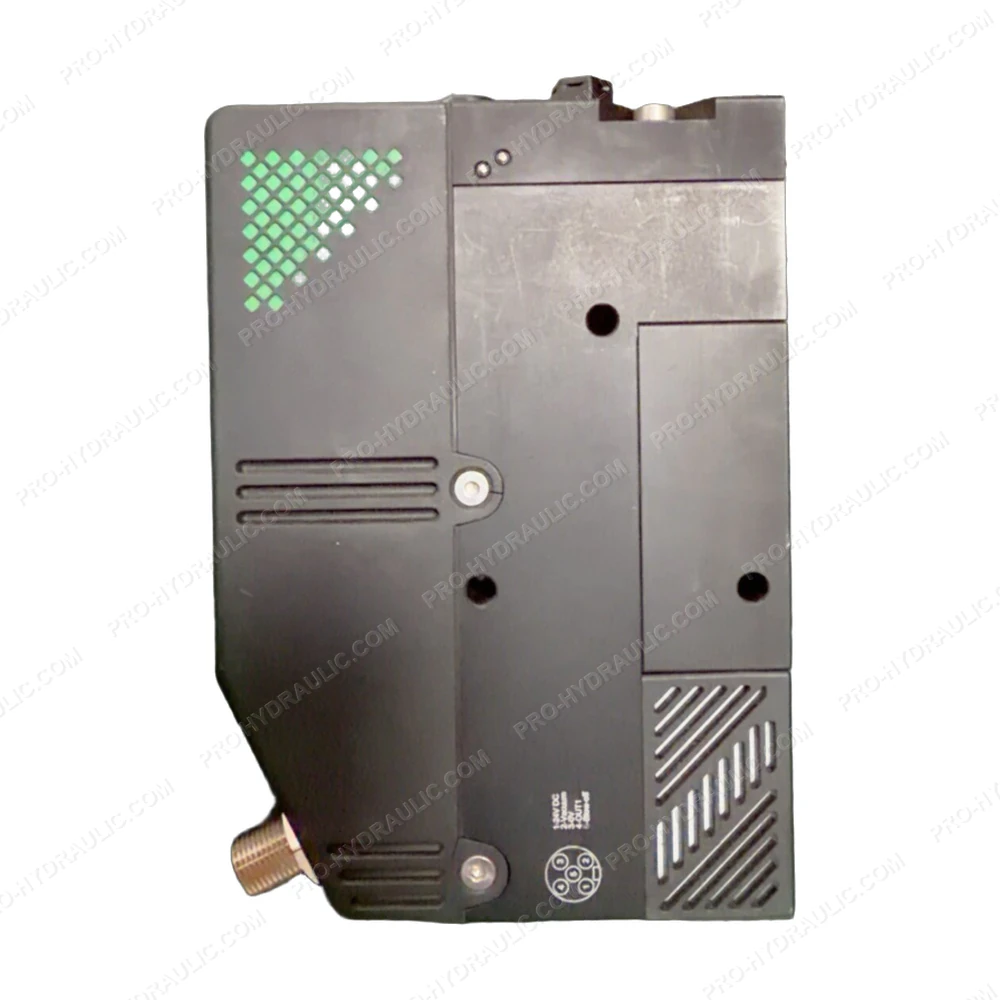

Piab PMAT-ME200H-B-S1 Pneumatic Vacuum Ejector
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PIAB PMAT-ME200H-B-S1 Vacuum Ejector. This Sweden-made pneumatic component features a multi-stage ejector design, delivering reliable, high-flow vacuum for heavy-duty industrial automation systems.
