Product Overview
The Pisco VNP-46LH6LH-D24-M02 is a precision-engineered pneumatic solenoid valve designed for reliable directional control of compressed air and inert gas circuits in automated industrial systems. Manufactured by Pisco, a globally recognized brand in pneumatic control technology, this valve utilizes a direct-acting solenoid mechanism to shift an internal spool, enabling precise switching of flow paths with fast response times. Its compact body and manifold-compatible design make it an ideal choice for integration into centralized pneumatic control panels, valve islands, and modular automation architectures where space efficiency and dependable cycling are critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (Directional Control Valve) |
| Model Designation | VNP-46LH6LH-D24-M02 |
| Operating Pressure | Standard Industrial Grade (Up to 0.7 MPa / 7 bar) |
| Mounting & Connection | Manifold / Sub-base Mounting, Standard Pisco Interface |
| Solenoid Voltage | 24 VDC |
| Valve Function | 5/2-Way Directional Control |
| Actuation Type | Electrical Solenoid Actuation |
Engineering Features & Advantages
- Precision Performance: Direct-acting solenoid spool design delivers rapid, repeatable switching with minimal pressure drop, ensuring accurate directional control of pneumatic actuators and cylinders.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust coil insulation and wear-resistant spool sealing for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Pisco OEM standards, allowing drop-in replacement without modification to existing manifolds or piping.
- Compact Modular Design: Space-saving body enables high-density valve stacking on manifold bases, reducing panel footprint and simplifying centralized pneumatic control.
- Fast Response Time: Optimized solenoid and spool dynamics provide quick energization and de-energization, supporting high-cycle automation sequences.
Typical Industrial Applications
This pneumatic solenoid valve is widely deployed in automated manufacturing and process environments, including plastic injection molding machines for mold actuation and ejection control, packaging and assembly lines for cylinder sequencing, CNC machine tools for tool clamping and coolant air control, and general factory automation systems requiring reliable directional switching of compressed air circuits. It is also suitable for textile machinery, food processing equipment, and semiconductor handling systems where precise pneumatic control is essential.
PRODUCT IMAGES

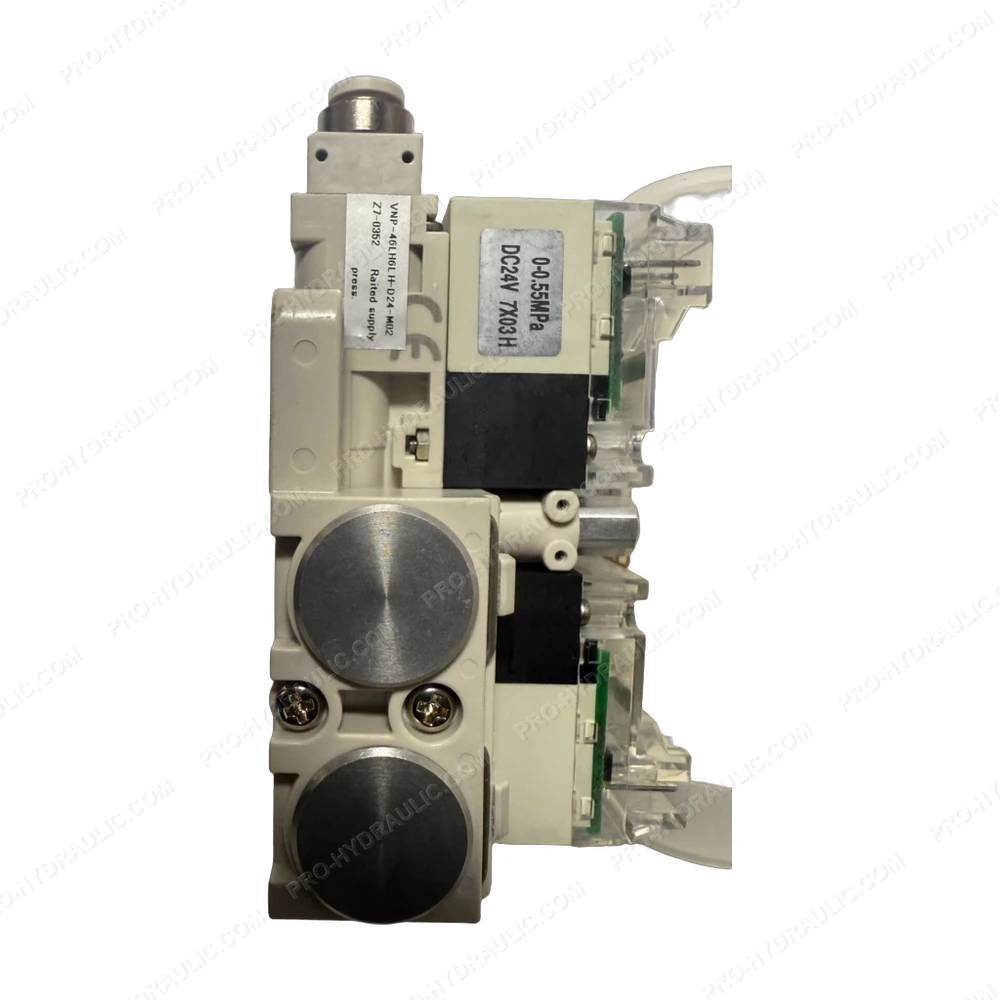

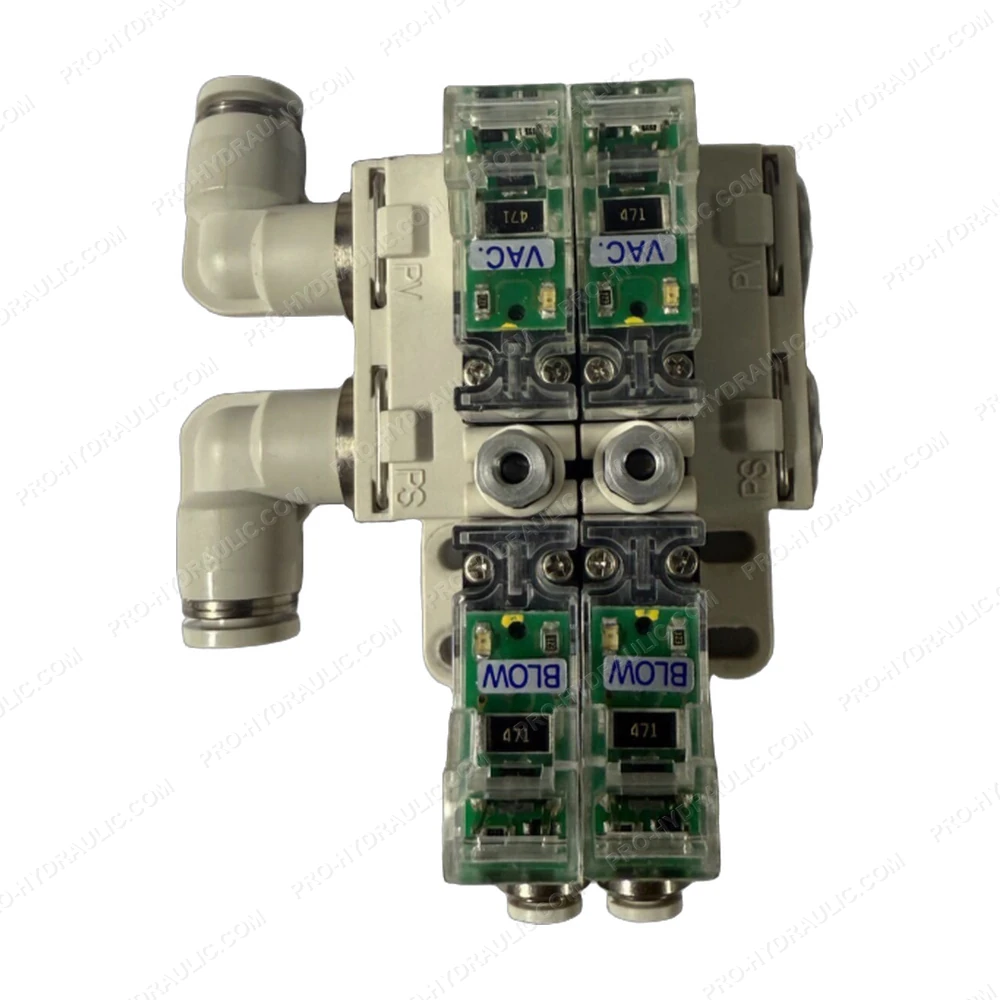

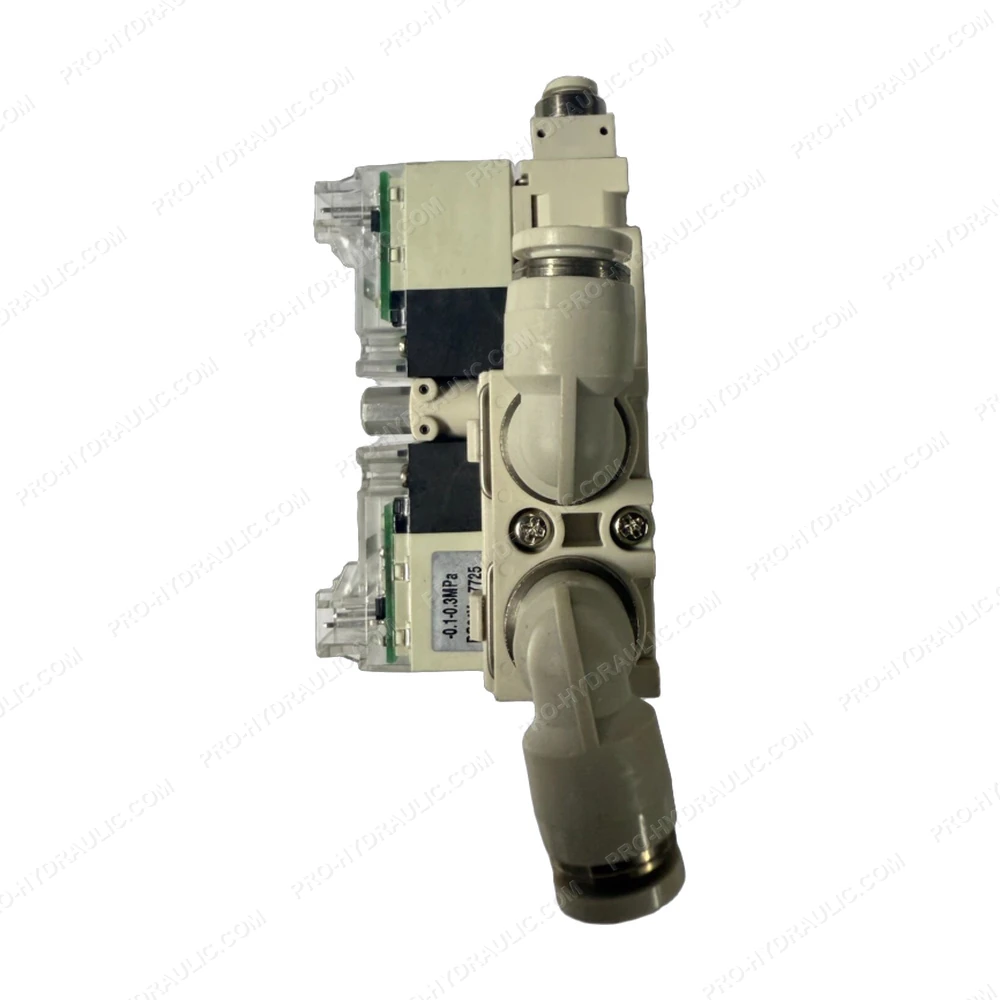

Pisco VNP-46LH6LH-D24-M02 Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PISCO VNP-46LH6LH-D24-M02 Solenoid Valve. This Japan-made 24V DC hydraulic component features a 2-position, 4-way design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
