The PISCO VXL07D-66S-D24-DA-D is a heavy-duty industrial vacuum ejector engineered for high-cycle pneumatic vacuum generation in automated material handling and pick-and-place systems. It operates on the venturi principle, using a 24 VDC solenoid pilot to control the compressed air supply through a multi-stage nozzle, producing a stable vacuum flow at the suction port. The unit integrates a supply valve, vacuum port, and exhaust, with a compact body designed for direct manifold or bracket mounting.
PISCO VXL07D-66S-D24-DA-D Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Vacuum Ejector (Venturi Type) |
| Model | VXL07D-66S-D24-DA-D |
| Brand | PISCO |
| Control Method | 24 VDC Solenoid Pilot |
| Nozzle Diameter | 0.7 mm (standard) |
| Air Supply Pressure | 0.2 to 0.7 MPa |
| Vacuum Port | Rc1/8 (or equivalent) |
| Air Supply Port | Rc1/8 (or equivalent) |
| Exhaust Port | Rc1/8 (or equivalent) |
| Operating Temperature | 0 to 50 °C |
| Body Material | Aluminum alloy / Resin |
| Mounting | Manifold or bracket |
Key Engineering Features
- Integrated 24 VDC solenoid pilot valve for precise vacuum ON/OFF control.
- Multi-stage venturi nozzle design for high vacuum flow and stable suction.
- Compact, lightweight body suitable for space-constrained automation setups.
- Direct manifold mounting reduces piping and installation time.
- Durable aluminum alloy construction with resin components for industrial environments.
- Compatible with standard Rc1/8 pneumatic fittings and tubing.
Industrial Applications
- Pick-and-place systems for electronic components, glass, and small parts.
- Packaging machinery and automated assembly lines.
- Robotic end-effectors and vacuum grippers.
- Material handling in semiconductor and automotive production.
- General factory automation requiring reliable vacuum generation.
For technical inquiries, dimensional drawings, or replacement support for PISCO VXL07D-66S-D24-DA-D, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

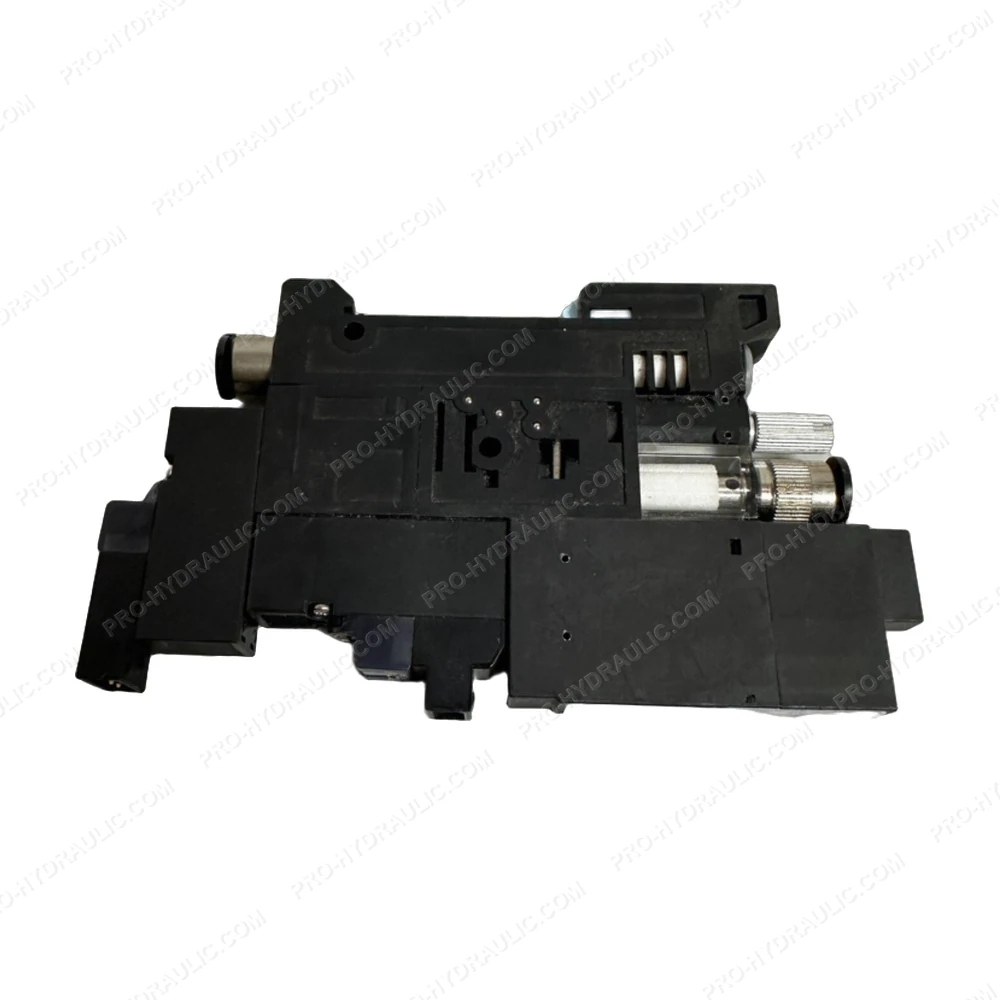

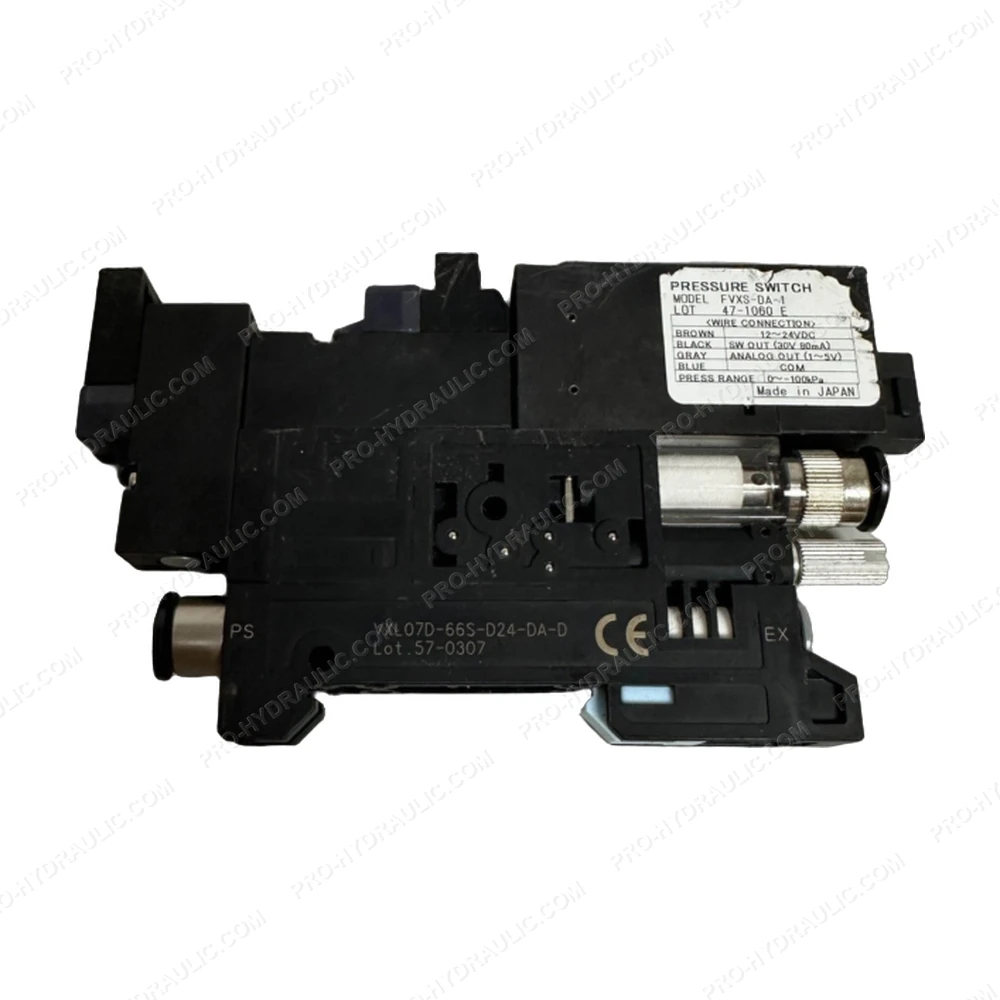

PISCO VXL07D-66S-D24-DA-D Vacuum Ejector
