Product Overview
The Plasser & Theurer H40FOFM4NAH / EL-T 76.00-MO-191C is a high-performance hydraulic solenoid directional control valve engineered specifically for the demanding hydraulic circuits of Plasser & Theurer track maintenance machinery. This 4-way, 3-position (4/3) directional control valve utilizes a precision-machined spool and a robust AC/DC solenoid actuator to direct hydraulic fluid flow, extend, retract, or hold actuators in position within the machine’s workhead, tamping, and lifting circuits. As a direct OEM-specified component, it ensures exact functional interchangeability with the original valve, maintaining the precise timing, pressure integrity, and leak-free operation required for railway track stabilization and tamping operations.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Solenoid Directional Control Valve (4/3 Way) |
| Model Designation | H40FOFM4NAH / EL-T 76.00-MO-191C |
| Operating Pressure | Up to 350 bar (5075 psi) rated for high-pressure railway hydraulic systems |
| Nominal Flow Rate | 40 L/min (H40 designation) at standard industrial viscosity |
| Spool Configuration | 4-Way, 3-Position, closed-center or tandem-center (application-specific) |
| Actuation Type | Solenoid pilot / direct-acting wet-pin solenoid with manual override |
| Mounting & Connection | Subplate / manifold mounting per ISO 4401 / CETOP 3 (NG6) interface |
| Seal Material | NBR / FKM (Viton) compatible with mineral-based hydraulic oils |
| Electrical Supply | 24V DC or 110V AC solenoid coil (per OEM specification) |
Engineering Features & Advantages
- Precision Spool & Sleeve Metering: The hardened, ground, and honed spool-to-sleeve clearance ensures minimal internal leakage and precise flow metering, delivering accurate actuator control essential for tamping and lining operations.
- High-Cycle Solenoid Durability: The encapsulated solenoid coil and wet-pin armature design provide reliable, high-frequency switching with excellent resistance to contamination, moisture, and vibration typical of track-side environments.
- Rapid Response & Low Hysteresis: Optimized flow passages and spring-centered return enable fast, repeatable directional changes, reducing cycle times and improving machine productivity.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Plasser standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
This hydraulic solenoid directional control valve (4/3 way) is widely used in industrial hydraulic power units, machine tools, presses, and general automation systems where reliable, precise performance is required.
PRODUCT IMAGES

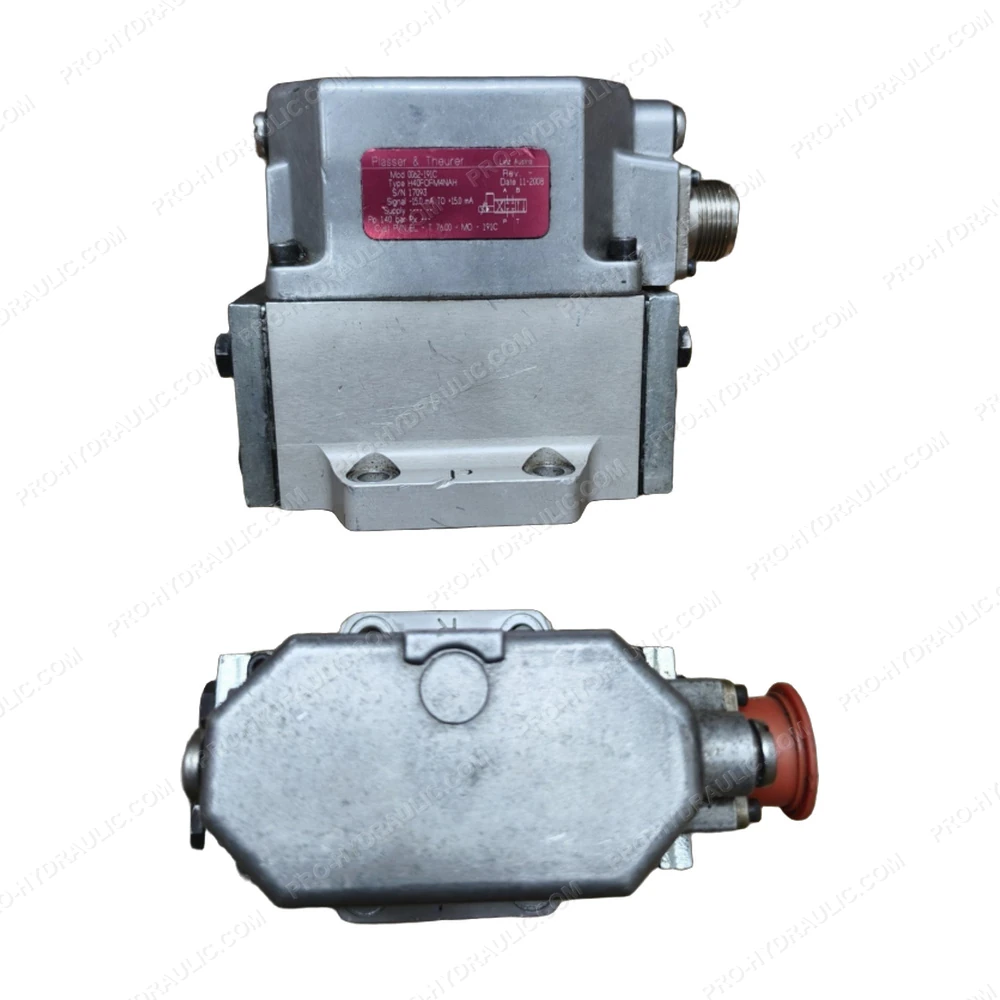

Plasser & Theurer H40FOFM4NAH / EL-T 76.00-MO-191C Hydraulic Solenoid Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PLASSER & THEURER H40FOFM4NAH / EL-T 76.00-MO-191C Solenoid Directional Control Valve. This Austria-made 24 VDC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
