The PREFLUID KZ15 is a heavy-duty industrial peristaltic pump head engineered for accurate metering and dosing of fluids in hydraulic and process systems. It operates on the positive displacement principle, where rotating rollers compress a flexible tube to create a sealed, reversible flow path. This design isolates the pumped medium from the pump mechanism, making it ideal for abrasive, viscous, or shear-sensitive fluids.
PREFLUID KZ15 Technical Specifications
| Specification | Detail |
|---|---|
| Model | KZ15 |
| Type | Peristaltic Pump Head |
| Flow Range | 0.1 – 15 L/h (dependent on tube size and speed) |
| Tube Sizes | ID 1.6 mm, 3.2 mm, 4.8 mm |
| Max Pressure | 2 bar (29 psi) |
| Speed Range | 10 – 300 rpm |
| Housing Material | Anodized aluminum |
| Roller Material | Stainless steel |
| Mounting | Standard NEMA 23 / IEC 56 flange |
| Operating Temperature | -10°C to +80°C |
Key Engineering Features
- Positive displacement peristaltic action for gentle, low-shear pumping
- Tube-only fluid contact eliminates cross-contamination and simplifies maintenance
- Reversible flow direction for dosing and metering applications
- Compact, robust construction with anodized aluminum housing
- Compatible with a wide range of tubing materials (silicone, Viton, Norprene)
- Easy tube replacement without disconnecting the pump head from the drive
Industrial Applications
- Chemical dosing and metering in water treatment plants
- Hydraulic fluid additive injection
- Food and beverage processing (with appropriate sanitary tubing)
- Pharmaceutical and laboratory fluid transfer
- Wastewater sampling and analysis
- Ink and dye circulation in printing systems
For technical inquiries, dimensional drawings, or replacement support for PREFLUID KZ15, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

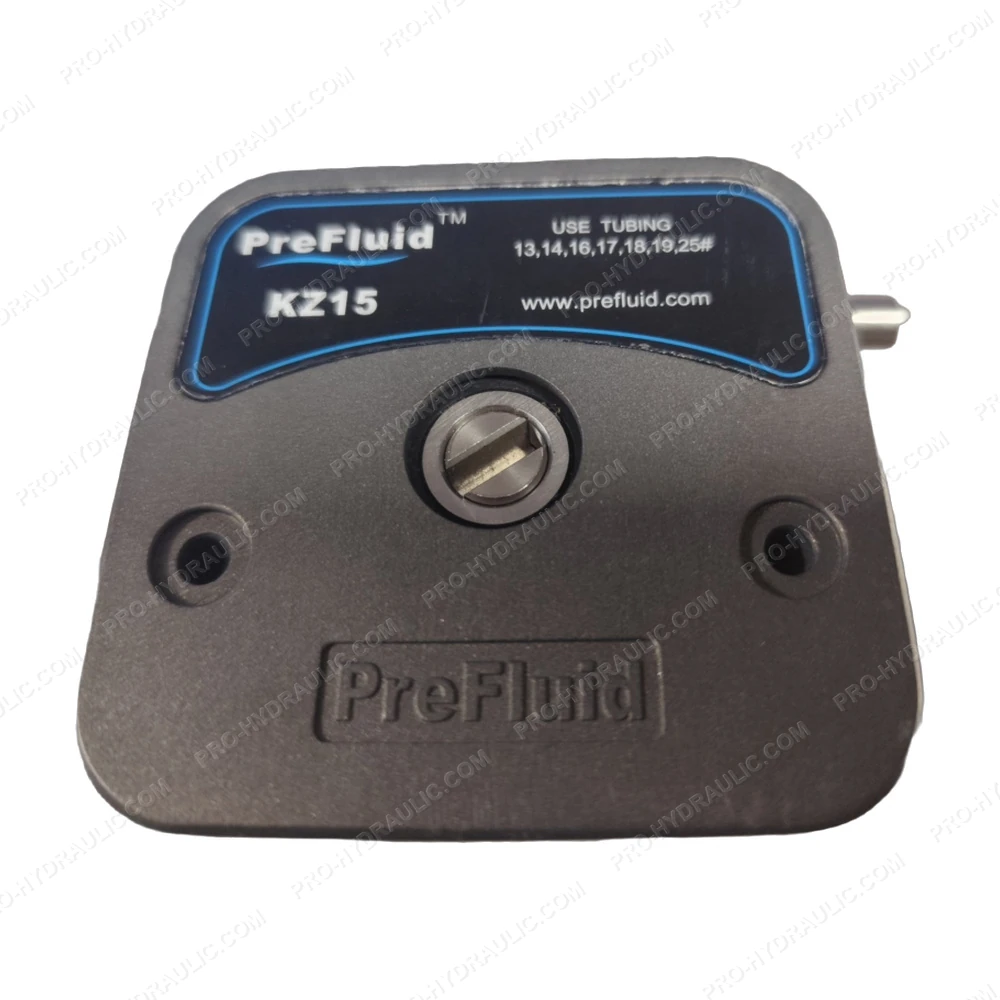

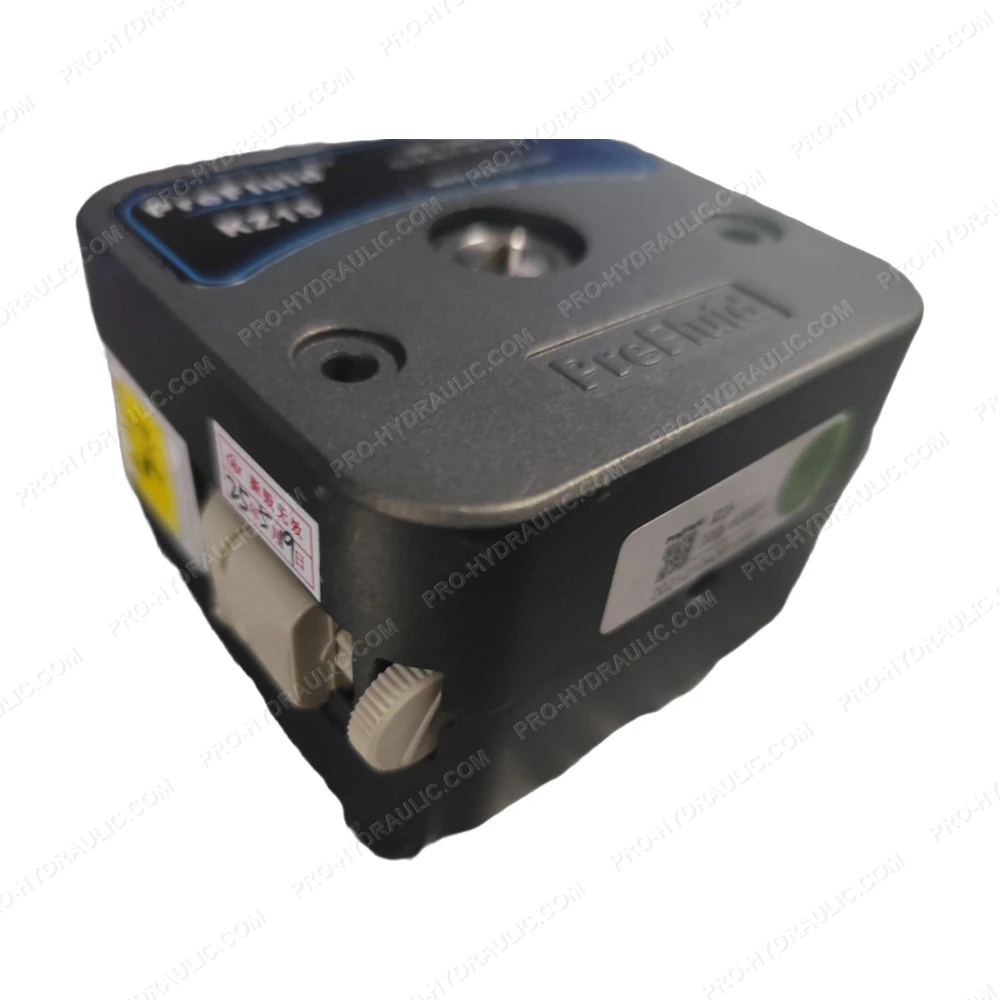

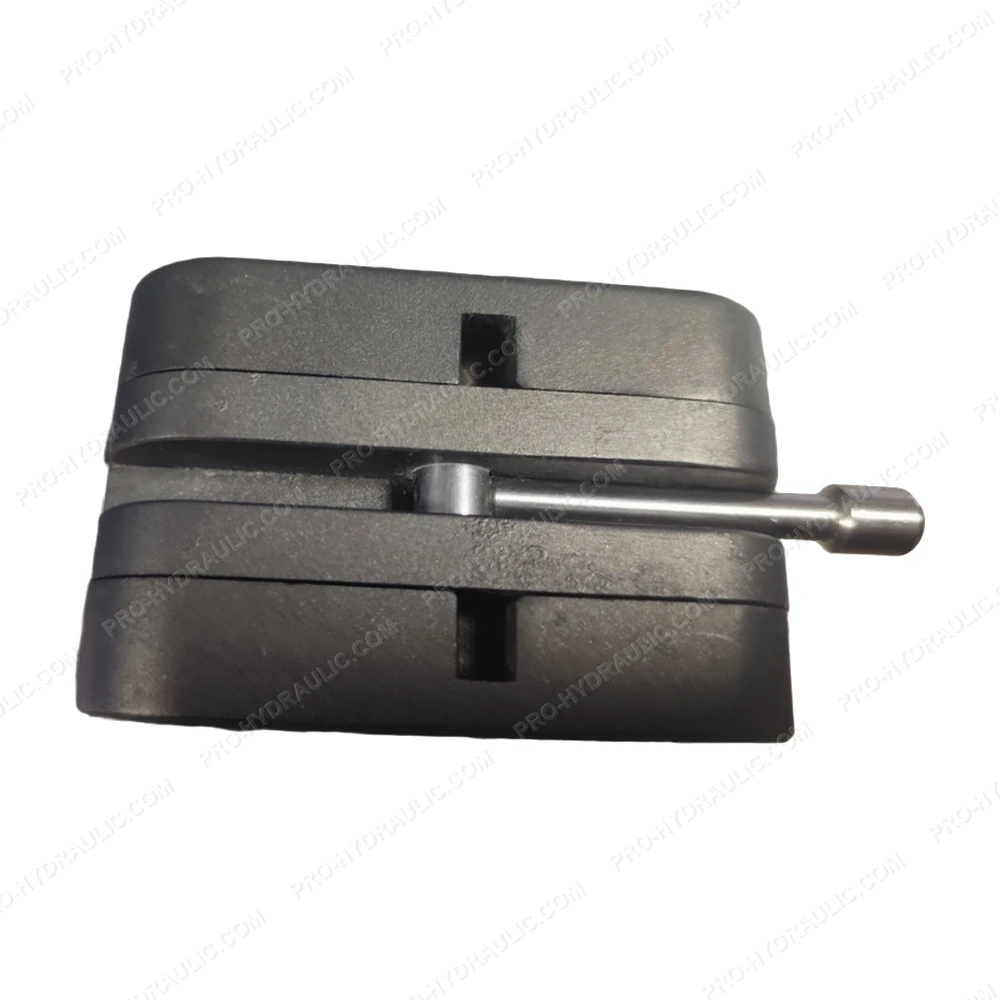

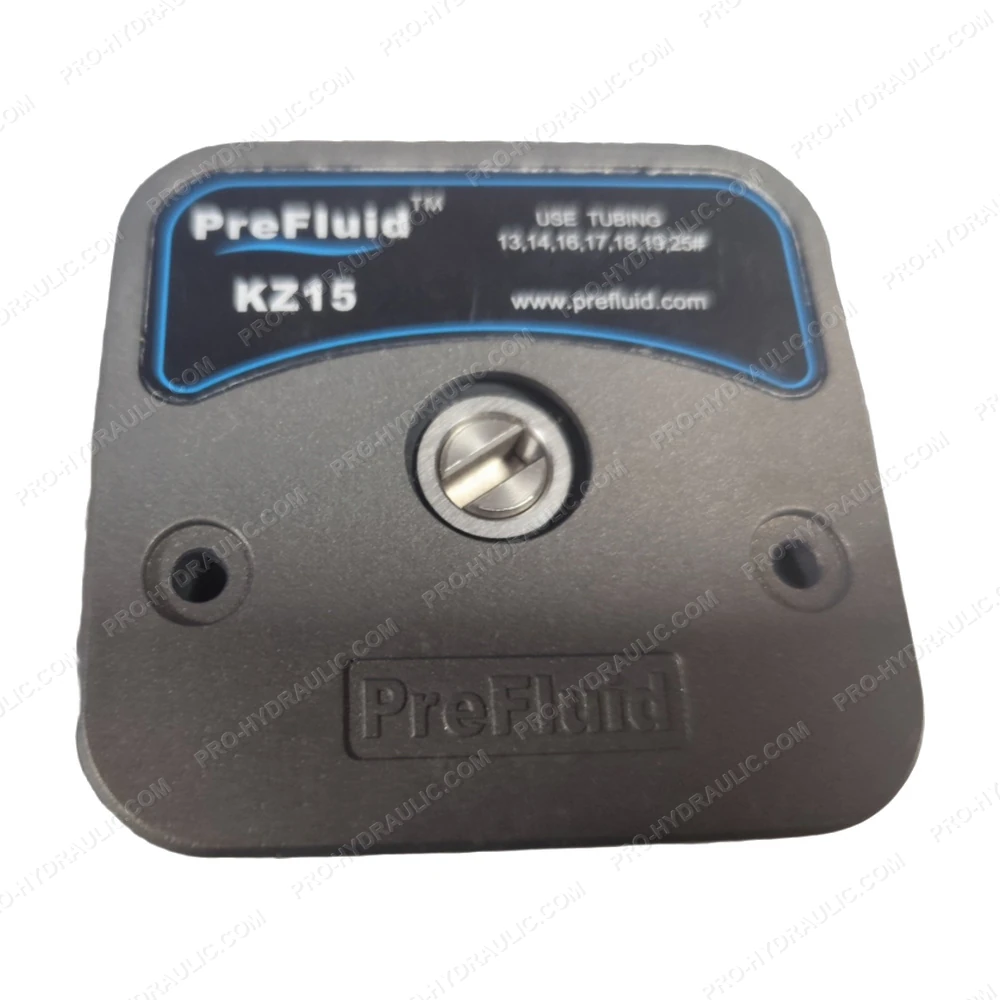

PREFLUID KZ15 Peristaltic Pump Head
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the PREFLUID KZ15 Peristaltic Pump Head. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
