The PRISMA VSPA-CF04-E365 is a heavy-duty industrial pneumatic actuated ball valve engineered for reliable quarter-turn shutoff and tight fluid control in demanding process systems.
PRISMA VSPA-CF04-E365 Technical Specifications
| Valve Type | Pneumatic Actuated Ball Valve |
| Actuation | Double-acting or spring-return pneumatic actuator |
| Body Material | Stainless Steel CF8M (316) |
| Port Size | 1/2 in (DN15) |
| Port Connection | NPT / BSPP threaded |
| Ball & Stem Material | 316 Stainless Steel |
| Seat Material | PTFE / RPTFE |
| Pressure Rating | 1000 psi (69 bar) max |
| Temperature Range | -20°F to 450°F (-29°C to 232°C) |
| Actuator Housing | Anodized aluminum |
| Air Supply | 40 to 120 psi (2.8 to 8.3 bar) |
| Mounting Standard | ISO 5211 |
Key Engineering Features
- Pneumatic rack-and-pinion actuator for fast quarter-turn operation
- Blow-out proof stem design for enhanced safety
- Anti-static device ensures electrical continuity between ball, stem, and body
- ISO 5211 mounting pad allows direct actuator mounting
- Visual position indicator for open/closed status
- Low torque operation with PTFE seats
Industrial Applications
- Chemical processing and petrochemical plants
- Water treatment and distribution systems
- Food and beverage production lines
- Pharmaceutical and sanitary process control
- HVAC and industrial cooling circuits
- Pulp and paper mills
For technical inquiries, dimensional drawings, or replacement support for PRISMA VSPA-CF04-E365, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

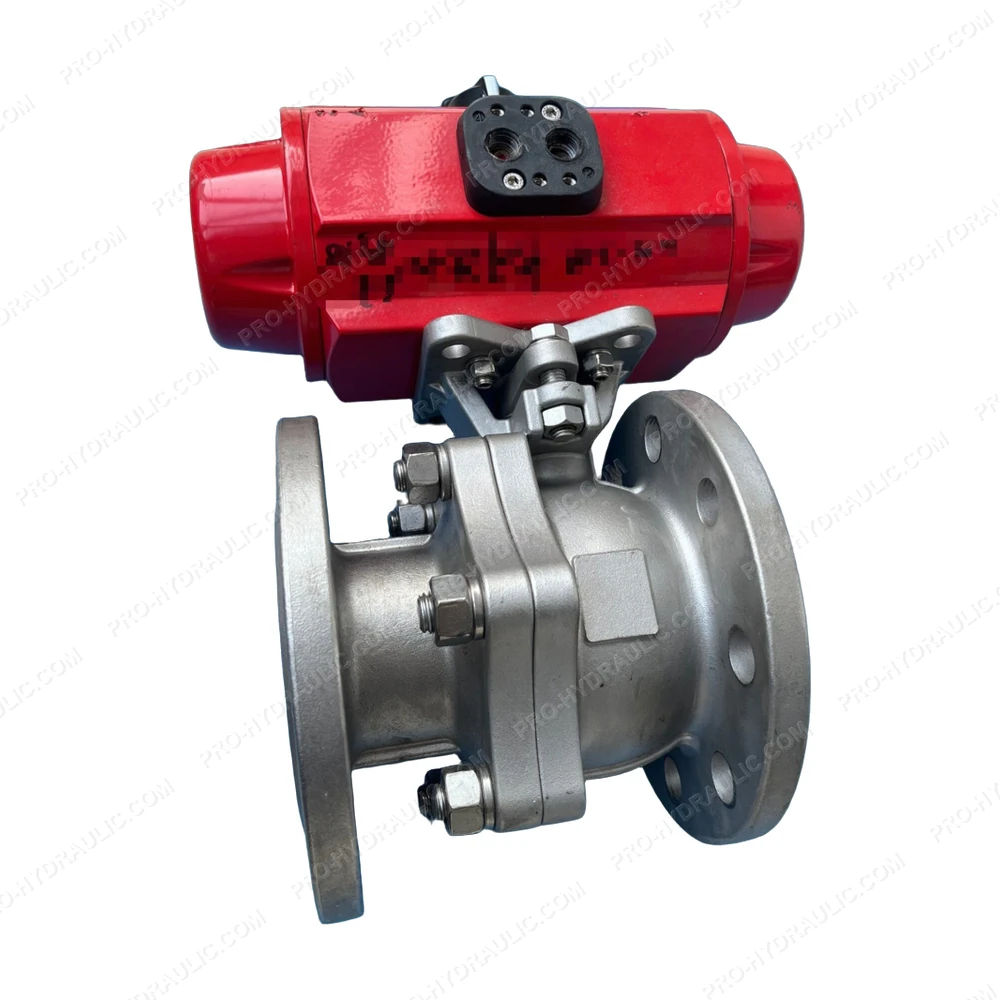

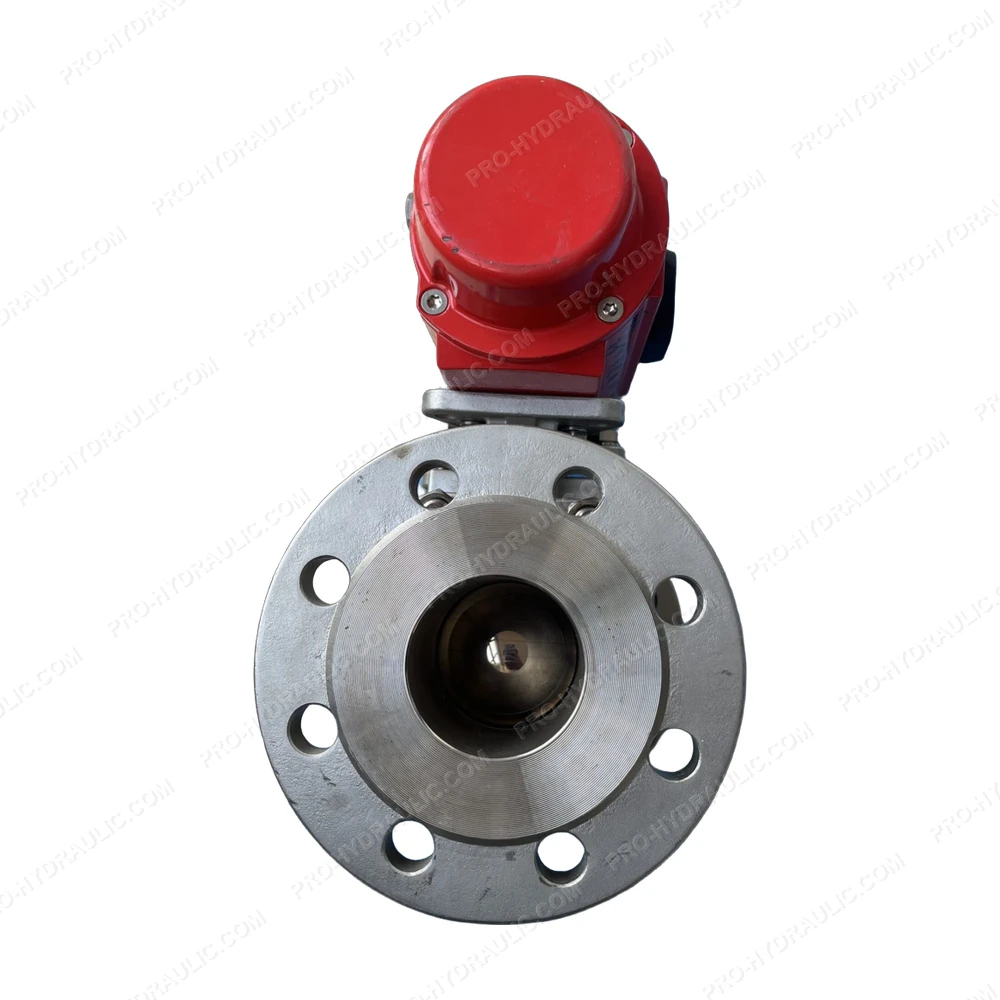

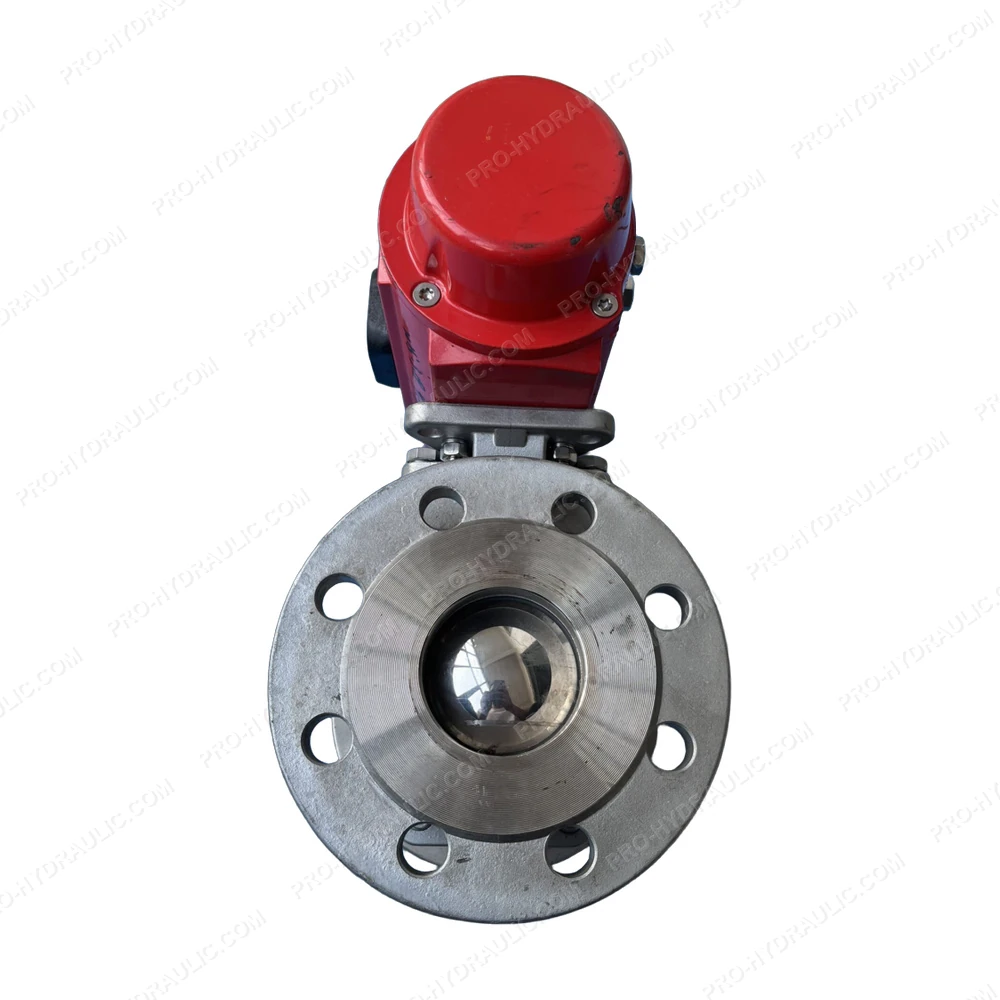

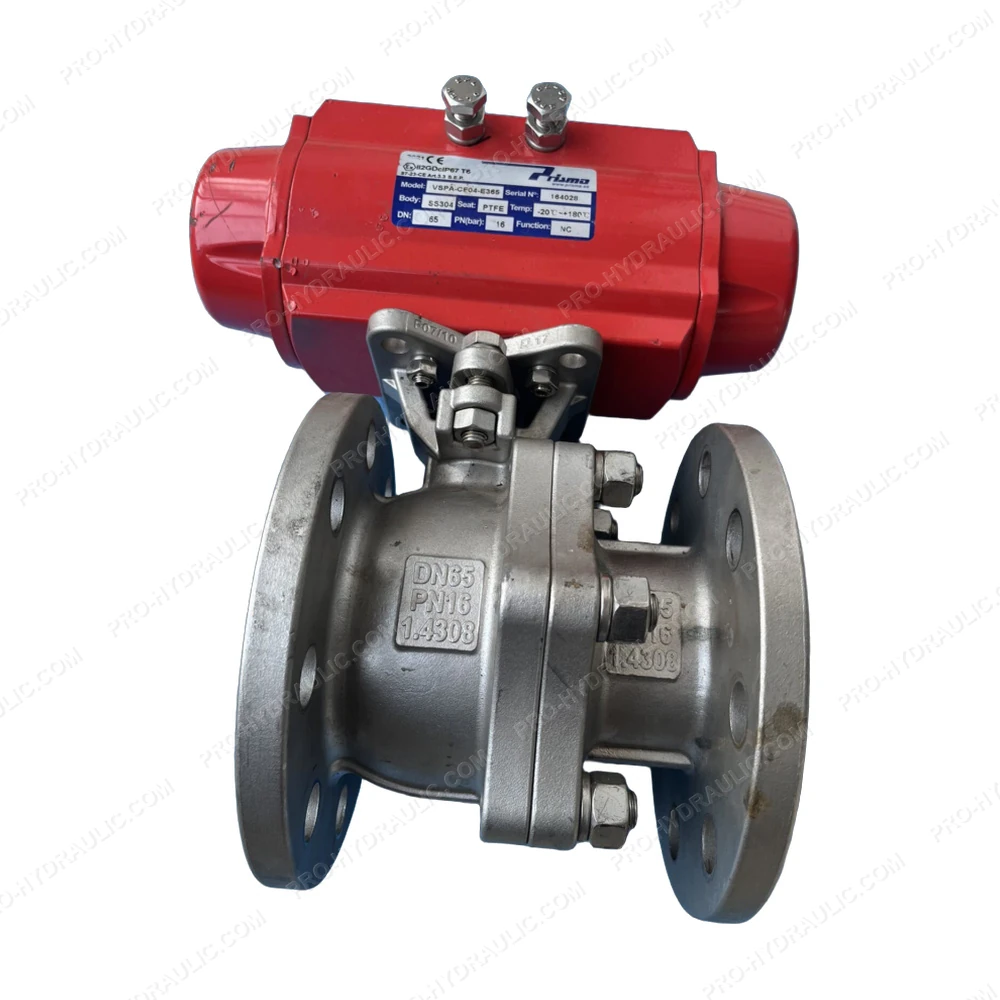

PRISMA VSPA-CF04-E365 Pneumatic Actuated Ball Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the PRISMA VSPA-CF04-E365 Pneumatic Actuated Ball Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
