Product Overview
The PROMINENT BT4B1604NP9008SUA100000 is a precision metering diaphragm pump engineered for accurate, repeatable dosing of liquids in industrial process systems. Operating on a positive-displacement diaphragm principle, the pump uses an oscillating PTFE or composite diaphragm driven by an eccentric mechanism to displace a fixed volume of fluid per stroke, delivering highly consistent flow independent of downstream pressure variations. This model belongs to the Pro-Hydraulic range of industrial metering and hydraulic supply components, serving as a reliable fluid-handling solution for chemical dosing, additive injection, and low-to-medium pressure hydraulic transfer duties. Its leak-free diaphragm design eliminates shaft seals and cross-contamination risk, making it suitable for aggressive or sensitive media where volumetric precision is critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Metering Diaphragm Pump (Hydraulic Pump) |
| Model Designation | BT4B1604NP9008SUA100000 |
| Operating Pressure | Standard Industrial Grade (Up to rated bar) |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
| Working Principle | Positive-displacement diaphragm with eccentric drive |
| Diaphragm Material | PTFE / composite (media-dependent) |
| Flow Control | Adjustable stroke length / stroke frequency |
Engineering Features & Advantages
- Precision Performance: Positive-displacement diaphragm action delivers accurate, repeatable dosing volumes with minimal pulsation and high volumetric consistency across varying system back-pressures.
- Leak-Free Construction: Hermetically sealed diaphragm eliminates dynamic shaft seals, preventing leakage and protecting both the pumped medium and the surrounding environment.
- Chemical Compatibility: Diaphragm and wetted-end materials are selected to handle aggressive, corrosive, or high-purity fluids without contamination.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with robust eccentric drive and wear-resistant components.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards for drop-in servicing.
Typical Industrial Applications
This metering diaphragm pump is widely deployed in chemical dosing and water treatment plants, plastic injection molding and extrusion lines for additive injection, metallurgical and surface-treatment processes requiring precise reagent feed, and general industrial hydraulic transfer circuits where accurate low-volume fluid delivery is essential. It is also suited to food, pharmaceutical, and petrochemical dosing duties where leak-free, contamination-free operation is mandatory.
PRODUCT IMAGES

Explore related inventory
Related parts by brand and category

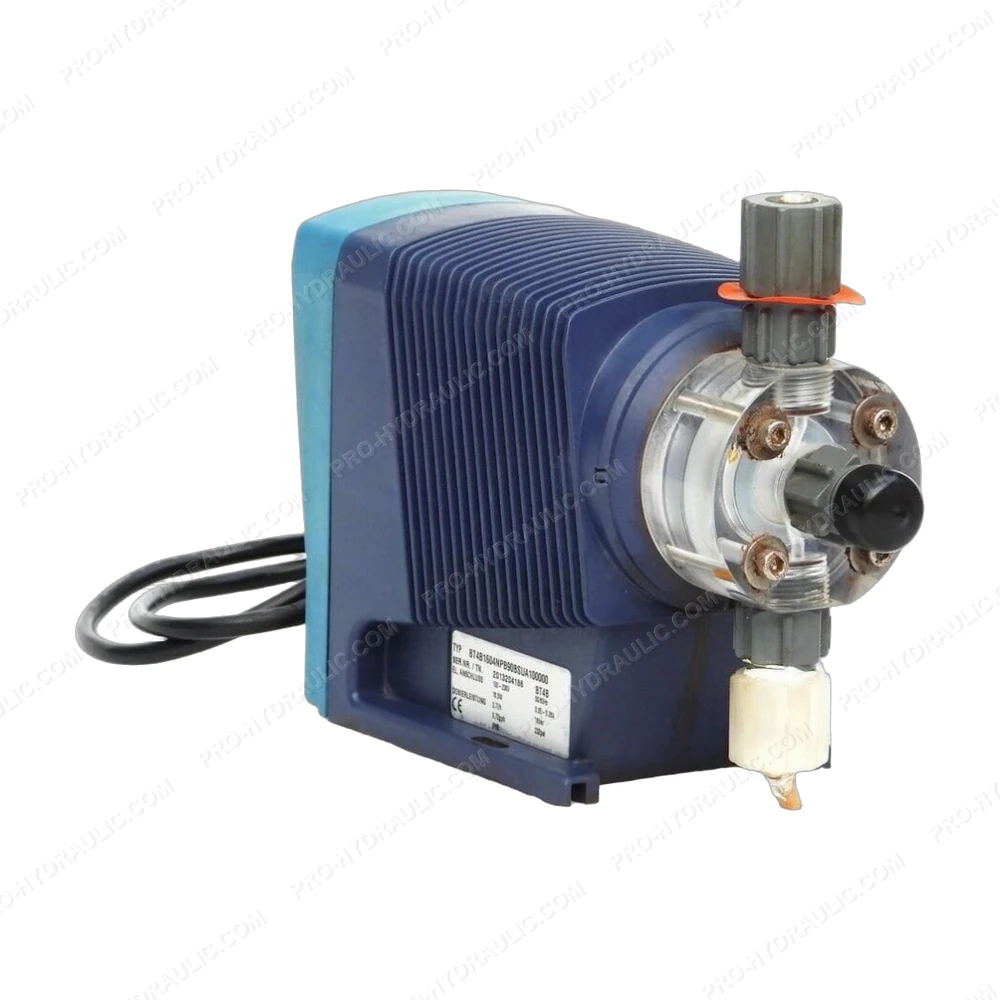

PROMINENT BT4B1604NP9008SUA100000 Metering Diaphragm Pump
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine PROMINENT BT4B1604NP9008SUA100000 Solenoid Directional Seat Valve. This German-made 24V DC hydraulic component features a robust spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
