The PULSATRON LVG5SB-VTSK-XXX is a heavy-duty industrial metering pump engineered for accurate chemical injection and precise fluid dosing in demanding hydraulic and process systems. It utilizes a mechanically actuated diaphragm to deliver repeatable, leak-free performance across a wide range of viscosities and pressures.
PULSATRON LVG5SB-VTSK-XXX Technical Specifications
| Parameter | Specification |
|---|---|
| Pump Type | Hydraulic Diaphragm Metering Pump |
| Model | LVG5SB-VTSK-XXX |
| Maximum Flow Rate | Up to 5 GPH (19 LPH) |
| Maximum Discharge Pressure | 150 PSI (10.3 bar) |
| Turndown Ratio | 10:1 |
| Diaphragm Material | PTFE-faced, long-life composite |
| Wetted Materials | PVDF, PTFE, Viton, Ceramic |
| Control | Manual stroke adjustment |
| Motor | 1/3 HP, TEFC, 115/230 VAC, 1 Ph, 50/60 Hz |
| Connection Type | 1/2 in NPT |
| Mounting | Foot-mounted, vertical |
Key Engineering Features
- Mechanically actuated diaphragm eliminates leakage and contamination risks.
- Precise manual stroke adjustment for accurate dosing control.
- Robust construction with chemically resistant wetted materials.
- Self-priming and capable of handling moderate viscosities.
- Compact, rugged design suitable for continuous industrial duty.
Industrial Applications
- Chemical injection in water and wastewater treatment.
- Dosing of additives in oil and gas processing.
- Precise metering in pharmaceutical and food production.
- Cooling tower and boiler water treatment.
- Agricultural fertigation and pH control systems.
For technical inquiries, dimensional drawings, or replacement support for PULSATRON LVG5SB-VTSK-XXX, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

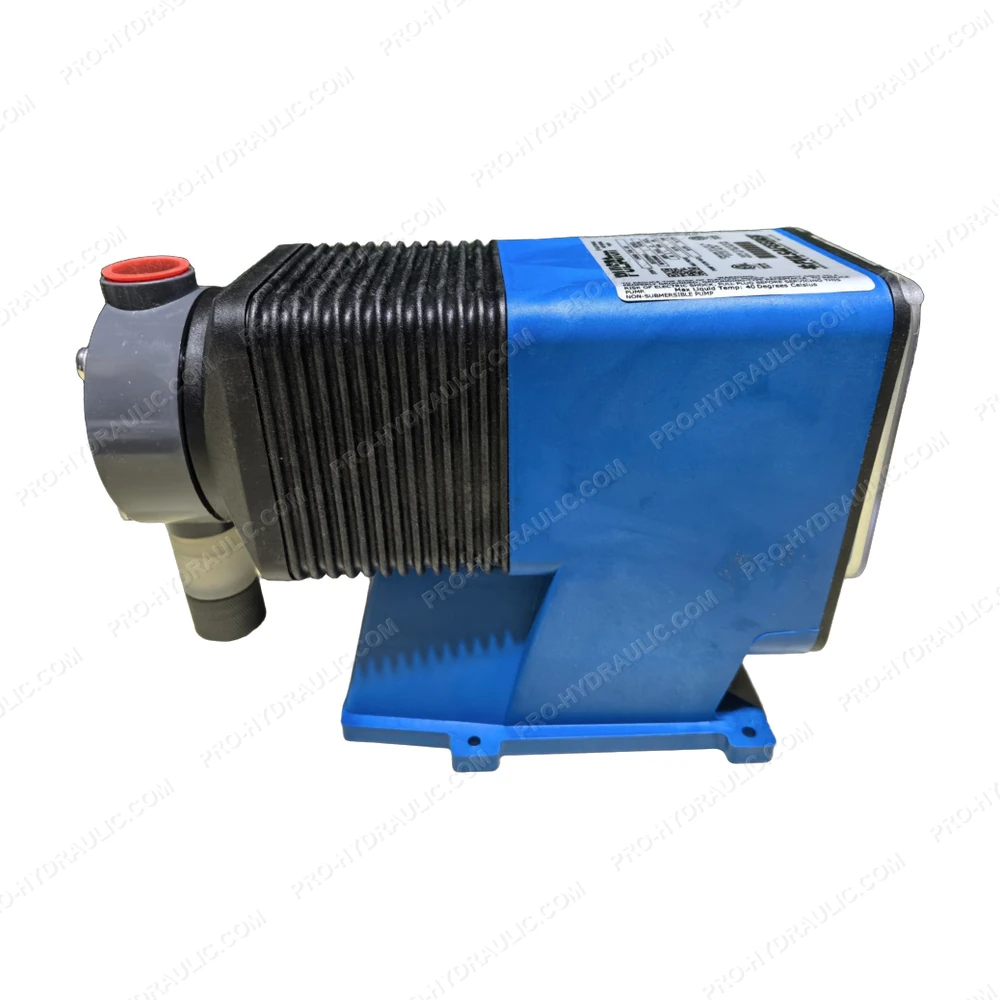

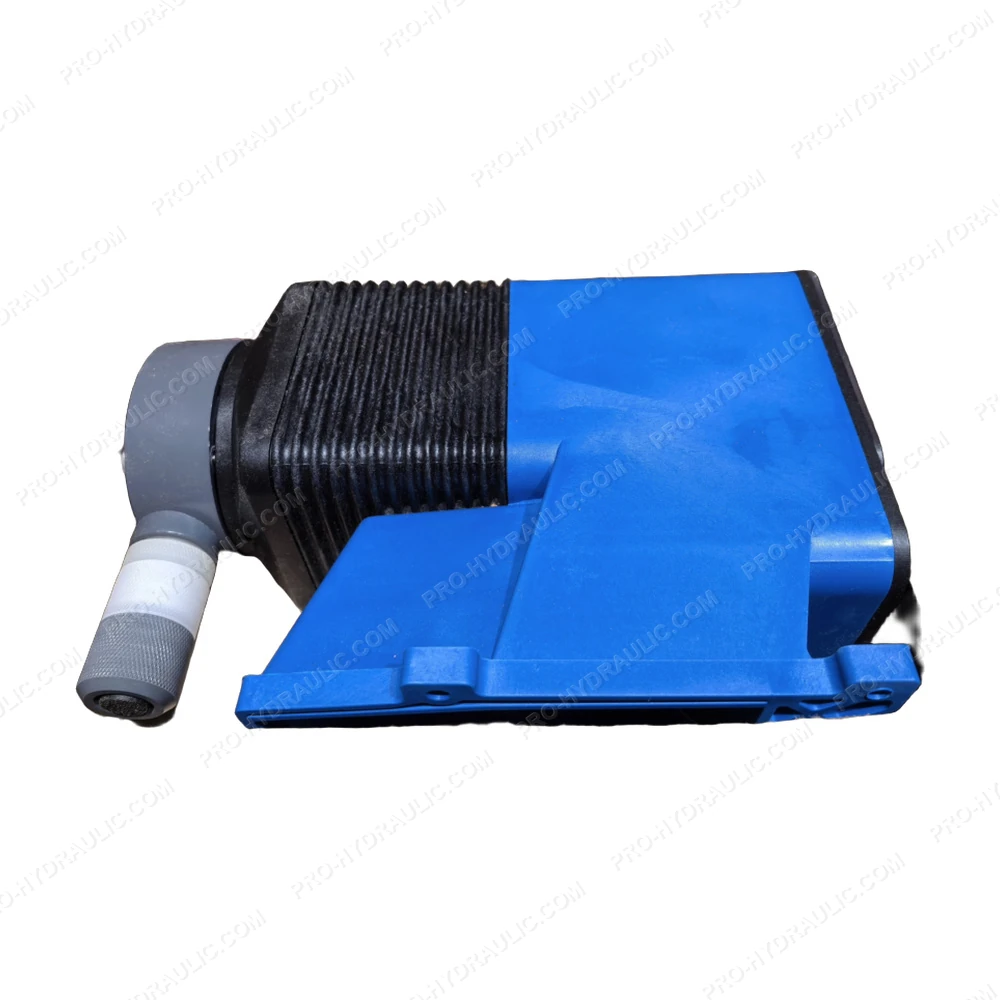

PULSATRON LVG5SB-VTSK-XXX Metering Pump
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the PULSATRON LVG5SB-VTSK-XXX Metering Pump. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
