Product Overview
The Rexroth 15 KE05-1X (Material Number R900345372) is a direct-acting check valve designed for hydraulic flow control and modular manifold integration. As part of the Rexroth KE series, this valve permits free flow in one direction while blocking reverse flow with a zero-leak, spring-loaded poppet or ball seat design. The “KE05” size designation indicates a nominal NG6 (CETOP 3 / ISO 4401-03) interface, making it a compact, drop-in component for sandwich plate and manifold systems. The “-1X” suffix denotes the Rexroth series 10 to 19 design generation, ensuring backward compatibility with existing modular stacks. This valve is engineered for reliable leak-tight sealing in high-pressure industrial circuits, providing essential backflow protection for pumps, actuators, and directional control valve blocks.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Check Valve (Flow Control & Modular Valve) |
| Model Designation | 15 KE05-1X / R900345372 |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03) |
| Operating Pressure | Up to 315 bar (standard industrial grade) |
| Cracking Pressure | Approx. 1.5 bar (standard spring configuration) |
| Mounting & Connection | Sandwich plate / manifold mounting per ISO 4401-03 |
| Sealing Material | NBR (Buna-N) standard; FKM available on request |
| Fluid Compatibility | Mineral oil based hydraulic fluids (HL, HLP, HVLP) |
Engineering Features & Advantages
- Precision Performance: Spring-loaded poppet/ball seat ensures fast, positive closure and zero leakage in the blocked direction, protecting sensitive downstream components from reverse flow surges.
- Modular Sandwich Design: NG6 interface allows direct stacking between directional control valves and subplates, reducing piping complexity and leak points in manifold assemblies.
- Industrial Reliability: Hardened steel internal components and robust housing are built for continuous operation under severe industrial conditions, including high-pressure and high-cycle applications.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth KE05-1X and R900345372 specifications, ensuring drop-in replacement without system modification.
- Low Pressure Drop: Optimized flow path minimizes pressure loss in the free-flow direction, improving overall system efficiency and reducing heat generation.
Typical Industrial Applications
This Rexroth check valve is widely deployed in plastic injection molding machines, metallurgical presses, CNC machine tools, and construction & marine hydraulic systems. It is commonly used to prevent load dropping in lifting circuits, isolate pump lines during multi-actuator operation, and provide backflow protection
PRODUCT IMAGES

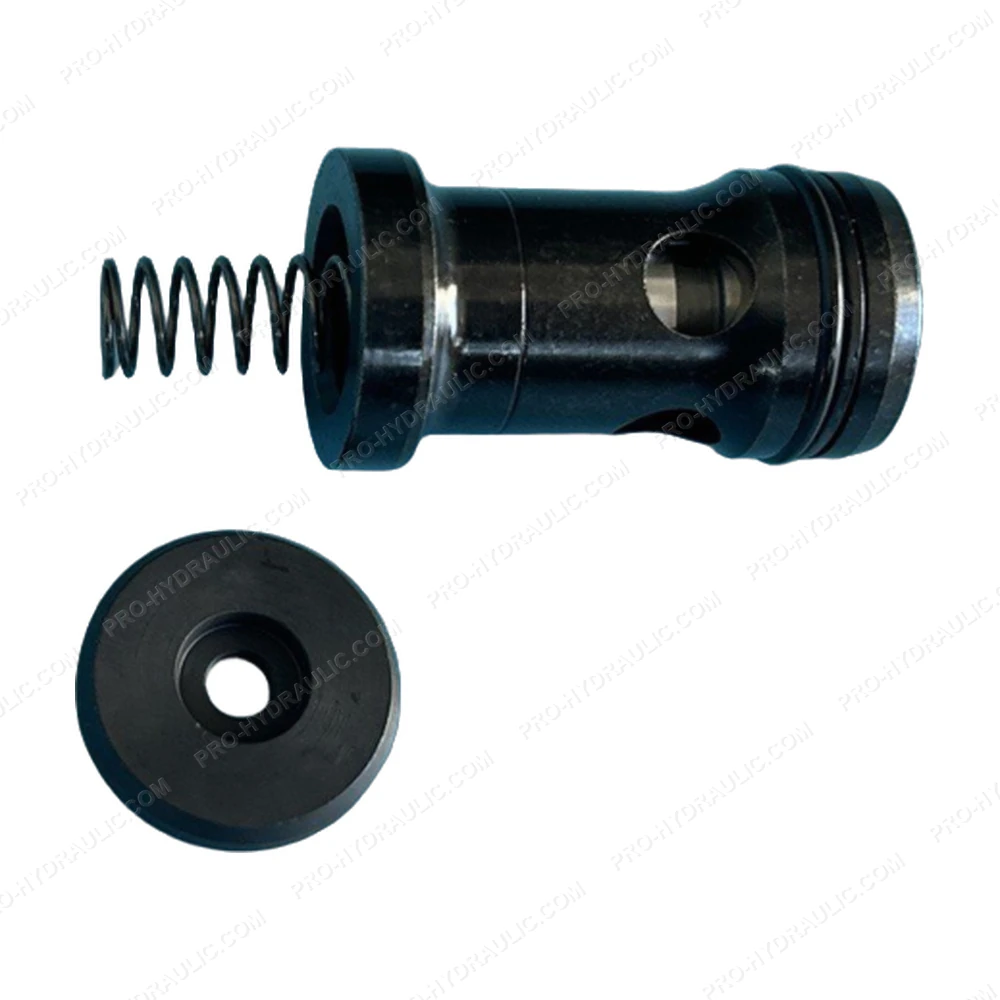

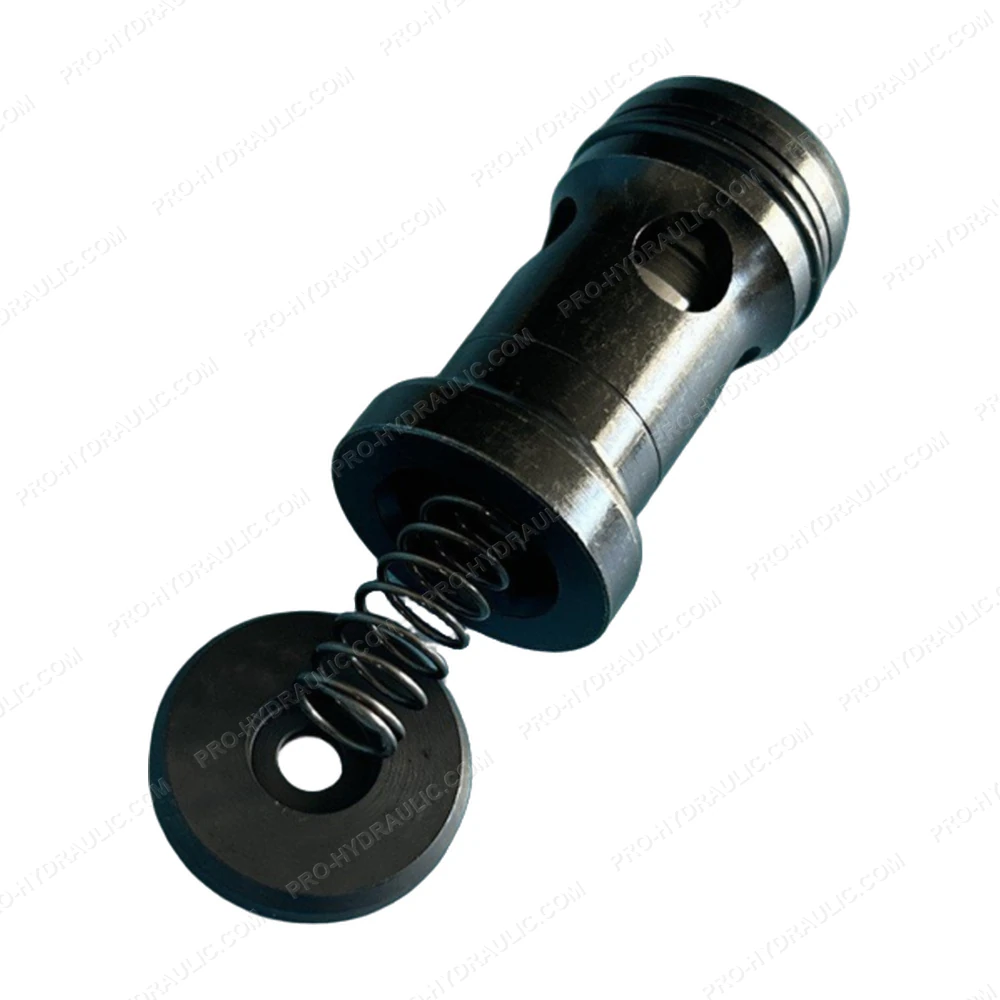

REXROTH 15 KE05-1X / R900345372 Check Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 15 KE05-1X / R900345372 Solenoid Directional Spool Valve. This German-made 24V DC hydraulic component features a reliable spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
