The REXROTH 1515800013 is a heavy-duty industrial high pressure gear pump engineered for continuous operation in demanding hydraulic circuits. Its external gear design provides positive displacement with minimal pulsation, ensuring stable flow across a wide viscosity range.
REXROTH 1515800013 Technical Specifications
| Parameter | Value |
|---|---|
| Displacement | 22.5 cm³/rev |
| Max. Continuous Pressure | 250 bar |
| Max. Peak Pressure | 280 bar |
| Max. Speed | 3000 rpm |
| Rotation | Clockwise |
| Mounting Flange | SAE 2-bolt |
| Shaft Type | Straight keyed |
| Port Connections | SAE split flange |
| Body Material | Cast iron |
| Seal Material | NBR |
Key Engineering Features
- External gear principle with pressure-balanced bearing blocks for high volumetric efficiency
- Hardened and ground gear teeth for reduced wear and extended service life
- Cast iron housing with high rigidity for low noise and vibration
- Optimized flow channels to minimize pressure drop and heat generation
- Compatible with mineral oil and selected synthetic hydraulic fluids
Industrial Applications
- Mobile hydraulic systems: excavators, loaders, cranes
- Industrial power units and hydraulic presses
- Marine and offshore hydraulic drives
- Material handling and lifting equipment
- Agricultural machinery hydraulic circuits
For technical inquiries, dimensional drawings, or replacement support for REXROTH 1515800013, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

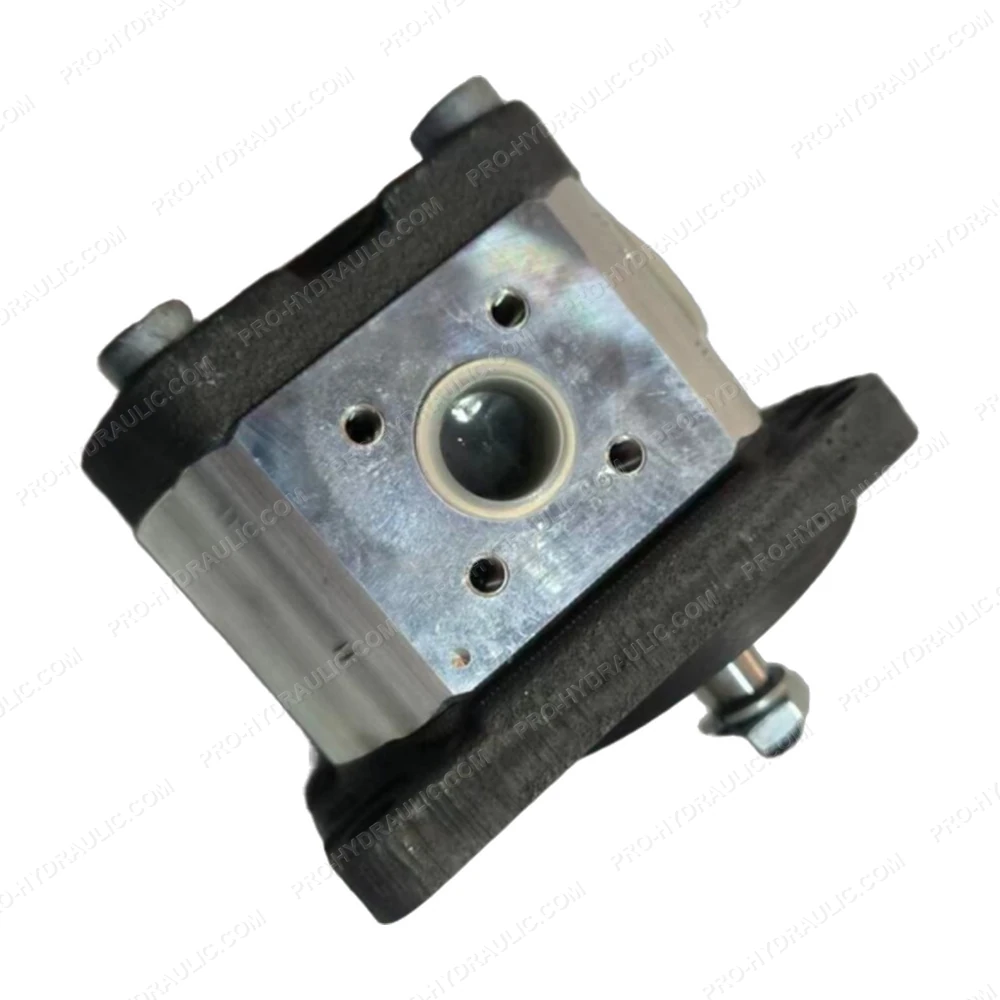

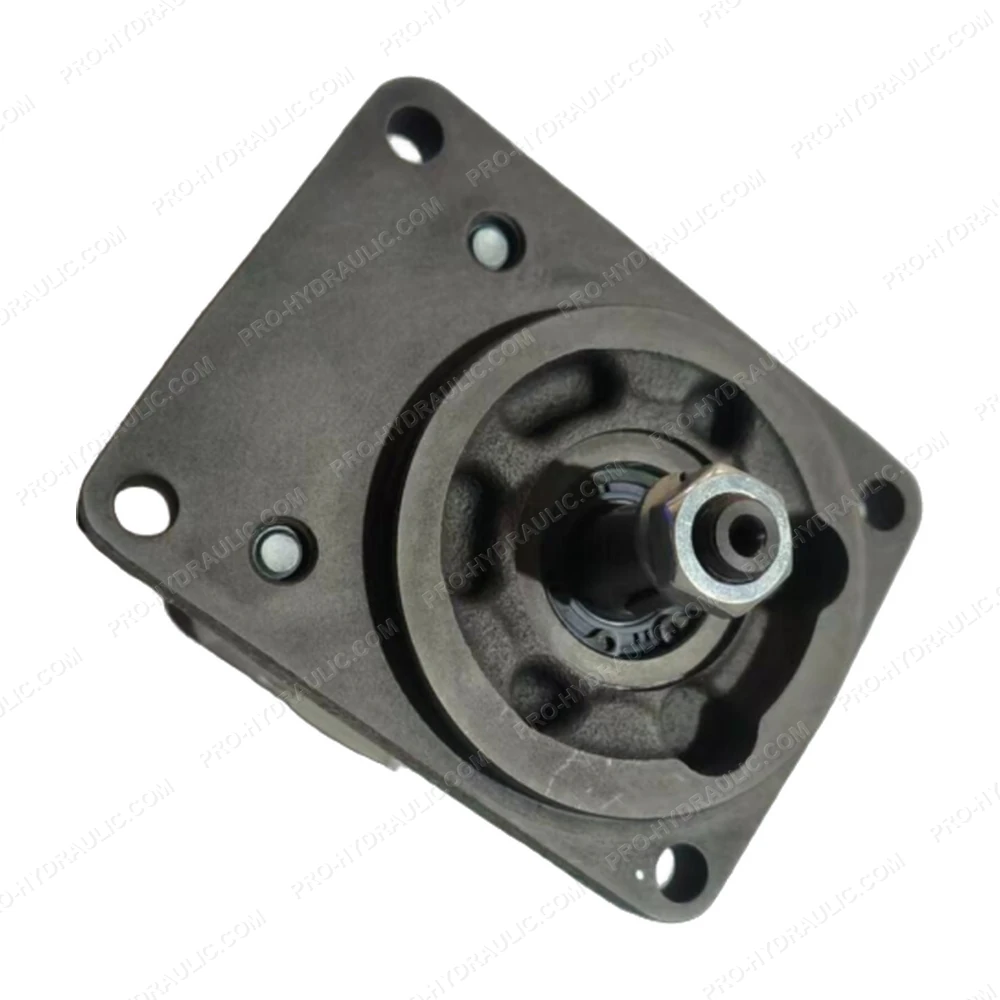

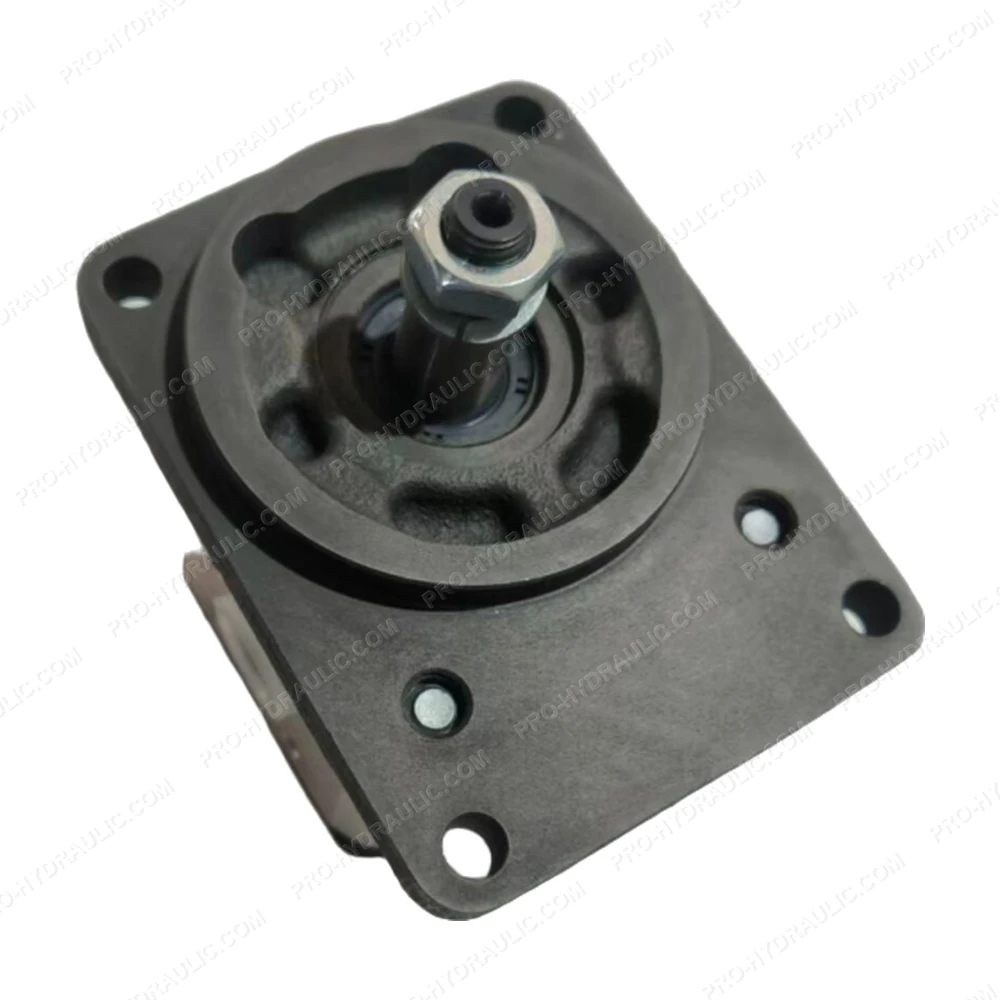

REXROTH 1515800013 High Pressure Gear Pump
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the REXROTH 1515800013 High Pressure Gear Pump. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
