Product Overview
The Rexroth 2FRM 6 B36-33/160MV (Material Number: R900205510) is a precision-engineered 2-way flow control valve from the renowned Rexroth 2FRM series, designed to deliver accurate, pressure-compensated flow regulation in demanding industrial hydraulic systems. This valve operates on the principle of a pressure compensator working in conjunction with a metering throttle to maintain a constant, preset flow rate regardless of variations in load pressure or system pressure. The 2FRM series is a direct-operated, pressure-compensated flow control valve that ensures stable actuator speeds and repeatable motion control across a wide range of operating conditions. With a nominal size of NG6 (CETOP 3 / ISO 4401-03), this valve is ideally suited for integration into modular hydraulic manifolds and subplate-mounted systems, providing reliable flow metering for meter-in, meter-out, or bleed-off circuit configurations.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | 2-Way Flow Control Valve (Pressure-Compensated) |
| Model Designation | 2FRM 6 B36-33/160MV / R900205510 |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03) |
| Operating Pressure | Up to 160 bar (rated working pressure) |
| Flow Adjustment Range | 0 – 36 L/min (metering throttle range) |
| Adjustment Type | Manual rotary knob with lockable setting (MV configuration) |
| Mounting & Connection | Subplate mounting per ISO 4401-03 / CETOP 3 interface |
| Pressure Compensation | Integrated pressure compensator for load-independent flow |
| Fluid Compatibility | Mineral oil-based hydraulic fluids (HL, HLP) per DIN 51524 |
| Seal Material | NBR (Buna-N) standard industrial seals |
Engineering Features & Advantages
- Pressure-Compensated Precision Metering: The integrated pressure compensator maintains a constant pressure drop across the metering throttle, ensuring that the set flow rate remains stable and independent of fluctuating load or system pressures — critical for repeatable actuator speed control.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
With a nominal size of NG6 (CETOP 3 / ISO 4401-03), this valve is ideally suited for integration into modular hydraulic manifolds and subplate-mounted systems, providing reliable flow metering for meter-in, meter-out, or bleed-off circuit configurations.
PRODUCT IMAGES

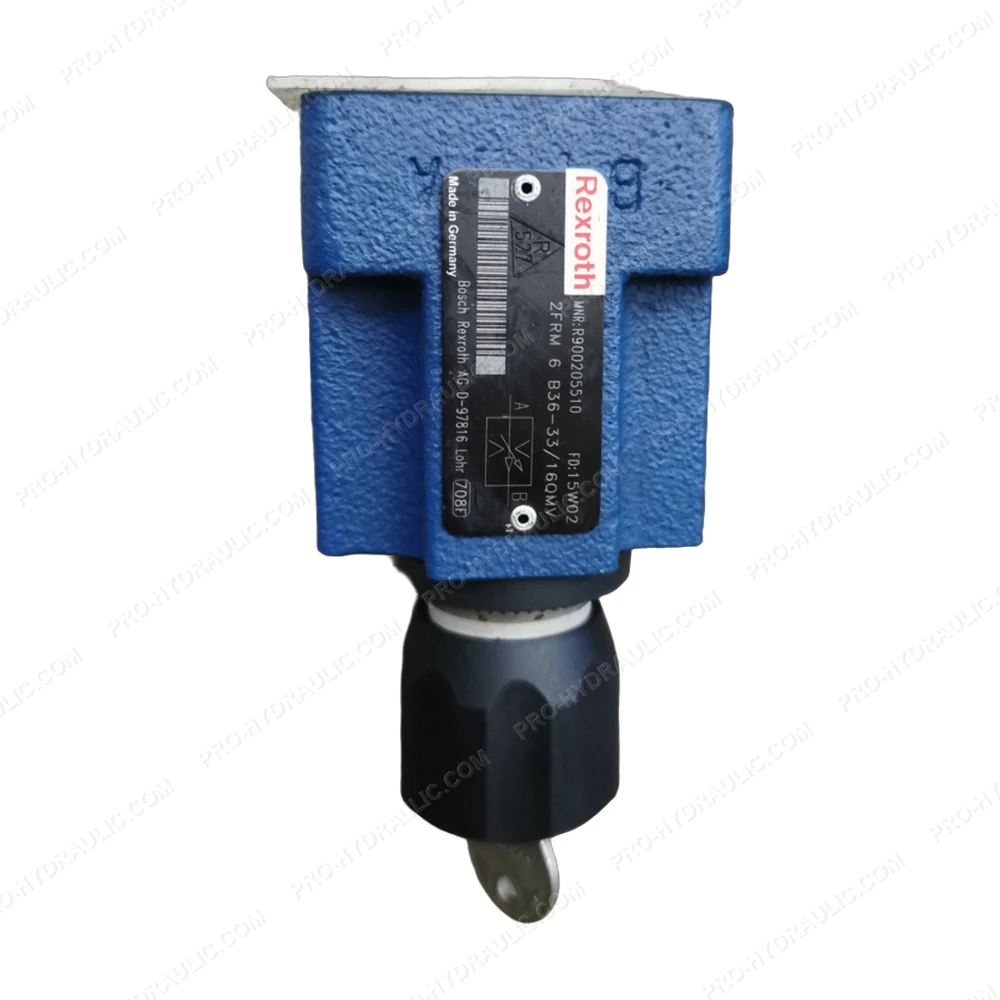

Rexroth 2FRM 6 B36-33/160MV / R900205510 2-Way Flow Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 2FRM 6 B36-33/160MV / R900205510 Flow Control Valve. This Germany-made hydraulic component features a precise flow control design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
