Product Overview

The REXROTH 3830109000 is a pneumatically actuated directional control valve engineered by Bosch Rexroth for precise control of compressed air flow direction in industrial automation and process systems. As part of Rexroth’s broad pneumatic valve portfolio, this unit utilizes a balanced spool-and-sleeve design that shifts via pneumatic pilot signal to route, block, or divert airflow with fast, repeatable response. The valve serves as a critical control element in pneumatic circuits, enabling directional sequencing of cylinders, actuators, and air-driven process equipment. Its robust housing and precision-machined internal components ensure minimal leakage and consistent switching performance across demanding duty cycles.

Technical Specifications

Engineering Features & Advantages

• Precision Performance: Balanced spool design delivers accurate flow direction control with minimal pressure drop and fast pneumatic pilot response for high-cycle industrial switching.
• Industrial Reliability: Built for continuous operation under severe industrial conditions with durable sealing elements and wear-resistant spool bore surfaces.
• Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in replacement without modification to existing pneumatic manifolds or piping.

Typical Industrial Applications

This Rexroth pneumatic directional control valve is commonly deployed in automated assembly lines for actuator sequencing, packaging machinery for cylinder extend/retract control, plastic injection molding machines for pneumatic clamping and ejection circuits, and general process automation systems requiring reliable directional air flow management. It is also suitable for material handling equipment, textile machinery, and food-grade pneumatic control panels where precise, repeatable valve actuation is essential.

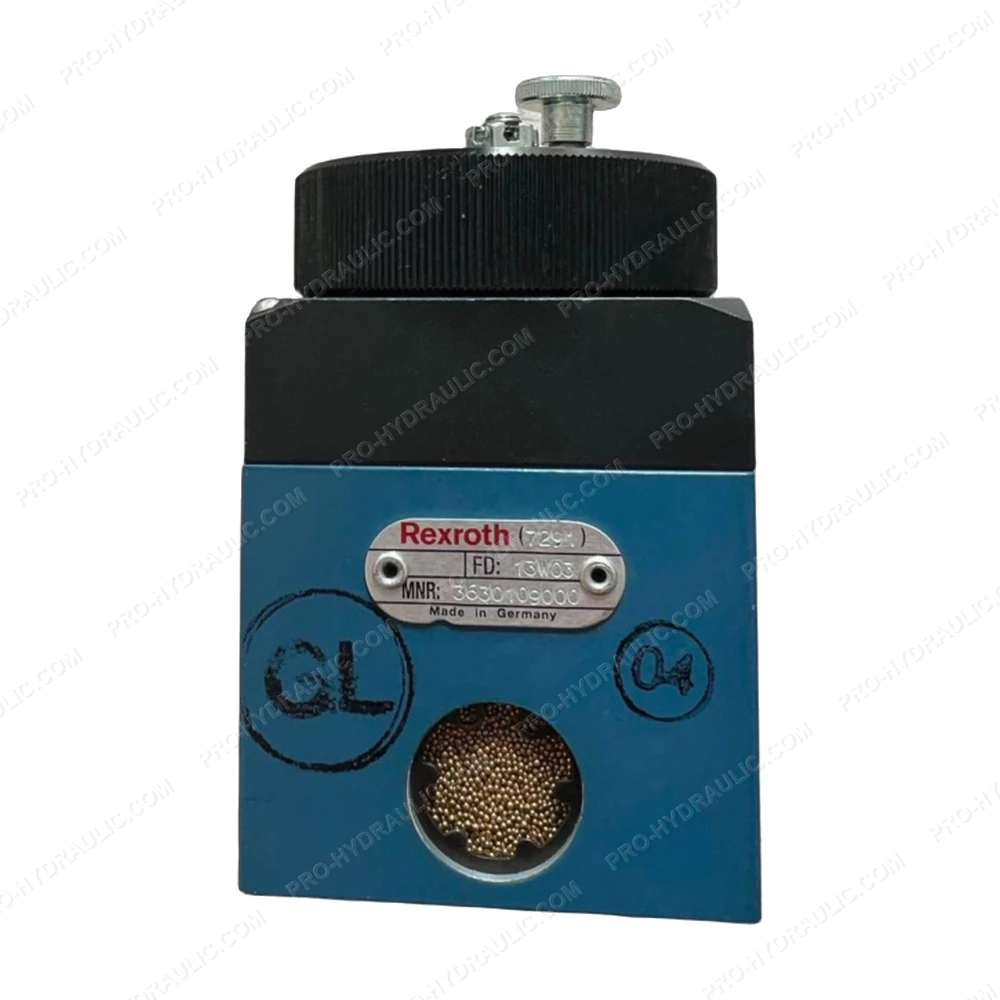

PRODUCT IMAGES
