Product Overview
The Rexroth 3DR16P5-53/100Y/00M (Material Number: R900916666) is a high-performance 3-way pressure reducing valve from the proven Rexroth 3DR series, engineered for precise downstream pressure regulation in demanding industrial hydraulic systems. Operating on a direct-operated, spring-loaded poppet/spool principle, this valve continuously senses outlet pressure and modulates flow to maintain a stable reduced pressure regardless of fluctuations in inlet pressure or system flow demand. The 3-way design enables both pressure reduction and pressure relief (return flow to tank) when outlet pressure exceeds the set value, making it ideal for circuits requiring bidirectional pressure control. With a nominal size of NG16 and a pressure rating of 100 bar, this valve is a direct-fit replacement for OEM installations and is widely deployed in plastic injection molding machines, metallurgical presses, and precision machine tool hydraulics.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | 3-Way Pressure Reducing Valve (Pressure Control Valve) |
| Model Designation | 3DR16P5-53/100Y/00M / R900916666 |
| Nominal Size | NG16 (DIN 24340 / ISO 4401 mounting pattern) |
| Operating Pressure | Up to 100 bar (secondary/reduced pressure setting range) |
| Adjustment Type | Manual adjustment with locknut (Y = hand knob/hex adjustment) |
| Mounting & Connection | Subplate mounting, ISO 4401 / DIN 24340 standard interface |
| Seal Material | NBR (Nitrile) — standard industrial hydraulic fluid compatibility |
| Fluid Compatibility | Mineral oil based hydraulic fluids (HL, HLP) per DIN 51524 |
Engineering Features & Advantages
- Precision Pressure Regulation: The direct-operated 3-way spool design delivers accurate, repeatable downstream pressure control with minimal hysteresis, ensuring consistent actuator performance across varying load conditions.
- 3-Way Pressure Relief Function: Unlike 2-way reducers, this valve actively relieves excess downstream pressure back to tank, preventing pressure spikes and protecting sensitive components in the secondary circuit.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with robust housing, hardened spool, and precision-machined bore for long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, including the R900916666 material number, ensuring drop-in installation without modification.
- Stable Performance Under Flow Variation: Compensated spool geometry maintains set pressure even as system flow demand changes, critical for multi-actuator circuits.
Typical Industrial Applications
This Rexroth 3-way pressure reducing valve is commonly specified in plastic injection molding machines for
PRODUCT IMAGES

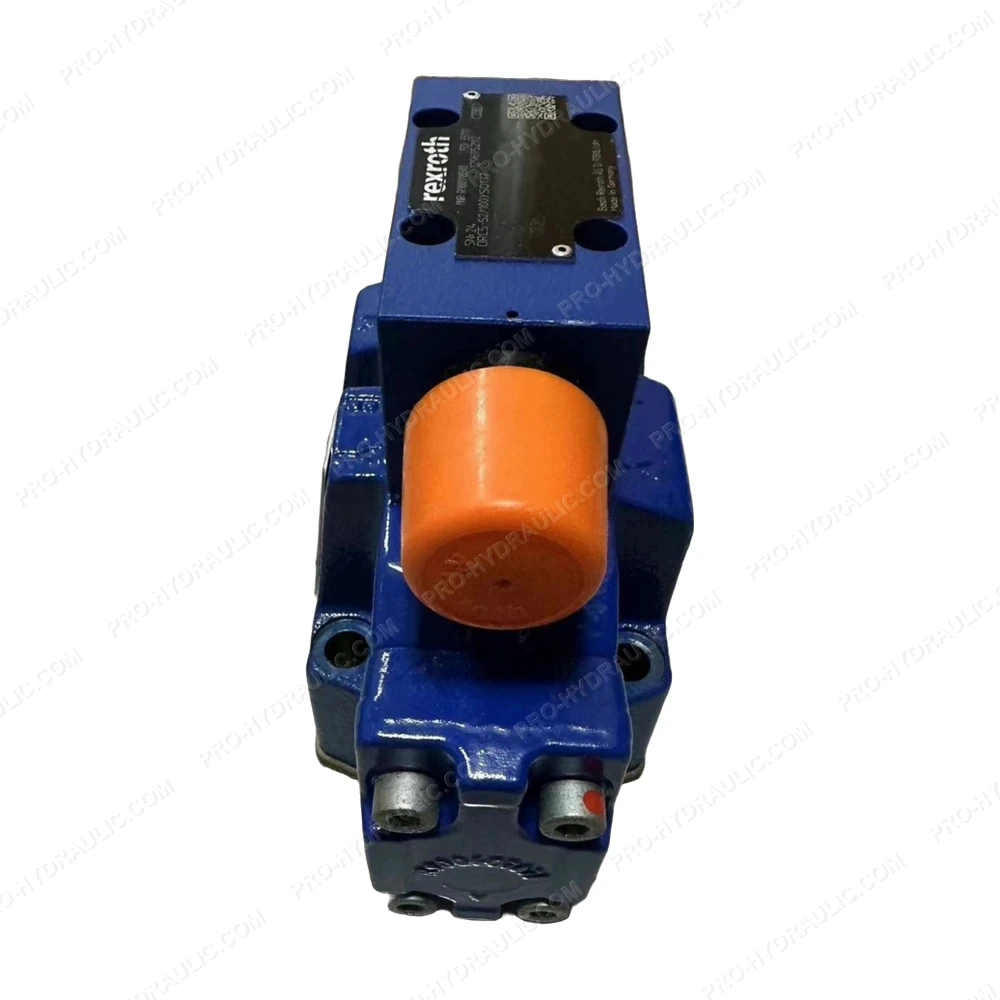

REXROTH 3DR16P5-53/100Y/00M / R900916666 3-Way Pressure Reducing Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 3DR16P5-53/100Y/00M / R900916666 Pilot Operated Pressure Relief Valve. This Germany-made hydraulic component features a pilot-operated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
